qVoice guidance interrupt operation
Voice guidance can be stopped by
pressing the talk button (Short press)
while it is being heard. A new voice input
command can then be spoken by the user.
· Press the talk button (Short press).
qHelp function use
The help function informs the user of all
the available voice commands under the
current conditions.
1. Press the talk button (Short press).
2.Say: [Beep]“Help”
3. Follow the prompts to receive the
appropriate voice guidance
instructions.
Convenient Use of the
Hands-Free System
qPhonebook usage
Phonebook registration
Phone numbers can be registered to the
Bluetooth Hands-Free phonebook.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Phonebook”
3.Prompt:“Select one of the following:
new entry, edit, list names, delete or
erase all..., or say“cancel”to return to
main menu.”
4.Say:[Beep]“New entry”
5.Prompt:“Name please.”
6.Say:[Beep]“XXXXX... (Ex.“Mary's
phone”)”(Say a voice tag for the name
registered.)
7.Prompt:“Adding XXXXX... (Ex.
“Mary's phone”) (Registered voice
tag). Is this correct?”
8.Say:[Beep]“Ye s”
9.Prompt:“Home, Work, Mobile, or
Pager?”
10.Say:[Beep]“Mobile”(Say“Home”,
“Work”,“Mobile”,or“Pager”, for the
desired location to be registered.)
11.Prompt:“Mobile”(Location to be
registered). Is this correct?
12.Say:[Beep]“Ye s”
13.Prompt:“Number, please.”
14.Say:[Beep]“XXXXXXXXXXX
(Ex.“555-1234”)”(Say the phone
number to be registered.)
Interior Comfort
Bluetooth Hands-Free
6-69
CX-7_8Z60-EA-08D_Edition2 Page291
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (292,1)
15.Prompt:“XXXXXXXXXXX (Ex.
“555-1234”) (Phone number
registration). Is this correct?”
16.Say:[Beep]“Ye s”
17.Prompt:“Number saved. Would you
like to add another number for this
entry?”
18.Say:[Beep]“Ye s”or“No”.
19. If“Ye s”, an additional phone number
registration can be made for the same
entry.
If“No”, the procedure proceeds to
Step 20.
20.Prompt:“Returning to main menu.”
Making calls using the phonebook
Telephone calls can be made by saying
the name of a person (voice tag) whose
phone number has been registered in
Bluetooth Hands-Free in advance.
For the phonebook setting method, refer
to (page 6-72).
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Call”
3.Prompt:“Name please.”
4.Say:[Beep]“XXXXX... (Ex.“John's
phone”)”(Say a voice tag registered in
the phonebook.)
5.Prompt:“Calling XXXXX... (Ex.
“John's phone”) XXXX (Ex.“at
home”). Is this correct?”(Voice tag and
phone number location registered in
phonebook).
6.Say:[Beep]“Ye s”
7.Prompt:“Dialing”
qRedialing function
Redialing the number of the person
previously dialed using the phone is
possible.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Redial”
3.Prompt:“Dialing”
qEmergency calls
A call can be made to the emergency
phone number (911) using the voice input
command.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Emergency”
3.Prompt:“Calling“911”, is this
correct?”
4.Say:[Beep]“Ye s”
5.Prompt:“Dialing”
qRefusing an incoming call
For incoming call refusal, refer to
“Receiving an incoming call”(page 6-68).
qMute
The microphone can be muted during a
call.
1. Press the talk button (Short press).
2.Say:[Beep]“Mute”
3.Prompt:“Microphone muted”
Canceling mute
1. Press the talk button (Short press).
2.Say:[Beep]“Mute off”
6-70
Interior Comfort
Bluetooth Hands-Free
CX-7_8Z60-EA-08D_Edition2 Page292
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (293,1)
3.Prompt:“Microphone unmuted”
qTransferring a call
Transferring a call from Hands-Free to
a mobile phone
Communication between the hands-free
unit and a mobile phone is canceled, and
the line can be switched to a standard call
using a mobile phone.
1. Press the talk button (Short press).
2.Say:[Beep]“Transfer call”
3.Prompt:“Transferred call to phone”
Transferring a call from a mobile
phone to Hands-Free
Communication between mobile phones
can be switched to Bluetooth Hands-Free.
1. Press the talk button (Short press).
2.Say:[Beep]“Transfer call”
3.Prompt:“Transferred call to Hands
Free system”
qMulti-call functions
Call waiting
A call can be interrupted to receive an
incoming call from a third party.
Call interrupt
A call can be switched to a new incoming
call.
1. Press the pick-up button.
2.Prompt:“Swapping calls.”
NOTE
lTo refuse an incoming call, press the hang-
up button.
lAfter receiving a new incoming call, the
previous call is placed on hold.
Making a call using a telephone
number
1. Press the talk button (Short press).
2.Say: [Beep]“Dial”
3.Prompt:“Number please”
4.Say: [Beep]
“XXXXXXXXXXX (Ex.“555-1234”)
(Telephone number)”
5.Prompt:
“Dialing XXXXXXXXXXX (Ex.
“555-1234”) (Telephone number) is
this correct?”
6.Say: [Beep]“Ye s”or“No”.
7. When“Ye s”is spoken, the procedure
proceeds to Step 8.
When“No”is spoken, the procedure
returns to Step 3.
8.Prompt:“Dialing”
Making calls using the phonebook
1. Press the talk button (Short press).
2.Say: [Beep]“Call”
3.Prompt:“Name please.”
4.Say: [Beep]
“XXXXX... (Ex.“John's phone”)”
(Say a voice tag registered in the
phonebook.)
5.Prompt:
“Calling XXXXX... (Ex.“John's
phone”) XXXX (Ex.“at home”). Is this
correct?”(Voice tag and phone number
location registered in phonebook).
6.Say: [Beep]“Ye s”
7.Prompt:“Dialing”
Interior Comfort
Bluetooth Hands-Free
6-71
CX-7_8Z60-EA-08D_Edition2 Page293
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (294,1)
Redialing function
1. Press the talk button (Short press).
2.Say: [Beep]“Redial”
3.Prompt:“Dialing”
Switching calls
Switching back to the previous call can
also be done.
Method 1
1. Press the pick-up button.
2.Prompt:“Swapping calls.”
Method 2
1. Press the talk button (Short press).
2.Say: [Beep]“Swap call”
3.Prompt:“Swapping calls”
Ending the current call
Press the hang-up button during the call.
qThree-way call function
Initiate
When two separate parties are established.
1. Press the talk button (Short press).
2.Say: [Beep]“Join call”
3.Prompt:“Joining calls”
Terminate
During a call between three parties.
Press the hang-up button.
qPhonebook settings
Editing phonebook
The data registered to the Bluetooth
Hands-Free phonebook can be edited.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Phonebook”
3.Prompt:“Select one of the following:
new entry, edit, list names, delete or
erase all..., or say“cancel”to return to
main menu.”
4.Say:[Beep]“Edit”
5.Prompt:“Please say the name of the
entry you would like to edit, or say
“List names”..., or say“cancel”to
return to main menu.”
6.Say:[Beep]“XXXXX... (Ex.“Mary's
phone”)”(Say the voice tag for the
registered name to be edited in the
phonebook.)
7.Prompt:“Home, Work, Mobile, or
Pager?”
8.Say:[Beep]“Home”(Say the
registered location to be edited:
“Home”,“Work”,“Mobile”,or
“Pager”).
9.Prompt:“XXXXX... (Ex.“Mary's
phone”) (Registered voice tag) XXXX
(Ex.“home”) (Registered location). Is
this correct?”
10.Say:[Beep]“Ye s”
11.Prompt:“The current number is
XXXXXXXXXXX (Ex.“555-1234”)
(Currently registered number). New
number, please.”
6-72
Interior Comfort
Bluetooth Hands-Free
CX-7_8Z60-EA-08D_Edition2 Page294
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (295,1)

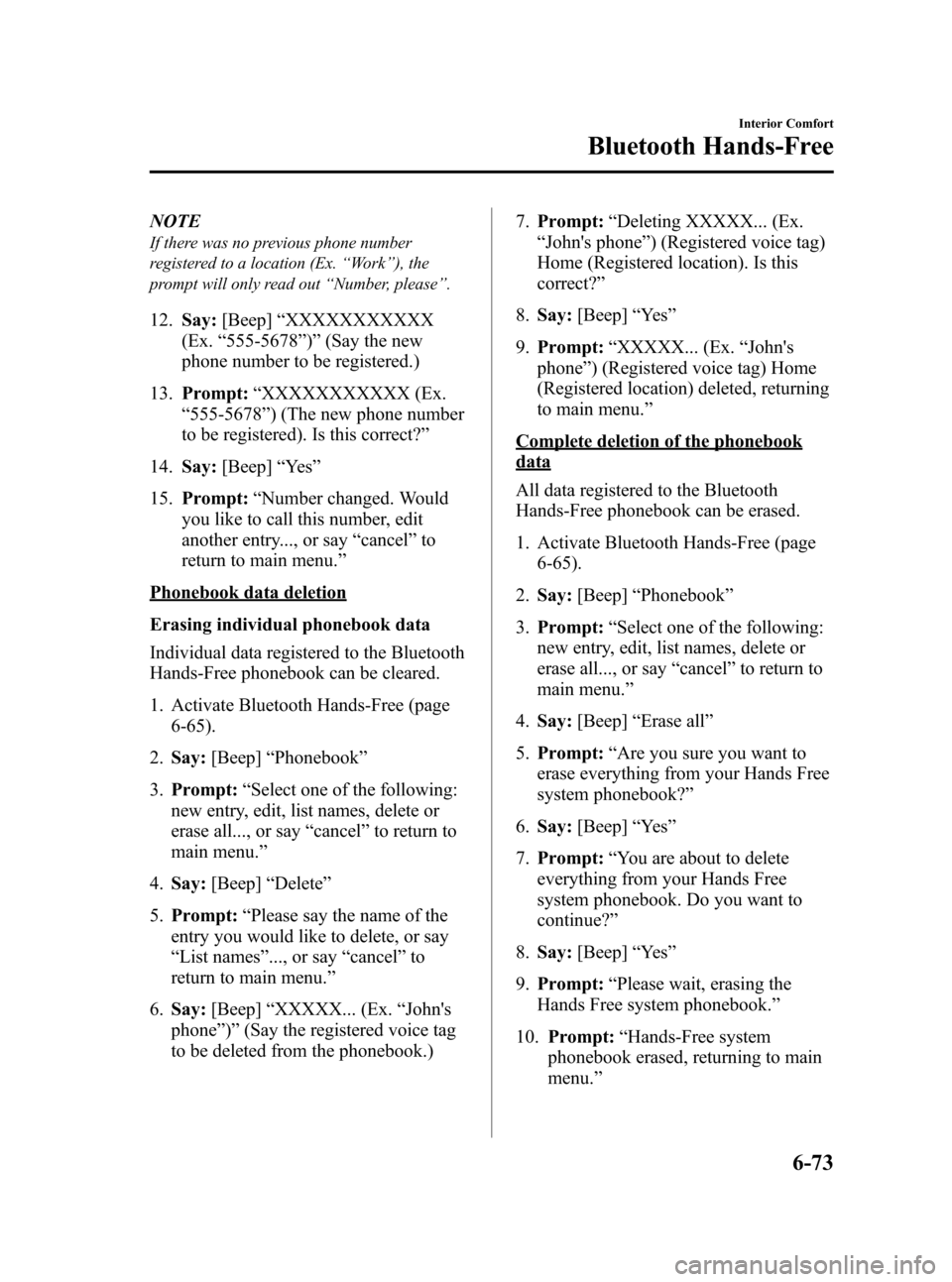

NOTE
If there was no previous phone number
registered to a location (Ex.“Work”), the
prompt will only read out“Number, please”.
12.Say:[Beep]“XXXXXXXXXXX
(Ex.“555-5678”)”(Say the new
phone number to be registered.)
13.Prompt:“XXXXXXXXXXX (Ex.
“555-5678”) (The new phone number
to be registered). Is this correct?”
14.Say:[Beep]“Ye s”
15.Prompt:“Number changed. Would
you like to call this number, edit
another entry..., or say“cancel”to
return to main menu.”
Phonebook data deletion
Erasing individual phonebook data
Individual data registered to the Bluetooth
Hands-Free phonebook can be cleared.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Phonebook”
3.Prompt:“Select one of the following:
new entry, edit, list names, delete or
erase all..., or say“cancel”to return to
main menu.”
4.Say:[Beep]“Delete”
5.Prompt:“Please say the name of the
entry you would like to delete, or say
“List names”..., or say“cancel”to
return to main menu.”
6.Say:[Beep]“XXXXX... (Ex.“John's
phone”)”(Say the registered voice tag
to be deleted from the phonebook.)7.Prompt:“Deleting XXXXX... (Ex.
“John's phone”) (Registered voice tag)
Home (Registered location). Is this
correct?”
8.Say:[Beep]“Ye s”
9.Prompt:“XXXXX... (Ex.“John's
phone”) (Registered voice tag) Home
(Registered location) deleted, returning
to main menu.”
Complete deletion of the phonebook
data
All data registered to the Bluetooth
Hands-Free phonebook can be erased.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Phonebook”
3.Prompt:“Select one of the following:
new entry, edit, list names, delete or
erase all..., or say“cancel”to return to
main menu.”
4.Say:[Beep]“Erase all”
5.Prompt:“Are you sure you want to
erase everything from your Hands Free
system phonebook?”
6.Say:[Beep]“Ye s”
7.Prompt:“You are about to delete
everything from your Hands Free
system phonebook. Do you want to
continue?”
8.Say:[Beep]“Ye s”
9.Prompt:“Please wait, erasing the
Hands Free system phonebook.”
10.Prompt:“Hands-Free system
phonebook erased, returning to main
menu.”
Interior Comfort
Bluetooth Hands-Free
6-73
CX-7_8Z60-EA-08D_Edition2 Page295
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (296,1)
Read-out of names registered to the
Bluetooth Hands-Free phonebook
Bluetooth Hands-Free can read out the list
of names registered to its phonebook.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Phonebook”
3.Prompt:“Select one of the following:
new entry, edit, list names, delete or
erase all..., or say“cancel”to return to
main menu.”
4.Say:[Beep]“List names”
5.Prompt:“XXXXX..., XXXXX...,
XXXXX... (Ex.“John's phone”, Mary's
phone, Bill's phone)”(Voice guidance
reads out the voice tags registered to
the phonebook.)
Press the talk button (Short press) during
the read-out at the desired name, and then
say one of the following voice commands
to execute it.
l“Continue”: Continues the list read-
out.
l“Call”: Calls the registered phonebook
data when the talk button is short-
pressed.
l“Edit”: Edits the registered phonebook
data when the talk button is short-
pressed.
l“Delete”: Deletes the registered
phonebook data when the talk button is
short-pressed.
l“Previous”: Returns to the previous
phonebook data in read-out when the
talk button is short-pressed.
l“Cancel”: Returns to main menu.
6.Prompt:“End of list, would you like
to start from the beginning?”
7.Say:[Beep]“No”8.Prompt:“Returning to main menu.”
qDTMF (dual tone multi-
frequency signal) transmission
This function is used when transmitting
DTMF via the user's voice. The receiver
of a DTMF transmission is generally a
home telephone answering machine or a
company's automated guidance call center
(When you send tone signals back
according to the voice guidance
recording).
1. Press the talk button (Short press).
2.Say:[Beep]“XXXX... send”(Say
DTMF code)
3.Prompt:
“Sending XXXX... (DTMF code)”
6-74
Interior Comfort
Bluetooth Hands-Free
CX-7_8Z60-EA-08D_Edition2 Page296
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (297,1)
Hands-Free Telephone Setting
qMobile phone
Mobile phone registration
For the registration of a Bluetooth
equipped mobile telephone to Bluetooth
Hands-Free, refer to“Bluetooth Hands-
Free preparation”(page 6-66).
Registered mobile phone read-out
Bluetooth Hands-Free can read-out the
mobile phones registered to its system.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Pairing options”
5.Prompt:“Do you want to pair a
phone, delete a phone, or list paired
phones?”
6.Say:[Beep]“List phones”
7.Prompt:“XXXXX..., XXXXX...,
XXXXX... (Ex. Phone A, phone B,
phone C)”(The voice guidance reads
out the phone tags registered to the
hands-free system.)
Press the talk button (Short press) during
the read-out at the desired phone, and then
say one of the following voice commands
to execute it.
l“Select”: Programmed the mobile
phone when the talk button is short-
pressed.
l“Continue”: Continues the list read-
out.
l“Delete”: Deletes the registered mobile
phone when the talk button is short-
pressed.
l“Previous”: Returns to the previous
mobile phone in read-out when the talk
button is short-pressed.
8.Prompt:“End of list, would you like
to start from the beginning?”
9.Say:[Beep]“No”
10.Prompt:“Returning to main menu.”
Mobile phone selection
This function is for switching to a
different mobile phone which has been
registered beforehand. The selected
mobile phone will remain in effect until
the ignition switch is turned off.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Select phone”
5.Prompt:“Please say 1 (priority 1) for
XXXXX... (Ex. phone A), 2 (priority
2) for XXXXX... (Ex. phone B...)”
6.Say:[Beep]“2”(Say the priority
number for the mobile phone to be
used as first priority.)
7.Prompt:“XXXXX... (Ex. phone B...)
(Registered phone tag) selected, is this
correct?”
8.Say:[Beep]“Ye s”
Interior Comfort
Bluetooth Hands-Free
6-75
CX-7_8Z60-EA-08D_Edition2 Page297
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (298,1)
9.Prompt:“XXXXX... (Ex. phone B...)
(Phone tag) will temporarily override
phone priorities, returning to main
menu.”
Registered mobile phone deletion
Registered mobile phones can be deleted
individually or collectively.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Pairing options”
5.Prompt:“Do you want to pair a
phone, delete a phone, or list paired
phones?”
NOTE
A registered mobile phone can be deleted
using the registration list.
6.Say:[Beep]“Delete a phone”
7.Prompt:“Please say 1 (priority 1) for
XXXXX... (Ex. phone A), 2 (priority
2) for XXXXX... (Ex. phone B...)”
(The voice guidance reads out each
phone in the order of priority and the
phone tag).
8.Say:[Beep]“2”(Say the order of
priority of the mobile phone to be
deleted.)
NOTE
Say“All”to delete all mobile phones.
9.Prompt:“Removing XXXXX... (Ex.
phone B...) (Registered phone tag). Is
this correct?”10.Say:[Beep]“Ye s”
11.Prompt:“Deleted”
qSecurity setting
If a passcode is set, the system cannot be
activated unless the passcode is input.
Passcode setting
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Passcode”
5.Prompt:“Passcode is disabled. Would
you like to enable it?”
6.Say:[Beep]“Ye s”
7.Prompt:“Please say a 4-digit passcode.
Remember this passcode. It will be
required to use this system.”
8.Say:[Beep]“XXXX”(Say a desired 4-
digit passcode,“PCode”.)
9.Prompt:“Passcode XXXX (Passcode,
PCode). Is this correct?”
10.Say:[Beep]“Ye s”
11.Prompt:“Passcode is enabled,
returning to main menu.”
Using Bluetooth Hands-Free with a
passcode
1. Activate Bluetooth Hands-Free (page
6-65).
2.Prompt:“Hands-Free system is locked.
State the passcode to continue.”
6-76
Interior Comfort
Bluetooth Hands-Free
CX-7_8Z60-EA-08D_Edition2 Page298
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (299,1)
3.Say:[Beep]“XXXX”(Say the set
passcode“PCode”.)
4. If the correct passcode is input, voice
guidance“XXXXXX... (Ex.“Mary's
phone) (Phone tag) is connected”is
announced.
If the passcode is incorrect, voice
guidance“XXXX (4-digit passcode,
Pcode) incorrect passcode, please try
again”is announced.
Canceling the passcode
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Passcode”
5.Prompt:“Passcode is enabled. Would
you like to disable it?”
6.Say:[Beep]“Ye s”
7.Prompt:“Passcode is disabled,
returning to main menu.”
Confirmation Prompts
The confirmation prompt confirms the
command content to the user before
advancing to the operation requested by
the user. When this function is turned on,
the system reads out the voice input
command previously received and
confirms whether the command is correct
before advancing to the command
execution.When the confirmation prompt function is
turned on:
(Ex.“Calling John's phone. Is this
correct?”)
When the confirmation prompt function is
turned off:
(Ex.“Calling John's phone.”)
NOTE
If the confirmation prompt function is turned
off when making an emergency call, the system
reads out and confirms the command before
executing it.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Setup”
3.Prompt:“Select one of the following:
pairing options, confirmation prompts,
select phone, language, or passcode...,
or say“cancel”to return to main
menu.”
4.Say:[Beep]“Confirmation prompts”
5.Prompt:“Confirmation prompts are
on/off. Would you like to turn
confirmation prompts off/on?”
6.Say:[Beep]“Ye s”
7.Prompt:“Confirmation prompts are
off/on, returning to main menu.”
Interior Comfort
Bluetooth Hands-Free
6-77
CX-7_8Z60-EA-08D_Edition2 Page299
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D

Black plate (300,1)
qVoice recognition learning
function (Speaker enrollment)
The voice recognition learning function
enables voice recognition appropriate to
the characteristics of the user's voice.
If the recognition of the voice input
commands to the system is not adequate,
this function can largely improve the
system's voice recognition of the user. If
your voice can be recognized sufficiently
without using this function, you may not
realize the added benefit of the function.
To register your voice, the voice input
command list must be read out. Read out
the list when the vehicle is parked.
Perform the registration in as quite a place
as possible (page 6-64).
The registration must be performed
completely. The required time is a few
minutes. The user needs to be seated in
the driver's seat with the voice input
command list for voice recognition
learning open to the page indicated below.
When voice recognition learning is
done for the first time
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say:[Beep]“Voice training”
3.Prompt:“This operation must be
performed in a quiet environment while
the vehicle is stopped. See the owner's
manual for the list of required training
phrases. Press and release the talk
button when you are ready to begin.
Press the hangup button to cancel at
any time.”
4. Press the talk button (Short press).5. The voice guidance reads out the voice
input command number (refer to the
voice input command list for voice
recognition learning). (Ex.“Please read
phrase 1”)
6.Say:[Beep]“0123456789”(Say the
voice input command for voice
recognition learning (1 to 8) according
to the voice guidance.)
7.Prompt:“Speaker enrollment is
complete, returning to main menu.”
NOTE
If an error occurred in the voice recognition
learning, re-learning can be done by pressing
the talk button (Short press).
Voice recognition re-learning
If voice recognition learning has already
been done.
1. Activate Bluetooth Hands-Free (page
6-65).
2.Say: [Beep]“Voice training”
3.Prompt:“Enrollment is enabled/
disable. Would you like to disable/
enable or retrain?”
4.Say: [Beep]“Retrain”
5.Prompt:“This operation must be
performed in a quiet environment while
the vehicle is stopped. See the owner's
manual for the list of required training
phrases. Press and release the talk
button when you are ready to begin.
Press the hangup button to cancel at
any time.”
6. Press the talk button (Short press).
6-78
Interior Comfort
Bluetooth Hands-Free
CX-7_8Z60-EA-08D_Edition2 Page300
Friday, May 30 2008 5:28 PM
Form No.8Z60-EA-08D
