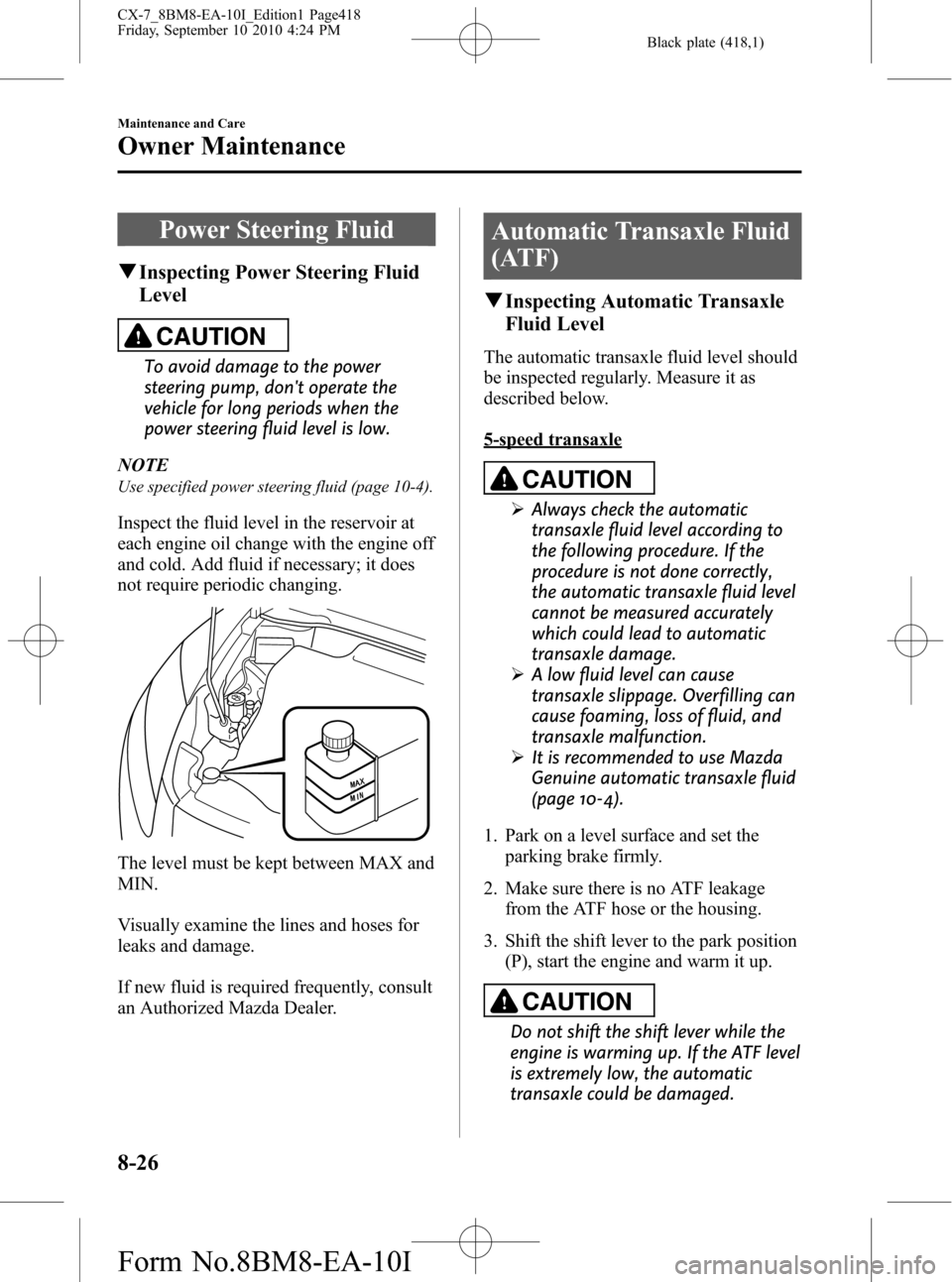

Power Steering Fluid
qInspecting Power Steering Fluid
Level
CAUTION
To avoid damage to the power
steering pump, don't operate the
vehicle for long periods when the
power steering fluid level is low.
NOTE
Use specified power steering fluid (page 10-4).
Inspect the fluid level in the reservoir at
each engine oil change with the engine off
and cold. Add fluid if necessary; it does
not require periodic changing.
The level must be kept between MAX and
MIN.
Visually examine the lines and hoses for
leaks and damage.
If new fluid is required frequently, consult
an Authorized Mazda Dealer.
Automatic Transaxle Fluid
(ATF)
qInspecting Automatic Transaxle
Fluid Level
The automatic transaxle fluid level should
be inspected regularly. Measure it as
described below.
5-speed transaxle
CAUTION
ØAlways check the automatic
transaxle fluid level according to
the following procedure. If the
procedure is not done correctly,
the automatic transaxle fluid level
cannot be measured accurately
which could lead to automatic
transaxle damage.
ØA low fluid level can cause
transaxle slippage. Overfilling can
cause foaming, loss of fluid, and
transaxle malfunction.
ØIt is recommended to use Mazda
Genuine automatic transaxle fluid
(page 10-4).
1. Park on a level surface and set the
parking brake firmly.
2. Make sure there is no ATF leakage
from the ATF hose or the housing.
3. Shift the shift lever to the park position
(P), start the engine and warm it up.
CAUTION
Do not shift the shift lever while the
engine is warming up. If the ATF level
is extremely low, the automatic
transaxle could be damaged.
8-26
Maintenance and Care
Owner Maintenance
CX-7_8BM8-EA-10I_Edition1 Page418
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (419,1)
4. While the engine is still idling, pull out
the dipstick and wipe it clean, and then
put it back.
5. Check the ATF level. If there is no ATF
adhering 5 mm from the end of the
dipstick, add ATF.
CAUTION
If there is no ATF adhering to the
dipstick even after the engine has
been warmed up, do not drive the
vehicle. Otherwise, the automatic
transaxle could be damaged.
6. Shift the shift lever to each range and
position, and make sure there is no
abnormality.
7. Drive the vehicle on city roads for
5 km (3.1 mile) or more.
8. Park on a level surface and set the
parking brake firmly.
9. Shift the shift lever to the park position
(P), check the ATF level while the
engine is idling, and make sure that the
ATF level is within the proper level. If
the ATF level is not within the proper
level, add ATF.
The proper fluid level is marked on the
dipstick as follows.
Full
OK
Low
6-speed transaxle
The volume of fluid changes with
temperature. Fluid must be checked while
idling the engine without driving at
normal operating temperature.
CAUTION
ØLow fluid level causes transaxle
slippage. Overfilling can cause
foaming, loss of fluid, and
transaxle malfunction.
ØIt is recommended to use Mazda
Genuine automatic transaxle fluid
(page 10-4).
1. Park on a level surface and set the
parking brake firmly.
2. Start the engine and depress the brake
pedal.
3. Move the shift lever through all ranges,
then set it at P.
WARNING
Make sure the brake pedal is applied
before shifting the shift lever:
Shifting the shift lever without first
depressing the brake pedal is
dangerous. The vehicle could move
suddenly and cause an accident.
4. With the engine still idling, pull out the
dipstick, wipe it clean, and put it back.
Maintenance and Care
Owner Maintenance
8-27
CX-7_8BM8-EA-10I_Edition1 Page419
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (453,1)
NOTElDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-33.
qPlastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
lHigh water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended
period of time, it could deform plastic
parts or damage the paint.
lDo not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.
lIn addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.
Maintenance and Care
Appearance Care
8-61
CX-7_8BM8-EA-10I_Edition1 Page453
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (509,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil2.3-liter engineWith oil filter replacement 5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
2.5-liter engineWith oil filter replacement 5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter replacement 4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant 9.0 L (9.5 US qt, 7.9 Imp qt)
Automatic transaxle fluid5-speed transaxle 8.14 L (8.60 US qt, 7.16 Imp qt)
6-speed transaxle 7.0 L (7.4 US qt, 6.2 Imp qt)
Transfer case oil 1.2 L (1.3 US qt, 1.1 Imp qt)
Rear differential oil 1.0 L (1.1 US qt, 0.9 Imp qt)
Washer fluidWith low washer fluid level warning
light4.5 L (4.8 US qt, 4.0 Imp qt)
Without low washer fluid level
warning light2.5 L (2.6 US qt, 2.2 Imp qt)
Fuel tank2.3-liter engine 69.0 L (18.2 US gal, 15.2 Imp gal)
2.5-liter engine 62.0 L (16.4 US gal, 13.6 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall lengthWith license plate holder 4,694 mm (184.8 in)
Without license plate holder 4,682 mm (184.3 in)
Overall width 1,872 mm (73.7 in)
Overall height 1,645 mm (64.8 in)
Front tread17 inch 1,627 mm (64.1 in)
18 or 19 inch 1,617 mm (63.7 in)
Rear tread17 inch 1,622 mm (63.9 in)
18 or 19 inch 1,612 mm (63.5 in)
Wheelbase 2,750 mm (108.3 in)
qWeights
2.3-liter engine
ItemWeight
2WD AWD
GVWR (Gross Vehicle Weight Rating) 2,233 kg (4,923 lbs) 2,322 kg (5,119 lbs)
GAWR (Gross Axle Weight Rating)Front 1,188 kg (2,619 lbs) 1,217 kg (2,683 lbs)
Rear 1,049 kg (2,313 lbs) 1,115 kg (2,458 lbs)
Specifications
10-5
CX-7_8BM8-EA-10I_Edition1 Page509
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I
