MAZDA MODEL CX-7 2011 Owners Manual (in English)

Black plate (361,1)
When the vehicle is tilted due to the weight of passengers and load
When the vehicle rear is lowered, the object displayed on the screen appears farther than
the actual distance.
VarianceObject
Interior Comfort
Interior Equipment
6-125
CX-7_8BM8-EA-10I_Edition1 Page361
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (362,1)
When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.
Appears
farther than
actual
distanceAppears
closer than
actual
distance
Object at actual
position Object at actual position
Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object.Object on screen
6-126
Interior Comfort
Interior Equipment
CX-7_8BM8-EA-10I_Edition1 Page362
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (363,1)
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
qFront
The front cup holder is in the center
console.
qRear
The rear cup holder is on the rear center
armrest.
Interior Comfort
Interior Equipment
6-127
CX-7_8BM8-EA-10I_Edition1 Page363
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

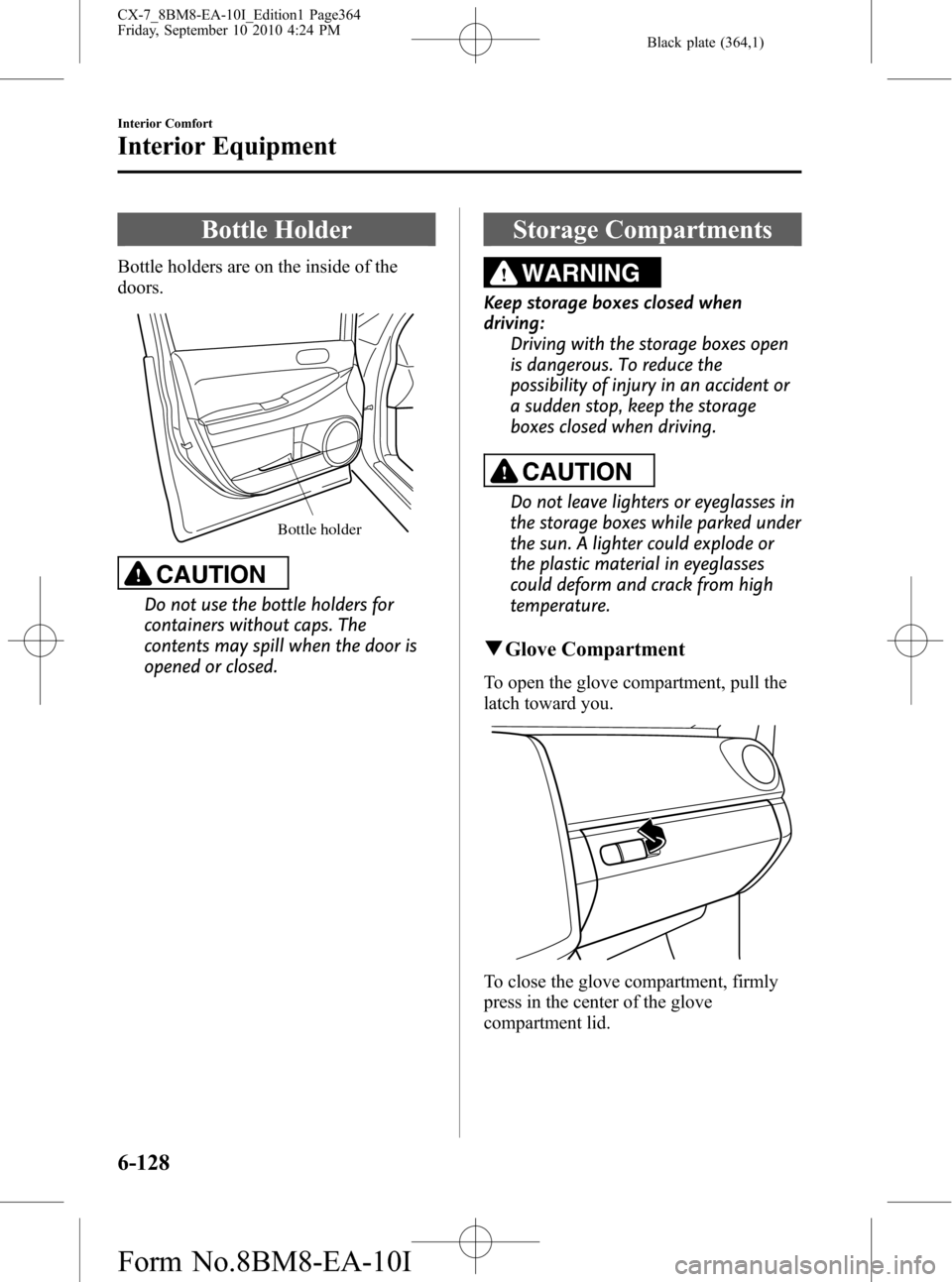

Black plate (364,1)
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
6-128
Interior Comfort
Interior Equipment
CX-7_8BM8-EA-10I_Edition1 Page364
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (365,1)
qCenter Console
To open, push the button.
The center console has a lockable lid,
insert the key into the slot; then turn the
key clockwise to lock, counterclockwise
to unlock.
Lock
Unlock
Storage box and tray
The storage box and tray can be removed.
Storage box Storage tray
qCargo Securing Loops
WARNING
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
Interior Comfort
Interior Equipment
6-129
CX-7_8BM8-EA-10I_Edition1 Page365
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (366,1)
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Type A
The ignition must be switched to ACC or
ON.
Type B
The accessory sockets can be used
regardless of whether the ignition is on or
off.
6-130
Interior Comfort
Interior Equipment
CX-7_8BM8-EA-10I_Edition1 Page366
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (367,1)
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
ØDo not insert the cigarette
lighter into the accessory
socket.
ØNoise may occur on the audio
playback or TV reception
depending on the device connected
to the accessory socket.
ØDepending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-131
CX-7_8BM8-EA-10I_Edition1 Page367
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (368,1)
6-132
CX-7_8BM8-EA-10I_Edition1 Page368
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (369,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-6
Overheating ................................................................................. 7-12
Overheating ............................................................................. 7-12
Emergency Starting .................................................................... 7-14
Starting a Flooded Engine ....................................................... 7-14
Jump-Starting .......................................................................... 7-15
Push-Starting ........................................................................... 7-18
Emergency Towing ..................................................................... 7-19
Towing Description ................................................................. 7-19
Tiedown Hooks ....................................................................... 7-20
Recreational Towing ............................................................... 7-23
7-1
CX-7_8BM8-EA-10I_Edition1 Page369
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (370,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
CX-7_8BM8-EA-10I_Edition1 Page370
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I
