qRequest Switch Inoperable
Warning Beep
If the request switch for a front door or the
liftgate is pressed under the following
conditions while the advanced key is
being carried, a beep will be heard 6 times
to indicate that the front doors and the
liftgate cannot be locked.
lA door or the liftgate is open (door ajar
included).
lThe ignition has not been switched off.lThe auxiliary key is inserted into the
ignition switch.
qAdvanced Key Battery Dead
Warning
When the ignition is switched to ACC or
switched off from ON, the KEY indicator
light (green) flashes for approximately 30
seconds indicating that the remaining
battery power is low. Replace with a new
battery before the advanced key becomes
unusable.
Refer to Advanced Key Maintenance
(page 3-5).
NOTE
The advanced key can be set so that the KEY
indicator light (green) does not flash even if
the battery power is low.
Refer to Personalization Features on page
10-8.
qEngine Start Not Permitted Warning
Under the following conditions, the KEY
warning light (red) flashes to inform the
driver that the ignition will not switch to
ACC even if the ignition is switched off.
lThe advanced key battery is dead.lThe advanced key is not within
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
qAdvanced Key Left-in-vehicle
Warning Beep
If an advanced key is left in the vehicle
cabin and all the doors and the liftgate are
locked using a separate advanced key, a
beep sound is heard for about 10 seconds
to remind the driver that the advanced key
has been left in the vehicle cabin. If this
happens, the doors and the liftgate lock
but the functions of the advanced key left
in the vehicle cabin may be temporarily
suspended. Perform the following
procedure to restore the functions of the
advanced key (page 3-17).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-19
CX-7_8BM8-EA-10I_Edition1 Page97
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (98,1)
When Warning Indicator/Beep is Activated
Under the following conditions, warning beeps are heard and a warning/indicator light in
the instrument cluster illuminates to notify the driver of improper operation of the
advanced key to prevent theft of the vehicle (page 3-18).
Warning How to check
When a door is open, a continuous beep sound will be heard.Check whether the ignition has been
switched off.
When a door is open, three beep sounds are heard, and the KEY
warning light (red) in the instrument cluster flashes.Check whether the advanced key has
been removed from the vehicle.
When a door is closed, a beep sound is heard six times, and the KEY
warning light (red) in the instrument cluster flashes.Check whether the advanced key has
been removed from the vehicle.
When locking the doors , the chime sounds for about ten seconds.Check whether the advanced key has
been left in the vehicle.
When attempting to lock the doors by pressing the request switch on
the front doors, and six beep sounds are heard.Check whether the ignition has been
switched off.
Check whether a door or the liftgate is
open.
When the KEY indicator light (green) flashes in the instrument cluster.The advanced key battery power is low.
Replace the battery with a new one.
Refer to Advanced Key Maintenance on
page 3-5.
When the KEY warning light (red) remains illuminated in the
instrument cluster.The advanced key is malfunctioning. Park
the vehicle in a safe place, and use the
auxiliary key to continue driving the
vehicle. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
3-20
Knowing Your Mazda
Advanced Keyless Entry and Start System
CX-7_8BM8-EA-10I_Edition1 Page98
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (101,1)
qTransmitter
Lock button
Unlock button
Panic button
Operation
indicator light
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound.NOTE
lDoors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. However, the
hazard warning lights will not flash and the
horn will not sound.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to the theft-deterrent system on page
3-52.
lAll doors and the liftgate cannot be locked
when the key is in the ignition switch.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds.
Knowing Your Mazda
Doors and Locks
3-23
CX-7_8BM8-EA-10I_Edition1 Page101
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (102,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors and the liftgate are
unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
unlock button on the transmitter while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to the theft-deterrent system on page
3-52.
NOTE
Auto re-lock function
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if one
of the doors or the liftgate is not opened within
about 30 seconds.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
Turning on the alarm
Pressing the panic button for 1 second or
more will trigger the alarm for about 2
minutes and 30 seconds, and the
following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.Turning off the alarm
Press any button on the transmitter.
3-24
Knowing Your Mazda
Doors and Locks
CX-7_8BM8-EA-10I_Edition1 Page102
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (111,1)

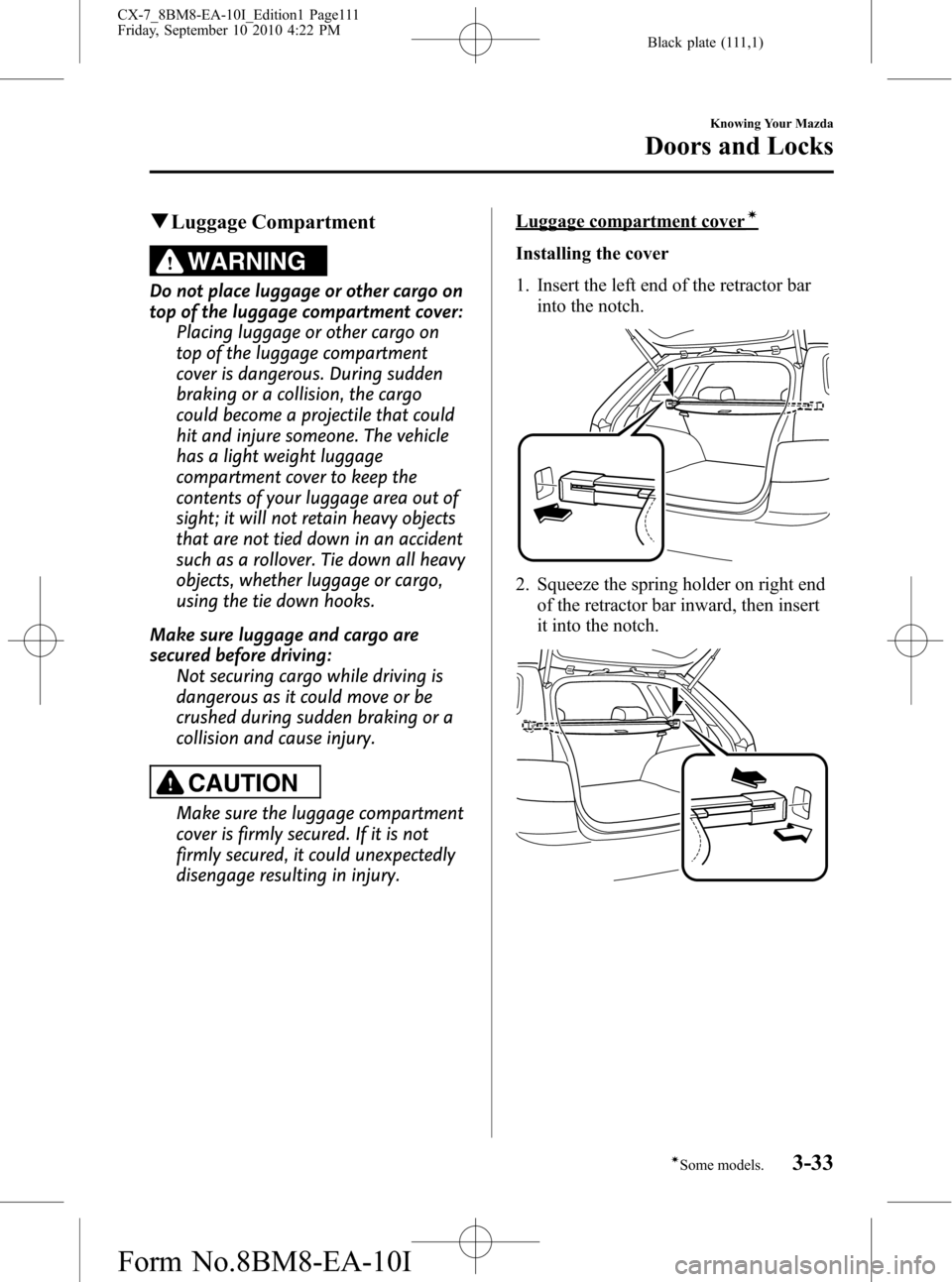

qLuggage Compartment
WARNING
Do not place luggage or other cargo on
top of the luggage compartment cover:
Placing luggage or other cargo on
top of the luggage compartment
cover is dangerous. During sudden
braking or a collision, the cargo
could become a projectile that could
hit and injure someone. The vehicle
has a light weight luggage
compartment cover to keep the
contents of your luggage area out of
sight; it will not retain heavy objects
that are not tied down in an accident
such as a rollover. Tie down all heavy
objects, whether luggage or cargo,
using the tie down hooks.
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
CAUTION
Make sure the luggage compartment
cover is firmly secured. If it is not
firmly secured, it could unexpectedly
disengage resulting in injury.
Luggage compartment coverí
Installing the cover
1. Insert the left end of the retractor bar
into the notch.
2. Squeeze the spring holder on right end
of the retractor bar inward, then insert
it into the notch.
Knowing Your Mazda
Doors and Locks
3-33íSome models. CX-7_8BM8-EA-10I_Edition1 Page111
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (116,1)
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-filler cap,
loosen the cap slightly and wait for any
hissing to stop. Then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel
tank and the fuel-filler cap is
removed too quickly.
Before refueling, stop the engine, and
always keep sparks and flames away
from the filler neck:
Fuel vapor is dangerous. It could be
ignited by sparks or flames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
filler cap or not using a fuel-filler cap
may result in fuel leak, which could
result in serious burns or death in an
accident.
CAUTION
Always use only a genuine Mazda
fuel-filler cap or an approved
equivalent, available at an
Authorized Mazda Dealer. The wrong
cap can result in a serious
malfunction of the fuel and emission
control systems. It may also cause
the check engine light in the
instrument cluster to illuminate.
3-38
Knowing Your Mazda
Doors and Locks
CX-7_8BM8-EA-10I_Edition1 Page116
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (117,1)
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the fuel-filler cap, turn it
counterclockwise.
To close the fuel-filler cap, turn it
clockwise until two or more clicks are
heard.
Open
Close
CAUTION
If the check fuel cap warning light
illuminates, the fuel-filler cap may
not be properly installed. If the
warning light illuminates, park your
vehicle safely off the right-of-way,
remove the fuel-filler cap and
reinstall it correctly. After the cap has
been correctly installed, the fuel cap
warning light may continue to
illuminate until a number of driving
cycles have been completed. A drive
cycle consists of starting the engine
(after four or more hours with the
engine off) and driving the vehicle on
city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
NOTE
The removed cap can be attached to the inner
side of the lid during refueling to prevent fuel
on the cap from dripping onto the vehicle.
Knowing Your Mazda
Doors and Locks
3-39
CX-7_8BM8-EA-10I_Edition1 Page117
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (130,1)
Theft-Deterrent Systemí
If the theft deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
Refer to Operation on page 3-52.
NOTE
lThe theft-deterrent system operates with the
key or the keyless entry system transmitter.
l(With advanced key)
The theft-deterrent system can also be
operated using the advanced keyless
function.
The system operates only when the driver is
in the vehicle or within operational range
while the advanced key is being carried.
lThe system will not function unless it is
properly armed. To properly secure the
vehicle, always make sure all windows are
completely closed and all doors and the
liftgate are locked before leaving the
vehicle. Remember to take your key and
transmitter.
qOperation
System triggering conditions
The horn sounds intermittently and the
hazard warning lights flash for about 30
seconds when the system is triggered by
any one of the following:
lForcing open a door, the hood or the
liftgate.
lUnlocking a door with the inside door-
lock knob.
lUnlocking a door with the door lock
switch.
lOpening a door by operating an inside
door-lock knob.
lOpening the hood by operating the
hood release handle.
If the system is triggered again, the lights
and horn will activate until a door or the
liftgate is unlocked with the key or with
the transmitter.
(With advanced key)
The lights and horn can also be
deactivated by pressing the request
switch.
NOTE
If the battery goes dead while the theft-
deterrent system is armed, the horn will
activate and the hazard warning lights will
flash when the battery is charged or replaced.
qHow to Arm the System
1. Close the windows and the moonroofí
securely.
2. Remove the key from the ignition
switch.
(With advanced key)
Switch the ignition off with the start
knob.
3. Make sure all the windows, the
moonroof
í, and the hood are closed.
Close and lock all doors and the
liftgate from the outside using the key
or press the lock button on your
keyless entry system transmitter.
The hazard warning lights will flash
once.
The following method will also arm the
theft-deterrent system:
(With advanced key)
Press a request switch or the lock
button on the transmitter.
(Without advanced key)
Close the hood and the liftgate. Press
the area on the door-lock switch
marked“
”once. Close all doors.
3-52
Knowing Your Mazda
íSome models.
Security System
CX-7_8BM8-EA-10I_Edition1 Page130
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (131,1)
The theft deterrent system can also be
armed by activating the auto re-lock
function with all the doors, the liftgate and
the hood closed.
NOTE
Locking the doors with the inside door-lock
knob will not arm the system.
4. After 20 seconds, the system is fully
armed.NOTE
lAuto re-lock function
After unlocking with the transmitter or the
request switch, all doors and the liftgate
will automatically lock and the hazard
warning lights will flash if any of the
following operations are not performed
within about 30 seconds.
lA door or the liftgate is opened.lThe auxiliary key is inserted into the
ignition switch (with advanced key).
lThe key is inserted in the ignition switch.lThe start knob is pushed (with advanced
key).
lThe ignition is switched ON.lThe system will disarm if one of the
following operations takes place within 20
seconds after closing the hood and locking
all the doors and the liftgate:
lPressing the unlock button on the
transmitter.
lAny door or the liftgate is opened.lUnlocking a door with the inside door-
lock knob.
lUnlocking the driver's door with the key.lThe hood is opened.lThe key is inserted in the ignition switch.lThe auxiliary key is inserted into the
ignition switch (With advanced key).
lThe start knob is pressed into the
ignition switch or a request switch is
pressed (With advanced key).
lThe ignition is switched ON.
To rearm the system, do the arming
procedure again.
lWhen the doors are locked by pressing the
lock button on the transmitter or using the
key while the theft-deterrent system is
armed, the hazard warning lights will flash
once to indicate that the system is armed.
Knowing Your Mazda
Security System
3-53
CX-7_8BM8-EA-10I_Edition1 Page131
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I

Black plate (132,1)
qTo Turn off an Armed System
An armed system can be turned off by any
one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lInsert the key into the ignition switch
and switch the ignition ON.
l(With advanced key)lPress a request switch or the unlock
button on the transmitter.
lSwitch the ignition ON with the
start knob.
The hazard warning lights will flash twice
to indicate that the system is turned off.
NOTE
When the doors are unlocked by pressing the
unlock button on the transmitter or using the
key while the theft-deterrent system is turned
off, the hazard warning lights will flash twice
to indicate that the system is turned off.
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door with the key.lPress the unlock button on the keyless
entry system transmitter.
lThe engine is started with the ignition
key.
l(With advanced key)lPress a request switch.lPress the unlock button on the
transmitter.
lThe engine is started with the start
knob.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized Mazda
Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove compartment.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
3-54
Knowing Your Mazda
Security System
CX-7_8BM8-EA-10I_Edition1 Page132
Friday, September 10 2010 4:22 PM
Form No.8BM8-EA-10I
