CAUTION
Limited-Slip Differential system;
don't use the following:
ØTires not of the designated size
ØTires of different sizes or types at
the same time
ØTires not sufficiently inflated
If these instructions aren't followed,
the rotation of the left and right
wheels will be different and will thus
apply a constant load on the limited-
slip differential.
This will cause a malfunction.
qReplacing a Tire
WARNING
Always use tires that are in good
condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.
Replace all four tires at the same time:
Replacing just one tire is dangerous.
It could cause poor handling and
poor braking resulting in loss of
vehicle control. Mazda strongly
recommends that you replace all four
tires at the same time.
CAUTION
(With Tire Pressure Monitoring
System)
When replacing/repairing the tires or
wheels or both, have the work done
by an Authorized Mazda Dealer, or
the tire pressure sensors may be
damaged.NOTE
(With Tire Pressure Monitoring System)lWhen tires with steel wire reinforcement in
the sidewalls are used, the system may not
function correctly even with a genuine
wheel.
Refer to System Error Activation on page
5-33.
lBe sure to install the tire pressure sensors
whenever tires or wheels are replaced.
Refer to Tires and Wheels on page 5-33.

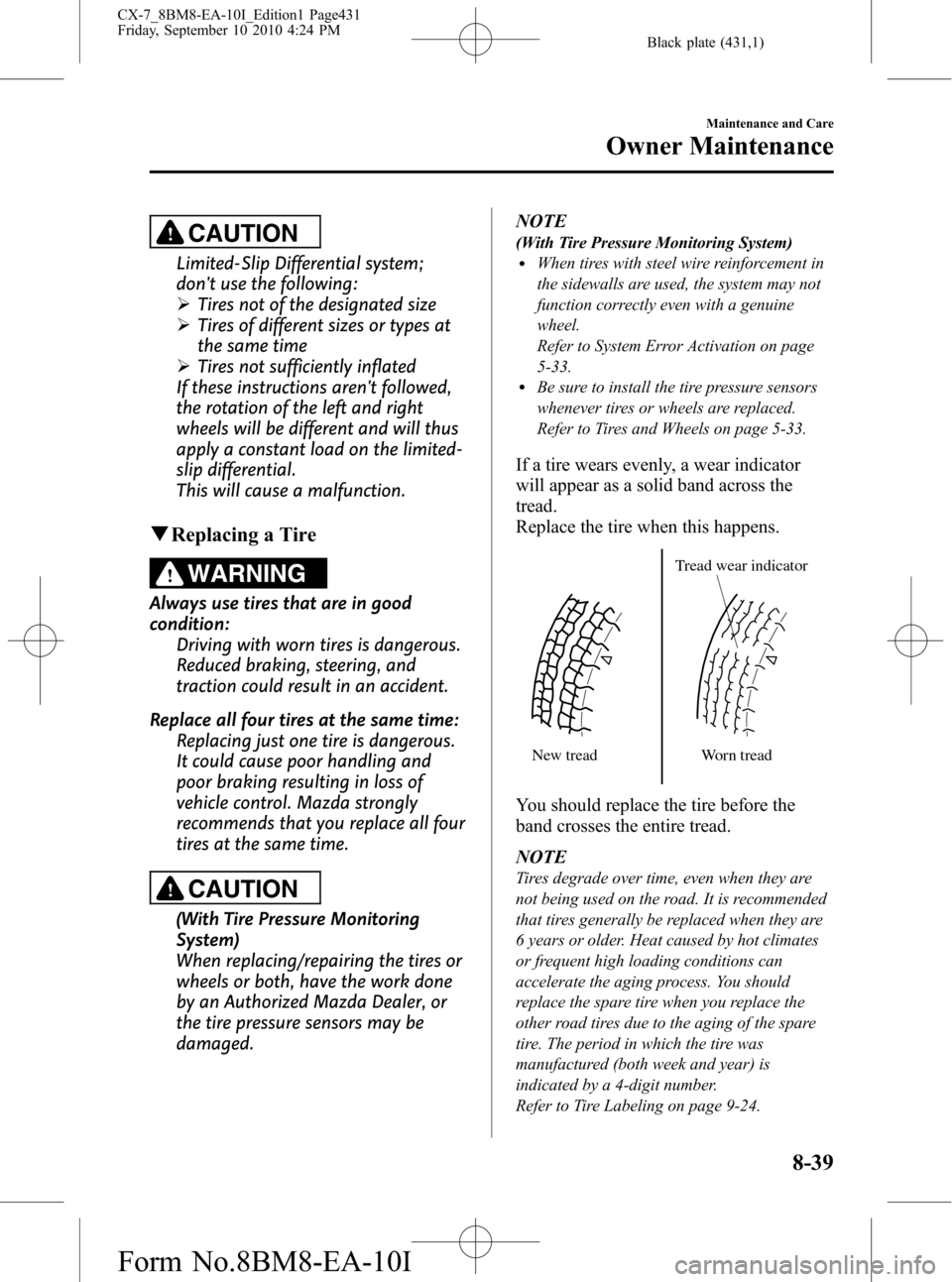

If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace the tire before the
band crosses the entire tread.
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 9-24.
Maintenance and Care
Owner Maintenance
8-39
CX-7_8BM8-EA-10I_Edition1 Page431
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (432,1)
qTemporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it's properly inflated
and stored.
NOTE
The temporary spare tire condition gradually
deteriorates even if it has not been used.
The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
(Except Mexico)
Maintain its pressure at 420 kPa (4.2 bar,
60 psi).
(Mexico)
Maintain its pressure at 250 kPa (2.5 bar,
36 psi).
CAUTION
ØDo not use your temporary spare
tire rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage
both tire and rim.
ØThe temporary spare tire has a
tread life of less than 5,000 km
(3,000 miles). The tread life may
be shorter depending on driving
conditions.
ØThe temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator
appears, replace the tire with the
same type of temporary spare
(page 8-39).NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 9-24.
qReplacing a Wheel
WARNING
Always use wheels of the correct size
on your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident.
8-40
Maintenance and Care
Owner Maintenance
CX-7_8BM8-EA-10I_Edition1 Page432
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (433,1)
CAUTION
ØA wrong-sized wheel may
adversely affect:
ØTire fit
ØWheel and bearing life
ØGround clearance
ØSnow-chain clearance
ØSpeedometer calibration
ØHeadlight aim
ØBumper height
ØTire Pressure Monitoring
System
Ø(With Tire Pressure Monitoring
System)
ØWhen replacing/repairing the
tires or wheels or both, have the
work done by an Authorized
Mazda Dealer, or the tire
pressure sensors may be
damaged.
ØThe wheels equipped on your
Mazda are specially designed
for installation of the tire
pressure sensors. Do not use
non-genuine wheels, otherwise
it may not be possible to install
the tire pressure sensors.
NOTE
Be sure to install the tire pressure sensors
whenever tires or wheels are replaced. Refer to
Tires and Wheels on page 5-33.
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset
(inset/outset).
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
8-41
CX-7_8BM8-EA-10I_Edition1 Page433
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (434,1)
Light Bulbs
Headlights (Low beam) Headlights (High beam)
High-mount brake lightFog lights
Front turn signal lights/Parking lightsSide turn signal lights
License plate lights
Brake lights/Taillights Overhead light/Map lights (Front) Overhead light (Rear)
Front side marker lights
Rear turn signal lights
Rear side marker lights
Reverse lights
Luggage compartment light
Some models.
8-42
Maintenance and Care
Owner Maintenance
CX-7_8BM8-EA-10I_Edition1 Page434
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (435,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Replacing a headlight bulb
High-beam bulb
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Lift the hood.3. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the high-beam bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Disconnect the bulb from the electrical
connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
5. Install the new bulb in the reverse order
of removal.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulb)
1. Make sure the headlight switch is off.
Maintenance and Care
Owner Maintenance
8-43
CX-7_8BM8-EA-10I_Edition1 Page435
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (436,1)

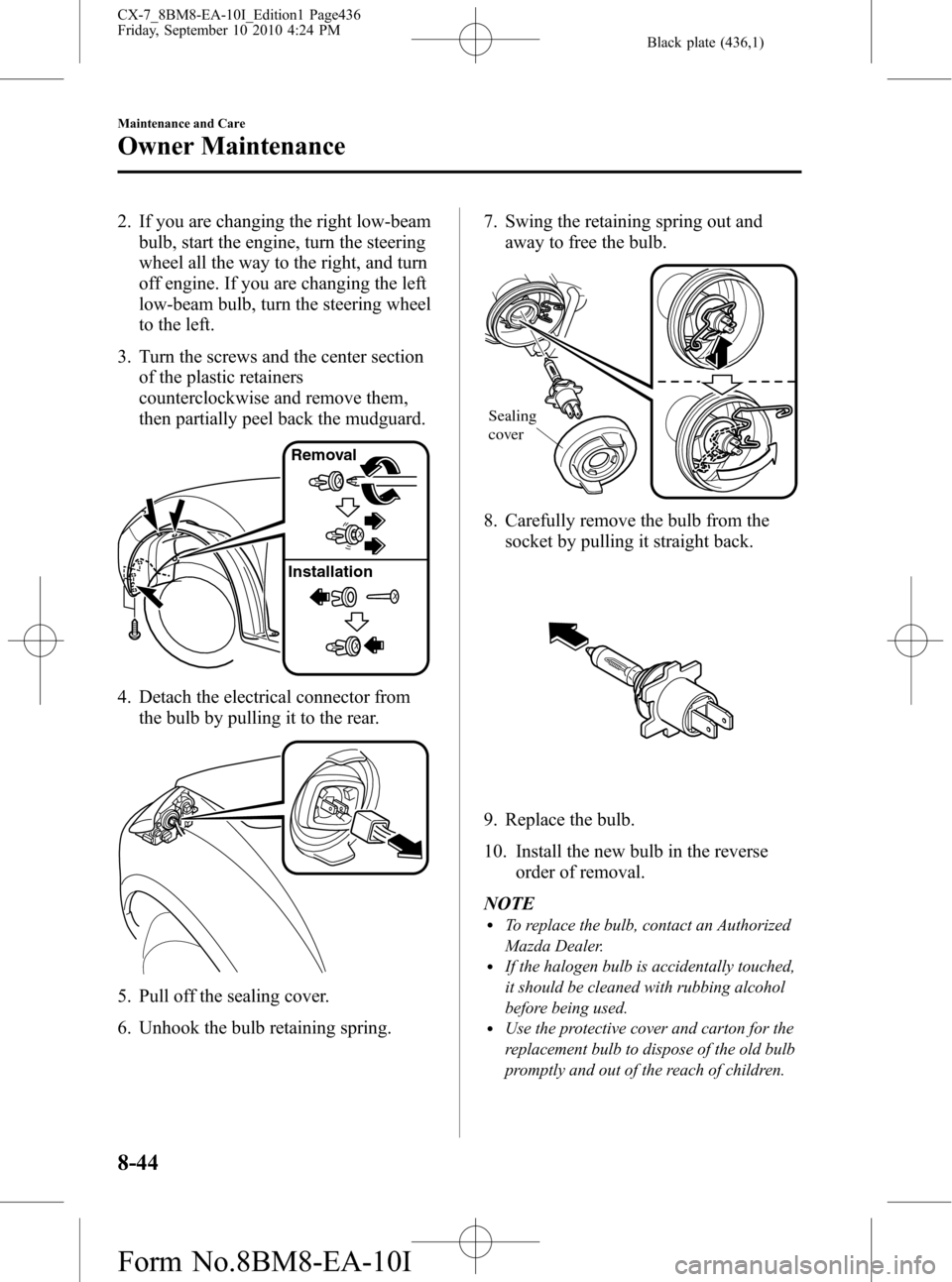

2. If you are changing the right low-beam
bulb, start the engine, turn the steering
wheel all the way to the right, and turn
off engine. If you are changing the left
low-beam bulb, turn the steering wheel
to the left.
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Detach the electrical connector from
the bulb by pulling it to the rear.
5. Pull off the sealing cover.
6. Unhook the bulb retaining spring.7. Swing the retaining spring out and
away to free the bulb.
Sealing
cover
8. Carefully remove the bulb from the
socket by pulling it straight back.
9. Replace the bulb.
10. Install the new bulb in the reverse
order of removal.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
8-44
Maintenance and Care
Owner Maintenance
CX-7_8BM8-EA-10I_Edition1 Page436
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (437,1)
Front side marker lights, Front turn
signal lights/Parking lights
1. Make sure the headlight switch is off.
2. If you are changing a bulb in the right
headlight unit, start the engine, turn the
steering wheel all the way to the right,
and turn off the engine. If you are
changing a bulb in the left headlight
unit, turn the steering wheel to the left.
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then partially peel back the mudguard.
InstallationRemoval
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Disconnect the bulb from the socket.
Front side marker lights
Front turn signal lights/Parking lights
6. Install the new bulb in the reverse order
of removal.
Fog lightsí
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Loosen the screws securing the fog
light cover.
3. Remove the fog light cover.
4. Loosen the screws securing the fog
light unit.
Maintenance and Care
Owner Maintenance
8-45íSome models. CX-7_8BM8-EA-10I_Edition1 Page437
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (438,1)
5. Remove the fog light unit.
6. Press the tab on the bulb socket and
disconnect the connector cord.
7. Rotate the bulb socket
counterclockwise as shown in the
figure and remove it.
8. Install the new bulb in the reverse order
of removal.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Brake lights/Taillights, Rear turn signal
lights, Reverse lights, Rear side-marker
lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Remove the cover.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
4. Disconnect the bulb from the socket.
Rear side-marker lights
8-46
Maintenance and Care
Owner Maintenance
CX-7_8BM8-EA-10I_Edition1 Page438
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (439,1)
Brake lights/Taillights
Rear turn signal lights
Reverse lights
5. Install the new bulb in the reverse order
of removal.NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
High-mount brake light, Side turn
signal lightsí
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
License plate lights
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
3. Disconnect the bulb by pulling it out.
4. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-47íSome models. CX-7_8BM8-EA-10I_Edition1 Page439
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I

Black plate (440,1)

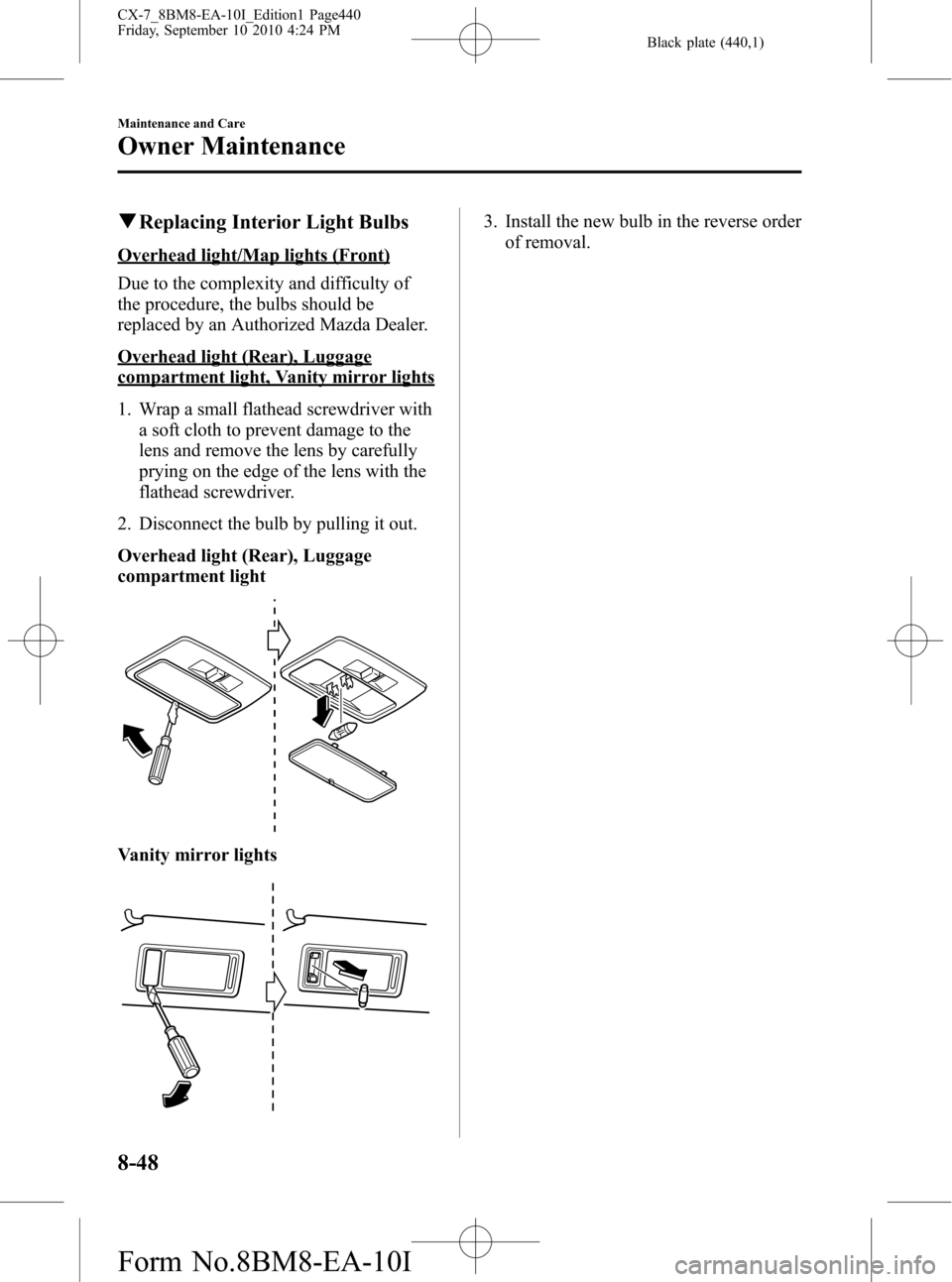

qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Overhead light (Rear), Luggage
compartment light, Vanity mirror lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead light (Rear), Luggage
compartment light
Vanity mirror lights
3. Install the new bulb in the reverse order
of removal.
8-48
Maintenance and Care
Owner Maintenance
CX-7_8BM8-EA-10I_Edition1 Page440
Friday, September 10 2010 4:24 PM
Form No.8BM8-EA-10I
