MAZDA MODEL CX-9 2007 Navigation Manual (in English)

11
Before Use
Ifnecessary
Rear View
Monitor

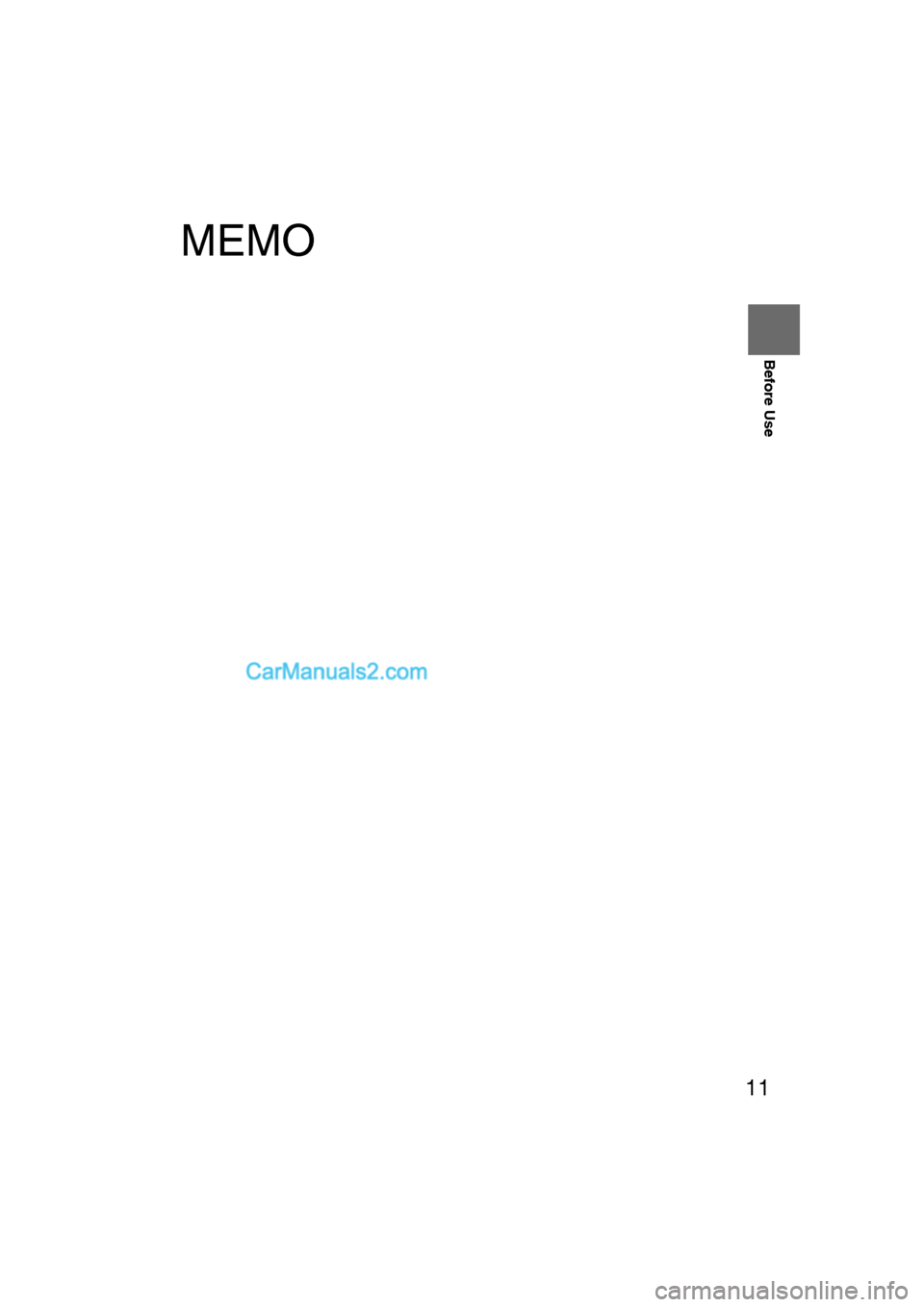

MEMO
%:A'#DQQM2CIG6WGUFC[5GRVGODGT2/

12
RoutingAddress
Book
Getting started
Activation
Insert the map disc into the unit to start the Mobile Navigation System.
Note
l
The map disc cannot be inserted or ejected while the ignition switch is in the OFF position.
l Remember that the battery can run down if the ignition switch is kept in the ACC or ON
position for a long time while the engine not running.
nMap Disc
l Refer to “Handling and Care of Map Discs” to know how to handle a map
disc ( page 60).
1
Remove the cover.Note
lThe main unit is located on the right side of the
cargo sub-compartment under the trunk board.
l Condensation may form on the optical lens or the
map disc inside the unit when the temperature in
the vehicle increases in a short time such as when
heating the car on a cold day. This condensation
may cause malfunctions. If so, unload the map disc
and do not operate the unit for approximately 1
hour. Wipe the condensation off the map disc with a
soft cloth.
If the unit does not operate correctly after 1 hour,
consult an Authorized Mazda Dealer.
Note
lWhen the ignition switch is in the ACC or ON
position, the screen changes as follows to activate
the navigation system.
l The screen (audio or navigation) that was displayed
prior to the engine being turned off is displayed.
Before the navigation screen is displayed, the
CAUTION screen will be displayed.
2
Insert the map disc
with the printed side
facing up.
Cautions
Cover
(CAUTION) screen
%:A'#DQQM2CIG6WGUFC[5GRVGODGT2/

13
Getting started
Ifnecessary
Rear View
Monitor
lThe Current Position screen appears.
Note
lYou can select the language by selecting the on-screen button. You can also
change the selected language using Language Selection. ( page 51)
l The CAUTION screen remains on the display unless you select the on-screen
button.
Select the on-screen button lightly with your finger.
Colors for unavailable buttons will be pale.
3
Read the CAUTION
carefully, and select
the on-screen
button.
Removing the Map Disc
1
With the ignition switch in the ACC position, remove the cover.
2
Press (EJECT).
On-screen Buttons
Most functions are inhibited while the
vehicle is in motion.
Please read the handbook for operation
instructions.
Always obey traffic regulations.
Caution
Cover
Do not get your hand or fingers caught in
moving parts or in the disc slot. This can
cause injuries. Children are inquisitive, try
to install or remove the map disc without
infants looking on.
Caution
%:A'#DQQM2CIG6WGUFC[5GRVGODGT2/

14
RoutingAddress
Book
Getting started
Screen Names and Functions
Screens Before Setting Route
(1) Map Orientation control
( page 19)
(2) GPS (Global Positioning System) marker( page 54)(3) ClockClock will be displayed when you set up
Clock on Navigation Set Up On.
(4) Vehicle marker Shows the current position and
direction of your vehicle.
(5) Scale display Displays the scale of the map.
(6) Distance from current position
Displays the distance from the current
position to the position pointed by . (7) Current Road Name
Shows the name of the road you are
currently driving on.
(8) Set Destination buttonThe destination, memory point or way point
will be set at the position pointed by in the
scroll screen.
(9) Store Memory Point button Stores markers on the map.
(10) Quick POI Display button
( page 28)
(11) Zoom in ( page 19)
(12) Zoom out ( page 19)
Screens During Route Guidance
(1) Distance and Time to Destination displayDisplays the time* and distance to the
destination or way point.
Selecting this will display the next and
further information on the way point or
time and distance to the destination.
(* Either required time or estimated time
arrival)
(2) Route display
Shows the provided route as a thick
blue line. (3) Turn Arrow displayShows the direction to turn at the next
junction and the distance to the junction.
(4) Route Preferences button( page 32)
NAVI
(6)
(7)
(8) (10)
(5)
(4)
(3)
(1)(2)
MAP SCROLL
(9)
(11)(12)
(4) (3)
(1)
(2)
%:A'#DQQM2CIG6WGUFC[5GRVGODGT2/

15
Getting started
Ifnecessary
Rear View
Monitor
Menu appears when pressing .
Display menu screen will be shown when you press the (DISP) button.
Press the (DISP) button to display the display menu.
nAdjusting the screen quality
lScreen brightness
Press the on-screen button to brighten the screen, or to darken.
l Screen contrast
Press the on-screen button to increase contrast, to decrease.
l Screen color density (During external image input after pressing the (MEDIA) button.*)
Press the on-screen button to increase color density, to decrease.
l Screen color adjustment (During external image input after pressing the (MEDIA) button.*)
Select using the on-screen button to enhance the red intensity, or to enhance the green.
Note
lSelect the on-screen button to restore the adjustment values to the default settings.
lThe screen changes to SETTINGS when the on-screen button is selected.
l Only BRIGHTNESS and CONTRAST adjustments are available for screens other than the
video screen. TINT and COLOR are also available while the video screen is displayed.
nTurning off the display
Select the on-screen button to turn off the display.
The screen will reappear if the (NAVI) button is pressed, or the on-screen
button, which is displayed on the screen when the (DISP) button is pressed, is selected.
* The external input terminal is not equipped on your vehicle because it is not standard equipment.
Menu
Screen adjustments, beep alert and other settings
MENU
Destination Entry and Route Search ( page 20)
Address Book ( page 36)
Cancel Guidance ( page 31)
Route Options ( page 32)
Volume ( page 42)
Navigation Set Up ( page 44)
%:A'#DQQM2CIG6WGUFC[5GRVGODGT2/

16
RoutingAddress
Book
Getting started
nDaytime/Night screen
When the headlights are on, daytime mode can also be selected (Daytime mode can also
be selected while the headlights are turned on.).
nTilt display operation
Select the on-screen button to tilt the display, to close it.
The display angle can be adjusted in three stages.
When opening, the display angle changes one stage at a time each time the on-
screen button is pressed.
When closing, the display angle changes one stage at a time each time the on-screen
button is pressed.
Press the (DISP) button followed by the on-screen button to display the
settings menu.
nReturning to the navigation screen from the audio unit screen
l Select the on-screen button to set the function to return to the navigation screen
from the audio unit screen by operation of the button only.
l Select the on-screen button to set the function to return to the navigation screen
from the audio unit screen automatically after 20 seconds.
nBeep sound settings
lSelect the on-screen button to activate the operation beep sound.
l Select the on-screen button to deactivate the operation beep sound.
nScreen Size Setting
The size of the screen can be changed during external image input*.
1. Press the (MEDIA) button .
2. Select the on-screen button to set the desired screen size.
3. The on-screen button of the desired screen size is selected.
%:A'#DQQM2CIG6WGUFC[5GRVGODGT2/

17
Getting started
Ifnecessary
Rear View
Monitor
nFull screen
A full-screen image is displayed.
l A 16:9 screen ratio image is shown in the above figure.
nNormal screen
A 4:3 screen ratio image is the standard display, and black bands appear on each side of the
screen.
l A 16:9 screen ratio image is scaled to a 4:3 screen ratio.
nWide screen
The center area of the image is compressed toward the center, and the surrounding area is
enlarged toward the edge.
l A 16:9 screen ratio image is shown in the above figure.
%:A'#DQQM2CIG6WGUFC[5GRVGODGT2/

18
RoutingAddress
Book
Getting started

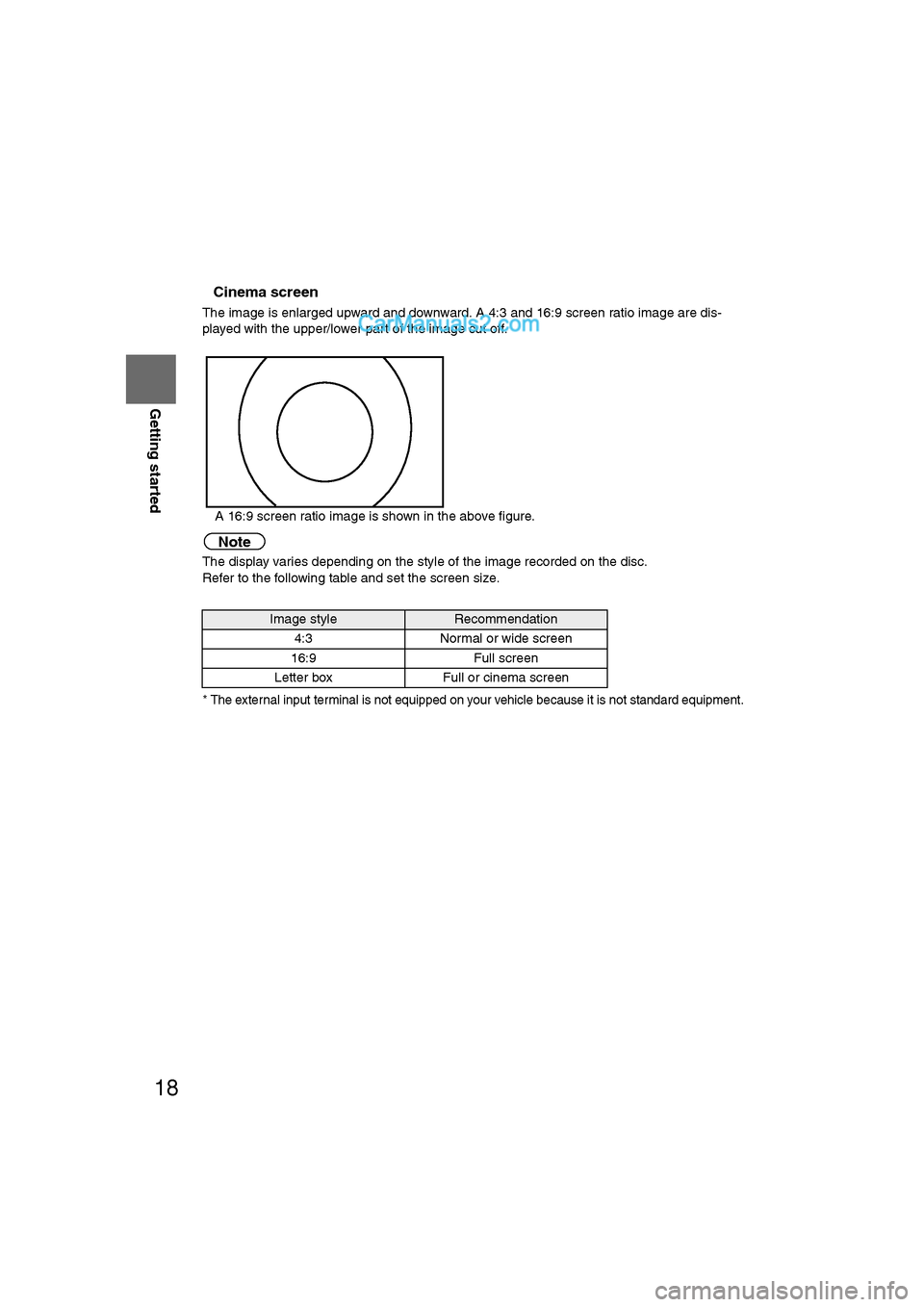

nCinema screen
The image is enlarged upward and downward. A 4:3 and 16:9 screen ratio image are dis-
played with the upper/lower part of the image cut off.
l A 16:9 screen ratio image is shown in the above figure.
Note
The display varies depending on the style of the image recorded on the disc.
Refer to the following table and set the screen size.
* The external input terminal is not equipped on your vehicle because it is not standard equipment.
Image styleRecommendation
4:3 Normal or wide screen
16:9 Full screen
Letter box Full or cinema screen
%:A'#DQQM2CIG6WGUFC[5GRVGODGT2/

19
Getting started
Ifnecessary
Rear View
Monitor
Screen change
nDo not keep your eyes fixed on the monitor screen or operate the system
while driving
Do not change the settings and destination locations while driving. Minimize the time
spent viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and may
cause an accident. Always stop the vehicle in a safe location and use the parking brake
before operating the system.
Map
orientation
Map scale
Changing the Map Orientation/Scale
Warning
1
Select , on-
screen button.lNorth Up: Geographic north is up.
lHead Up: The direction you are heading is up.
1
Select or on-screen
button.
lThe map can be displayed in
13 steps with scales from
to . l
ZOOM OUT
lZOOM IN
(more detail.)
Position before change

Imperial
display1/32 mi
(mile) 1/4 mi
(mile)2 mi
(mile)16 mi
(mile)128 mi
(mile)
Metric
display 50 m 500 m 4 km 32 km 256 km
%:A'#DQQM2CIG6WGUFC[5GRVGODGT2/

20
RoutingAddress
Book
Routing

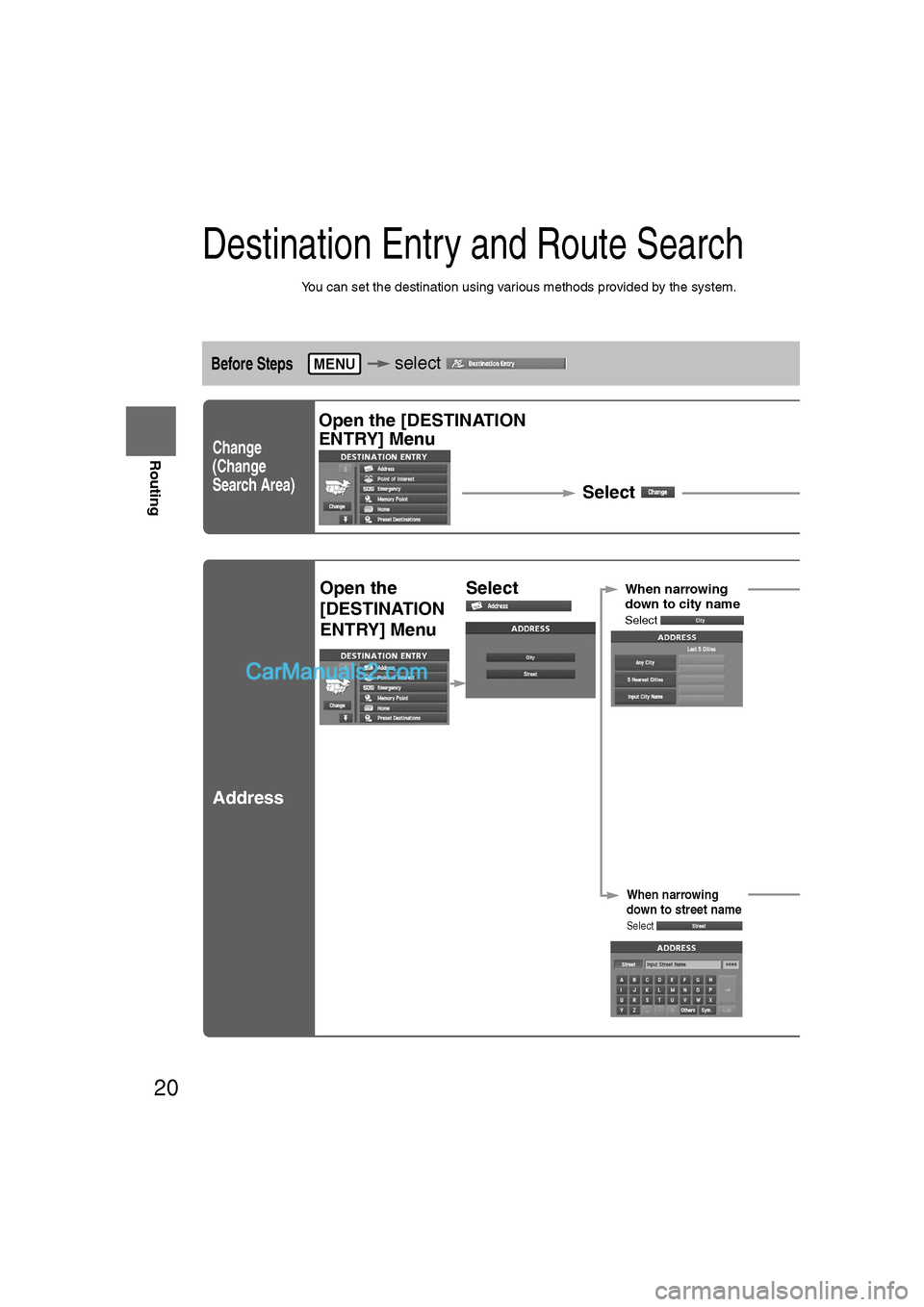

Destination Entry and Route Search
l
You can set the destination using various methods provided by the system.
Before Steps select
Change
(Change
Search Area)
Address
MENU
Open the [DESTINATION
ENTRY] Menu
SelectSelect the: ID, OR, W : CA, NV: AZ, CO,
: IA, KS,
M : OK, TX
: IL, IN, K
Y
Open the
[DESTINATION
ENTRY] MenuSelectWhen narrowing
down to city name
Select
When narrowing
down to street name
Select
Enter the
street
name and
select
:
Cancel the
city selection.
:
Displays list of
5 city name
s
nearest the
current
position.
:
Displays the
city name
input screen.
