2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2
Front Seats (Manually Operated Seats) ..................................... 2-2
Front Seats (Electrically Operated Seats) .................................. 2-5
Second-Row Seats ................................................................... 2-11
Third-Row Seat ....................................................................... 2-16
Seat Belt Systems ........................................................................ 2-18
Seat Belt Precautions .............................................................. 2-18
3-Point Type Seat Belt ............................................................ 2-22
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-24
Center-Rear Position Seat Belt (Second-Row Seats) .............. 2-27
Seat Belt Extender ................................................................... 2-30
Seat Belt Warning Light/Beep ................................................ 2-32
Child Restraint ............................................................................ 2-34
Child Restraint Precautions ..................................................... 2-34
Installing Child-Restraint Systems .......................................... 2-38
LATCH Child-Restraint Systems ............................................ 2-45
SRS Air Bags ............................................................................... 2-50
Supplemental Restraint System (SRS) Precautions ................ 2-50
Supplemental Restraint System Components ......................... 2-55
How the SRS Air Bags Work .................................................. 2-56
SRS Air Bag Deployment Criteria .......................................... 2-60
Limitations to SRS Air Bag .................................................... 2-61
Driver and Front Passenger Occupant Classification
System ..................................................................................... 2-63
Monitoring and Maintenance .................................................. 2-68
2-1
CX-9_8V83-EA-06I_Edition3 Page13
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (14,1)
Front Seats (Manually
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
qSeat Slide
WARNING
Adjust the driver seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
2-2
Essential Safety Equipment
Seats
CX-9_8V83-EA-06I_Edition3 Page14
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (15,1)
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in a passenger seat properly
with the seatback upright and feet on
the floor:
If your vehicle is equipped with front
passenger seat weight sensors,
sitting in the front passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the front passenger
sensing system. As a result the front
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.Do not drive with the seatback
unlocked:
The seatback plays an important role
in your protection in a vehicle.
Leaving the seatback unlocked is
dangerous as it can allow passengers
to be ejected or thrown around and
baggage to strike occupants in a
sudden stop or collision, resulting in
severe injury. After adjusting the
seatback at any time, even when
there are no other passengers, rock
the seatback to make sure it is locked
in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
CX-9_8V83-EA-06I_Edition3 Page15
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (16,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qHeight Adjustment (Driver's Seat)
By moving the seat lever up or down, the
seat bottom height can be adjusted.
DownUp
qLumbar Support Adjustment
(Driver's Seat)
To increase the seat firmness, pull the
lever forward. Push the lever backward to
decrease firmness.
qHead Restraint
WARNING
Always drive with the head restraints
installed when seats are being used
and make sure they are properly
adjusted:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be
seriously injured in a collision.
To raise a head restraint, pull it up to the
desired position.
To lower the head restraint, press the stop-
catch release, then push the head restraint
down.
Adjust the head restraint so that the top is
even with the top of the passenger's ears,
never the passenger's neck to prevent
injury.
2-4
Essential Safety Equipment
Seats
CX-9_8V83-EA-06I_Edition3 Page16
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (17,1)

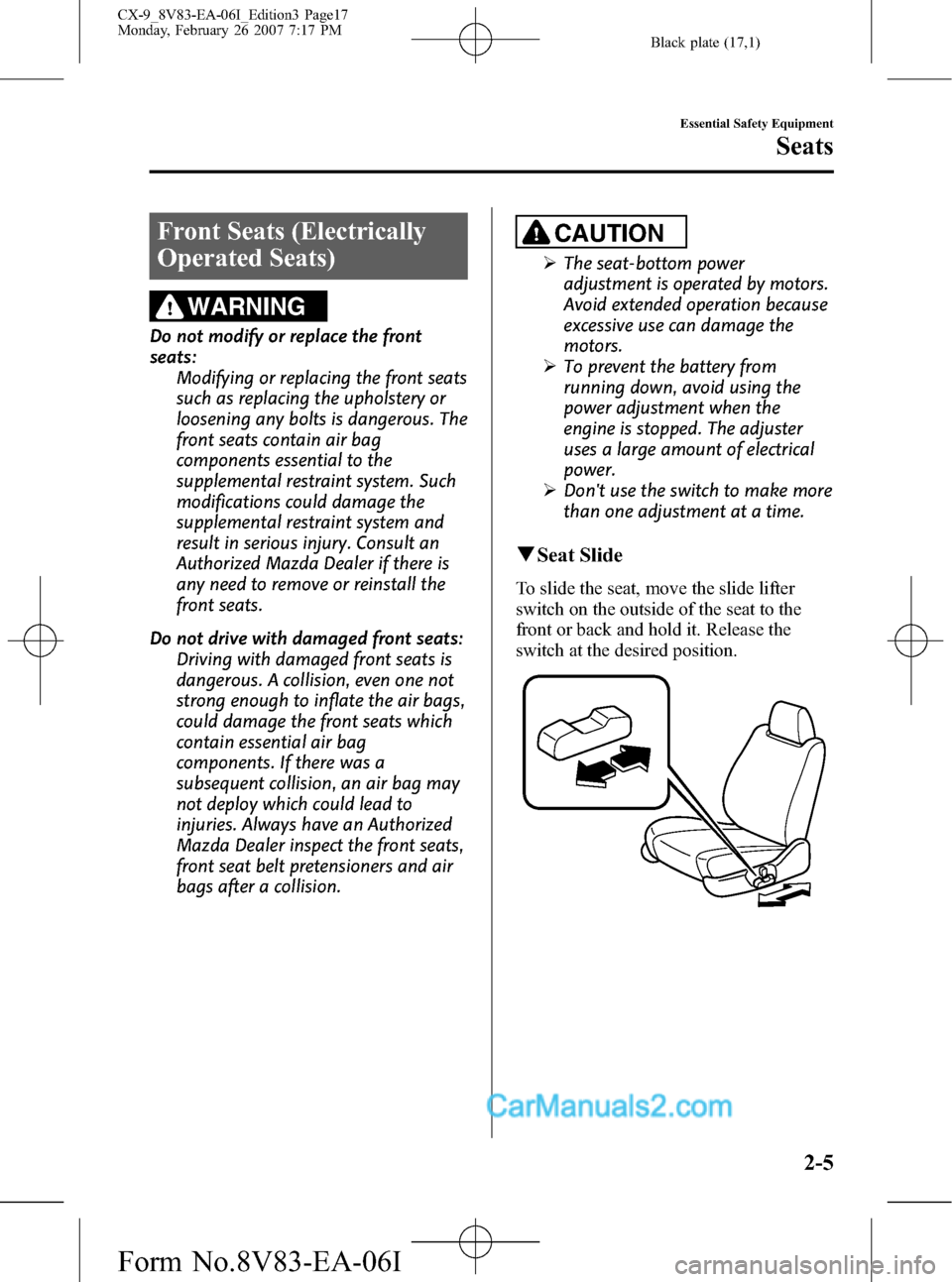

Front Seats (Electrically
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
CAUTION
ØThe seat-bottom power
adjustment is operated by motors.
Avoid extended operation because
excessive use can damage the
motors.
ØTo prevent the battery from
running down, avoid using the
power adjustment when the
engine is stopped. The adjuster
uses a large amount of electrical
power.
ØDon't use the switch to make more
than one adjustment at a time.
qSeat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
Essential Safety Equipment
Seats
2-5
CX-9_8V83-EA-06I_Edition3 Page17
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (18,1)
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in a front passenger seat
properly with the seatback upright and
feet on the floor:
If your vehicle is equipped with front
passenger seat weight sensors,
sitting in the front passenger seat
improperly out of position or with the
seatback reclined too far while the
vehicle is moving is dangerous as it
can take off weight from the seat
bottom and affect the weight
determination of the front passenger
sensing system. As a result the front
passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could cause result in serious injury.
Always sit upright against your
seatback, with your feet on the floor.Change the seatback angle by pressing the
front or rear side of the reclining switch.
Release the switch at the desired position.
qHeight Adjustment (Driver's Seat)
The seat height can be adjusted by
moving the switch up or down.
2-6
Essential Safety Equipment
Seats
CX-9_8V83-EA-06I_Edition3 Page18
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (19,1)
qSeat Position Memory (Driver's
Seat)í
One-touch seat position programming and
call up is available on the driver's seat.
CAUTION
When calling up the seat position, do
not place your hands or fingers
around the seat bottom. The seat
moves to the desired position
automatically, and if your hands or
fingers are placed around the seat
bottom, it could cause injury.
Set button
Programming of the driver's seat positions
is possible using the following functions:
lProgramming buttons―and the
set button.
lOperation using the advanced key/
retractable type key
Programmed seat positions can also be
called up using the following functions:
lProgramming buttons―.lOperation using the advanced key/
retractable type key
NOTE
Individual seat positions can be programmed
to the number of programming buttons 3
available on the side of the driver's seat, plus
one seat position for each advanced key/
retractable type key used with the vehicle.
Operation using the seat-side buttons
Programming
Seat position programming is possible
when the vehicle is parked.
1. Adjust the seat to the desired position.
For each seat position adjustment
method refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-6)
Height Adjustment (page 2-6)
2. Press the desired programming button
―while pressing the set button
until a beep sound is heard.
NOTE
Vehicle maintenance or other reasons
requiring the vehicle battery to be
disconnected will result in the seat position
memory being erased.
In this case, re-program the seat positions.
Seat position call up
With the ignition switch in the LOCK
position, and the driver's door open, press
the programming button
―that has
been programmed to the desired seat
position.
Essential Safety Equipment
Seats
2-7íSome models. CX-9_8V83-EA-06I_Edition3 Page19
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I

Black plate (20,1)
NOTElSeat positions can also be called up with
the ignition switch in the ON position and
the door closed by pressing and holding the
programming button
―that has
been programmed to the desired seat
position.
lIf any of the following occurs, the seat
position call up function cancels:
lA seat adjustment switch is operated.lThe vehicle is moving or starts to move.lThe selected programming button
―or the set button is pressed
again.
Operation using the advanced key/
retractable type key
With advanced key
Auxiliary key
Unlock button Lock button
With retractable type key
Lock button
Unlock button
Programming
One seat position can be programmed into
each advanced key/retractable type key.
After the following conditions have been
met, operate the seat and the advanced
key/retractable type key to program the
seat positions.
lThe engine switch is in the LOCK
position
(The auxiliary key/retractable type key
is removed from the ignition switch)
lThe driver's door is open
1. Adjust the seat to the desired position.
For each seat position adjustment
method, refer to the following pages:
Seat Slide (page 2-5)
Seat Recline (page 2-6)
Height Adjustment (page 2-6)
2. If the driver's door is closed, open it.
3. Press and hold the unlock button of the
advanced key/retractable type key
while pressing the set button until a
beep sound is heard.
Seat position call up
Unlock the doors using the unlock button
on the advanced key/retractable type key,
and open the driver's door.
Erasing memory
After the following conditions have been
met, press and hold the lock button of the
advanced key/retractable type key while
pressing the set button until a beep sound
is heard.
lThe engine switch is in the LOCK
position
(The auxiliary key/retractable type key
is removed from the ignition switch)
lThe driver's door is open
2-8
Essential Safety Equipment
Seats
CX-9_8V83-EA-06I_Edition3 Page20
Monday, February 26 2007 7:17 PM
Form No.8V83-EA-06I
