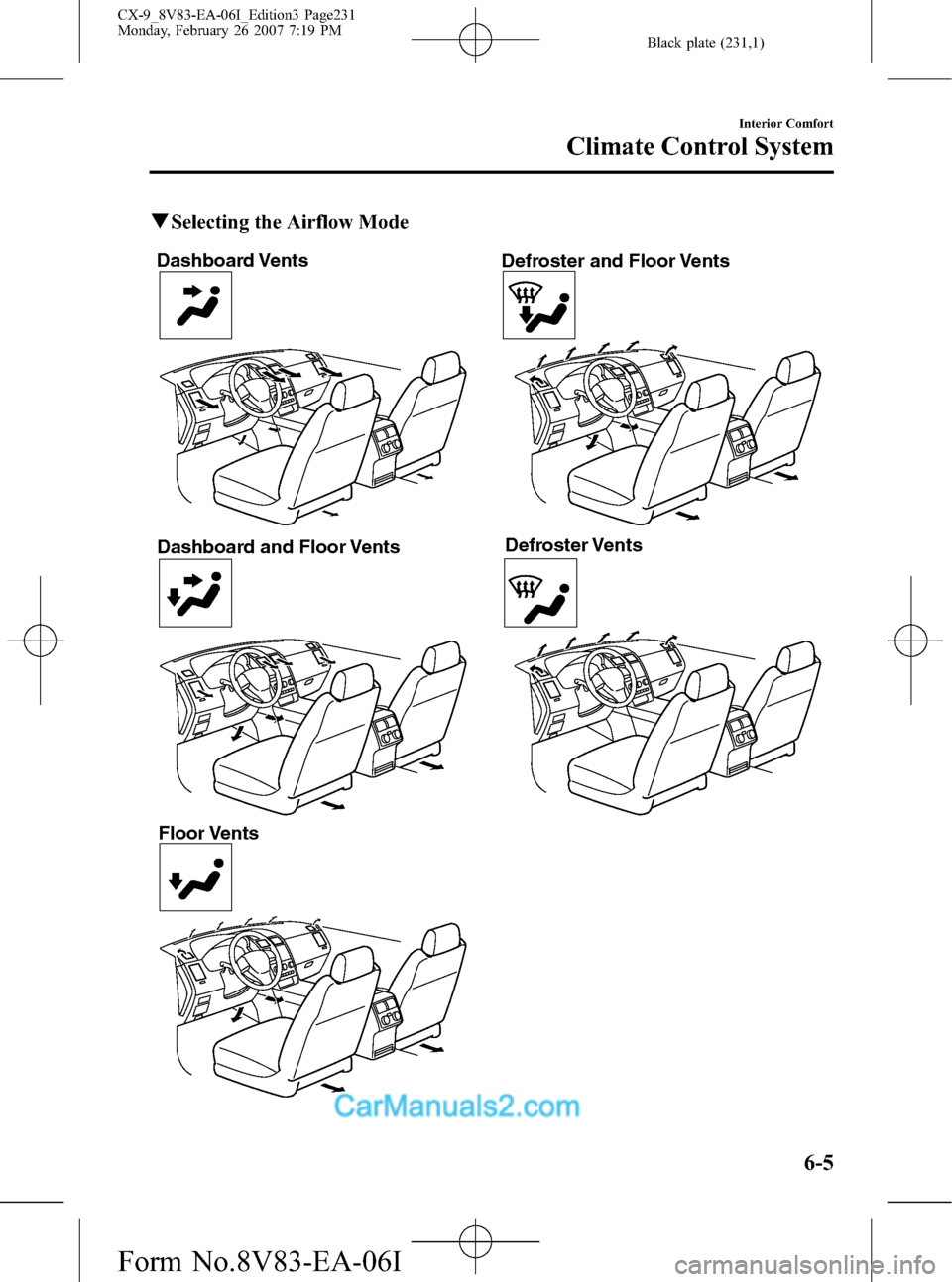

qSelecting the Airflow Mode
Dashboard Vents
Dashboard and Floor Vents
Floor Vents
Defroster and Floor Vents
Defroster Vents
Interior Comfort
Climate Control System
6-5
CX-9_8V83-EA-06I_Edition3 Page231
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (232,1)
Fully Automatic Type
Climate control information is displayed on the information display.
Temperature setting display(driver)Ambient temperature /Temperature
setting display(front passenger)
Mode selector display
Airflow display A/C
DUALAU TO
Air intake display
Information display
Front passenger temperature control dial
Windshield defroster switchFan control dial Driver temperature control dial
Air intake selector OFF switch AUTO switch
Mode selector
switchA/C switch
DUAL switch
OUTSIDE (Ambient
temperature) switch
6-6
Interior Comfort
Climate Control System
CX-9_8V83-EA-06I_Edition3 Page232
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (233,1)
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow modelOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lWhen off, it indicates the operation of other
switches such as the mode selector switch,
fan control dial, A/C switch and windshield
defroster switch. Other functions will
continue to operate automatically.
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Cold
Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
lWhen the DUAL switch is off:
Turn the driver temperature control dial
to control the temperature.
lWhen the DUAL switch is on:
Turn the driver or front passenger
temperature control dial to control the
temperature.
NOTE
The system changes to the individual operation
mode (DUAL switch indicator light
illuminated) by turning the front passenger
temperature control dial even when the DUAL
switch is off, which allows individual control
of the set temperature for the driver and front
passenger.
Fan control dial
SlowFast
The fan has seven speeds. The selected
speed will be displayed.
Interior Comfort
Climate Control System
6-7
CX-9_8V83-EA-06I_Edition3 Page233
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (234,1)
Mode selector switch
The desired airflow mode can be selected
(page 6-5).
NOTE
lWith the airflow mode set to the
position and the temperature control dial
set at a medium temperature, heated air is
directed to the feet and a comparably lower
air temperature will flow through the
central, left and right vents.
lTo set the air vent to, press the
windshield defroster switch.
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to turn the air
conditioning (cooling/dehumidifying
functions) on or off.
NOTE
The air conditioner may not function when the
outside temperature approaches 0 °C (32 °F).
(Indicator light remains on even when system
is off.)
Air intake selector
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position
(indicator light illuminated)
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position
(indicator
light turned off)
Use this position for normal conditions
and defogging.
WARNING
Do not use theposition in cold or
rainy weather:
Using the
position in cold or
rainy weather is dangerous as it will
cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
6-8
Interior Comfort
Climate Control System
CX-9_8V83-EA-06I_Edition3 Page234
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (235,1)
OUTSIDE (Ambient Temperature)
switch
Press the OUTSIDE switch to display the
ambient temperature.
NOTE
lThe displayed ambient temperature may
vary from the actual ambient temperature
depending on the surrounding area and
vehicle conditions.
lPress the OUTSIDE switch 3 seconds or
more to switch the display from Fahrenheit
to Centigrade or vice versa.
lPress the OUTSIDE switch again to switch
the display from ambient temperature to the
temperature set for the air conditioner.
DUAL switch
Use the DUAL switch to change the mode
between the individual operation and
interconnection modes.
Individual operation mode (indicator
light illuminated)
The set temperature can be controlled
individually for the driver and front
passenger.Interconnection mode (indicator light
turned off)
The set temperature for the driver and
front passenger is controlled
simultaneously.
NOTE
lThe set temperature for the front passenger
changes to that of the driver while in the
interconnected mode.
lis displayed on the information
display while in the individual operation
mode.
lThe system changes to the interconnection
mode automatically if the windshield
defroster switch is pressed. The system will
not change to the individual operation
mode by pressing the DUAL switch or
turning the front passenger temperature
control dial.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
Interior Comfort
Climate Control System
6-9
CX-9_8V83-EA-06I_Edition3 Page235
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (236,1)
qOperation of Automatic Air
Conditioning
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
Press the DUAL switch or turn the
front passenger temperature control
dial to control the set temperature
individually for the driver and front
passenger.
Cold
Hot
To turn off the system, press the OFF
switch.
NOTE
lSetting the temperature to the maximum
high or low will not provide the desired
temperature at a faster rate.
lWhen selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.
qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, the
position is
automatically selected, and the air
conditioner automatically turns on. The
air conditioner will directly dehumidify
the air to the front windshield and side
windows (page 6-5). Airflow amount will
be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging (
position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident.
6-10
Interior Comfort
Climate Control System
CX-9_8V83-EA-06I_Edition3 Page236
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (237,1)
NOTElPress the windshield defroster switch to
change the mode to the interconnection
mode automatically. The system does not
change to the individual operation mode by
pressing the DUAL switch or turning the
front passenger temperature control dial.
lUse the temperature control dial to increase
the air flow temperature and defog the
windshield more quickly.
Interior Comfort
Climate Control System
6-11
CX-9_8V83-EA-06I_Edition3 Page237
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (238,1)
Vent Operation (Rear)
qAdjusting the Vents
Directing airflow
You can direct air flow by moving the adjustment knob.
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of trouble but a
result of humid air being suddenly cooled.
6-12
Interior Comfort
Climate Control System
CX-9_8V83-EA-06I_Edition3 Page238
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (239,1)
qSelecting the Airflow Mode
For vehicles with rear full-auto air conditioning, the airflow mode can be selected
according to the purpose of use.
Instrument panel Vents
Floor Vents
Instrument panel and Floor Vents
Interior Comfort
Climate Control System
6-13
CX-9_8V83-EA-06I_Edition3 Page239
Monday, February 26 2007 7:19 PM
Form No.8V83-EA-06I

Black plate (240,1)
Control Panel (Rear)
REAR CONTROL switch
Fan control dial Temperature control dial AUTO switch
