Information Display
Climate control display
(Driver)Audio display Clock
Without
navigation systemClimate control display (Front
passenger)/ Ambient temperature
display
qInformation Display Functions
The information display has the following functions:lClockí
lAmbient Temperature Display (Outside Temperature Display)lClimate Control DisplaylAudio Display
Interior Comfort
Interior Equipment
6-123íSome models. CX-9_8Z28-EA-07J_Edition2 Page351
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (352,1)
qClock
NOTE
When the trip computer is displayed, press the
CLOCK button to change the display to the
time.
When the ignition switch is in the ACC or
ON position, the time is displayed.
Without navigation system
Time setting
1. Press the CLOCK button until the beep
sounds and the displayed time flashes.
2. Press the H switch to set the hour.
3. Press the M switch to set the minutes,
then press the CLOCK button.
Switching between 12 and 24-hour
clock time
1. Press the audio control dial several
times until 12Hr and 24Hr clock time
are displayed.
2. Turn the audio control dial in either
direction, select the desired clock
setting, and press the audio control
dial. Press the dial while the preferred
clock time is flashing.
With navigation system
Refer to the separate manual
“NAVIGATION SYSTEM”.
NOTE
Minutes and seconds are adjusted by the GPS,
however, it is necessary to adjust hours under
the following conditions:
lDriving across different time zoneslDaylight saving time start and end
qAmbient Temperature Display
When the ignition switch is in the ON
position, press the OUTSIDE switch
(page 6-6) to display the ambient
temperature.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lPress the OUTSIDE switch a few seconds
or more to switch the display from
Fahrenheit to Centigrade or vice versa.
lPress the OUTSIDE switch again to switch
the display from ambient temperature to the
temperature set for the air conditioner.
6-124
Interior Comfort
Interior Equipment
CX-9_8Z28-EA-07J_Edition2 Page352
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (353,1)
qClimate Control Display
The climate control system status is
displayed. To operate the climate control
system, refer to“Climate Control System”
(page 6-2).
qAudio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System”(page 6-17).
Cup Holder
WARNING
Never use a cup holder to hold hot
liquids while the vehicle is moving:
Using a cup holder to hold hot liquids
while the vehicle is moving is
dangerous. If the contents spill, you
could be scalded.
Do not put anything other than cups or
drink cans in cup holders:
Putting objects other than cups or
drink cans in a cup holder is
dangerous.
During sudden braking or
maneuvering, occupants could be hit
and injured, or objects could be
thrown around the vehicle, causing
interference with the driver and the
possibility of an accident. Only use a
cup holder for cups or drink cans.
CAUTION
To reduce the possibility of injury in
an accident or a sudden stop, keep
cup holders closed when not in use.
Interior Comfort
Interior Equipment
6-125
CX-9_8Z28-EA-07J_Edition2 Page353
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (354,1)

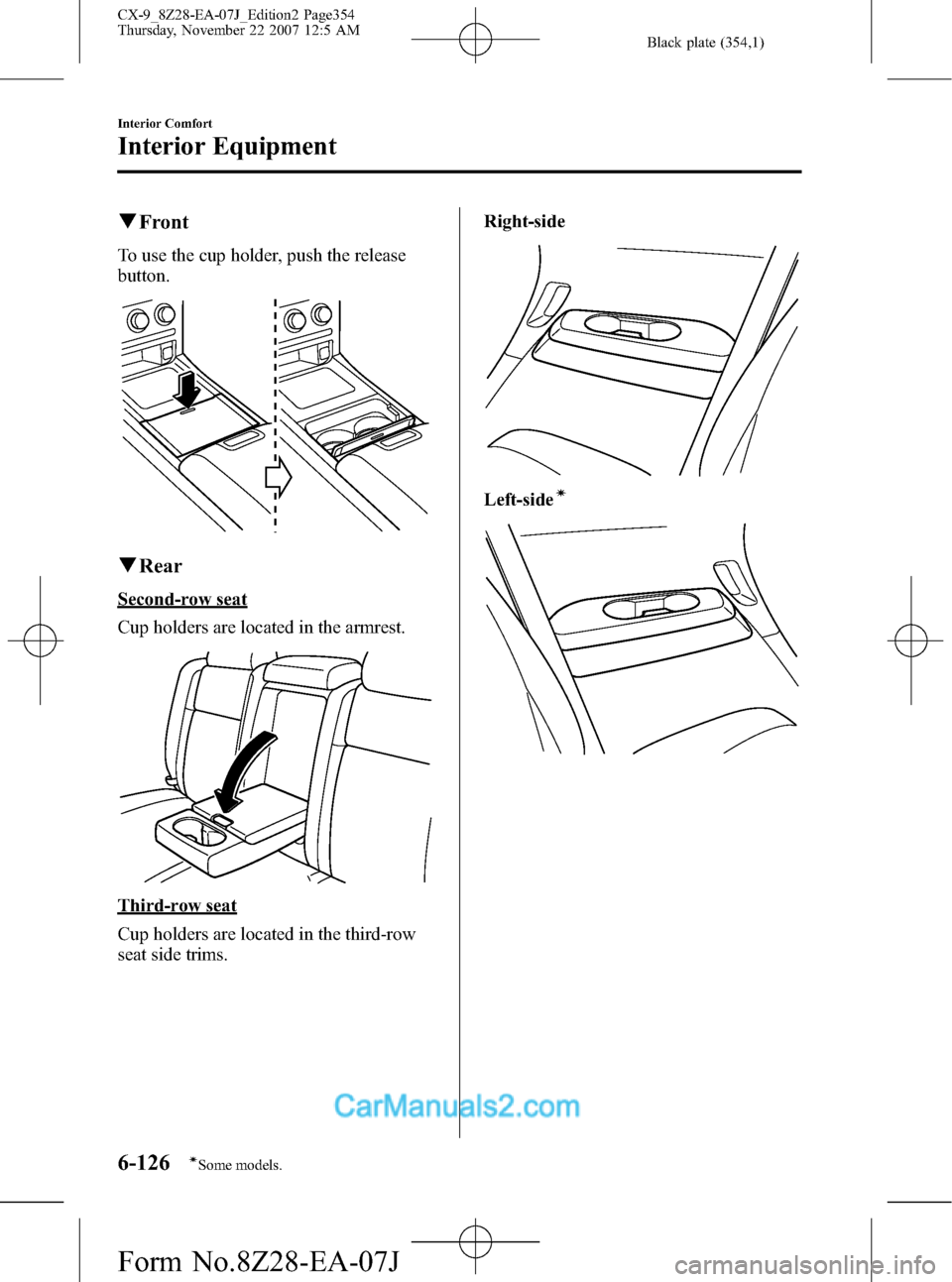

qFront
To use the cup holder, push the release
button.
qRear
Second-row seat
Cup holders are located in the armrest.
Third-row seat
Cup holders are located in the third-row
seat side trims.Right-side
Left-sideí
6-126
Interior Comfort
íSome models.
Interior Equipment
CX-9_8Z28-EA-07J_Edition2 Page354
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (355,1)
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qOverhead Console
This console box is designed to store
accessories.
Push and release to open.
Interior Comfort
Interior Equipment
6-127
CX-9_8Z28-EA-07J_Edition2 Page355
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (356,1)

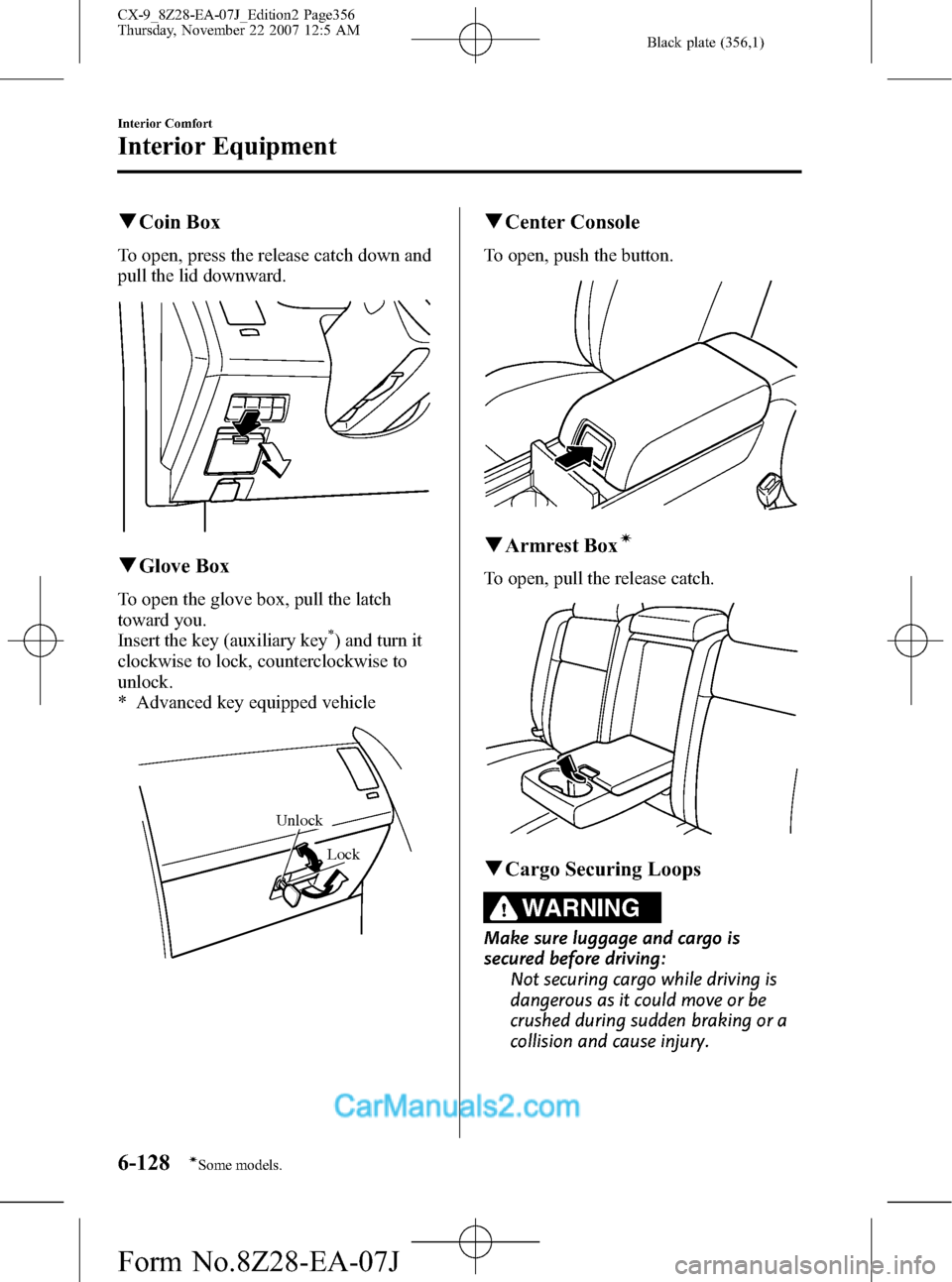

qCoin Box
To open, press the release catch down and
pull the lid downward.
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the key (auxiliary key
*) and turn it
clockwise to lock, counterclockwise to
unlock.
* Advanced key equipped vehicle
Lock
Unlock
qCenter Console
To open, push the button.
qArmrest Boxí
To open, pull the release catch.
qCargo Securing Loops
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
6-128
Interior Comfort
íSome models.
Interior Equipment
CX-9_8Z28-EA-07J_Edition2 Page356
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (357,1)
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
qCargo Sub-Compartment
Center cargo sub-compartment
1. Lift the trunk board.
2. Secure the trunk board using the straps
on the third-row seatbacks.
Side cargo sub-compartment
Pull the compartment's strap to open the
cover.
Some models.
qShopping Bag Hook
The shopping bag hook can be used for
hanging shopping bags.
CAUTION
Do not hang excessive weight on the
shopping bag hook as it could be
damaged.
Interior Comfort
Interior Equipment
6-129
CX-9_8Z28-EA-07J_Edition2 Page357
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (358,1)
Shopping bag hook
(tensile strength:3 kg
(6.6 lb))
qLuggage Compartment
Golf bags can be carried in the luggage
compartment.
To carry two golf bags, use the following
procedure:
1. Put one golf bag in the luggage
compartment with its top pointing to
the left.
2. Put the other golf bag on top of the first
bag with its top pointing to the right.
NOTElSome golf bags cannot fit depending on
their size.
lGolf bags up to nine inches in diameter can
be carried.
6-130
Interior Comfort
Interior Equipment
CX-9_8Z28-EA-07J_Edition2 Page358
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (359,1)
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition switch must be in the ACC
or ON position.
Center/Rear
The accessory sockets can be used
regardless of the position of the ignition
switch.
Center
Rear
CAUTION
To prevent accessory socket damage
or electrical failure, pay attention to
the following:
ØDo not use accessories that require
more than 120 W (DC 12 V, 10 A).
ØDo not use accessories that are not
genuine Mazda accessories or the
equivalent.
ØClose the cover when the accessory
socket is not in use to prevent
foreign objects and liquids from
getting into the accessory socket.
ØCorrectly insert the plug into the
accessory socket.
Noise may occur on the audio
playback depending on the device
connected to the accessory socket.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Interior Comfort
Interior Equipment
6-131
CX-9_8Z28-EA-07J_Edition2 Page359
Thursday, November 22 2007 12:5 AM
Form No.8Z28-EA-07J

Black plate (360,1)
Power Outletí
The power outlet is positioned as shown
in the figure.
For more details, refer to
“Auxiliary terminals and power outlet”
(page 6-88).
6-132
Interior Comfort
íSome models.
Interior Equipment
CX-9_8Z28-EA-07J_Edition2 Page360
Thursday, November 22 2007 12:5 AM
