MAZDA MODEL CX-9 2008 Owners Manual (in English)

Black plate (421,1)
Light Bulbs
Headlights (Low beam) Headlights (High beam)
High-mount brake lightFog lights
Front turn signal lightsSide turn signal lights
Courtesy lights
Some models.
License plate lights
Brake lights/TaillightsTaillights Overhead light/Map lights (Front)
Vanity mirror lights Overhead light (Center) Overhead light (Rear)
Front side marker lights
Rear turn signal lights
Rear side marker lights Reverse lights
Luggage
compartment light
Maintenance and Care
Owner Maintenance
8-37
CX-9_8Z28-EA-07J_Edition2 Page421
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (422,1)
WARNING
Do not replace the xenon fusion bulbs
yourself:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Consult an Authorized
Mazda Dealer when the replacement
is necessary.
Never touch the glass portion of a
halogen bulb with your bare hands and
always wear eye protection when
handling or working around the bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when
lit.
Always keep halogen bulbs out of the
reach of children:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb
or breaking it some other way.
qReplacing Exterior Light Bulbs
Replacing a headlight bulb
High-beam bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood.3. Turn the cover counterclockwise and
remove it.
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
5. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
6. Install the new bulb in the reverse order
of removal.
8-38
Maintenance and Care
Owner Maintenance
CX-9_8Z28-EA-07J_Edition2 Page422
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (423,1)
NOTElTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Low-beam bulb
(Xenon fusion bulb)
You cannot replace the low beam bulbs by
yourself.
The bulbs must be replaced at an
Authorized Mazda Dealer.
(Halogen bulbs)
1. Make sure the headlight switch is off.
2. Lift the hood.
3. Remove the attachment bolts and the
coolant reservoir before replacing the
light bulb.
4. Turn the cover counterclockwise and
remove it.
5. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
6. Turn the socket and bulb assembly to
remove it. Carefully remove the bulb
from its socket in the reflector by
gently pulling it straight backward out
of the socket.
7. Install the new bulb in the reverse order
of removal.
Maintenance and Care
Owner Maintenance
8-39
CX-9_8Z28-EA-07J_Edition2 Page423
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (424,1)
8. Install the coolant reservoir. If you are
unsure of how tight the bolts should be,
have them inspected at an Authorized
Mazda Dealer.
Bolt tightening torque
N·m (kgf·m, ft·lbf)6.9―11.8
(0.7―1.2, 5.1―8.7)
NOTElTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Front side marker lights, Front turn
signal lights
1. Make sure the headlight switch is off.
2. Lift the hood.
3. Remove the attachment bolts and the
coolant reservoir before replacing the
light bulb.
4. Turn the socket and bulb assembly
counterclockwise and remove it.
5. Remove the bulb by pushing it in
slightly and turning it
counterclockwise.Front side marker lights
Front turn signal lights
6. Install the new bulb in the reverse order
of removal.
7. Install the coolant reservoir. If you are
unsure of how tight the bolts should be,
have them inspected at an Authorized
Mazda Dealer.
Bolt tightening torque
N·m (kgf·m, ft·lbf)6.9―11.8
(0.7―1.2, 5.1―8.7)
Fog lightsí
1. Make sure the headlight switch is off.
2. Turn the screws counterclockwise and
remove them.
8-40
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8Z28-EA-07J_Edition2 Page424
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

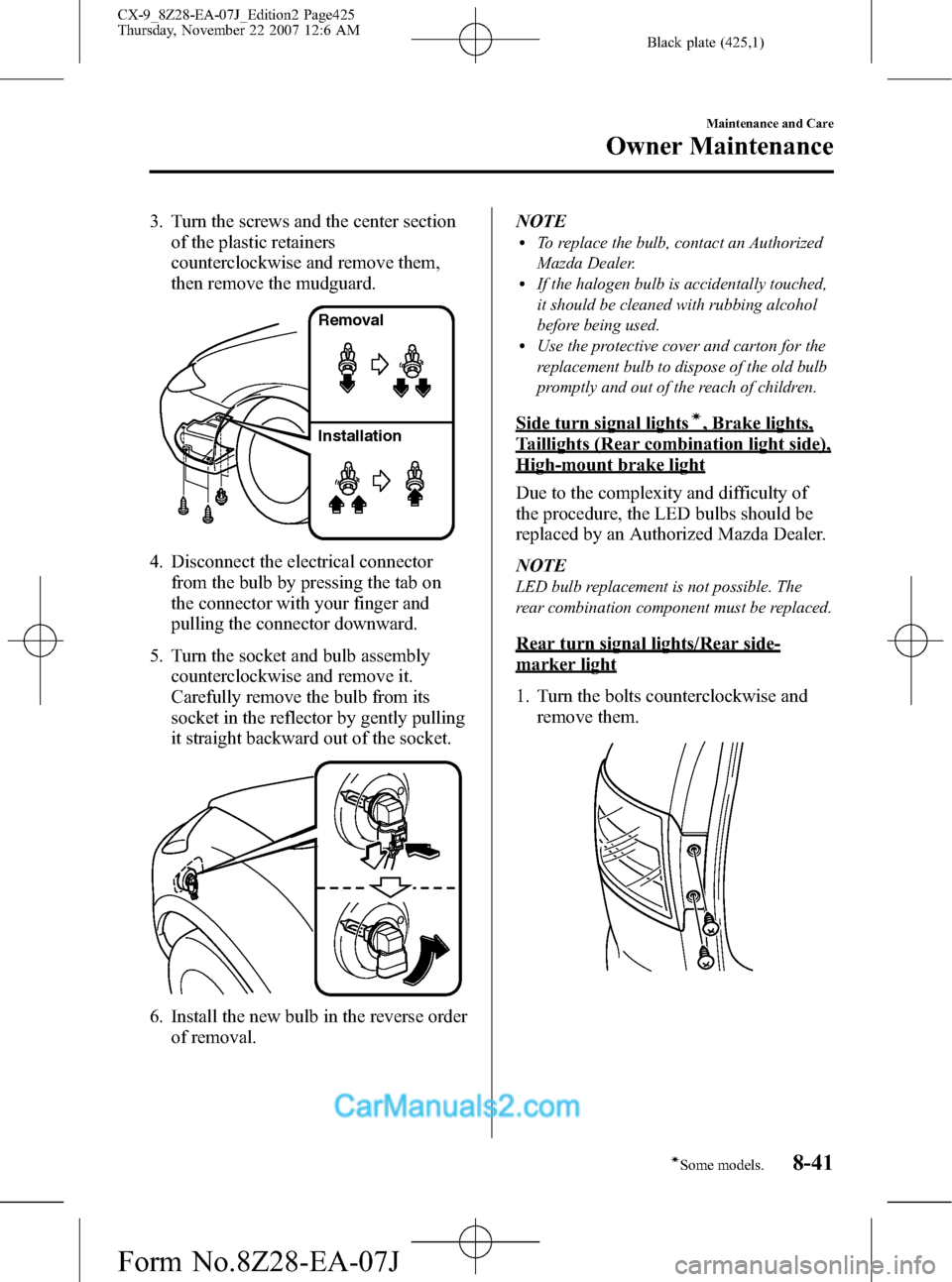

Black plate (425,1)
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then remove the mudguard.
Removal
Installation
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
5. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
6. Install the new bulb in the reverse order
of removal.NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer.
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton for the
replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Side turn signal lightsí, Brake lights,
Taillights (Rear combination light side),
High-mount brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs should be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible. The
rear combination component must be replaced.
Rear turn signal lights/Rear side-
marker light
1. Turn the bolts counterclockwise and
remove them.
Maintenance and Care
Owner Maintenance
8-41íSome models. CX-9_8Z28-EA-07J_Edition2 Page425
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (426,1)
2. Pull the unit rearward to remove it.
3. Turn the socket and bulb assembly
counterclockwise and remove it.
Rear side-maker
light
Rear direction indication light
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order
of removal.
Taillights (Liftgate side), Reverse lights
1. Remove the cover.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Reverse light
Taillight
4. Install the new bulb in the reverse order
of removal.
NOTE
To replace the bulb, contact an Authorized
Mazda Dealer.
License plate lights
1. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens with a flathead
screwdriver.
8-42
Maintenance and Care
Owner Maintenance
CX-9_8Z28-EA-07J_Edition2 Page426
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (427,1)
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of removal.
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front),
Overhead light (Center, Rear), Luggage
compartment light, Courtesy lights,
Vanity mirror lights
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
Overhead light/Map lights (Front)
Overhead light (Center, Rear)
Luggage compartment light
Edge
Courtesy lights
Maintenance and Care
Owner Maintenance
8-43
CX-9_8Z28-EA-07J_Edition2 Page427
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (428,1)
Vanity mirror lights
3. Install the new bulb in the reverse order
of removal.
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing fuses located behind the
glove compartment
If an electrical system is inoperative,
inspect the fuses located behind the glove
compartment.
1. Turn off the ignition switch and other
switches.
2. Open the glove compartment.
3. Remove the cover.
8-44
Maintenance and Care
Owner Maintenance
CX-9_8Z28-EA-07J_Edition2 Page428
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (429,1)
Fuse
4. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
5. Inspect the fuse and replace it if it's
blown.
NormalBlown
6. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the ROOM circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover or the
relay box cover.
Fuse block
Maintenance and Care
Owner Maintenance
8-45
CX-9_8Z28-EA-07J_Edition2 Page429
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (430,1)
Relay box
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
