relay MAZDA MODEL CX-9 2008 Owners Manual (in English)

Black plate (402,1)
Engine Compartment Overview
Engine coolant reservoirBrake fluid reservoir
Battery
Fuse block
Windscreen washer
fluid reservoir
Engine oil-filler capEngine oil dipstickRelay boxAutomatic transaxle fluid-level dipstick
Power steering
fluid reservoir
8-18
Maintenance and Care
Owner Maintenance
CX-9_8Z28-EA-07J_Edition2 Page402
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (429,1)
Fuse
4. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
5. Inspect the fuse and replace it if it's
blown.
NormalBlown
6. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the ROOM circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover or the
relay box cover.
Fuse block
Maintenance and Care
Owner Maintenance
8-45
CX-9_8Z28-EA-07J_Edition2 Page429
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (430,1)
Relay box
3. If any fuse but the MAIN fuse is
blown, replace it with a new oneof the
same amperage rating.
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
8-46
Maintenance and Care
Owner Maintenance
CX-9_8Z28-EA-07J_Edition2 Page430
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J

Black plate (433,1)

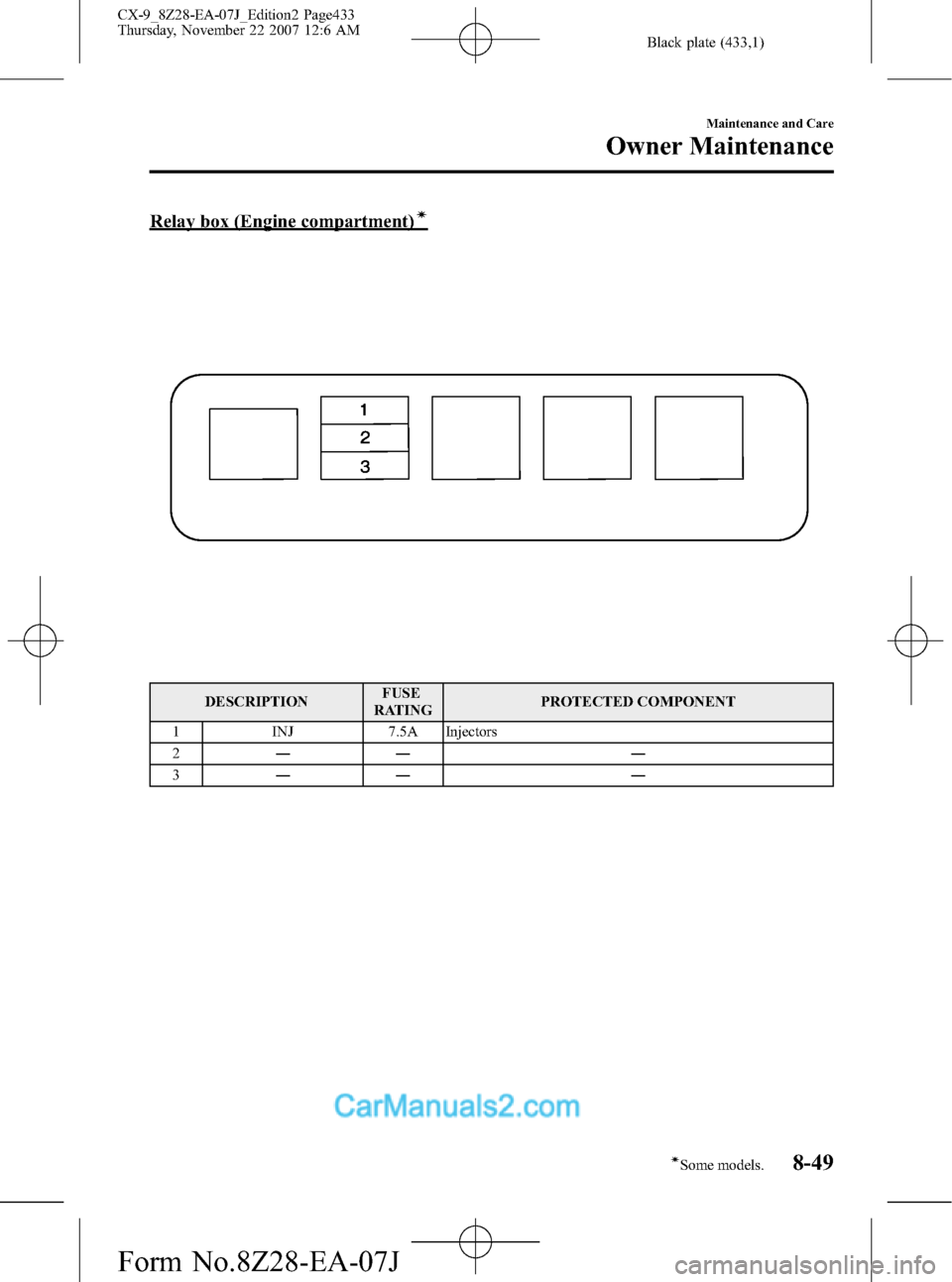

Relay box (Engine compartment)í
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 INJ 7.5A Injectors
2―― ―
3―― ―
Maintenance and Care
Owner Maintenance
8-49íSome models. CX-9_8Z28-EA-07J_Edition2 Page433
Thursday, November 22 2007 12:6 AM
Form No.8Z28-EA-07J
