warning MAZDA MODEL CX-9 2009 Navigation Manual (in English)

6
Before Use
Navigation
Set Up
RDM-TMCIf
necessary
Rear View
Monitor
Safety Information
n
Read this owner’s manual for your Navigation System carefully before using the system.
It contains instructions about how to use the system in a safe and effective manner.
Mazda assumes no responsibility for any problems resulting from failure to observe the instructions
given in this manual.
n This manual uses pictographs to show you how to use the product safely and to alert you to potential
dangers resulting from improper connections and operation. The meanings of the pictographs are
explained below. It is important that you fully understand the pictographs and explanations in order to
use this manual and the system properly.
Warning
Warning
The presence of this Warning symbol in the text is intended to
alert you to the importance of heeding the operation
instructions. Failure to heed the instructions may result in
severe injury or death.
nDo not keep your eyes fixed on the monitor screen or operate the system
while driving.
Do not change the settings and destination locations while driving. Minimize the time
spent on viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and can
cause accidents. Always stop the vehicle in a safe location and use the parking brake
before operating the system.
n
Always obey local traffic regulations. Your guided route may include roads that are not open to vehicles or are closed due to
traffic regulations. Comply with the local traffic regulations and take another route.
n
Do not use the unit when it is out of order.If the unit is out of order (no image, no sound) or in an abnormal state (has foreign matter
in it, is exposed to water, is smoking, or smells), then turn it off immediately and consult
with an Expert dealer, we recommend an Authorized Mazda Dealer. Using the unit in an
out-of-order condition may lead to accidents, fires, or electric shocks.
n
Use the proper power supply. This product is designed for operation with a negative grounded 12 V DC battery system.
n
Do not disassemble. Do not disassemble the product or attempt to repair it yourself. If the product needs to be
repaired, take it to an Authorized dealer, we recommend an Authorized Mazda Dealer.
Warnings
2%:':9)FSSO4EKI1SRHE].YRI41

16
RoutingAddress
Book
Getting started
Navigation Set Up
l
You can alter the map display conditions, the route guidance conditions and show the
system information.
nStop your vehicle before the following operations. Do not change the settings and destination locations while driving. Minimize the time
spent viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and may
cause an accident.
Always stop the vehicle in a safe location and put the parking brake on before operating
the system.
Before Stepsselect
Warning
MENU
Open
[NAVIGATION SETUP] ( page 17)
( page 19)
( page 20)
( page 21)
( page 22)
( page 24)
2%:':9)FSSO4EKI1SRHE].YRI41

17
Getting started
Navigation Set Up
Before Steps
select
select
User Setting
MENU
Open the
[USER SETTINGS]
screen
nMap Color
Select a screen color from the to options.
nMAP Mode
lAuto : The display will automatically switch between Day
and Night illumination mode when the headlights are
turned off and on respectively.
lDay :The display will be presented in Day illumination mode
regardless of whether the headlights are on or off.
lNight : The display will be presented in Night illumination mode regardless of whether the headlights are on or off.
nDistance
Select the distance unit from or .
nAverage speed
Set the average speed for each road to be driven.
(This function sets the standard speed (average vehicle speed
for each route) used for calculating the estimated arrival time
when calculating the route time.)
: Average speed setting:Changes back to default
nRoad Restriction Warnings
The display of warnings during route guidance when passing
through areas with traffic restrictions can be turned on or off.
2%:':9)FSSO4EKI1SRHE].YRI41

28
RoutingAddress
Book
Getting started
Screen change
nDo not keep your eyes fixed on the monitor screen or operate the system
while driving
Do not change the settings and destination locations while driving. Minimize the time
spent viewing the monitor screen and listening to the voice guidance while driving.
Operating the system will distract the driver from looking ahead of the vehicle and may
cause an accident. Always stop the vehicle in a safe location and use the parking brake
before operating the system.
Map
orientation
Map scale
Warning
1
Select , on-
screen button.lNorth Up: Geographic north is up.
lHead Up: The direction you are
heading is up.
1
Select or on-screen
button.
lThe map can be displayed in
14 steps with scales from
to . l
ZOOM OUT
lZOOM IN
(more detail.)

Imperial
display1/32 mi
(mile) 1/4 mi
(mile) 2 mi
(mile) 16 mi
(mile) 128 mi
(mile)
Metric
display50 m 500 m 4 km 32 km 256 km
2%:':9)FSSO4EKI1SRHE].YRI41

31
Before
UseGetting
started
Routing
lFor Character Entry, please refer to page 39.
lDo not keep your eyes fixed on the monitor screen or operate the system while driving.Do not change the settings and destination locations while driving. Minimize the time spent
viewing the monitor screen and listening to the voice guidance while driving. Operating the system
will distract the driver from looking ahead of the vehicle and may cause an accident. Always stop
the vehicle in a safe location before operating the system.
lRoute searches with the navigation system can include roads that you cannot drive on and roads that you
are prohibited from driving on due to traffic regulations. Please comply with the traffic regulations.
Warnings

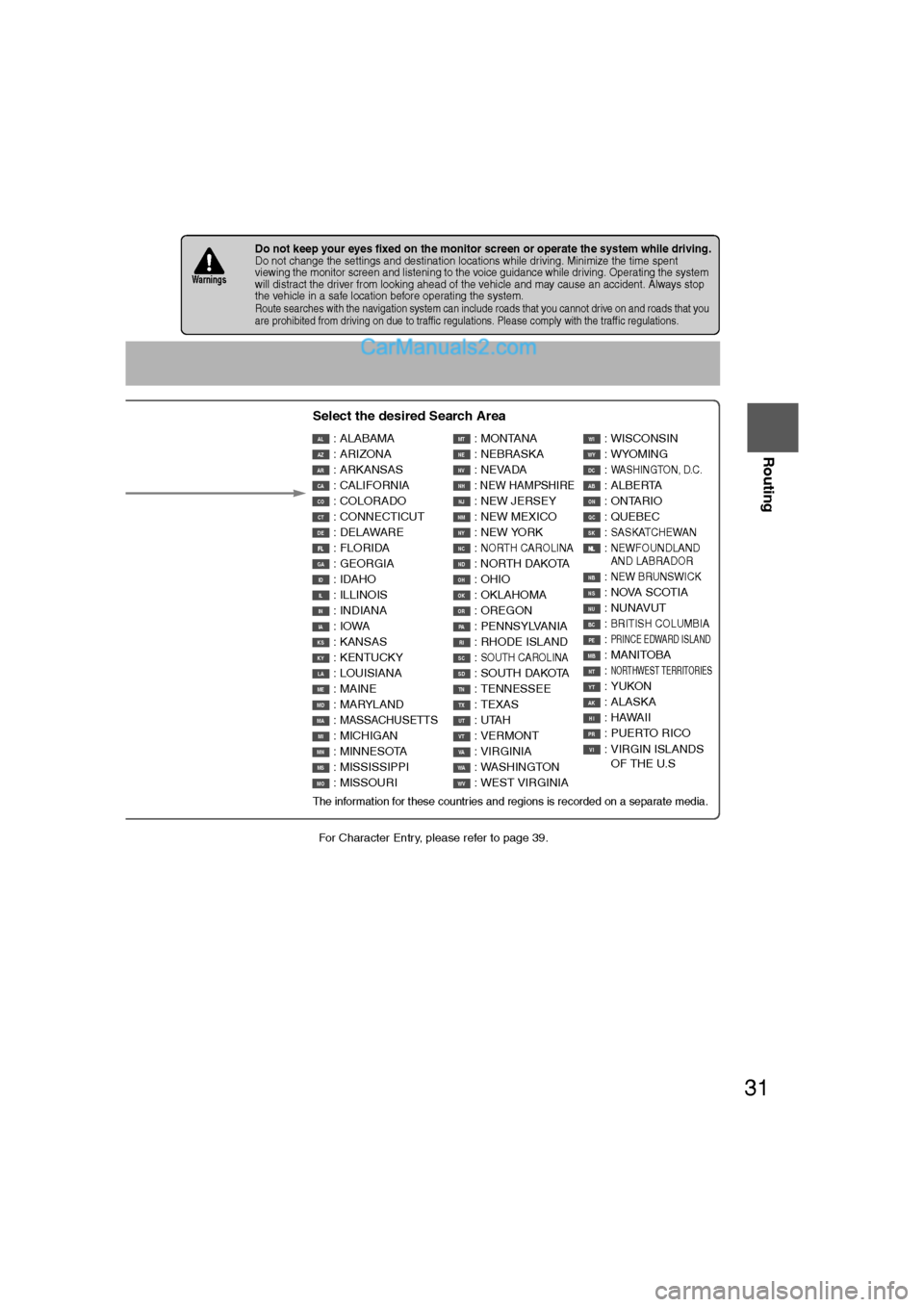

Select the desired Search Area
: ALABAMA
: ARIZONA
: ARKANSAS
: CALIFORNIA
: COLORADO
: CONNECTICUT
: DELAWARE
: FLORIDA
: GEORGIA
: IDAHO
: ILLINOIS
: INDIANA
: IOWA
: KANSAS
: KENTUCKY
: LOUISIANA
: MAINE
: MARYLAND
:
MASSACHUSETTS
: MICHIGAN
: MINNESOTA
: MISSISSIPPI
: MISSOURI : MONTANA
: NEBRASKA
: NEVADA
: NEW HAMPSHIRE
: NEW JERSEY
: NEW MEXICO
: NEW YORK
:
NORTH CAROLINA
: NORTH DAKOTA
: OHIO
: OKLAHOMA
: OREGON
: PENNSYLVANIA
: RHODE ISLAND
:
SOUTH CAROLINA
: SOUTH DAKOTA
: TENNESSEE
: TEXAS
: UTAH
: VERMONT
: VIRGINIA
: WASHINGTON
: WEST VIRGINIA : WISCONSIN
: WYOMING
:
WASHINGTON, D.C.
: ALBERTA
: ONTARIO
: QUEBEC
:
SASKATCHEWAN
: NEWFOUNDLAND
AND LABRADOR
: NEW BRUNSWICK
: NOVA SCOTIA
: NUNAVUT
:
BRITISH COLUMBIA
: PRINCE EDWARD ISLAND
: MANITOBA
:
NORTHWEST TERRITORIES
: YUKON
: ALASKA
: HAWAII
: PUERTO RICO
: VIRGIN ISLANDS
OF THE U.S
The information for these countries and regions is recorded on a separate media.
AL
AZ
AR
CA
CO
CT
DE
GA
ID
IL
IN
IA
KS
KY
LA
ME
MD
MA
MI
MN
MS
MO
MT
NE
NV
NH
NJ
NM
NY
NC
ND
OH
OK
OR
PA
RI
SC
SD
TN
TX
UT
VT
VA
WA
WV
WI
WY
DC
AB
ON
QC
SK
NB
NS
NU
BC
PE
MB
NT
YT
AK
HI
PR
VI
2%:':9)FSSO4EKI1SRHE].YRI41

43
Before
UseGetting
started
Routing
nDo not keep your eyes fixed on the monitor screen or operate the system while drivingDo not change the settings and destination locations while driving. Minimize the time spent viewing the monitor screen and
listening to the voice guidance while driving. Operating the system will distract the driver from looking ahead of the vehicle
and
may cause an accident. Always stop the vehicle in a safe location and use the parking brake before operating the system.
Warning
Select or for toll
roads, major roads, ferry,
restricted roads and border
crossing.
The route will not necessarily follow
the specified conditions.
Select the
button for the
location to be
modified.
Select the way points to change the order.Change the destination and the passing order of the destination and way points.

Select the button
corresponding to the
destination or way
point to be deleted.

The Enter Route
screen appears.
MAP/VOICE
MAP/VOICE
MAP/VOICE
Select
(Change
Location).
Shows the map for
the destination/
way points.
Press
to change the
order.
Select
Select
from the roads
to be avoided.
:
Searches the detour routes at 1-80 km (0.625-
50 miles) from the present position to the
selected route. (Display range varies according
to the set distance of the selected route.)
Whole Route searches the route that detours
from the present position for all routes.
MAP/VOICE
Move to loca-
tion and then
press
.
:
:Cancel the deletion
:
:Cancel the setting
2%:':9)FSSO4EKI1SRHE].YRI%1

58
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
If necessary
Precautions/System Performance
Voice guidance has the following functions:
nIntersection guidance
l
The system voice announces the distance to an upcoming turn and the turning direction.
This guidance function is automatic. Therefore, you do not have to set it, and it cannot be
disabled.
l The system vocally announces the distance to an upcoming highway branching point or
junction.
Voice Guidance
l The navigation system is just a support system for the driver. The driver should
always pay attention to the traffic situation to safely make decisions. You may
be unable at times to arrive at your destination due to out-of-date information
on a map disc. You should be especially careful when selecting an urgent
destination such as a hospital or a police station.
l Your route may sometimes include roads that are not open to vehicles or are
closed due to traffic regulations. Please comply with the local traffic
regulations.
l Do not change the settings and destination locations while driving. Minimize
the time spent viewing the monitor screen and listening to the voice guidance
while driving. Operating the system will distract the driver from looking ahead
of the vehicle and may cause an accident. Always stop the vehicle in a safe
location and use the parking brake before operating the system.
When two intersections are close together, the
voice guidance may be late. When two roundabouts are close together, the
voice guidance for the second may be late.
Warnings
Second branching pointFirst branching point150m
100m
Route
In 700m left turn. Left turn ahead,
then right turn.
Roundabout.
Take the second
exit.
2%:':9)FSSO4EKI1SRHE].YRI41

61
Before
UseGetting
started
RoutingAddress
BookVo i c e
Recognition
Navigation
Set Up
If necessary
Although you may encounter the following problems in a route search, there is nothing
wrong with the system.
The navigation system is just a support system for the driver. The driver should always pay
attention to the traffic situation to safely make decisions. You may be unable to arrive at your
destination due to out-of-date information on a map disc. You should be especially careful
when selecting an urgent destination such as a hospital or a police stat\
ion.
Route Search
Warning
?
?
?
?
?
?
?
?
It may also show roads
that are out of use due
to the opening of a new
road or for other
reasons.
The route shown only
reaches a point near
your destination if your
destination has no
direct access road or
the road is too narrow.
It may show a route
where you'll have to
make a U-turn.
The guide map may
show roads that are not
passable due to closure
in winter or for other
reasons.
It may show a
common road under
or over an elevated
road.
Destination
Road
out of
use
which
exit? Destination
Destination
Destination
Depending upon the shape of
roundabout (rotary), the guide
map may show a wrong exit.
where the route remains
unchanged after another
search.
• There may be cases
• A congested route may
be shown.
It may also show
roads that only permit
one-way traffic.
2%:':9)FSSO4EKI1SRHE].YRI41

108
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Rear View Monitor
Rear View Monitor
Rear View Monitor Cautions
The rear view monitor is a visual assist system when reversing the vehicle that provides
images from the rear of the vehicle.
Note
l
If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it cannot
be wiped off, use a mild detergent.
l If the camera temperature changes rapidly, such as by pouring hot water on it under cold
temperature conditions, the rear view monitor may not operate correctly.
Rear View Parking Camera Location
The rear view monitor is only a visual assist device when reversing the vehicle. The images on
the screen may be different from the actual conditions. Always drive carefully confirming the
safety of the rear and the surrounding conditions by looking directly with your eyes. Reversing the
vehicle by only looking at the screen may cause an accident or a collision with an object.
lWhen the display is cold, images may course across the monitor or the screen
and may be dimmer than usual, which could cause difficulty in confirming the
surrounding conditions of the vehicle. Always drive carefully confirming the safety
of the rear and the surrounding conditions by looking directly with your eyes.
l Do not apply excessive force to the camera. The camera position and angle
may deviate.
l Do not disassemble, modify, or remove it as it may no longer be waterproof.
l The camera cover is made of plastic. Do not apply degreasing agents,
organic solvents, wax, or glass coating agents to the camera cover. If any
are spilled on the cover, wipe off with a soft cloth immediately.
l Do not rub the cover excessively, or polish it using an abrasive compound or
a hard brush. The cover may be damaged affecting the image.
Warning
Cautions
Rear View Parking Camera
2%:':9)FSSO4EKI1SRHE].YRI41
