Black plate (137,1)
NOTElIf the security indicator light illuminates
and stays on when the ignition switch is
turned to the ON position, the engine will
not start.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone, could
interfere with your immobilizer system. If
you are using the proper key and your
engine fails to start, check the security
indicator light. If it is flashing, remove the
ignition key and wait 2 seconds or more,
then reinsert it and try starting the engine
again. If it does not start after 3 or more
tries, contact an Authorized Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If you
shut off the engine while the light is
flashing you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the keys
are needed. Bring all the existing keys to an
Authorized Mazda Dealer.
qModification and Add-On
Equipment
Mazda cannot guarantee the immobilizer
system's operation if the system has been
modified or if any add-on equipment has
been installed.
CAUTION
To avoid damage to your vehicle, do
not modify the system or install any
add-on equipment to the immobilizer
system or the vehicle.
Theft-Deterrent Systemí
If the theft deterrent system detects an
inappropriate entry into the vehicle, which
could result in the vehicle or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the horn and flashing the hazard
warning lights.
Refer to Operation on page 3-55.
NOTE
lThe theft-deterrent system operates with the
advanced keyless function, keyless entry
system or the auxiliary key.
The system operates only when the driver is
in the vehicle or within operational range
while the advanced key is being carried.
lThe system will not function unless it is
properly armed. To properly secure the
vehicle, always make sure all windows are
completely closed and all doors and the
liftgate are locked before leaving the
vehicle. Remember to take your advanced
key.
qOperation
What turns it on:
lForcing open a door, the hood or the
liftgate.
lOpening a door or the hood by
operating an inside door-lock knob or
the hood release handle.
What it does:
lThe horn sounds intermittently and the
hazard warning lights flash.
lThe alarm continues for about 30
seconds, then stops.
If the system is triggered again, the lights
and horn will activate until a door or the
liftgate is unlocked with the key or with
the transmitter.
Knowing Your Mazda
Security System
3-55íSome models. CX-9_8Z66-EA-08F_Edition3 Page137
Tuesday, March 31 2009 1:51 PM
Form No.8Z66-EA-08F

Black plate (221,1)
lUnder the following conditions, the
KEY warning light (red) will flash
continuously when the start knob has
not been returned to the LOCK
position to notify the driver that the
advanced key has been removed from
the vehicle. It will stop flashing when
the advanced key is back inside the
vehicle.
lThe start knob has not been returned
to the LOCK position, the driver's
door is open, and the advanced key
is removed from the vehicle.
lThe start knob has not been returned
to the LOCK position and all the
doors are closed after removing the
advanced key from the vehicle.
NOTE
The flashing KEY warning light (red) and the
beep sound operate simultaneously (page
3-20).
KEY Indicator Light (Green)
When illuminated
When the start knob is pushed in from the
LOCK position, the system confirms that
the correct advanced key is inside the
vehicle, the KEY indicator light (green)
illuminates, and the start knob can be
turned to the ACC position (page 3-9).
When flashing
When the advanced key battery power is
low, the KEY indicator light flashes for 30
seconds after the start knob is turned from
the ON position to the ACC or LOCK
position. Replace with a new battery
before the advanced key becomes
unusable (page 3-6).NOTE
The advanced key can be set so that the KEY
indicator light (green) does not flash even if
the battery power is low.
Refer to Setting Change (Function
Customization)(page 3-19).
qSecurity Indicator Light
This indicator light starts flashing every 2
seconds when the ignition switch is turned
from the ON to the ACC position and the
immobilizer system is armed.
The light stops flashing when the ignition
switch is turned to the ON position with
the correct ignition key.
At this time, the immobilizer system is
disarmed and the light illuminates for
about 3 seconds and then turns off.
If the engine does not start with the
correct ignition key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
5-55
CX-9_8Z66-EA-08F_Edition3 Page221
Tuesday, March 31 2009 1:52 PM
Form No.8Z66-EA-08F

Black plate (494,1)

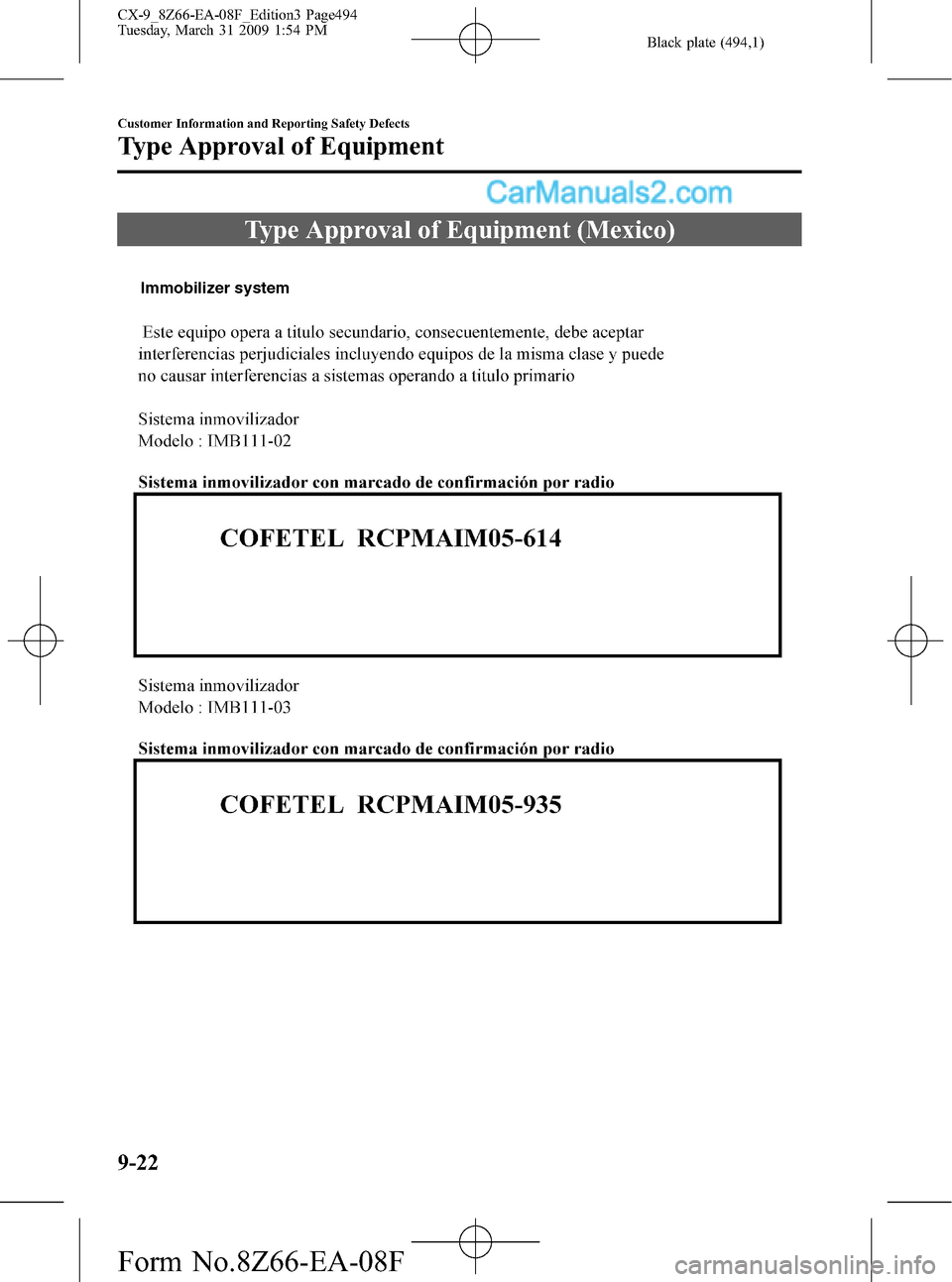

Type Approval of Equipment (Mexico)
Immobilizer system
9-22
Customer Information and Reporting Safety Defects
Type Approval of Equipment
CX-9_8Z66-EA-08F_Edition3 Page494
Tuesday, March 31 2009 1:54 PM
Form No.8Z66-EA-08F

Black plate (535,1)
I
Ignition
Keys ........................................... 3-21
Switch .......................................... 5-2
Illuminated Entry System ............... 6-139
Immobilizer System
(with Advanced Key) ........................ 3-50
Immobilizer System
(without Advanced Key) ................... 3-53
Indicator Lights ................................. 5-43
BSM OFF ................................... 5-57
Cruise ......................................... 5-57
Headlight high-beam .................. 5-56
Security ...................................... 5-55
Shift position .............................. 5-56
TCS OFF .................................... 5-57
TCS/DSC ................................... 5-56
Turn-signal/hazard warning ....... 5-58
Information Display ........................ 6-141
Ambient temperature display .... 6-142
Audio display ........................... 6-143
Climate control display ............ 6-143
Clock ........................................ 6-142
Information display functions ... 6-141
Trip computer ........................... 6-143
Instrument Cluster ............................. 5-38
Interior Care ...................................... 8-57
Interior Lights ................................. 6-139
J
Jump-Starting .................................... 7-16
K
Keyless Entry System ....................... 3-22
Keys .................................................. 3-21
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-63
Liftgate .............................................. 3-30
Light Bulbs
Replacement ............................... 8-37
Specifications ............................. 10-6
Lighting Control ............................... 5-60
Lubricant Quality .............................. 10-4
Luggage Compartment Light .......... 6-140
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-17
Owner maintenance schedule ..... 8-16
Scheduled ..................................... 8-3
Map Lights ...................................... 6-140
Mirror Defroster ................................ 5-69
Mirrors
Outside mirrors .......................... 3-58
Rearview mirror ......................... 3-59
Money-Saving Suggestions ................ 4-6
Moonroof .......................................... 3-47
O
Odometer and Trip Meter .................. 5-39
Outside Mirrors ................................. 3-58
Overhead Console ........................... 6-148
Overhead Lights .............................. 6-139
Overheating ....................................... 7-14
Overloading ...................................... 4-12
P
Paint Damage .................................... 8-52
Index
11-5
CX-9_8Z66-EA-08F_Edition3 Page535
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F

Black plate (536,1)
P
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Power Door Locks ............................ 3-28
Power Liftgate ................................... 3-32
Power Outlet ................................... 6-152
Power Steering .................................. 5-16
Fluid ........................................... 8-24
Power Windows ................................ 3-37
Push-Starting ..................................... 7-18
R
Rear Coat Hooks ............................. 6-150
Rear Door Child Safety Locks .......... 3-30
Rear Entertainment System ............... 6-64
Before operation ......................... 6-76
Country code list ...................... 6-107
Language code list ................... 6-105
Sound output .............................. 6-82
Rear Window Defroster .................... 5-69
Rear Window Washer ....................... 5-68
Rear Window Wiper .......................... 5-68
Rearview Mirror ................................ 3-59
Recreational Towing ......................... 7-22
Registering Your Vehicle in A Foreign
Country ............................................. 9-19
Rocking the Vehicle ............................ 4-9
Roll-over ............................................. 4-8
S
Safety Defects, Reporting ................. 9-46
S
Seat Belt System
3-point type ................................ 2-23
Automatic locking ...................... 2-22
Belt minder ................................. 2-32
Center-rear lap/shoulder ............. 2-27
Emergency locking .................... 2-21
Extender ..................................... 2-31
Pregnant women ........................ 2-21
Pretensioner and load limiting .... 2-25
Seat belt precautions .................. 2-19
Warning light/beep ..................... 2-32
Seats
Front seat
(Electrically operated seats) ......... 2-5
Front seat
(Manually operated seats) ............ 2-2
Seat warmer ................................ 2-17
Second-row seats ....................... 2-10
Third-row seat ............................ 2-15
Second-Row Seats ............................ 2-10
Security System
Immobilizer system
(without advanced key) .............. 3-53
Immobilizer system
(with advanced key) ................... 3-50
Theft-deterrent system ............... 3-55
Service Publications .......................... 9-48
Shopping Bag Hook ........................ 6-150
Side Extension Sunvisors ................ 6-138
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-39
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-58
Horn ........................................... 5-70
11-6
Index
CX-9_8Z66-EA-08F_Edition3 Page536
Tuesday, March 31 2009 1:55 PM
Form No.8Z66-EA-08F
