Page 106 of 140
106
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
Fast-Forward
Long-press the SEEK/TRACK up button to fast-forward the track. Fast-forward stops when
the button is no longer pressed.
Rewind
Long-press the SEEK/TRACK down button to reverse the track. Reverse stops when the
button is no longer pressed.
Tr a c k u p
Short-press the SEEK/TRACK up button to select the beginning of the next track.
Tr a c k d o w n
Short-press the SEEK/TRACK down button to select the beginning of the current track.
Folder up
Press the on-screen button to select the next folder.
Folder down
Press the on-screen button to select the previous folder.
Scan
Press the SCAN button to select the beginning of the selected track.
Repeat
Press the on-screen button to repeat play. Press the on-screen button to switch
the repeat mode.
RPT: Repeats the selected track.
FOLDER.RPT: Repeats the selected track in the folder.
ALL RPT: Repeats the selected track in the Bluetooth device.
Random
Press the on-screen button to play a track randomly. Press the on-screen button
to switch the random mode.
RDM: Plays the selected track in the Bluetooth device randomly.
FOLDER.RDM: Plays the selected track in the folder randomly.
Note
●
Some functions may not operate or operations may differ depending on the Bluetooth
device.
Consult an Authorized Mazda Dealer for information concerning the device. 3. To stop playback, press the on-screen
button.
Press the button again to resume playback.
OFF RPT FOLDER.RPTALL RPT
OFF RDM FOLDER.RDM
0 # 8 . 8 7 & ' D Q Q M Mo+ 9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬
Page 107 of 140
107
Audio Operation
■Setting the Passcode
The system cannot be activated unless the previously set passcode is input.
Note
●If the Passcode on-screen button is pressed while Passcode has been enabled,
Passcode is disabled. 1. Press the SOURCE button.
2. Press the on-screen button.
3. Press the on-screen button.
4. Press the Passcode on-screen button
to switch to the Input Bluetooth Passcode
screen.
• Press the on-screen button to return to the Bluetooth Audio screen.
5. After inputting the 4-digit passcode, press the on-screen button.
• Press the on-screen button to return to the Bluetooth Setting screen.
0 # 8 . 8 7 & ' D Q Q M Mo+ 9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬
Page 108 of 140
108
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
■Setting the PIN code
Note
●
The default PIN code is “0000”. 1. Press the SOURCE button.
2. Press the on-screen button.
3. Press the on-screen button.
4. Press the
on-screen button to switch to the Input
Bluetooth PIN screen.
• Press the on-screen button to return to the Bluetooth Audio screen.
5. After inputting the 4-digit PIN code, press the on-screen button.
• Press the on-screen button to return to the Bluetooth Settings screen.
0 # 8 . 8 7 & ' D Q Q M Mo+ 9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬
Page 109 of 140
109
Audio Operation
■Inserting the CD
The display must be open (lowered) to insert the CD.The CD must be label-side up when inserting. The auto-loading mechanism will set the CD and begin
play. There will be a short lapse before play begins while the player reads the digital signals on the CD.
Note
"IN" is displayed on a CD that is inserted.
■During CD playback
The album title, the track title, and the artist name will be displayed.
■During MP3/WMA CD playback
The album title, the track title, the folder name, the file number, and the artist name will be displayed.\
Note
The CD will begin playback automatically after insertion.
Operating Single CD-MP3/WMA Player
SCAN button TRACK buttonFolder search on-screen button
on-screen button
RPTon-screen button
RDM on-screen button
SCAN
0 # 8 . 8 7 & ' D Q Q M Mo+ 9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬
Page 110 of 140
110
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
■Normal insertion
1.Press the LOAD/ button.
2.Press the on-screen button lightly.
The display opens.
3.Lightly insert the CD after “DISC IN” is displayed. The CD will be inserted and played automatically after the display is closed.
Note
●The CD loading operation cancels 15 seconds after "DISC IN" is displayed or if the LOAD/
button is pressed again.
■Normal ejection
1.Press the LOAD/ button.
2.Press the on-screen button lightly.
3.The CD ejects after the display is opened.
4.The display closes automatically after the ejection is fully completed.
Note
●If the CD is not removed from the slot within 15 seconds, it will be re-inserted. When this
happens, or if the LOAD/ button is pressed again, the CD ejecting operation will be
canceled.
● The display does not close immediately even after the CD is ejected.
■Playing
1.Press the SOURCE button.
2.Press the on -screen button.
The song information will be displayed during playback.
Note
Press the TUNE AUDIO dial if the following screen is not displayed.
0 # 8 . 8 7 & ' D Q Q M Mo+ 9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬
Page 111 of 140
111
Audio Operation
Music CD
MP3/WMA CD
Note
●"-------" will be displayed for files without a file, track or other name input.
● This unit can read English (including numerals) one-byte characters.
● The displayable number of characters on each title is a maximum of 64.
(Music CDs)
● Although textual information (Track/artist information) recorded to each track appears in the
display, textual information (Album/artist information) recorded for the entire CD does not
appear in the display.
For details, refer to "CD-TEXT". ( page 80)
Select the on-screen button if the whole title cannot be displayed at one time. The
screen changes to display the rest of the characters.
0 # 8 . 8 7 & ' D Q Q M Mo+ 9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬
Page 112 of 140
112
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up

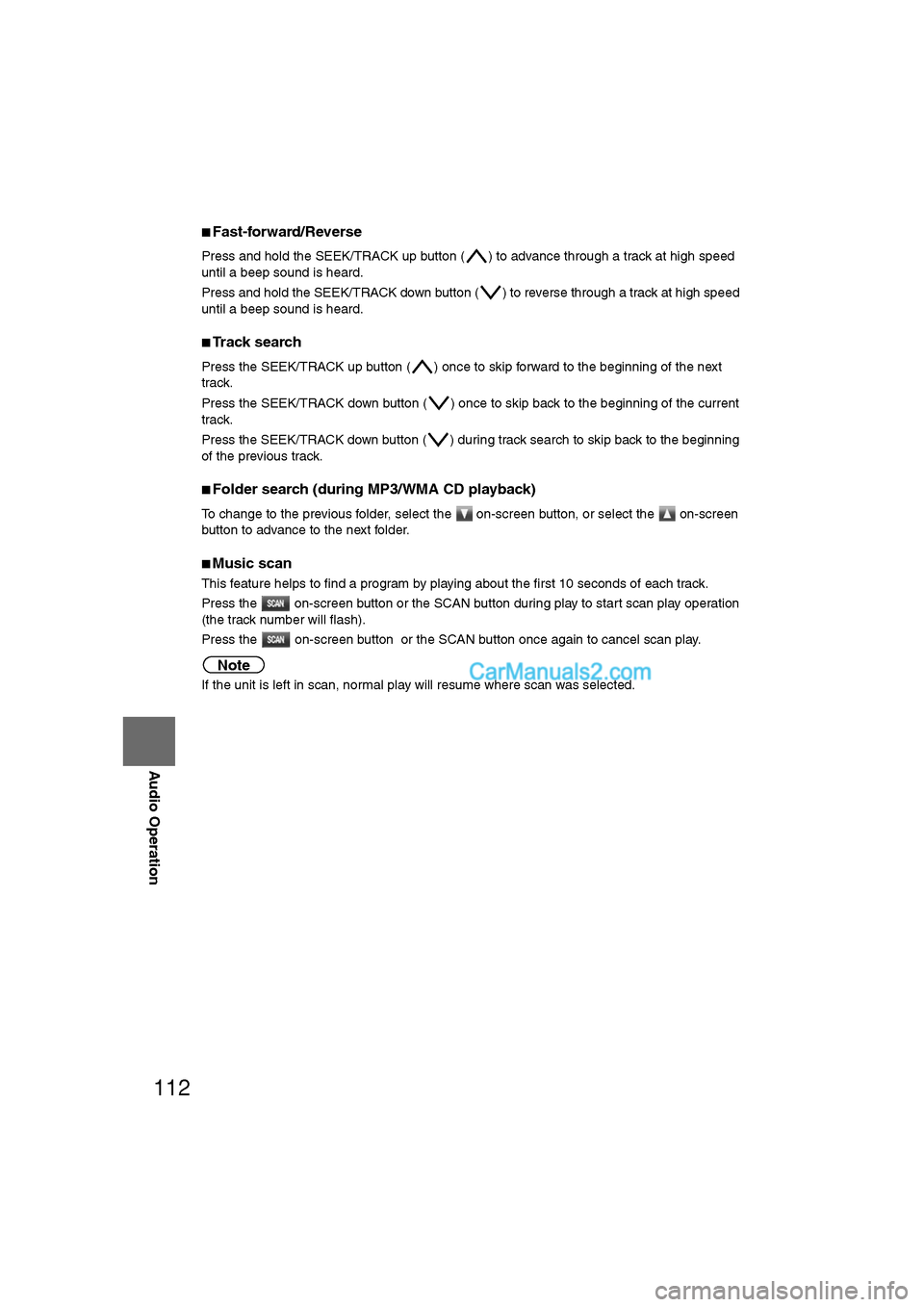

■Fast-forward/Reverse
Press and hold the SEEK/TRACK up button ( ) to advance through a track at high speed
until a beep sound is heard.
Press and hold the SEEK/TRACK down button ( ) to reverse through a track at high speed
until a beep sound is heard.
■Track search
Press the SEEK/TRACK up button ( ) once to skip forward to the beginning of the next
track.
Press the SEEK/TRACK down button ( ) once to skip back to the beginning of the current
track.
Press the SEEK/TRACK down button ( ) during track search to skip back to the beginning
of the previous track.
■Folder search (during MP3/WMA CD playback)
To change to the previous folder, select the on-screen button, or select the on-screen
button to advance to the next folder.
■Music scan
This feature helps to find a program by playing about the first 10 seconds of each track.
Press the on-screen button or the SCAN button during play to start scan play operation
(the track number will flash).
Press the on-screen button or the SCAN button once again to cancel scan play.
Note
If the unit is left in scan, normal play will resume where scan was selected.
0 # 8 . 8 7 & ' D Q Q M Mo+ 9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬
Page 113 of 140
113
Audio Operation
■Repeat play
During music CD playback
1.Select the on-screen button during playback to play the current track repeatedly.
2.Select the button again to cancel the repeat play.
During MP3/WMA CD playback
(Track repeat)
1.Select the on-screen button during playback to play the current track repeatedly.
2.To cancel the repeat play, select the button again after 3 seconds.
(Folder repeat)
1.Select the on-screen button during playback, and then select the button again within 3 seconds to play the tracks in the current folder repeatedly.
2.Select the button again to cancel the repeat play.
■Random play
Tracks are randomly selected and played.
During music CD playback
1.Select the on-screen button during playback to play the tracks on the CD randomly.
2.Select the button again to cancel the random play.
During MP3/WMA CD playback
(Folder random)
1.Select the on-screen button during playback to play the tracks in the folder randomly.
2.To cancel the random play, press the button again after 3 seconds.
(DISC random)
1.Select the on-screen button during playback, and then select the button again within 3 seconds to play the tracks on the CD randomly.
2.Select the button again to cancel the random play.
■Audio sound adjustment
Refer to “Power/Volume/Sound Controls”. ( page 82)
0 # 8 . 8 7 & ' D Q Q M Mo+ 9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬
Page 114 of 140
114
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Audio Operation
Navigation
Set Up
Memo
0 # 8 . 8 7 & ' D Q Q M Mo+ 9Þ9Ü9Ý9Ý9â¬9Þ9ã㓬
Page 118 of 140
118
Before
UseGetting
started
RoutingAddress
Book
Vo i c e Recognition
Navigation
Set Up
RDM-TMC
Bluetooth Hands-Free
Bluetooth Hands-Free
■What is Bluetooth Hands-Free?
By connecting a Bluetooth equipped mobile telephone to the hands-free unit equipped on the
vehicle, making and receiving calls are possible using the voice recognition switch, Pick-up
button and Hang-up button located on the steering wheel, and saying the voice commands.
A Bluetooth equipped mobile telephone communicates with the hands-free unit equipped on
the vehicle using radio transmission (Bluetooth).
For example, if the mobile telephone is placed in a coat pocket, the phone calls can be made
through your mobile service without direct use of the mobile telephone.
Refer to the “Bluetooth Hands-Free” in the owner’s manual.
The types of mobile phones which can be connected to the hands-free unit\
are limited, so
before purchasing or changing your mobile phone model, consult an Authorized Mazda Dealer.
Mobile phones which can be connected to the hands-free system need to be compliant with
Bluetooth specifications and the appropriate profile, however, even among these Bluetooth
phones are some which will not connect with your Mazda or will have limited function.
Therefore, consult Mazda Bluetooth Hands-Free Customer Service for information regarding
mobile phone compatibility:
U.S.A.
• Phone : 800-430-0153
• Web : www.MazdaUSA.com/bluetooth
Canada
• Phone : 800-430-0153
• Web : www.mazdahandsfree.ca
Applicable Bluetooth specification: Ver. 2.0 or higher
Response profile
• HFP (Hands Free Profile) Ver. 1.5
• DUN (Dial-up Networking Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0/1.3
• OPP (Object Push Profile) Ver. 1.1
Bluetooth is the registered trademark of Bluetooth SIG. Inc.
Operating the Bluetooth Hands-Free
MENU button
