qTransmitter
Lock button
Unlock button
Panic button
Operation
indicator light
NOTE
The unlock button can be used to open the
power windows and the moonroof, but the lock
button cannot be used to close the power
windows and the moonroof.
Refer to Opening/Closing the Power Windows
and the moonroof from Outside (page 3-44).
The operation indicator light flashes when
the buttons are pressed.
Lock button
To lock the doors and the liftgate, press
the lock button and the hazard warning
lights will flash once.
To confirm that all doors and the liftgate
have been locked, press the lock button
again within 5 seconds. If they are closed
and locked, the horn will sound and the
hazard warning lights will flash once.NOTE
lDoors and the liftgate can be locked by
pressing the lock button while any other
door or the liftgate is open. Also, the hazard
warning lights will not flash and the horn
will not sound.
l(Without theft-deterrent system)
The hazard warning lights will flash once
to indicate that all doors and the liftgate
are locked.
(With theft-deterrent system)
The hazard warning lights flash when the
theft deterrent system is armed.
The hazard warning lights do not flash if all
the doors and the liftgate are locked before
the theft-deterrent system is properly
armed.
When the doors are locked by pressing the
lock button on the transmitter while the
theft-deterrent system is armed, the hazard
warning lights will flash once to indicate
that the system is armed.
Refer to Theft-Deterrent System on page
3-62.
lAll doors and the liftgate cannot be locked
when the key is in the ignition switch.
lConfirm that all doors and the liftgate are
locked visually or audibly by use of the
double click.
Unlock button
To unlock the driver's door, press the
unlock button and the hazard warning
lights will flash twice.
To unlock all doors and the liftgate, press
the unlock button again within 3 seconds
and the hazard warning lights will flash
twice.
Knowing Your Mazda
Doors and Locks
3-23
CX-9_8CA8-EA-11G_Edition1 Page111
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (112,1)
NOTE
(Without theft-deterrent system)
The hazard warning lights will flash twice to
indicate that all doors and the liftgate are
unlocked.
(With theft-deterrent system)
The hazard warning lights flash when the theft
deterrent system is turned off.
The hazard warning lights do not flash unless
the theft deterrent system has been properly
turned off.
When the doors are unlocked by pressing the
unlock button on the transmitter while the
theft-deterrent system is turned off, the hazard
warning lights will flash twice to indicate that
the system is turned off.
Refer to Theft-Deterrent System on page 3-62.
NOTE
Auto re-lock function
After unlocking with the transmitter, all doors
and the liftgate will automatically lock if one
of the doors or the liftgate is not opened within
about 30 seconds.
Panic button
If you witness from a distance someone
attempting to break into or damage your
vehicle, pressing the panic button will
activate the vehicle's alarm.
NOTE
The panic button will work whether any door
or the liftgate is open or closed.
Turning on the alarm
Pressing the panic button once will trigger
the alarm for about 2 minutes and 30
seconds, and the following will occur:
lThe horn sounds intermittently.lThe hazard warning lights flash.
Turning off the alarm
Press any button on the transmitter.
3-24
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page112
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (113,1)

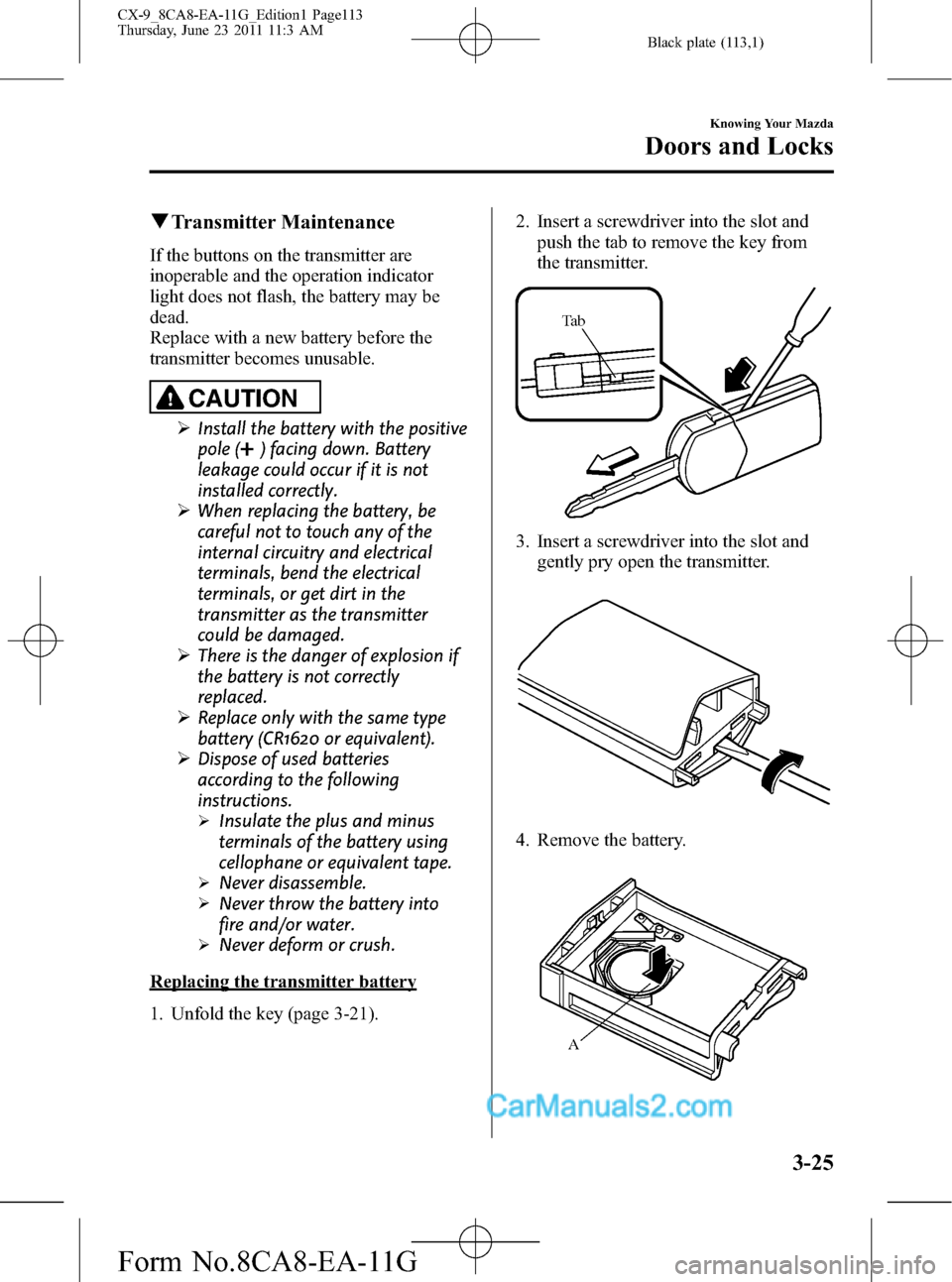

qTransmitter Maintenance
If the buttons on the transmitter are
inoperable and the operation indicator
light does not flash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION
ØInstall the battery with the positive
pole (
) facing down. Battery
leakage could occur if it is not
installed correctly.
ØWhen replacing the battery, be
careful not to touch any of the
internal circuitry and electrical
terminals, bend the electrical
terminals, or get dirt in the
transmitter as the transmitter
could be damaged.
ØThere is the danger of explosion if
the battery is not correctly
replaced.
ØReplace only with the same type
battery (CR1620 or equivalent).
ØDispose of used batteries
according to the following
instructions.
ØInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
ØNever disassemble.
ØNever throw the battery into
fire and/or water.
ØNever deform or crush.
Replacing the transmitter battery
1. Unfold the key (page 3-21).2. Insert a screwdriver into the slot and
push the tab to remove the key from
the transmitter.
Ta b
3. Insert a screwdriver into the slot and
gently pry open the transmitter.
4. Remove the battery.
A
Knowing Your Mazda
Doors and Locks
3-25
CX-9_8CA8-EA-11G_Edition1 Page113
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (114,1)
5. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and
snap the transmitter shut.
7. Align the key with the transmitter as
shown in the figure, and insert the key
until a click sound is heard.
CAUTION
Insert the key into the transmitter
securely until a click sound is heard.
If it is not inserted securely, it could
detach from the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, consult
an Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
3-26
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page114
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (115,1)
qDeclaration of Conformity
Keyless entry system
Knowing Your Mazda
Doors and Locks
3-27
CX-9_8CA8-EA-11G_Edition1 Page115
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (116,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the key in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.
Always close all the windows and the
moonroof, lock the doors and take the
key with you when leaving your vehicle
unattended:
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.After closing the doors, always verify
that they are securely closed:
Doors not securely closed are
dangerous, if the vehicle is driven
with a door not securely closed, the
door could open unexpectedly
resulting in an accident.
Always confirm the safety around the
vehicle before opening a door:
Suddenly opening a door is
dangerous. A passing vehicle or a
pedestrian could be hit and cause an
accident.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
qLocking, Unlocking with Request
Switch (with Advanced Key)
The doors can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
3-28
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page116
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (117,1)
qLocking, Unlocking with
Transmitter (with Advanced Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The doors can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
qLocking, Unlocking with Door-
Lock Knob
To lock any door from the inside, press
the door-lock knob.
To unlock, pull it outward.
This does not operate the other door
locks.
Lock
Unlock
To lock any door with the door-lock knob
from the outside, press the door-lock knob
to the lock position and close the door.
This does not operate the other door
locks.
Door-lock knob
NOTElWhen locking the doors this way, be careful
not to leave the key inside the vehicle.
l(With advanced key)
The driver's door cannot be locked using
the door-lock knob from the outside.
l(With retractable type key)
The driver's door cannot be locked using
the door-lock knob from the outside if the
key is in the ignition switch.
qPower Door Locks
Vehicle lock-out prevention
(With advanced key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. All doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
Knowing Your Mazda
Doors and Locks
3-29
CX-9_8CA8-EA-11G_Edition1 Page117
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (118,1)
(With retractable type key)
The vehicle lock-out prevention feature
prevents you from locking yourself out of
the vehicle. With the key in the ignition
switch, all doors and the liftgate will
automatically unlock if they are locked
using the power door locks with any door
or the liftgate open.
Locking, unlocking with key
All doors and the liftgate lock
automatically when the driver's door is
locked with the key.
All doors and the liftgate unlock when the
driver's door is unlocked and the key is
held in the unlock position for one second
or longer.
Unlock
Lock
NOTE
Holding the key in the unlocked position in the
driver's door lock for about a second unlocks
all doors and the liftgate. To unlock only the
driver's door, insert the key into the driver's
door lock and turn the key briefly to the unlock
position and then immediately return it to the
center position.
Locking, unlocking with door-lock
switch
All doors and the liftgate lock
automatically when lock side is pressed.
They all unlock when unlock side is
pressed.
Lock
Unlock
Locking, unlocking with request switch
(with advanced key)
All doors and the liftgate can be locked/
unlocked by operating the request switch
on the front doors and the liftgate while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
Locking, unlocking with transmitter
(with advanced key)
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-13).
Locking, unlocking with transmitter
(with retractable type key)
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter, refer to Keyless Entry
System (page 3-22).
3-30
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page118
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (119,1)
Auto lock/unlock function
WARNING
Do not pull the inner handle on a front
door:
Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.
lWhen the vehicle speed exceeds 20
km/h (12 mph), all doors and the
liftgate lock automatically.
lWhen the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior to perform the
setting change as indicated in the
procedure which follows.Settings can be changed using the
following operation.
Function
numberFunction
1The auto door-lock function is
disabled.
2All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
3All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from ON
to ACC or Off.
4When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
5When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
When the shift lever is shifted to park
(P) while the ignition is switched ON,
all the doors and the liftgate unlock
automatically.
1. Stop the vehicle and close all the doors.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 10
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
4. Referring to the auto lock/unlock
function setting table, determine the
function number for the desired setting
and press the unlock side of the driver's
door-lock switch only in the amount of
the selected function number (Ex. If
you select function 2, press the unlock
side of the switch only 2 times).
Knowing Your Mazda
Doors and Locks
3-31
CX-9_8CA8-EA-11G_Edition1 Page119
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (120,1)
NOTE
There are only a total of five auto lock/unlock
settings available. Be sure to press the unlock
side of the driver's door-lock switch the correct
number of times according to the selected
function number. If the switch is mistakenly
pressed six times, the procedure will be
invalidated. If this occurs, start the procedure
from the beginning.
5. Three seconds after the function setting
has been changed, a beep sound will
beep in the amount of the selected
function number.
NOTE
lThe doors cannot be locked or unlocked
while the setting function is being
performed.
lThe procedure can be cancelled by pressing
the lock side of the driver's door-lock
switch.
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
Lock
Unlock
3-32
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page120
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G
