Auto lock/unlock function
WARNING
Do not pull the inner handle on a front
door:
Pulling an inner handle on a front
door while the vehicle is moving is
dangerous. Passengers can fall out of
the vehicle if a front door accidentally
opens, which could result in death or
serious injury.
lWhen the vehicle speed exceeds 20
km/h (12 mph), all doors and the
liftgate lock automatically.
lWhen the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch
The doors and the liftgate can set to lock
or unlock automatically by selecting any
one of the functions from the following
table and using the driver's door-lock
switch on the interior to perform the
setting change as indicated in the
procedure which follows.Settings can be changed using the
following operation.
Function
numberFunction
1The auto door-lock function is
disabled.
2All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
3All the doors and the liftgate lock
automatically when the vehicle speed
is about 20 km/h (12 mph) or more.
All the doors and the liftgate unlock
when the ignition is switched from ON
to ACC or Off.
4When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
5When the ignition is switched ON and
the shift lever is shifted from park (P)
to any other gear position, all the
doors and the liftgate lock
automatically.
When the shift lever is shifted to park
(P) while the ignition is switched ON,
all the doors and the liftgate unlock
automatically.
1. Stop the vehicle and close all the doors.
2. Switch the ignition ON.
3. Press and hold the lock side of the
driver's door-lock switch within 10
seconds of switching the ignition ON,
and make sure a beep sound is heard
about eight seconds afterwards.
4. Referring to the auto lock/unlock
function setting table, determine the
function number for the desired setting
and press the unlock side of the driver's
door-lock switch only in the amount of
the selected function number (Ex. If
you select function 2, press the unlock
side of the switch only 2 times).
Knowing Your Mazda
Doors and Locks
3-31
CX-9_8CA8-EA-11G_Edition1 Page119
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (121,1)
Liftgate
WARNING
Never allow a person to ride in the
luggage compartment:
Allowing a person to ride in the
luggage compartment is dangerous.
The person in the luggage
compartment could be seriously
injured or killed during sudden
braking or a collision.
Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle
is dangerous. An open liftgate in a
moving vehicle will cause exhaust
gas to be drawn into the cabin. This
gas contains CO (carbon monoxide),
which is colorless, odorless, and
highly poisonous, and it can cause
loss of consciousness and death.
Moreover, an open liftgate could
cause occupants to fall out in an
accident.
CAUTION
Be careful not to apply excessive force
to the damper stay on the liftgate
such as by putting your hand on the
stay. Otherwise, the damper stay
may bend and affect the liftgate
operation.
Damper stay
qLocking, Unlocking with Request
Switch (with Advanced Key)
The liftgate can be locked/unlocked by
operating the request switch while
carrying the advanced key outside the
vehicle, refer to Operations Using
Advanced Keyless Functions (page 3-7).
qLocking, Unlocking with
Transmitter (with Advanced Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-13).
qLocking, Unlocking with Transmitter
(with Retractable Type Key)
The liftgate can be locked/unlocked by
operating the keyless entry system
transmitter, refer to Keyless Entry System
(page 3-22).
Knowing Your Mazda
Doors and Locks
3-33
CX-9_8CA8-EA-11G_Edition1 Page121
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (122,1)

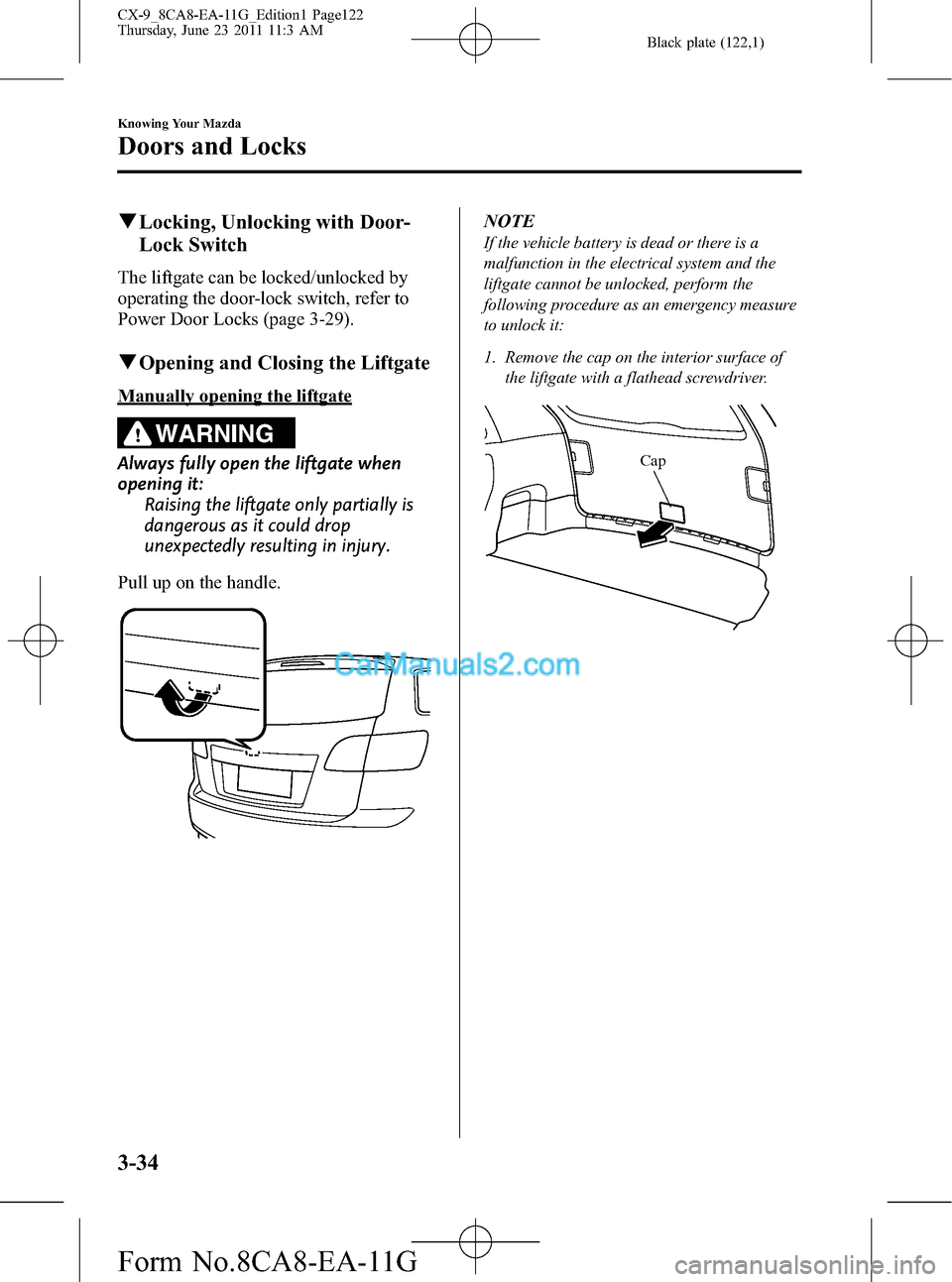

qLocking, Unlocking with Door-
Lock Switch
The liftgate can be locked/unlocked by
operating the door-lock switch, refer to
Power Door Locks (page 3-29).
qOpening and Closing the Liftgate
Manually opening the liftgate
WARNING
Always fully open the liftgate when
opening it:
Raising the liftgate only partially is
dangerous as it could drop
unexpectedly resulting in injury.
Pull up on the handle.
NOTE
If the vehicle battery is dead or there is a
malfunction in the electrical system and the
liftgate cannot be unlocked, perform the
following procedure as an emergency measure
to unlock it:
1. Remove the cap on the interior surface of
the liftgate with a flathead screwdriver.
Cap
3-34
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page122
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (123,1)
2.(With power liftgate)
Push the liftgate while pressing the lever
down.
(Without power liftgate)
Turn the lever to the right to unlock the
liftgate
With power liftgateLever
Lever
Without power liftgate
After performing this emergency measure,
have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Manually closing the liftgate
Use both hands to push the liftgate down
until the lock snaps shut. Do not slam it.
Pull up on the liftgate to make sure it is
securely latched.
qPower Liftgateí
The power liftgate opens/closes
electrically by operating switches in the
vehicle or the buttons on the keyless entry
system transmitter.
Refer to Keyless Entry System on page
3-13.
WARNING
Be sure to watch the power liftgate as
it opens or closes, and make sure that
it closes completely:
Opening or closing the power liftgate
while not watching it move is
dangerous. Because of unseen
obstacles and the jam-safe feature, a
liftgate may not close completely
and, if left unnoticed, could result in
serious injury or death if an occupant
were to fall out of the vehicle.
Always be sure that the area around
the liftgate is clear before activating
it.
Always confirm the safety of the area
around the power liftgate before
operating it electrically.
Not checking the area around the
liftgate for people before operating it
using the power liftgate switch or the
button on the keyless entry system is
dangerous. A person could become
caught between the liftgate and an
obstruction while it is opening
electrically or between the liftgate
and vehicle while it is closing
electrically, resulting in an accident
and serious injury.
Always be sure the power liftgate
completely closes before shifting into
gear and driving the vehicle:
Shifting out of Park (P) while the
liftgate is moving is dangerous. The
liftgate will not close completely and
this could result in serious injury or
death if an occupant were to fall out
of the vehicle. Occupants in the
vehicle will also not have full
protection in a collision.
Knowing Your Mazda
Doors and Locks
3-35íSome models. CX-9_8CA8-EA-11G_Edition1 Page123
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (125,1)
Opening/Closing the power liftgate
If the vehicle has satisfied all the
following operation conditions, the power
liftgate can be opened using the power
function.
Operation conditions
(1) The power liftgate is unlocked.
(2) The shift lever is in park (P) when the
ignition is switched ON.
NOTE
lIf condition (2) is not satisfied while the
power liftgate is opening electrically, the
beep sound will be heard and the liftgate
will move in the reverse direction
automatically.
lIf condition (2) is not satisfied while the
power liftgate is closing electrically, the
beep sound will be heard and the liftgate
continues closing.
lWhen condition (2) is satisfied, you can
resume power liftgate open/close operation
with the switches.
lWhen the ignition is switched ON, the
transmitter does not operate.
Operation using the transmitter
Press the power liftgate button for one
second or more with the power liftgate in
the fully closed/open position. The hazard
warning lights flash twice and the liftgate
opens/closes after the beep sounds.
Refer to Keyless Entry System on page
3-13.Operation from the driver's seat (To
open/close)
Press the power liftgate switch for about
one second or more while the liftgate is in
the fully closed/open position. The hazard
warning lights flash twice and the liftgate
opens/closes fully after the beep sound is
heard.
Power liftgate
switch
Operation from outside (To close only)
Press the power liftgate close switch while
the liftgate is fully opened. The hazard
warning lights flash twice and the liftgate
closes automatically after the beep sound
is heard.
Power liftgate
close switch
Knowing Your Mazda
Doors and Locks
3-37
CX-9_8CA8-EA-11G_Edition1 Page125
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (126,1)
NOTE
If the power liftgate switch/power liftgate close
switch/power liftgate button on the transmitter
is pressed or the outside handle is operated
while the liftgate is opening/closing
electrically, the beep sound is heard and the
liftgate moves in the reverse direction
automatically. If this operation is repeated the
system switches to manual operation.
Jam-safe equipment
While the power liftgate is opening/
closing electrically and the system detects
a person or an object in the liftgate's path,
the liftgate will move in the reverse
direction automatically.
WARNING
Always check the area around the
power liftgate before opening/closing
it:
Not checking for occupants and
objects around the power liftgate
before opening/closing it is
dangerous. The jam-safe equipment
is designed to prevent jamming in the
event an obstruction is in the
liftgate's path. The system may not
detect certain objects obstructing the
liftgate depending on the way they
are positioned and their shape.
However, if the jam-safe function
detects an obstruction and moves the
liftgate in the reverse direction, an
occupant in the liftgate's path could
be seriously injured.
CAUTION
Sensors are installed on both ends of
the power liftgate. Be careful not to
allow the sensors to be scratched or
damaged by sharp objects, otherwise
the liftgate may no longer open/close
automatically. In addition, if the
sensor is damaged while the liftgate
is closing automatically, the system
changes to manual operation.
Sensor
NOTE
The jam-safe equipment does not activate
during easy closure operation when the power
liftgate is between the near-shut position and
fully closed position.
When the power liftgate is moving in the
open/close direction and an obstruction is
detected, the beep sound will be heard and
the liftgate moves in the reverse direction.
NOTE
If the system repeatedly detects an object
obstructing the power liftgate in the open/close
direction several times, the beep sound will be
heard and the system changes to manual
operation.
3-38
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page126
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (127,1)

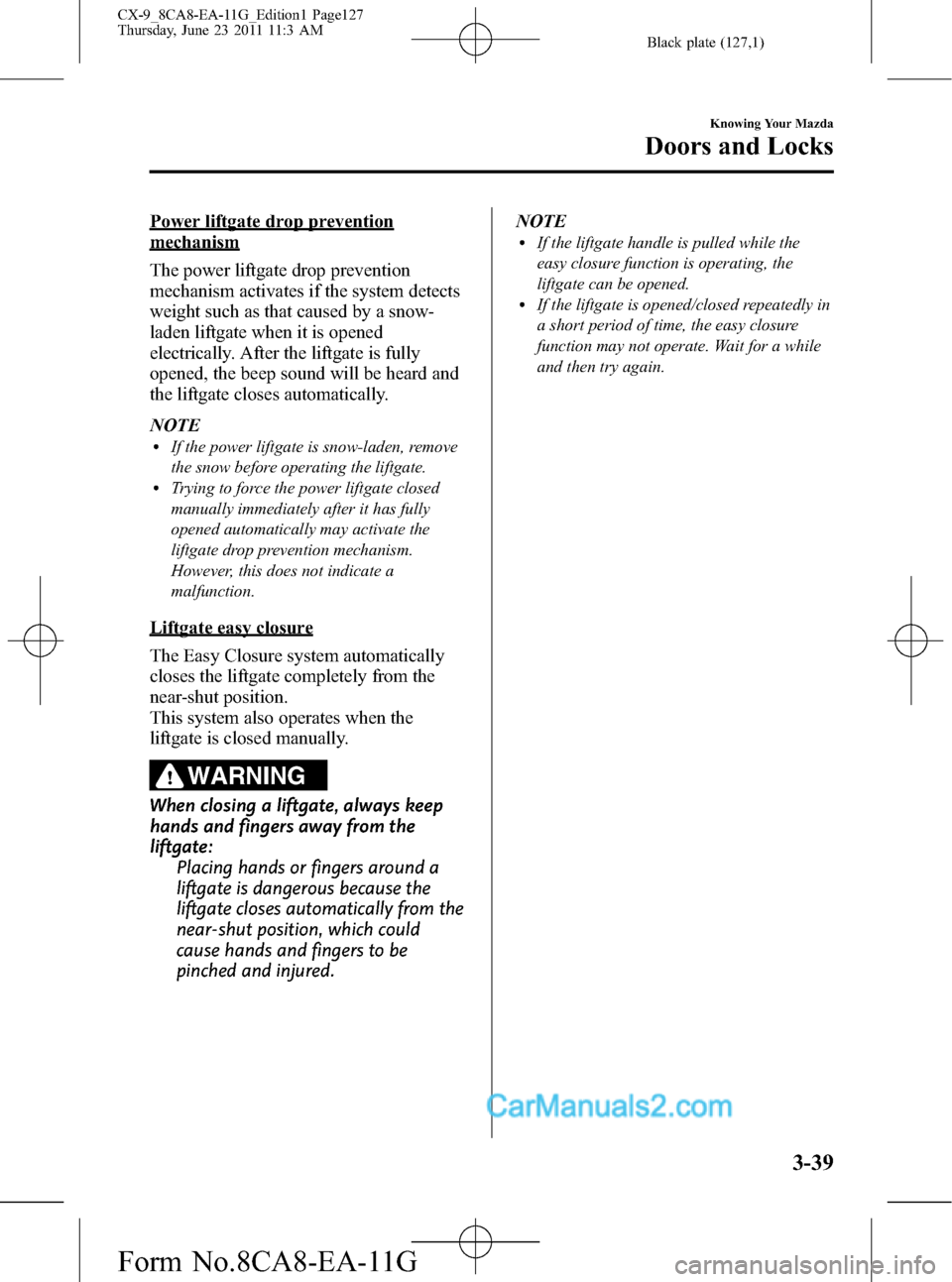

Power liftgate drop prevention
mechanism
The power liftgate drop prevention
mechanism activates if the system detects
weight such as that caused by a snow-
laden liftgate when it is opened
electrically. After the liftgate is fully
opened, the beep sound will be heard and
the liftgate closes automatically.
NOTE
lIf the power liftgate is snow-laden, remove
the snow before operating the liftgate.
lTrying to force the power liftgate closed
manually immediately after it has fully
opened automatically may activate the
liftgate drop prevention mechanism.
However, this does not indicate a
malfunction.
Liftgate easy closure
The Easy Closure system automatically
closes the liftgate completely from the
near-shut position.
This system also operates when the
liftgate is closed manually.
WARNING
When closing a liftgate, always keep
hands and fingers away from the
liftgate:
Placing hands or fingers around a
liftgate is dangerous because the
liftgate closes automatically from the
near-shut position, which could
cause hands and fingers to be
pinched and injured.NOTE
lIf the liftgate handle is pulled while the
easy closure function is operating, the
liftgate can be opened.
lIf the liftgate is opened/closed repeatedly in
a short period of time, the easy closure
function may not operate. Wait for a while
and then try again.
Knowing Your Mazda
Doors and Locks
3-39
CX-9_8CA8-EA-11G_Edition1 Page127
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (128,1)
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
qOperating the Front Power Windows
NOTElEach passenger power window can be
operated with each door switch when the
power window lock switch on the driver's
door is in the unlocked position (page
3-44).
lEach passenger power window can also be
operated using the master control switches
on the driver's door.
Driver's window
Left rear
window
Master control switches
Front passenger's
window
Right rear window
lThe following functions can be performed
for the front power windows using the
power window master control switches on
the driver's door or front passenger's door
switch.
lManual opening/closinglAuto-opening/closinglTwo-step down function
3-40
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page128
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (130,1)
NOTE
Pressing the power window switch once when
the window is fully closed will only open it
about 3 cm (1 in) to allow convenient
ventilation of the cabin.
Canceling the two-step down function
To cancel the two-step down function for
the front power windows, carry out the
following procedure using the master
control switches.
1. Switch the ignition ON and complete
the following procedure within 5
seconds:
Press the power window switch 2 times
firmly, then pull it 2 times firmly.
Driver's windowFront passenger's
window Master control switches
2. Switch the ignition off.
3. With the ignition off, and within 40
seconds, switch the ignition ON and
complete the following procedure
within 5 seconds:
Press the power window switch 2 times
firmly, then pull 2 times firmly.NOTE
lThe two-step down function cannot be
canceled if the procedure is not completed
within the specified times, or the procedure
is changed along the way. To redo the
procedure, first switch the ignition off and
proceed from the beginning.
lIf you are unable to cancel the function
despite carrying out the cancellation
procedure, consult an Authorized Mazda
Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function despite
doing the restore procedure, consult an
Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
3-42
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page130
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (132,1)
Engine-off power window operation
The power windows can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power windows will stop operating.
qPower Window Lock Switch
With the lock switch in the unlocked
position (button not depressed), all power
windows on each door can be operated.
With the lock switch in the locked
position (button depressed), only the
driver's side power window can be
operated.
Locked position
Unlocked position
WARNING
Unless a passenger needs to operate a
power window, keep the power window
lock switch in the locked position:
Unintentional power window
operation is dangerous. A person's
hands, head, or neck could be caught
by the window and result in serious
injury.
qOpening/Closing the Power Windows
and the Moonroof from Outside
The front power windows and the
moonroof can be opened or closed from
outside the vehicle after the doors and the
liftgate are closed.
The front power windows may be
operated remotely when the power
window lock switch on the driver's door is
in the lock or unlocked position.
WARNING
Make sure the opening is clear before
closing a window and the moonroof:
Closing power windows and the
moonroof are dangerous. A person's
hands, head, or even neck could be
caught by the window or the
moonroof and result in serious injury
or even death.
This warning applies especially to
children.
NOTE
lThe power windows and the moonroof
cannot be opened or closed from outside
the vehicle under the following condition:
lA door or the liftgate is opened.lThe key is inserted into the ignition
switch.
lThe ignition is in any position except
OFF. (With advanced key)
lThe power windows and the moonroof may
not close completely. Make sure all the
windows and the moonroof are closed.
If the power windows and the moonroof
cannot be closed completely, operate each
power window switch or the tilt/slide switch
from inside the vehicle. After closing the
windows and the moonroof from outside the
vehicle, verify that they are completely
closed.
3-44
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page132
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G
