CAUTION
ØBe careful not to allow the rubber
ring shown in the figure to be
scratched or damaged.
ØIf the rubber ring detaches,
reattach it before inserting a new
battery.
Rubber ring
qService
If you have a problem with the advanced
keyless functions, consult an Authorized
Mazda Dealer.
If your advanced key is lost or stolen,
bring all remaining advanced keys to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen advanced key
inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Operation Using Advanced
Keyless Functions
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the advanced key is being
carried.
NOTE
When the battery power is low, or in places
where there are high-intensity radio waves or
noise, the operational range may become
narrower or the system may not operate.
Locking, unlocking the doors and the
liftgate
The operational range for locking/
unlocking the doors is an area of up to 80
cm (31 in) from the center of the front
door handles.
The operational range for locking/
unlocking the liftgate is an area of up to
80 cm (31 in) from the center of the
liftgate.
Exterior transmitter
Operational range
NOTE
The system may not operate if you are too
close to the windows, door handles, or liftgate.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-7
CX-9_8CA8-EA-11G_Edition1 Page95
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (114,1)
5. Put in the new battery (CR1620 or
equivalent) with the positive pole (
)
facing down.
6. Align the front and back covers and
snap the transmitter shut.
7. Align the key with the transmitter as
shown in the figure, and insert the key
until a click sound is heard.
CAUTION
Insert the key into the transmitter
securely until a click sound is heard.
If it is not inserted securely, it could
detach from the transmitter.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, consult
an Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
3-26
Knowing Your Mazda
Doors and Locks
CX-9_8CA8-EA-11G_Edition1 Page114
Thursday, June 23 2011 11:3 AM
Form No.8CA8-EA-11G

Black plate (177,1)
3. Release the parking brake (also the foot brake) and pull away from the wheel blocks.
Stop; apply the parking brake and shift into P.
4. Have a helper retrieve the wheel blocks.
Fuel consumption
Trailer towing causes higher fuel consumption.
Maintenance
If you tow a trailer frequently, have your vehicle serviced as shown in Scheduled
Maintenance (page 8-3).
Before Driving Your Mazda
Towing
4-21
CX-9_8CA8-EA-11G_Edition1 Page177
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (257,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System .......................... 6-2
Operating Tips .................................... 6-2
Vent Operation (Front) ........................ 6-4
Fully Automatic Type ......................... 6-6
Vent Operation (Rear) ....................... 6-12
Fully Automatic Type (Rear) ............ 6-14
Audio System ......................................... 6-17
Antenna ............................................. 6-17
Operating Tips for Audio System ..... 6-17
Types of the Audio Set ...................... 6-27
Audio Set (Type A) ........................... 6-29
Audio Set (Type B) ........................... 6-39
Audio Control Switch Operation ...... 6-65
AUX Mode (Auxiliary input) ........... 6-68
Safety Certification ........................... 6-71
Rear Entertainment System ................. 6-72
Rear Entertainment System
í............ 6-72
Part Names ........................................ 6-82
Before Operation ............................... 6-85
Sound Output .................................... 6-91
Rear Entertainment System
Functions ........................................... 6-95
DVD video, DVD audio, Video CD, Audio
CD and MP3/WMA CD Playback (Disc
Mode) ................................................ 6-96
Auxiliary Input (AUX mode) .......... 6-110
Language Code List ........................ 6-114
Country Code List ........................... 6-116
Error Message ................................. 6-120
Symptoms and Actions ................... 6-122
Bluetooth Audio (Type B) ................... 6-125
Bluetooth Audio (Type B)
í............ 6-125Bluetooth Hands-Free (Voice
Recognition) ......................................... 6-133
Bluetooth Hands-Free
í.................. 6-133
Basic Bluetooth Hands-Free Operation... 6-138
Convenient Use of the Hands-Free
System ............................................. 6-144
Hands-Free Setting .......................... 6-153
When Bluetooth Hands-Free Cannot be
Used ................................................ 6-162
Safety Certification ......................... 6-162
Mazda Bluetooth Hands-Free Customer
Service ............................................ 6-163
Bluetooth Hands-Free (Panel
Operation) ............................................ 6-164
Bluetooth Hands-Free
í.................. 6-164
Basic Bluetooth Hands-Free Operation... 6-166
Convenient Use of the Hands-Free
System ............................................. 6-169
Hands-Free Setting .......................... 6-173
When Bluetooth Hands-Free Cannot be
Used ................................................ 6-175
Safety Certification ......................... 6-176
Mazda Bluetooth Hands-Free Customer
Service ............................................ 6-176
Rear View Monitor .............................. 6-177
Rear View Monitor
í...................... 6-177
Interior Equipment ............................. 6-183
Sunvisors ......................................... 6-183
Interior Lights ................................. 6-184
Information Display ........................ 6-186
Cup Holder ...................................... 6-191
Bottle Holder ................................... 6-193
Storage Compartments .................... 6-193
Accessory Sockets .......................... 6-197
Power Outlet
í................................ 6-198
6-1íSome models.
CX-9_8CA8-EA-11G_Edition1 Page257
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (293,1)
NOTE
The displayable number of characters is
limited. If the number of characters, including
the file extension (.mp3), exceeds 32
characters, it may not be fully displayed.
Message display
If“CHECK CD”is displayed, it means
that there is some CD malfunction. Check
the CD for damage, dirt, or smudges, and
then properly reinsert. If the message
appears again, take the unit to an
Authorized Mazda Dealer for service.
qOperating the Auxiliary jack
You can connect portable audio units,
such as an MP3 player or similar products
on the market, to the auxiliary jack to
listen to music or audio over the vehicle's
speakers. Use a commercially-available,
non-impedance (3.5
) stereo mini plug
cable. Contact an Authorized Mazda
Dealer for details. Refer to Auxiliary
Input (page 6-68).
Interior Comfort
Audio System
6-37
CX-9_8CA8-EA-11G_Edition1 Page293
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (307,1)
NOTE
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
lIncrease the separation between the
equipment and tuner.
lConnect the equipment into an outlet on a
circuit different from that to which the tuner
is connected.
lConsult the dealer or an experienced radio/
TV technician for help.
What is satellite radio?
With over 130 channels, SIRIUS Satellite
Radio brings you more of what you love.
Get 69 channels of 100 % commercial-
free music, plus all your favorite sports,
news, talk and entertainment. Everything
worth listening to is now on SIRIUS.
100 % Commercial-free Music―With
music from every genre, artist-dedicated
channels, live performances and more,
SIRIUS is the home of 100 %
commercial-free music.
Live Sports Play-by-Play & Expert
Talk―Hear every NFL game, every
NASCAR
®race and college sports
coverage from over 150 schools. Plus
24/7 sports talk with channels like
SIRIUS NFL Radio, SIRIUS NASCAR
Radio and more.
Exclusive Entertainment and
Talk―The biggest names, compelling
talk, hilarious comedy. Hear Howard
Stern, Martha Stewart, Jamie Foxx, Blue
Collar Comedy, Playboy Radio, political
talk and more.
World-class News―Stay informed with
FOX, CNN, CNBC, NPR
®, BBC and
more.
Plus local traffic and weather.
Family & Kids―Entertain the entire
family with Radio Disney, Kids Place
Live, Laugh USA and more.
Sign up for SIRIUS Radio today! For
more information, visit www.sirius.com.
Satellite radio can be subscribed to and
received in the United States (Except
Alaska and Hawaii) and Canada.
How to Activate Satellite Radio
You must call SIRIUS to activate your
service. Activation is free and takes only a
few minutes.
Interior Comfort
Audio System
6-51
CX-9_8CA8-EA-11G_Edition1 Page307
Thursday, June 23 2011 11:4 AM
Form No.8CA8-EA-11G

Black plate (308,1)

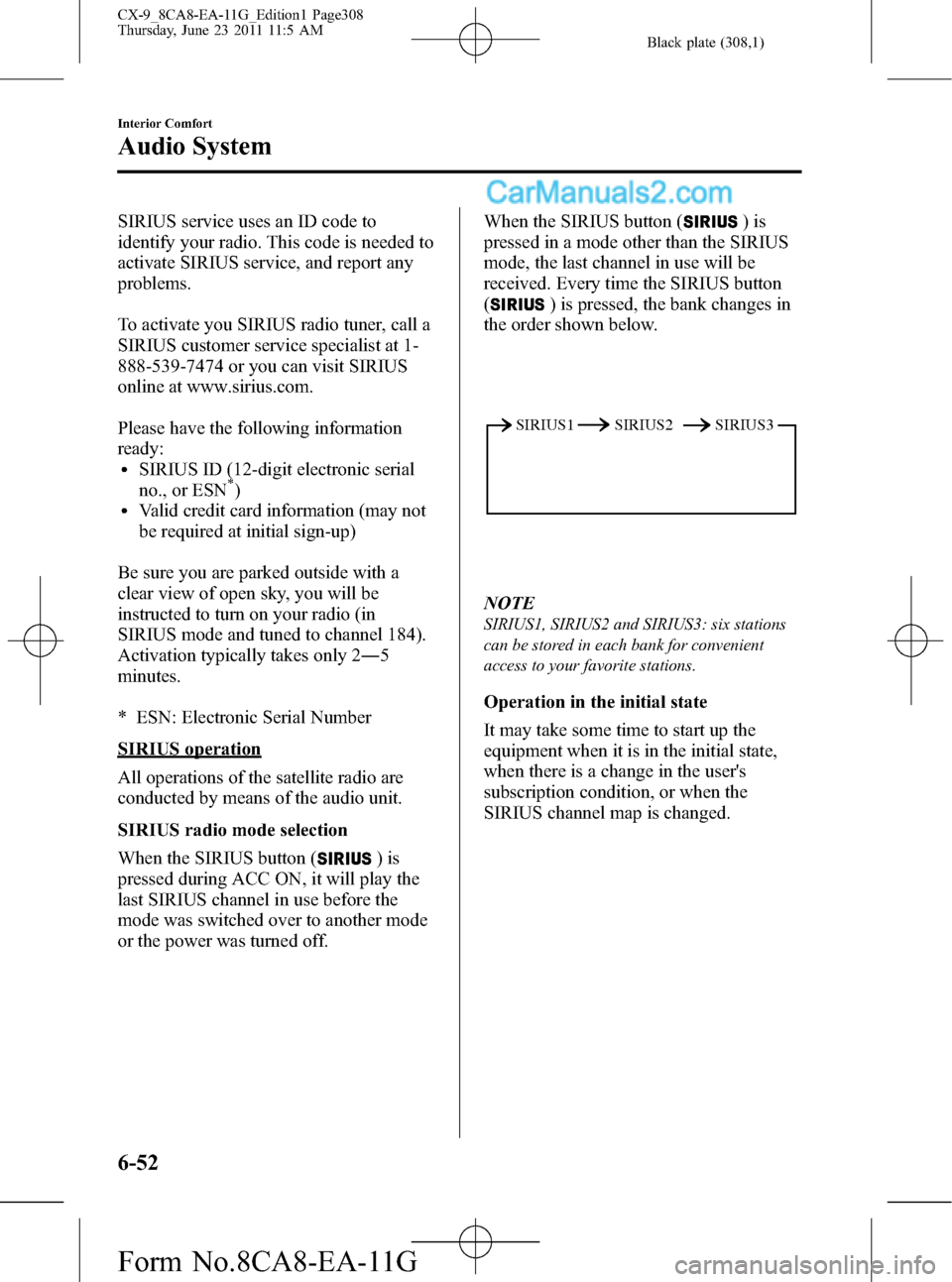

SIRIUS service uses an ID code to
identify your radio. This code is needed to
activate SIRIUS service, and report any
problems.
To activate you SIRIUS radio tuner, call a
SIRIUS customer service specialist at 1-
888-539-7474 or you can visit SIRIUS
online at www.sirius.com.
Please have the following information
ready:
lSIRIUS ID (12-digit electronic serial
no., or ESN*)lValid credit card information (may not
be required at initial sign-up)
Be sure you are parked outside with a
clear view of open sky, you will be
instructed to turn on your radio (in
SIRIUS mode and tuned to channel 184).
Activation typically takes only 2―5
minutes.
* ESN: Electronic Serial Number
SIRIUS operation
All operations of the satellite radio are
conducted by means of the audio unit.
SIRIUS radio mode selection
When the SIRIUS button (
)is
pressed during ACC ON, it will play the
last SIRIUS channel in use before the
mode was switched over to another mode
or the power was turned off.When the SIRIUS button (
)is
pressed in a mode other than the SIRIUS
mode, the last channel in use will be
received. Every time the SIRIUS button
(
) is pressed, the bank changes in
the order shown below.
SIRIUS1 SIRIUS2 SIRIUS3
NOTE
SIRIUS1, SIRIUS2 and SIRIUS3: six stations
can be stored in each bank for convenient
access to your favorite stations.
Operation in the initial state
It may take some time to start up the
equipment when it is in the initial state,
when there is a change in the user's
subscription condition, or when the
SIRIUS channel map is changed.
6-52
Interior Comfort
Audio System
CX-9_8CA8-EA-11G_Edition1 Page308
Thursday, June 23 2011 11:5 AM
Form No.8CA8-EA-11G

Black plate (319,1)
2. Press selection button 1 twice to cancel
the repeat playback.
(Folder repeat)
1. Press selection button 1 twice during
playback to play the tracks in the
current folder repeatedly.
“Repeat Folder”is displayed.
2. Press selection button 1 again to cancel
the repeat playback.
Random playback
Tracks are randomly selected and played.
During music CD playback
1. Press selection button 5 during
playback to play the tracks in the CD
randomly.“Random Disc”is displayed.
2. Press selection button 5 again to cancel
the random playback.
During MP3/WMA CD playback
(Folder random)
1. Press selection button 5 during
playback to play the tracks in the folder
randomly.“Random Folder”is
displayed.
2. Press selection button 5 twice to cancel
the random playback.
(All random)
1. Press selection button 5 twice during
playback to play the tracks on the CD
randomly.“Random All”is displayed.
2. Press selection button 5 again to cancel
the random playback.
Display scroll
If each title cannot be fully displayed at
one time, press the text button (
)to
display the rest of the characters.If the last character of the title is
displayed, press the text button (
)
to return the beginning of the title.
Message display
If“Check Disc”is displayed, it means that
there is a CD malfunction. Check the CD
for damage, dirt, or smudges, and then
properly reinsert. If the message appears
again, take the unit to an Authorized
Mazda Dealer for service.
qOperating the Auxiliary Jack
You can connect portable audio units,
such as an MP3 player or similar products
on the market, to the auxiliary jack to
listen to music or audio over the vehicle's
speakers. Use a commercially-available,
non-impedance (3.5
) stereo mini plug
cable. Contact an Authorized Mazda
Dealer for details. Refer to Auxiliary
Input (page 6-68).
Interior Comfort
Audio System
6-63
CX-9_8CA8-EA-11G_Edition1 Page319
Thursday, June 23 2011 11:5 AM
Form No.8CA8-EA-11G

Black plate (327,1)
Safety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
CAUTION
ØThis CD player should not be adjusted or repaired by anyone except qualified
service personnel.
If servicing is required, contact an Authorized Mazda Dealer.
ØUse of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD
player with the top case of the unit removed.
ØChanges or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation.
Interior Comfort
Audio System
6-71
CX-9_8CA8-EA-11G_Edition1 Page327
Thursday, June 23 2011 11:5 AM
Form No.8CA8-EA-11G
