engine MAZDA MODEL CX-9 2013 Owners Manual (in English)

Black plate (494,1)
Power Steering Fluid
qInspecting Power Steering Fluid
Level
CAUTION
To avoid damage to the power
steering pump, don't operate the
vehicle for long periods when the
power steering fluid level is low.
NOTE
Use specified power steering fluid (page 10-4).
Inspect the fluid level in the reservoir at
each engine oil change with the engine off
and cold. Add fluid if necessary; it does
not require periodic changing.
The level must be kept between MAX and
MIN.
Visually examine the lines and hoses for
leaks and damage.
If new fluid is required frequently, consult
an Authorized Mazda Dealer.
Washer Fluid
qInspecting Washer Fluid Level
WARNING
Use only windshield washer fluid or
plain water in the reservoir:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the
windshield, affect your visibility, and
could result in an accident.
Using Washer Fluid Without Anti-freeze
Protection in Cold Weather:
Operating your vehicle in
temperatures below 4 degrees C (40
degrees F) using washer fluid without
anti-freeze protection is dangerous
as it could cause impaired windshield
vision and result in an accident. In
cold weather, always use washer
fluid with anti-freeze protection.
NOTE
State or local regulations may restrict the use
of volatile organic compounds (VOCs), which
are commonly used as anti-freeze agents in
washer fluid. A washer fluid with limited VOC
content should be used only if it provides
adequate freeze resistance for all regions and
climates in which the vehicle will be operated.
8-26
Maintenance and Care
Owner Maintenance
CX-9_8CM9-EA-12I_Edition1 Page494
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (495,1)

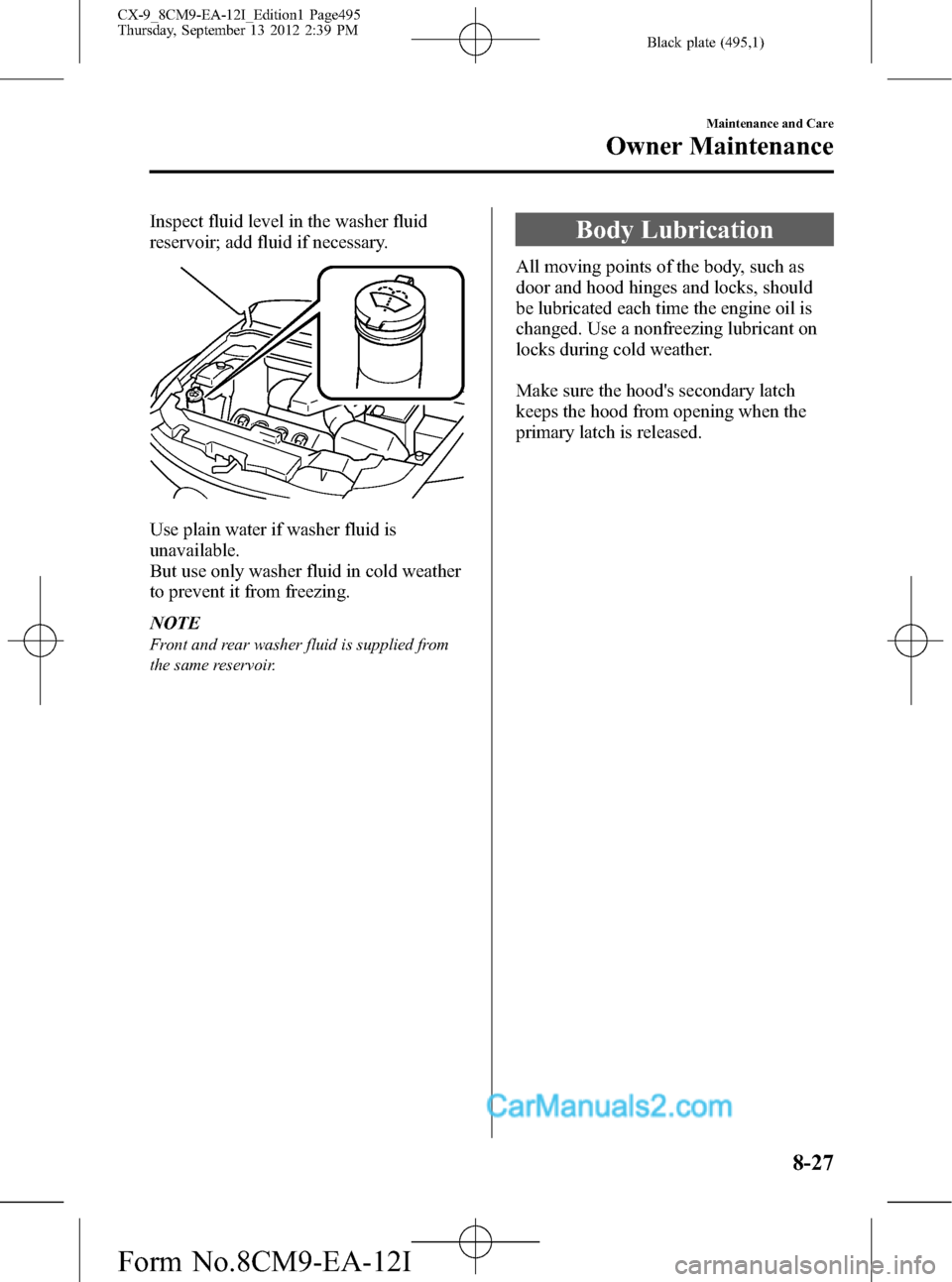

Inspect fluid level in the washer fluid
reservoir; add fluid if necessary.
Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.
NOTE
Front and rear washer fluid is supplied from
the same reservoir.
Body Lubrication
All moving points of the body, such as
door and hood hinges and locks, should
be lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
Maintenance and Care
Owner Maintenance
8-27
CX-9_8CM9-EA-12I_Edition1 Page495
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (517,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing fuses located behind the
glove compartment
If an electrical system is inoperative,
inspect the fuses located behind the glove
compartment.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the glove compartment.
3. Remove the cover.
Fuse
4. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
5. Inspect the fuse and replace it if it's
blown.
NormalBlown
Maintenance and Care
Owner Maintenance
8-49
CX-9_8CM9-EA-12I_Edition1 Page517
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (519,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 MAIN 150 A For protection of all circuits
2―― ―
3 ENGINE 20 A Engine control system
4H/L R
*115 A Headlight (RH)
H/L HI RY*215 A For protection of various circuitsí
5 R HEATER 40 A Heater
6 P.SEAT R 30 A Power seat (RH)í
7 HEATER 50 A Heater
8 IGKEY 2 40 A For protection of various circuits
9 FAN 130 A
íCooling fan
40 Aí
10 P.SEAT L 40 A Power seat (LH)í
11 DEFOG 30 A Rear window defroster
12 BTN 50 A For protection of various circuits
13 FUEL PUMP 30 A Fuel pump
14 IGKEY 1 30 A For protection of various circuits
15 FOG 15 A Fog lights
í
Maintenance and Care
Owner Maintenance
8-51íSome models. CX-9_8CM9-EA-12I_Edition1 Page519
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (520,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
16 ABS (SOL) 30 A ABS
17 D/L 25 A Power door locks
18 ROOM 15 A Overhead light
19 OUTLET CTR 15 A Accessory socket (Center)
20 OUTLET RR 15 A Accessory socket (Rear)
21 AC PWR 15 A Moonroof
í, DC/AC inverterí
22 S.WARM 15 A Seat warmerí
23 A/C MAG 10 A Air conditioner
24 BOSE 25 A Audio system (Bose®Sound System-equipped model)í
25 FAN 230 AíCooling fan
40 Aí
26 ABS 50 A ABS
27 IG COIL 25 A Engine control system
28H/L L
*115 A Headlight (LH)
H/L LOW L*215 A Headlight low beam (LH)
29―*1――
H/L LOW R*215 A Headlight low beam (RH)
30―*1――
H/L HIGH*220 A Headlight high beam
31 HAZARD 15 A Hazard warning flashers, Turn signal lights
32
10 A Engine control system
33 HORN 15 A Horn
34 STOP 7.5 A Brake lights
35 EGI INJ 10 A Engine control system
36 ENG BAR 20 A Engine control system
37 ENG BAR 2 7.5 A Engine control system
*1 With xenon fusion headlights
*2 With halogen headlights
8-52
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8CM9-EA-12I_Edition1 Page520
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (521,1)
Relay box (Engine compartment)í
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 INJ 7.5 A Engine control system
2―― ―
3―― ―
Maintenance and Care
Owner Maintenance
8-53íSome models. CX-9_8CM9-EA-12I_Edition1 Page521
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (522,1)
Fuse block (Glove box)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 OUTLET FR 15 A Accessory socket (Front)
2 MIRROR 7.5 A Power control mirror
3 C/U-IG1 15 A For protection of various circuits
4 METER 10 A Instrument cluster
5 SAS 7.5 A ABS, Air bag
6 ENG. IGA 7.5 A Engine control system
7 STA 7.5 A Engine control system
8―― ―
9 A/C 7.5 A Air conditioner
10 R.WIPER 15 A Rear window wiper
11―― ―
12 P.LIFT GATE 20 A Power lift gate
í
13 SUNROOF 15 A Moonroofí
14 AUDIO 10 A Audio system
15 M.DEF 10 A Mirror defrosterí
16 P/W 25 A Power windows (Passenger-side)
17 TAIL 10 ATaillights, Parking lights, License plate lights, Side-marker
lights
18 ILLUMI 10 A Instrument panel illumination
8-54
Maintenance and Care
íSome models.
Owner Maintenance
CX-9_8CM9-EA-12I_Edition1 Page522
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (523,1)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
19 INJ 7.5 A Engine control system
20―― ―
21 OUTLET CTR――
22 OUTLET RR――
23 WIPER 30 A Windshield wiper and washer
24 P.WIND 30 A Power windows (Driver-side)
Maintenance and Care
Owner Maintenance
8-55
CX-9_8CM9-EA-12I_Edition1 Page523
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (526,1)
Exterior Care
Followalllabel and container directions
when using a chemical cleaner or polish.
Read all warnings and cautions.
qMaintaining the Finish
Washing
CAUTION
ØWhen the wiper lever is in the
AUTO position and the ignition is
switched ON, the wipers may
move automatically in the
following cases:
ØIf the windshield above the rain
sensor is touched or wiped with
a cloth.
ØIf the windshield is struck with
a hand or other object from
either outside or inside the
vehicle.
Keep hands and scrapers clear of
the windshield when the wiper
lever is in the AUTO position and
the ignition is switched ON as
fingers could be pinched or the
wipers and wiper blades damaged
when the wipers activate
automatically.
If you are going to clean the
windshield, be sure the wipers are
turned off completely―this is
particularly important when
clearing ice and snow―when it is
most likely that the engine is left
running.
ØDo not spray water in the engine
compartment. Otherwise, it could
result in engine-starting problems
or damage to electrical parts.To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface
when:
lThe vehicle is washed without first
rinsing off dirt and other foreign
matter.
lThe vehicle is washed with a rough,
dry, or dirty cloth.
lThe vehicle is washed at a car wash
that uses brushes that are dirty or too
stiff.
lCleansers or wax containing abrasives
are used.
NOTE
lMazda is not responsible for scratches
caused by automatic car washes or
improper washing.
lScratches are more noticeable on vehicles
with darker paint finishes.
To minimize scratches on the vehicle's
paint finish:
lRinse off any dirt or other foreign
matter using lukewarm or cold water
before washing.
lUse plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
lRub gently when washing or drying the
vehicle.
lTake your vehicle only to a car wash
that keeps its brushes well maintained.
lDo not use abrasive cleansers or wax
that contain abrasives.
8-58
Maintenance and Care
Appearance Care
CX-9_8CM9-EA-12I_Edition1 Page526
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (529,1)
WARNING
Dry wet brakes by driving very slowly
and applying the brakes lightly until
brake performance is normal:
Driving with wet brakes is
dangerous. Increased stopping
distance or the vehicle pulling to one
side when braking could result in a
serious accident. Light braking will
indicate whether the brakes have
been affected.
qAluminum Wheel Maintenance
A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.
CAUTION
Do not use any detergent other than
mild detergent. Before using any
detergent, verify the ingredients.
Otherwise, the product could discolor
or stain the aluminum wheels.NOTE
lDo not use a wire brush or any abrasive
cleaner, polishing compound, or solvent on
aluminum wheels. They may damage the
coating.
lAlways use a sponge or soft cloth to clean
the wheels.
Rinse the wheels thoroughly with lukewarm
or cold water. Also, be sure to clean the
wheels after driving on dusty or salted
roads to help prevent corrosion.
lAvoid washing your vehicle in an automatic
car wash that uses high-speed or hard
brushes.
lIf your aluminum wheels lose luster, wax
the wheels.
(With Tire Pressure Monitoring System)
Check special requirements for Tire Pressure
Monitoring System.
Refer to Tires and Wheels on page 5-32.
qPlastic Part Maintenance
lWhen cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss
in functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.
lIf plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.
Maintenance and Care
Appearance Care
8-61
CX-9_8CM9-EA-12I_Edition1 Page529
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I
