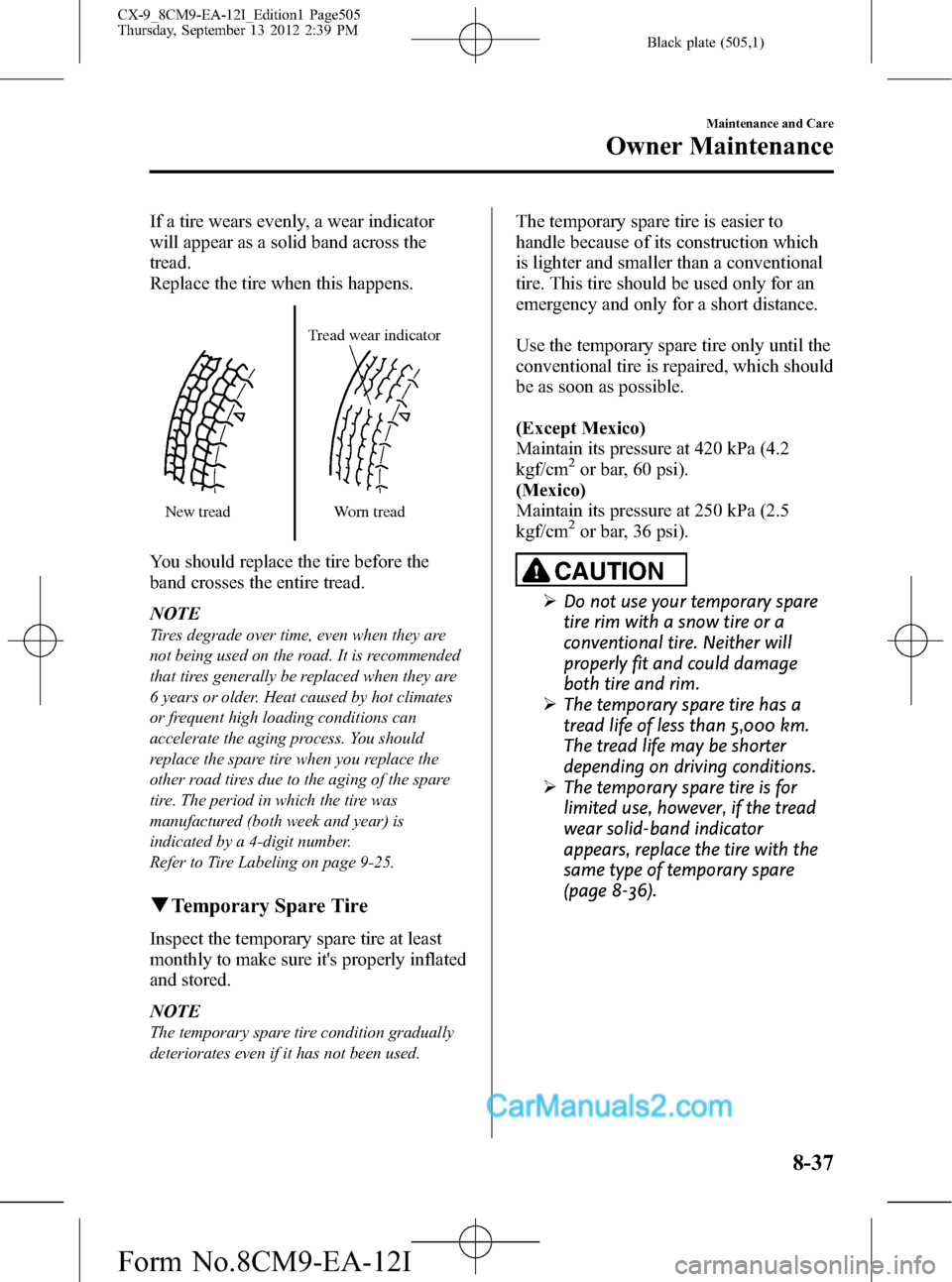

Black plate (505,1)
If a tire wears evenly, a wear indicator
will appear as a solid band across the
tread.
Replace the tire when this happens.
New treadTread wear indicator
Worn tread
You should replace the tire before the
band crosses the entire tread.
NOTE
Tires degrade over time, even when they are
not being used on the road. It is recommended
that tires generally be replaced when they are
6 years or older. Heat caused by hot climates
or frequent high loading conditions can
accelerate the aging process. You should
replace the spare tire when you replace the
other road tires due to the aging of the spare
tire. The period in which the tire was
manufactured (both week and year) is
indicated by a 4-digit number.
Refer to Tire Labeling on page 9-25.
qTemporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it's properly inflated
and stored.
NOTE
The temporary spare tire condition gradually
deteriorates even if it has not been used.
The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
(Except Mexico)
Maintain its pressure at 420 kPa (4.2
kgf/cm
2or bar, 60 psi).
(Mexico)
Maintain its pressure at 250 kPa (2.5
kgf/cm
2or bar, 36 psi).
CAUTION
ØDo not use your temporary spare
tire rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage
both tire and rim.
ØThe temporary spare tire has a
tread life of less than 5,000 km.
The tread life may be shorter
depending on driving conditions.
ØThe temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator
appears, replace the tire with the
same type of temporary spare
(page 8-36).
Maintenance and Care
Owner Maintenance
8-37
CX-9_8CM9-EA-12I_Edition1 Page505
Thursday, September 13 2012 2:39 PM
Form No.8CM9-EA-12I

Black plate (562,1)
Tread Wear, Traction and Temperature Grades
Tread wear:The tread wear grade is a comparative rating based on the wear rate of the tire
when tested under controlled conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half (1 1/2) times as well on the
government course as a tire graded 100.
Traction:The traction grades, from highest to lowest are AA, A, B, and C. The grades
represent the tire's ability to stop on wet pavement as measured under controlled conditions
on specified government test surfaces of asphalt and concrete. A tire marked C may have
poor traction performance.
Temperature:The temperature grades are A (the highest), B and C, representing the tire's
resistance to the generation of heat and its ability to dissipate heat when tested under
controlled conditions on a specified indoor laboratory test wheel.
Snow Tires
In some heavy snow areas, local governments may require true snow tires, those with very
deeply cut tread. These tires should only be used in pairs or placed on all four wheels.
Make sure you purchase snow tires that are the same size and construction type as the other
tires on your vehicle.
SAFETY WARNING
The following safety warning appears on the tire's sidewall.
SERIOUS INJURY MAY RESULT FROM:
lEXPLOSION OF TIRE/RIM ASSEMBLY DUE TO IMPROPER MOUNTING-
MATCH TIRE DIAMETER TO RIM DIAMETER; NEVER EXCEED 40 psi (275 kPa)
TO SEAT BEADS-ONLY SPECIALLY TRAINED PERSONS SHOULD MOUNT
TIRES.
lTIRE FAILURE DUE TO UNDER-INFLATION/OVERLOADING/DAMAGE-
FOLLOW OWNER'S MANUAL AND PLACARD IN VEHICLE-FREQUENTLY
CHECK INFLATION PRESSURE AND INSPECT FOR DAMAGE.
9-28
Customer Information and Reporting Safety Defects
Tire Information (except Canada)
CX-9_8CM9-EA-12I_Edition1 Page562
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (588,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHalogenHigh beam 60 HB3 (HB3)
Low beam 55 H11 (H11)
Xenon fusionHigh/Low
beam35 D4S (D4S)
Daytime
running lightsWith halogen headlights 60 HB3 (HB3)
With xenon fusion headlights LED
*1―(―)
Parking lightsWith halogen headlights 5 W5W (4CP)
With xenon fusion headlights LED
*1―(―)
Front turn signal lights 21 WY21W (23CP)
Front side-marker lights 5 WY5W (3CP)
Fog lights
í55 H11 (H11)
Side turn signal lightsíLED*1―(―)
High-mount brake light LED*1―(―)
Rear turn signal lights 21 WY21W (22.3CP)
Taillights/Brake lights 21/5 W21/5W (7443)
Taillights (Liftgate side) 5 W5W (4CP)
Reverse lights 16 W16W (921)
License plate lights 5 W5W (4CP)
Rear side-marker lights 5 W5W (4CP)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Overhead lights (Front)/Map lights 8―
Overhead light (Center) 10―
Overhead light (Rear) 10―
Courtesy lights 5 T10
Vanity mirror lights 2―
Luggage compartment light 10―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
10-6íSome models.
Specifications
CX-9_8CM9-EA-12I_Edition1 Page588
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (596,1)
R
Registering Your Vehicle in A Foreign
Country ............................................. 9-19
Rocking the Vehicle ............................ 4-9
Roll-over ............................................. 4-8
S
Safety Defects, Reporting ................. 9-45
Seat Belt System
3-point type ................................ 2-23
Automatic locking ...................... 2-22
Center-rear lap/shoulder ............. 2-28
Emergency locking .................... 2-21
Extender ..................................... 2-32
Pregnant women ........................ 2-21
Pretensioner and load limiting .... 2-25
Seat belt precautions .................. 2-19
Seat belt reminder ....................... 2-34
Warning light ............................. 2-33
Seats
Front seat
(Electrically operated seats) ......... 2-4
Front seat
(Manually operated seats) ............ 2-2
Seat warmer ................................ 2-17
Second-row seats ......................... 2-9
Third-row seat ............................ 2-13
Second-Row Seats .............................. 2-9
Security System
Immobilizer system
(with advanced key) ................... 3-53
Immobilizer system
(without advanced key) .............. 3-57
Theft-deterrent system ............... 3-61
Service Publications .......................... 9-47
Shopping Bag Hook ........................ 6-176
Side Extension Sunvisors ................ 6-164
Spare Tire and Tool Storage ................ 7-3
S
Specifications .................................... 10-4
Speedometer ...................................... 5-46
SRS Air Bags
Driver and front passenger occupant
classification system .................. 2-68
How the SRS air bags work ....... 2-61
Limitations to SRS air bag ......... 2-66
Monitoring and maintenance ..... 2-73
SRS air bag deployment
criteria ........................................ 2-65
Supplemental restraint system
(SRS) precautions ...................... 2-54
Supplemental restraint system
components ................................ 2-60
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-64
Horn ........................................... 5-79
Storage Compartments .................... 6-174
Armrest box ............................. 6-175
Cargo securing loops ................ 6-175
Cargo sub-compartment ........... 6-175
Center console .......................... 6-174
Glove compartment .................. 6-174
Overhead console ..................... 6-174
Rear coat hooks ........................ 6-176
Shopping bag hook .................. 6-176
Sunshade ........................................... 3-52
Sunvisors ........................................ 6-164
T
Tachometer ........................................ 5-47
Temporary Spare Tire ....................... 8-37
Theft-Deterrent System ..................... 3-61
Third-Row Seat ................................. 2-13
Tiedown
Hook .......................................... 7-22
Tire Information ................................ 9-25
11-6
Index
CX-9_8CM9-EA-12I_Edition1 Page596
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I
