Opening/Closing the power liftgate
If the vehicle has satisfied all the
following operation conditions, the power
liftgate can be opened using the power
function.
Operation conditions
(1) The power liftgate is unlocked.
(2) The shift lever is in park (P) when the
ignition is switched ON.
NOTE
lIf condition (2) is not satisfied while the
power liftgate is opening electrically, the
beep sound will be heard and the liftgate
will move in the reverse direction
automatically.
lIf condition (2) is not satisfied while the
power liftgate is closing electrically, the
beep sound will be heard and the liftgate
continues closing.
lWhen condition (2) is satisfied, you can
resume power liftgate open/close operation
with the switches.
lWhen the ignition is switched ON, the
transmitter does not operate.
Operation using the transmitter
Press the power liftgate button for one
second or more with the power liftgate in
the fully closed/open position. The hazard
warning lights flash twice and the liftgate
opens/closes after the beep sounds.
Refer to Keyless Entry System on page
3-13.Operation from the driver's seat (To
open/close)
Press the power liftgate switch for about
one second or more while the liftgate is in
the fully closed/open position. The hazard
warning lights flash twice and the liftgate
opens/closes fully after the beep sound is
heard.
Power liftgate
switch
Operation from outside (To close only)
Press the power liftgate close switch while
the liftgate is fully opened. The hazard
warning lights flash twice and the liftgate
closes automatically after the beep sound
is heard.
Power liftgate
close switch
Knowing Your Mazda
Doors and Locks
3-37
CX-9_8CM9-EA-12I_Edition1 Page123
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
Page 126 of 598
Black plate (126,1)
Power Windows
The ignition must be switched ON for the
power windows to operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Never allow children to play with
power window switches:
Power window switches that are not
locked with the power window lock
switch would allow children to
operate power windows
unintentionally which could result in
serious injury if a child's hands, head
or neck becomes caught by the
window.
qOperating the Front Power Windows
NOTElEach passenger power window can be
operated with each door switch when the
power window lock switch on the driver's
door is in the unlocked position (page
3-44).
lEach passenger power window can also be
operated using the master control switches
on the driver's door.
Driver's window
Left rear
window
Master control switches
Front passenger's
window
Right rear window
lThe following functions can be performed
for the front power windows using the
power window master control switches on
the driver's door or front passenger's door
switch.
lManual opening/closinglAuto-opening/closinglTwo-step down function
3-40
Knowing Your Mazda
Doors and Locks
CX-9_8CM9-EA-12I_Edition1 Page126
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
Page 127 of 598
Black plate (127,1)
Normal opening/closing
To open a power window to the desired
position, lightly hold down the switch.
To close the power window to the desired
position, lightly pull up the switch.
Close
Driver's windowFront passenger's
window Master control switches
Open
Close
Open
Front passenger switch
Auto-opening/closing
To fully open a power window
automatically, press the switch completely
down.
To fully close the power window
automatically, pull the switch completely
up.
To stop the power window partway, pull
or press the switch in the opposite
direction and then release it.Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
power windows will not fully open and
close automatically. Resetting of the
automatic function can be performed
using the master control switches or the
front passenger door switch.
The power window auto function reset
procedure can be done on one or both
door switches. The power window auto
function will only resume on the side that
has been reset.
1. Switch the ignition ON.
2. Make sure that the power window lock
switch located on the driver's door is
not depressed.
3. Press the switch and fully open the
power window.
4. Pull up the switch to fully close the
power window and continue holding
the switch for about 2 seconds after the
window fully closes.
5. Repeat Steps 3-4 for each front power
window.
6. Make sure that the power windows
operate correctly using the door
switches.
Two-step down function
With the power window completely
closed, press the switch lightly and it will
open and stop about 3 cm (1 in) from the
top.
If you continue to press and hold the
switch, the window will resume opening
all the way.
Knowing Your Mazda
Doors and Locks
3-41
CX-9_8CM9-EA-12I_Edition1 Page127
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
Page 128 of 598
Black plate (128,1)
NOTE
Pressing the power window switch once when
the window is fully closed will only open it
about 3 cm (1 in) to allow convenient
ventilation of the cabin.
Canceling the two-step down function
To cancel the two-step down function for
the front power windows, carry out the
following procedure using the master
control switches.
1. Switch the ignition ON and complete
the following procedure within 5
seconds:
Press the power window switch 2 times
firmly, then pull it 2 times firmly.
Driver's windowFront passenger's
window Master control switches
2. Switch the ignition off.
3. With the ignition off, and within 40
seconds, switch the ignition ON and
complete the following procedure
within 5 seconds:
Press the power window switch 2 times
firmly, then pull 2 times firmly.NOTE
lThe two-step down function cannot be
canceled if the procedure is not completed
within the specified times, or the procedure
is changed along the way. To redo the
procedure, first switch the ignition off and
proceed from the beginning.
lIf you are unable to cancel the function
despite carrying out the cancellation
procedure, consult an Authorized Mazda
Dealer.
Restoring the two-step down function
With the two-step down function in the
canceled state, repeat the previous
procedure for canceling the function on
each door switch and it will be restored.
NOTE
If you are unable to restore the function despite
doing the restore procedure, consult an
Authorized Mazda Dealer.
Jam-safe window
If a person's hands, head or an object
blocks the window during the manual
closing operation or the auto-closing
operation, the window will stop and open
halfway.
WARNING
Make sure nothing blocks the window
just before it reaches the fully closed
position or while fully holding up the
power window switch:
Blocking the power window just
before it reaches the fully closed
position or while fully holding up the
power window switch is dangerous.
In this case, the jam-safe function
cannot prevent the window from
closing all the way. If fingers are
caught, serious injuries could occur.
3-42
Knowing Your Mazda
Doors and Locks
CX-9_8CM9-EA-12I_Edition1 Page128
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
Page 129 of 598
Black plate (129,1)
NOTElDepending on driving conditions, a closing
power window could stop and start opening
when the window feels a shock that is
similar to something blocking it.
In the event the jam-safe function activates
and the power window cannot be closed
automatically, pull and hold the switch fully
and the window will close.
lThe jam-safe window function does not
operate until the system is re-initialized.
Engine-off power window operation
The power window can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power window will stop operating.
NOTE
lFor engine-off operation of the power
window, the switch must be held up firmly
throughout window closure because the
auto-closing function will be inoperable.
lThe two-step down function is inoperable
during engine-off operation.
qOperating the Rear Power Windows
The power windows may be operated
when the power window lock switch on
the driver's door is in the unlocked
position.
The rear power windows may be opened
or closed using the master control
switches on the driver's door.
Left rear
window
Right rear window
Power window lock
switch
Master control switches
To open the power window to the desired
position, hold down the switch.
To close the power window to the desired
position, pull up the switch.
Close
Open
Knowing Your Mazda
Doors and Locks
3-43
CX-9_8CM9-EA-12I_Edition1 Page129
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
Page 130 of 598
Black plate (130,1)
Engine-off power window operation
The power windows can be operated for
about 40 seconds after the ignition is
switched from ON to ACC or OFF with
all doors closed. If any door is opened, the
power windows will stop operating.
qPower Window Lock Switch
This feature prevents all power windows
from operating, except the driver's power
window. Keep this switch in the locked
position while children are in the vehicle.
Locked position (button depressed):
Only the driver's power window can be
operated.
Unlocked position (button not
depressed):
All power windows on each door can be
operated.
Locked position
Unlocked position
qOpening/Closing the Power Windows
and the Moonroof from Outside
The front power windows and the
moonroof can be opened or closed from
outside the vehicle after the doors and the
liftgate are closed.
The front power windows may be
operated remotely when the power
window lock switch on the driver's door is
in the lock or unlocked position.
WARNING
Make sure the opening is clear before
closing a window and the moonroof:
Closing power windows and the
moonroof are dangerous. A person's
hands, head, or even neck could be
caught by the window or the
moonroof and result in serious injury
or even death.
This warning applies especially to
children.
NOTE
lThe power windows and the moonroof
cannot be opened or closed from outside
the vehicle under the following condition:
lA door or the liftgate is opened.lThe key is inserted into the ignition
switch.
lThe ignition is in any position except
OFF. (With advanced key)
lThe power windows and the moonroof may
not close completely. Make sure all the
windows and the moonroof are closed.
If the power windows and the moonroof
cannot be closed completely, operate each
power window switch or the tilt/slide switch
from inside the vehicle. After closing the
windows and the moonroof from outside the
vehicle, verify that they are completely
closed.
Opening
Because nobody likes getting into a very
hot car, Mazda has introduced a way to
open the two front windows and the
moonroof as you approach the vehicle to
get the air moving before you get in.
3-44
Knowing Your Mazda
Doors and Locks
CX-9_8CM9-EA-12I_Edition1 Page130
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
Page 136 of 598
Black plate (136,1)
qClosing the Hood
1. Check under the hood area to make
certain all filler caps are in place and
all loose items (e.g. tools, oil
containers, etc.) have been removed.
2. Lift the hood, grasp the padded area on
the support rod, and secure the support
rod in the clip. Verify that the support
rod is secured in the clip before closing
the hood.
Pad
Clip
Clip
3. Lower the hood slowly from a height
of about 20 cm (7.9 in) above its closed
position and then let it drop.
CAUTION
When closing the hood, do not push
it excessively such as by applying
your weight. Otherwise, the hood
could be deformed.
Moonroofí
The moonroof can be opened or closed
electrically only when the ignition is
switched ON.
Tilt switch Slide switch
WARNING
Do not let passengers stand up or
extend part of their body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a
person, especially a child, could be
caught in it as it closes, causing
serious injury or even death.
3-50
Knowing Your Mazda
íSome models.
Doors and Locks
CX-9_8CM9-EA-12I_Edition1 Page136
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
Page 137 of 598
Black plate (137,1)
NOTE
Before washing your Mazda, make sure the
moonroof is completely closed so that water
does not get inside the cabin area. After
washing your Mazda or after it rains, wipe the
water off the moonroof before operating it to
avoid water penetration which could cause
rust and water damage to your headliner.

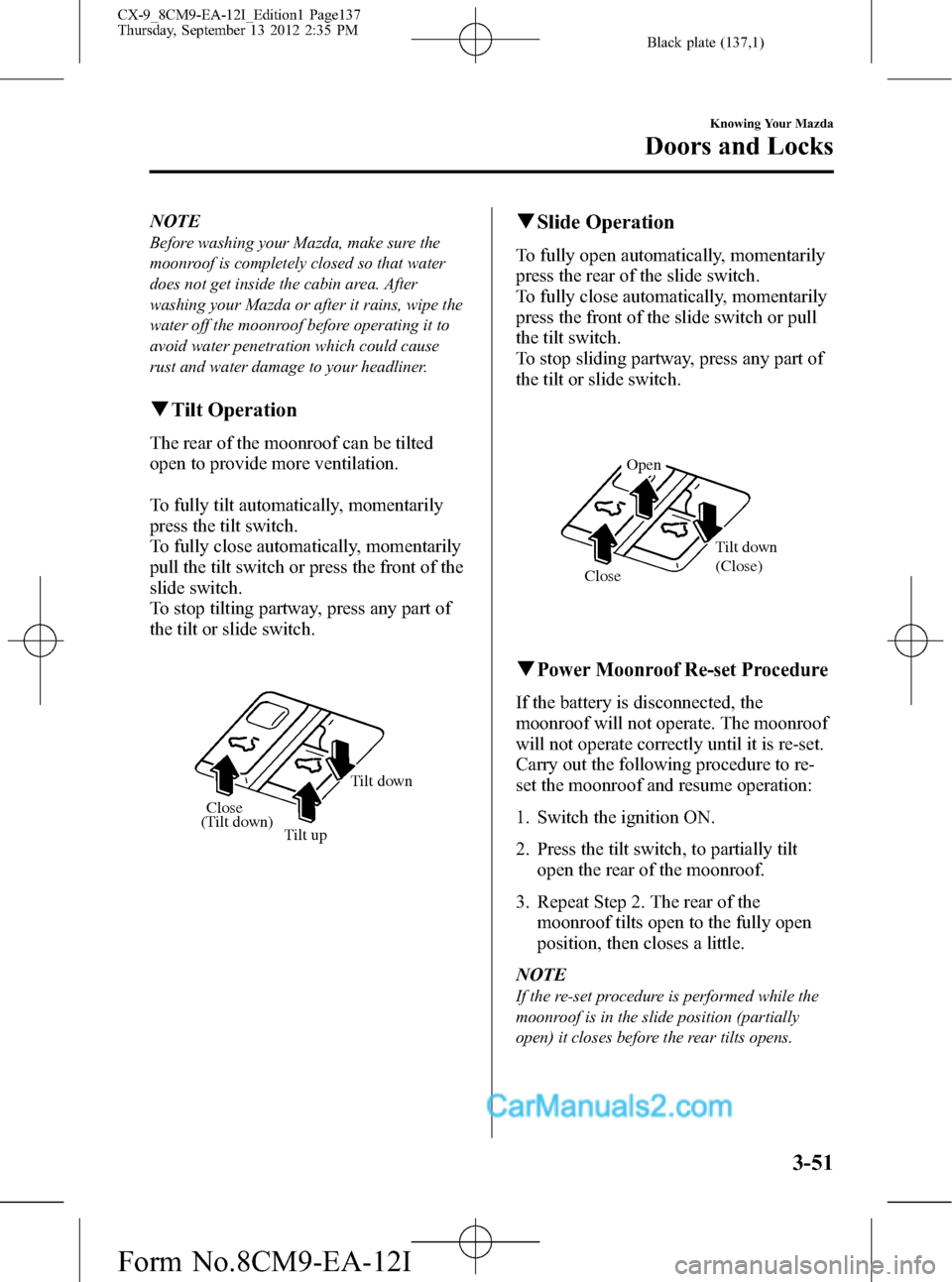

qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
press the tilt switch.
To fully close automatically, momentarily
pull the tilt switch or press the front of the
slide switch.
To stop tilting partway, press any part of
the tilt or slide switch.
Close
Tilt upTilt down
(Tilt down)
qSlide Operation
To fully open automatically, momentarily
press the rear of the slide switch.
To fully close automatically, momentarily
press the front of the slide switch or pull
the tilt switch.
To stop sliding partway, press any part of
the tilt or slide switch.
Close Tilt down
(Close)
Open
qPower Moonroof Re-set Procedure
If the battery is disconnected, the
moonroof will not operate. The moonroof
will not operate correctly until it is re-set.
Carry out the following procedure to re-
set the moonroof and resume operation:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt
open the rear of the moonroof.
3. Repeat Step 2. The rear of the
moonroof tilts open to the fully open
position, then closes a little.
NOTE
If the re-set procedure is performed while the
moonroof is in the slide position (partially
open) it closes before the rear tilts opens.
Knowing Your Mazda
Doors and Locks
3-51
CX-9_8CM9-EA-12I_Edition1 Page137
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
Page 138 of 598
Black plate (138,1)
qEngine-off Moonroof Operation
The moonroof can be operated for about
40 seconds after the ignition is switched
from ON to ACC or switched off with all
doors closed. If any door is opened, the
moonroof will be inoperable.
qOpening/Closing the Moonroof
from Outside
The moonroof can be opened or closed
from outside the vehicle after the doors
and the liftgate are closed.
Refer to Opening/Closing the Power
Windows and the Moonroof from Outside
on page 3-44.
qJam-safe Moonroof
If a person's hands, head or an object
blocks the moonroof during closing
operation, the moonroof will stop and
open halfway.
WARNING
Make sure nothing blocks the
moonroof just before it reaches the
fully closed position:
Blocking the moonroof just before it
reaches the closed position is
dangerous.
In this case, the jam-safe function
cannot prevent the moonroof from
stopping. If fingers are caught,
serious injuries could occur.
NOTE
lDepending on driving conditions, a closing
moonroof could stop and start opening
when the moonroof feels a shock that is
similar to something blocking it.
lThe moonroof's jam-safe function does not
function while the moonroof is initializing.
qSunshade
The sunshade can be opened and closed
by hand.
The sunshade opens automatically when
the moonroof is opened, but must be
closed by hand.
Sunshade
CAUTION
ØThe sunshade does not tilt. To
avoid damaging the sunshade, do
not push up on it.
ØDo not close the sunshade while
the moonroof is opening. Trying to
force the sunshade closed could
damage it.
3-52
Knowing Your Mazda
Doors and Locks
CX-9_8CM9-EA-12I_Edition1 Page138
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
Page 142 of 598
Black plate (142,1)
qOperation
Arming
The system is armed when the ignition is
switched from ON to ACC or OFF. The
security indicator light in the instrument
cluster flashes every 2 seconds until the
system is disarmed.
Disarming
The system is disarmed when the ignition
is switched ON with the registered
advanced key.
The security indicator light illuminates for
about 3 seconds and goes out.
If the engine does not start with the
correct advanced key, and the security
indicator light keeps illuminating or
flashing, the system may have a
malfunction. Consult an Authorized
Mazda Dealer.NOTE
lThe engine may not start and the security
indicator light may illuminate or flash if the
advanced key is placed in an area where it
is difficult for the system to detect the
signal, such as on the dashboard, or in the
glove box. Move the advanced key to
another place, switch the ignition off, and
then restart the engine.
lSignals from a TV or radio station, or from
a transceiver or a mobile telephone could
interfere with your immobilizer system. If
you are using the proper advanced key and
the engine fails to start, check the security
indicator light. If the indicator light is
flashing, switch the ignition to ACC or
switch the ignition off and wait for a while,
then restart the engine. If it does not start
after 3 or more tries, contact an Authorized
Mazda Dealer.
lIf the security indicator light flashes
continuously while you are driving, do not
shut off the engine. Go to an Authorized
Mazda Dealer and have it checked. If the
engine is shut off while the indicator light is
flashing, you will not be able to restart it.
lSince the electronic codes are reset when
repairing the immobilizer system, the
advanced key (including auxiliary key) are
needed. Bring all the advanced keys
(including auxiliary keys) to an Authorized
Mazda Dealer.
3-56
Knowing Your Mazda
Security System
CX-9_8CM9-EA-12I_Edition1 Page142
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I
