Black plate (177,1)
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2
Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-4
Turning the Engine Off ............................................................. 5-5
Brake System ............................................................................ 5-5
Automatic Transaxle Controls ................................................. 5-11
Power Steering ........................................................................ 5-17
All-Wheel Drive (AWD) Operation
í..................................... 5-17
Cruise Control ......................................................................... 5-20
Traction Control System (TCS) .............................................. 5-23
Dynamic Stability Control (DSC)/Roll Stability Control
(RSC) ...................................................................................... 5-26
Tire Pressure Monitoring System
í......................................... 5-28
Blind Spot Monitoring (BSM) Systemí................................. 5-34
Parking Sensor System ........................................................... 5-40
Instrument Cluster and Indicators ............................................ 5-45
Meters and Gauges .................................................................. 5-45
Warning/Indicator Lights and Beep Sounds ............................ 5-49
Warning/Indicator Lights ........................................................ 5-49
Beep Sounds ........................................................................... 5-63
Switches and Controls ................................................................ 5-65
Lighting Control ..................................................................... 5-65
Turn and Lane-Change Signals ............................................... 5-71
Fog Lights
í............................................................................ 5-72
Windshield Wipers and Washer .............................................. 5-73
Rear Window Wiper and Washer ............................................ 5-77
Rear Window Defroster ........................................................... 5-78
Horn ........................................................................................ 5-79
Hazard Warning Flasher .......................................................... 5-80
HomeLink Wireless Control System
í.................................... 5-81
5-1íSome models.
CX-9_8CM9-EA-12I_Edition1 Page177
Thursday, September 13 2012 2:35 PM
Form No.8CM9-EA-12I

Black plate (224,1)
qFuel Gauge
The fuel gauge shows approximately how
much fuel is remaining in the tank when
the ignition is switched ON.
We recommend keeping the tank over 1/4
full. When the low fuel warning light
illuminates or when the needle is near E,
refuel as soon as possible.
Full
Approx. 1/4 FullLow fuel
warning light
NOTElAfter refueling, it may require some time for
the needle to stabilize. In addition, the
needle may deviate while driving on a slope
or curve since the fuel moves in the tank.
lThe direction of the arrow () next to the
low fuel warning light indicates that the
fuel-filler lid is on the left side of the
vehicle.
qDashboard Illumination
Rotate the knob to adjust the brightness of
the instrument cluster and other
illuminations in the dashboard.
NOTE
lThe brightness of dashboard illuminations
can be adjusted when the headlight switch
is in the
orposition.lWhen the dashboard illumination
brightness cannot be adjusted any more, a
beep sound will be heard.
Dim
Bright
Canceling the illumination dimmer
(Black-out meter and dashboard
illuminations)
When the headlight switch is in the
orposition, the illumination of the
instrument cluster and the information
display dims.
When driving on snowy or foggy roads,
or in other situations when the instrument
cluster or information display's visibility
is reduced due to glare from surrounding
brightness, cancel the illumination
dimmer and increase the illumination
intensity.
To cancel the illumination dimmer, press
the dashboard illumination knob.
NOTE
lThis symbol () indicates the knob to
adjust the brightness of the dashboard
illumination.
lIf the illumination dimmer is cancelled, the
instrument cluster and the information
display will not dim when the headlight
switch is turned to the
orposition
again. Press the dashboard illumination
knob to activate the illumination dimmer.
5-48
Driving Your Mazda
Instrument Cluster and Indicators
CX-9_8CM9-EA-12I_Edition1 Page224
Thursday, September 13 2012 2:36 PM
Form No.8CM9-EA-12I

Black plate (248,1)
Fog Lightsí
Use this switch to turn on the fog lights.
The fog lights will improve visibility at
night and during foggy conditions.
To turn the fog lights on, rotate the fog
light switch to the
position.
The headlight switch must be in the
position before turning on the fog lights.
Type A
Fog light switch
Type B
Fog light switch
To turn them off, rotate the fog light
switch to the OFF position or turn the
headlight switch to the
(Type A)/
(Type B) position.NOTE
lThe fog lights will turn off when the
headlights are set at high beam.
l(With auto-light control)
If the fog light switch is in the ON position
and the headlight switch is in the AUTO
position, the fog lights will turn on when
the headlights, the exterior lights and
dashboard illumination turn automatically.
5-72
Driving Your Mazda
íSome models.
Switches and Controls
CX-9_8CM9-EA-12I_Edition1 Page248
Thursday, September 13 2012 2:36 PM
Form No.8CM9-EA-12I

Black plate (254,1)
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
If the washer does not work, inspect the
fluid level (page 8-26). If it's normal and
the washer still does not work, consult an
Authorized Mazda Dealer.
Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition must be switched ON.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
The defroster operation can be confirmed
by the indicator in the display.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
Indicator light
CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defroster grid inside the window.
NOTE
This defroster is not designed for melting snow.
If there is an accumulation of snow on the rear
window, remove it before using the defroster.
5-78
Driving Your Mazda
Switches and Controls
CX-9_8CM9-EA-12I_Edition1 Page254
Thursday, September 13 2012 2:36 PM
Form No.8CM9-EA-12I

Black plate (266,1)
Operating Tips
qOperating the Climate Control
System
Operate the climate control system with
the engine running.
NOTE
To prevent the battery from being discharged,
do not leave the fan control dial on for a long
period of time with the ignition switched ON
when the engine is not running.
qClearing the Air Inlet
Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
qFoggy Windows
The windows may fog up easily in humid
weather. Use the climate control system to
defog the windows.
To help defog the windows, operate the
air conditioner to dehumidify the air.
NOTE
The air conditioner may be used along with the
heater to dehumidify the air.
qOutside/Recirculated Air Position
Use the outside air position in normal
conditions. The recirculated air position
should be used only when driving on
dusty roads or for quick cooling of the
interior.
qParking in Direct Sunlight
If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then run
the climate control system.
qNot Using for a Long Period
Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
qCheck the Refrigerant before the
Weather Gets Hot
Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient. Consult an Authorized Mazda
Dealer for refrigerant inspection.
The air conditioner is filled with
HFC134a (R134a), a refrigerant that will
not damage the ozone layer.
If the air conditioner is low on refrigerant
or has a malfunction, consult an
Authorized Mazda Dealer.
qReplacement of the Cabin Air Filter
Your vehicle is equipped with an air filter
for the air conditioner. It is necessary to
change the filter periodically as indicated
in scheduled maintenance (page 8-4).
Consult an Authorized Mazda Dealer for
replacement of the cabin air filter.
6-2
Interior Comfort
Climate Control System
CX-9_8CM9-EA-12I_Edition1 Page266
Thursday, September 13 2012 2:36 PM
Form No.8CM9-EA-12I

Black plate (272,1)
Mode selector switch
The desired airflow mode can be selected
(page 6-5).
NOTE
lWith the airflow mode set to the
position and the temperature control dial
set at a medium temperature, heated air is
directed to the feet and a comparably lower
air temperature will flow through the
central, left and right vents.
lTo set the air vent to, press the
windshield defroster switch.
lIn theposition, the air conditioner is
automatically turned on and the
mode is automatically selected to defrost
the windshield. In the
position, the
mode cannot be changed to the
mode.
A/C switch
Pressing the A/C switch while the AUTO
switch is turned on will turn off the air
conditioning (cooling/dehumidifying
functions). The air conditioning can be
turned on and off by pressing the A/C
switch while the fan control dial is on.NOTE
lThe air conditioning operates when the A/C
switch is pressed even if the fan is off.
lThe air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F). (Indicator light remains on even
when system is off.)
Air intake selector
Outside or recirculated air positions can
be selected. Press the switch to select
outside/recirculated air positions.
Recirculated air position (indicator
light illuminated)
Use this position when going through
tunnels, driving in congested traffic (high
engine exhaust areas) or when quick
cooling is desired.
Outside air position (indicator light
turned off)
Use this position for normal conditions
and defogging.
WARNING
Do not use theposition in cold or
rainy weather:
Using the
position in cold or
rainy weather is dangerous as it will
cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
6-8
Interior Comfort
Climate Control System
CX-9_8CM9-EA-12I_Edition1 Page272
Thursday, September 13 2012 2:36 PM
Form No.8CM9-EA-12I

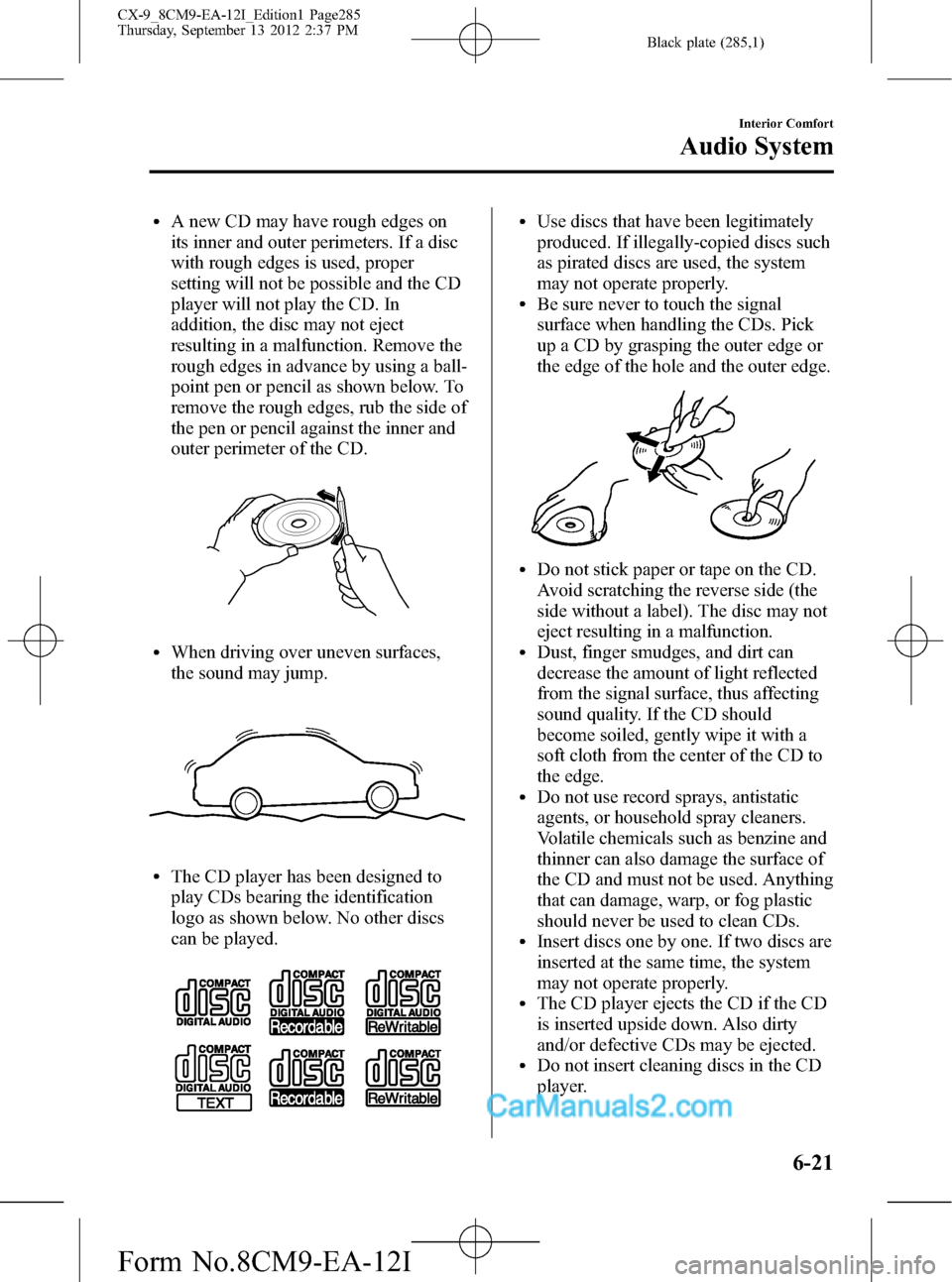

Black plate (285,1)
lA new CD may have rough edges on
its inner and outer perimeters. If a disc
with rough edges is used, proper
setting will not be possible and the CD
player will not play the CD. In
addition, the disc may not eject
resulting in a malfunction. Remove the
rough edges in advance by using a ball-
point pen or pencil as shown below. To
remove the rough edges, rub the side of
the pen or pencil against the inner and
outer perimeter of the CD.
lWhen driving over uneven surfaces,
the sound may jump.
lThe CD player has been designed to
play CDs bearing the identification
logo as shown below. No other discs
can be played.
lUse discs that have been legitimately
produced. If illegally-copied discs such
as pirated discs are used, the system
may not operate properly.
lBe sure never to touch the signal
surface when handling the CDs. Pick
up a CD by grasping the outer edge or
the edge of the hole and the outer edge.
lDo not stick paper or tape on the CD.
Avoid scratching the reverse side (the
side without a label). The disc may not
eject resulting in a malfunction.
lDust, finger smudges, and dirt can
decrease the amount of light reflected
from the signal surface, thus affecting
sound quality. If the CD should
become soiled, gently wipe it with a
soft cloth from the center of the CD to
the edge.
lDo not use record sprays, antistatic
agents, or household spray cleaners.
Volatile chemicals such as benzine and
thinner can also damage the surface of
the CD and must not be used. Anything
that can damage, warp, or fog plastic
should never be used to clean CDs.
lInsert discs one by one. If two discs are
inserted at the same time, the system
may not operate properly.
lThe CD player ejects the CD if the CD
is inserted upside down. Also dirty
and/or defective CDs may be ejected.
lDo not insert cleaning discs in the CD
player.
Interior Comfort
Audio System
6-21
CX-9_8CM9-EA-12I_Edition1 Page285
Thursday, September 13 2012 2:37 PM
Form No.8CM9-EA-12I

Black plate (508,1)
Light Bulbs
High-mount brake lightFog lights
Side turn
signal lights
Some models.
License plate lights
Brake lights/TaillightsTaillights (Liftgate side) Vanity mirror
lights Overhead light (Front)/Map lights
Overhead light (Center)
Overhead light (Rear)
Headlights
(Low beam) Front turn
signal lights Front side-
marker lights
Rear side marker lights
Rear turn signal lights Reverse lights
Luggage
compartment light
Headlights (High
beam)/Running lights Parking lights
Fog lights
Side turn
signal lights Vanity mirror
lights Overhead light (Front)/Map lights
Overhead light (Center)
Overhead light (Rear)
Headlights
(Low/High beam) Front turn
signal lights Front side-
marker lights
Parking lights/
Running lights
With xenon fusion headlights With halogen headlights
Courtesy lights
8-40
Maintenance and Care
Owner Maintenance
CX-9_8CM9-EA-12I_Edition1 Page508
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (513,1)
Fog lightsí
1. Make sure the ignition is switched off,
and the headlight switch is off.
2. Turn the screws counterclockwise and
remove them.
3. Turn the screws and the center section
of the plastic retainers
counterclockwise and remove them,
then remove the mudguard.
Removal
Installation
4. Disconnect the electrical connector
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector downward.
5. Turn the socket and bulb assembly
counterclockwise and remove it.
Carefully remove the bulb from its
socket in the reflector by gently pulling
it straight backward out of the socket.
6. Install the new bulb in the reverse order
of the removal procedure.
NOTE
lTo replace the bulb, contact an Authorized
Mazda Dealer
lIf the halogen bulb is accidentally touched,
it should be cleaned with rubbing alcohol
before being used.
lUse the protective cover and carton of the
replacement bulb to dispose of the old bulb
promptly out of the reach of children.
Side turn signal lightsí, High-mount
brake light
Due to the complexity and difficulty of
the procedure, the LED bulbs must be
replaced by an Authorized Mazda Dealer.
NOTE
LED bulb replacement is not possible because
it is built into the unit. Replace the unit.
Brake lights/Taillights, Rear turn signal
lights, Rear side-marker light
1. Make sure the ignition is switched off,
and the headlight switch is off.
Maintenance and Care
Owner Maintenance
8-45íSome models. CX-9_8CM9-EA-12I_Edition1 Page513
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I

Black plate (519,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1 MAIN 150 A For protection of all circuits
2―― ―
3 ENGINE 20 A Engine control system
4H/L R
*115 A Headlight (RH)
H/L HI RY*215 A For protection of various circuitsí
5 R HEATER 40 A Heater
6 P.SEAT R 30 A Power seat (RH)í
7 HEATER 50 A Heater
8 IGKEY 2 40 A For protection of various circuits
9 FAN 130 A
íCooling fan
40 Aí
10 P.SEAT L 40 A Power seat (LH)í
11 DEFOG 30 A Rear window defroster
12 BTN 50 A For protection of various circuits
13 FUEL PUMP 30 A Fuel pump
14 IGKEY 1 30 A For protection of various circuits
15 FOG 15 A Fog lights
í
Maintenance and Care
Owner Maintenance
8-51íSome models. CX-9_8CM9-EA-12I_Edition1 Page519
Thursday, September 13 2012 2:40 PM
Form No.8CM9-EA-12I
