warning MAZDA MODEL CX-9 2013 Owners Manual (in English)

Black plate (4,1)
We want to help you get the most driving
pleasure from your vehicle. Your owner's
manual, when read from cover to cover,
can do that in many ways.
Illustrations complement the words of the
manual to best explain how to enjoy your
Mazda. By reading your manual, you can
find out about the features, important
safety information, and driving under
various road conditions.
The symbol below in this manual means
“Do not do this”or“Do not let this
happen”.
Index:A good place to start is the Index,
an alphabetical listing of all information
in your manual.
You'll find several WARNINGs,
CAUTIONs, and NOTEs in the manual.
WARNING
A WARNING indicates a situation in
which serious injury or death could
result if the warning is ignored.
CAUTION
A CAUTION indicates a situation in
which bodily injury or damage to
your vehicle, or both, could result if
the caution is ignored.NOTE
A NOTE provides information and sometimes
suggests how to make better use of your
vehicle.
The symbol below, located on some parts
of the vehicle, indicates that this manual
contains information related to the part.
Please refer to the manual for a detailed
explanation.
How to Use This Manual
CX-9_8CM9-EA-12I_Edition1 Page4
Thursday, September 13 2012 2:34 PM
Form No.8CM9-EA-12I

Black plate (9,1)
Interior Equipment (View B)
Audio control switches ...................................................................................... page 6-52
SRS air bags ...................................................................................................... page 2-54
Cruise control switches ...................................................................................... page 5-20
Information display .......................................................................................... page 6-167
Climate control system ........................................................................................ page 6-2
Hazard warning flasher switch .......................................................................... page 5-80
Navigation system (if equipped) .......................................... Refer to the separate manual
Audio system ..................................................................................................... page 6-17
Glove compartment ......................................................................................... page 6-174
Accessory socket ............................................................................................. page 6-177
AT shift lever ...................................................................................................... page 5-11
Seat warmer switches ........................................................................................ page 2-17
Rear window defroster switch ........................................................................... page 5-78
Hood release handle .......................................................................................... page 3-49
Your Vehicle at a Glance
Interior Overview
1-3The equipment and installation position varies by vehicle CX-9_8CM9-EA-12I_Edition1 Page9
Thursday, September 13 2012 2:34 PM
Form No.8CM9-EA-12I

Black plate (13,1)
2Essential Safety Equipment
Use of safety equipment, including seats, seat belt system, child-restraint
systems and SRS air bags.
Seats ............................................................................................... 2-2
Front Seats (Manually Operated Seats) ..................................... 2-2
Front Seats (Electrically Operated Seats) .................................. 2-4
Second-Row Seats .................................................................... 2-9
Third-Row Seat ....................................................................... 2-13
Head Restraints ....................................................................... 2-15
Seat Warmer
í......................................................................... 2-17
Seat Belt Systems ........................................................................ 2-19
Seat Belt Precautions .............................................................. 2-19
3-Point Type Seat Belt ............................................................ 2-23
Front Seat Belt Pretensioner and Load Limiting Systems ....... 2-25
Center-Rear Position Seat Belt (Second-Row Seats) .............. 2-28
Seat Belt Extender ................................................................... 2-32
Seat Belt Warning Light .......................................................... 2-33
Seat Belt Reminder ................................................................. 2-34
Child Restraint ............................................................................ 2-35
Child Restraint Precautions ..................................................... 2-35
Child-Restraint System Installation Position .......................... 2-40
Installing Child-Restraint Systems .......................................... 2-41
LATCH Child-Restraint Systems ............................................ 2-49
SRS Air Bags ............................................................................... 2-54
Supplemental Restraint System (SRS) Precautions ................ 2-54
Supplemental Restraint System Components ......................... 2-60
How the SRS Air Bags Work .................................................. 2-61
SRS Air Bag Deployment Criteria .......................................... 2-65
Limitations to SRS Air Bag .................................................... 2-66
Driver and Front Passenger Occupant Classification
System
í.................................................................................. 2-68
Monitoring and Maintenance .................................................. 2-73
2-1íSome models.
CX-9_8CM9-EA-12I_Edition1 Page13
Thursday, September 13 2012 2:34 PM
Form No.8CM9-EA-12I

Black plate (14,1)
Front Seats (Manually
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.Make sure the adjustable components
of a seat are locked in place:
Adjustable seats and seatbacks that
are not securely locked are
dangerous. In a sudden stop or
collision, the seat or seatback could
move, causing injury. Make sure the
adjustable components of the seat
are locked in place by attempting to
slide the seat forward and backward
and rocking the seatback.
Adjust the driver's seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
CAUTION
Be careful not to place your hands
and fingers around moving parts of
the front seat when adjusting the
seat positions to prevent injury.
qSeat Slide
To move a seat forward or backward, raise
the lever and slide the seat to the desired
position and release the lever.
2-2
Essential Safety Equipment
Seats
CX-9_8CM9-EA-12I_Edition1 Page14
Thursday, September 13 2012 2:34 PM
Form No.8CM9-EA-12I

Black plate (15,1)
Make sure the lever returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the front passenger seat
properly with the seatback upright and
feet on the floor (With Driver and Front
Passenger Occupant Classification
System):
Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor.Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
To change the seatback angle, lean
forward slightly while raising the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
Essential Safety Equipment
Seats
2-3
CX-9_8CM9-EA-12I_Edition1 Page15
Thursday, September 13 2012 2:34 PM
Form No.8CM9-EA-12I

Black plate (16,1)
CAUTION
When returning a rear-reclined
seatback to its upright position,
make sure you hold onto the
seatback with your other hand while
operating the lever. If the seatback is
not supported, it will flip forward
suddenly and could cause injury.
qHeight Adjustment (Driver's Seat)
To adjust the seat height, move the lever
up or down.
DownUp
qLumbar Support Adjustment
(Driver's Seat)
To increase the seat firmness, pull the
lever forward. Push the lever backward to
decrease firmness.
Front Seats (Electrically
Operated Seats)
WARNING
Do not modify or replace the front
seats:
Modifying or replacing the front seats
such as replacing the upholstery or
loosening any bolts is dangerous. The
front seats contain air bag
components essential to the
supplemental restraint system. Such
modifications could damage the
supplemental restraint system and
result in serious injury. Consult an
Authorized Mazda Dealer if there is
any need to remove or reinstall the
front seats.
Do not drive with damaged front seats:
Driving with damaged front seats is
dangerous. A collision, even one not
strong enough to inflate the air bags,
could damage the front seats which
contain essential air bag
components. If there was a
subsequent collision, an air bag may
not deploy which could lead to
injuries. Always have an Authorized
Mazda Dealer inspect the front seats,
front seat belt pretensioners and air
bags after a collision.
Adjust the driver's seat only when the
vehicle is stopped:
Adjusting the driver's seat while the
vehicle is moving is dangerous. The
driver could lose control of the vehicle
and have an accident.
2-4
Essential Safety Equipment
Seats
CX-9_8CM9-EA-12I_Edition1 Page16
Thursday, September 13 2012 2:34 PM
Form No.8CM9-EA-12I

Black plate (17,1)
CAUTION
ØThe seat-bottom power
adjustment is operated by motors.
Avoid extended operation because
excessive use can damage the
motors.
ØTo prevent the battery from
running down, avoid using the
power adjustment when the
engine is stopped. The adjuster
uses a large amount of electrical
power.
ØDo not use the switch to make
more than one adjustment at a
time.
ØBe careful not to place your hands
and fingers around moving parts
of the front seat when adjusting
the seat positions to prevent
injury.
qSeat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
qSeat Recline
WARNING
Do not drive with either front seat
reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Always sit in the front passenger seat
properly with the seatback upright and
feet on the floor (With Driver and Front
Passenger Occupant Classification
System):
Your front passenger seat has weight
sensors, sitting in the front passenger
seat improperly out of position or
with the seatback reclined too far
while the vehicle is moving is
dangerous as it can take off weight
from the seat bottom and affect the
weight determination of the front
passenger sensing system. As a result
the front passenger will not have the
supplementary protection of the air
bag and seat belt pretensioner, which
could result in serious injury. Always
sit upright against the seatback with
your feet on the floor.
Essential Safety Equipment
Seats
2-5
CX-9_8CM9-EA-12I_Edition1 Page17
Thursday, September 13 2012 2:34 PM
Form No.8CM9-EA-12I

Black plate (21,1)
Second-Row Seats
WARNING
Do not stack cargo higher than the
seatbacks:
Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place by
attempting to slide the seat forward
and backward and rocking the
seatback:
Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Adjust the seat only when the vehicle is
stopped:
Adjusting the seat while the vehicle is
moving is dangerous. Sudden
braking or a collision could cause
serious injury.Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After adjusting the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Never allow a passenger to sit or stand
on the folded seatback while the
vehicle is moving:
Driving with a passenger on the
folded seatback is dangerous.
Allowing a child to sit up on the
folded seatback while the vehicle is
moving is particularly dangerous. In
a sudden stop or even a minor
collision, a child not in a proper seat
or child-restraint system and seat
belt could be thrown forward, back
or even out of the vehicle resulting in
serious injuries or death. The child in
the baggage area could be thrown
into other occupants and cause
serious injury.
CAUTION
Be careful not to place your hands
and fingers around moving parts of
the second-row seat when adjusting
the seat positions to prevent injury.
NOTE
The second-row seats cannot be removed.
Essential Safety Equipment
Seats
2-9
CX-9_8CM9-EA-12I_Edition1 Page21
Thursday, September 13 2012 2:34 PM
Form No.8CM9-EA-12I

Black plate (22,1)

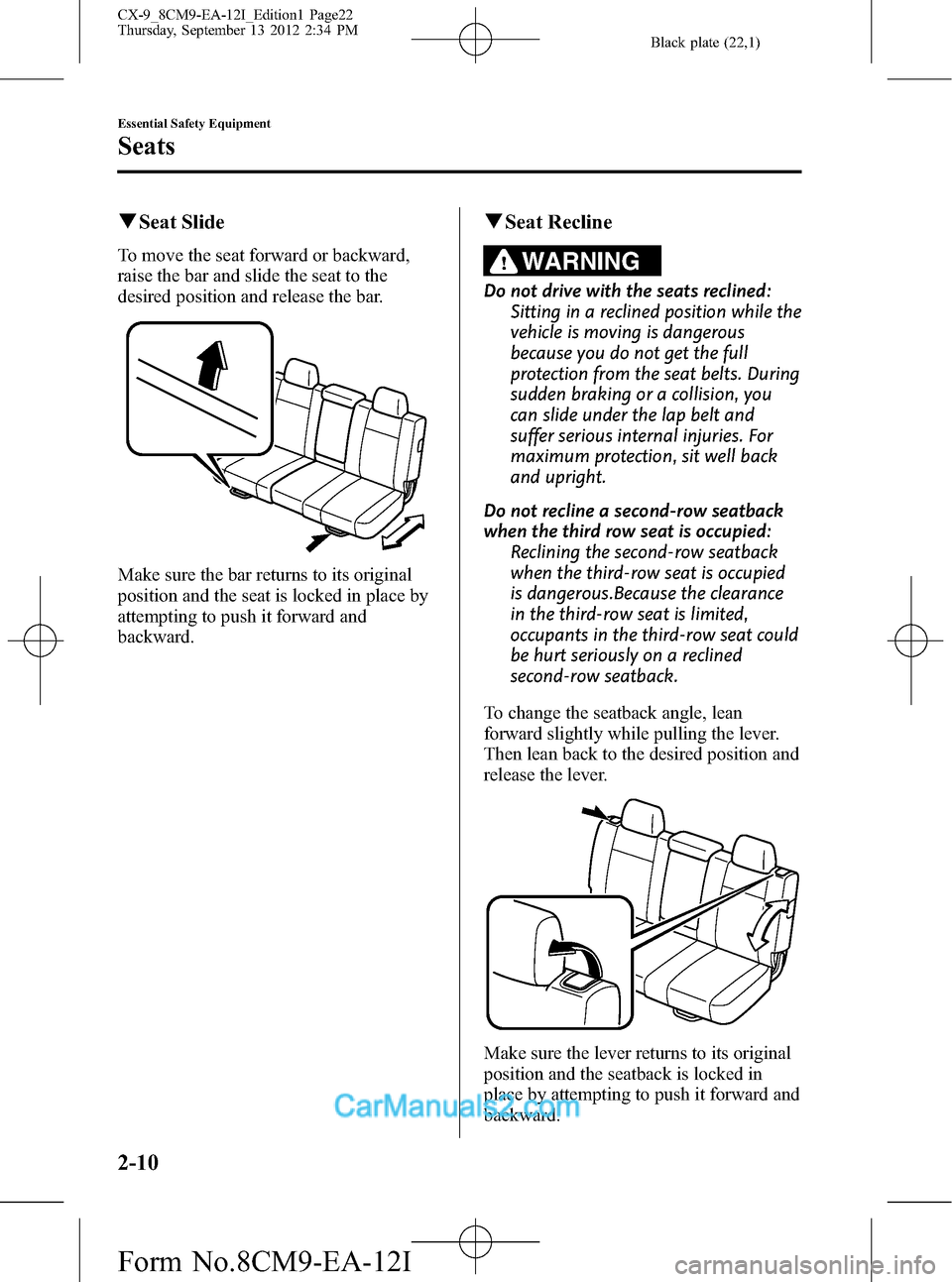

qSeat Slide
To move the seat forward or backward,
raise the bar and slide the seat to the
desired position and release the bar.
Make sure the bar returns to its original
position and the seat is locked in place by
attempting to push it forward and
backward.
qSeat Recline
WARNING
Do not drive with the seats reclined:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you do not get the full
protection from the seat belts. During
sudden braking or a collision, you
can slide under the lap belt and
suffer serious internal injuries. For
maximum protection, sit well back
and upright.
Do not recline a second-row seatback
when the third row seat is occupied:
Reclining the second-row seatback
when the third-row seat is occupied
is dangerous.Because the clearance
in the third-row seat is limited,
occupants in the third-row seat could
be hurt seriously on a reclined
second-row seatback.
To change the seatback angle, lean
forward slightly while pulling the lever.
Then lean back to the desired position and
release the lever.
Make sure the lever returns to its original
position and the seatback is locked in
place by attempting to push it forward and
backward.
2-10
Essential Safety Equipment
Seats
CX-9_8CM9-EA-12I_Edition1 Page22
Thursday, September 13 2012 2:34 PM
Form No.8CM9-EA-12I

Black plate (25,1)
Returning seatbacks to their original
positions
1. Lift the seatback to its original
position.
Make sure the seatback is secured by
attempting to lightly move it forward
and back.
2. If the head restraints were removed, re-
install them.
3. Route the center-rear seat belt through
the seat belt guide and fasten it. Check
that all seat belts are routed properly
for passenger use (page 2-28).Third-Row Seat
WARNING
Do not stack cargo higher than the
seatbacks:
Stacking luggage or other cargo
higher than the seatbacks is
dangerous. During a sudden stop or
collision, objects can fly around and
become projectiles that could hit and
injure passengers.
Make sure luggage and cargo are
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Make sure the adjustable components
of a seat are locked in place by
attempting to rock the seatback:
Adjustable seats that are not securely
latched are dangerous. In a sudden
stop or collision, the seat or seatback
could move, causing injury.
Do not drive with the seatback
unlocked:
All of the seatbacks play an
important role in your protection in a
vehicle. Leaving the seatback
unlocked is dangerous as it can allow
passengers to be ejected or thrown
around and baggage to strike
occupants in a sudden stop or
collision, resulting in severe injury.
After returning the seatback at any
time, even when there are no other
passengers, rock the seatback to
make sure it is locked in place.
Essential Safety Equipment
Seats
2-13
CX-9_8CM9-EA-12I_Edition1 Page25
Thursday, September 13 2012 2:34 PM
Form No.8CM9-EA-12I
