OUTSIDE (Ambient Temperature)
switch
Press the OUTSIDE switch to display the
ambient temperature.
NOTE
lThe displayed ambient temperature may
vary from the actual ambient temperature
depending on the surrounding area and
vehicle conditions.
lPress the OUTSIDE switch for three
seconds or longer to switch the display
from Fahrenheit to Centigrade or vice
versa.
lPress the OUTSIDE switch again to switch
the display from ambient temperature to the
temperature set for the air conditioner.
DUAL switch
Use the DUAL switch to change the mode
between the individual operation (driver
and passenger) and interconnection
(simultaneous) modes.Individual operation mode (indicator
light illuminated)
The set temperature can be controlled
individually for the driver and front
passenger.
Interconnection mode (indicator light
turned off)
The set temperature for the driver and
front passenger is controlled
simultaneously.
NOTE
lThe set temperature for the front passenger
changes to that of the driver while in the
interconnected mode.
lis displayed on the information
display while in the individual operation
mode.
lThe system changes to the interconnection
mode automatically if the windshield
defroster switch is pressed. The system will
not change to the individual operation
mode by pressing the DUAL switch or
turning the front passenger temperature
control dial.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
Interior Comfort
Climate Control System
6-9
CX-9_8DA3-EA-13G_Edition2 Page281
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (282,1)
NOTE
In theposition, the air conditioner is
automatically turned on and the
mode is
automatically selected to defrost the
windshield. In the
position, the
mode cannot be changed to themode.
q Operation of Automatic Air
Conditioning
1. Press the AUTO switch. Selection of
the airflow mode, air intake selector
and amount of airflow will be
automatically controlled.
2. Use the temperature control dial toselect a desired temperature.
Press the DUAL switch or turn the
front passenger temperature control
dial to control the set temperature
individually for the driver and front
passenger.
Cold Hot
To turn off the system, press the OFF
switch. NOTE
lSetting the temperature to the maximum
high or low will not provide the desired
temperature at a faster rate.
lWhen selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.
qWindshield Defrosting and Defogging
Press the windshield defroster switch.
In this position, the
position is
automatically selected, and the air
conditioner automatically turns on. The
air conditioner will directly dehumidify
the air to the front windshield and side
windows (page 6-5). Airflow amount will
be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging (
position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious
accident.
6-10
Interior Comfort
Climate Control System
CX-9_8DA3-EA-13G_Edition2 Page282
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (283,1)
NOTElPress the windshield defroster switch to
change the mode to the interconnection
mode automatically. The system does not
change to the individual operation mode by
pressing the DUAL switch or turning the
front passenger temperature control dial.
lUse the temperature control dial to increase
the air flow temperature and defog the
windshield more quickly.
Interior Comfort
Climate Control System
6-11
CX-9_8DA3-EA-13G_Edition2 Page283
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (284,1)
Vent Operation (Rear)
qAdjusting the Vents
Directing airflow
You can direct air flow by moving the adjustment knob.
NOTE
When using the air conditioner, mist may come out from the vents. This is not a sign of trouble but a
result of humid air being suddenly cooled.
6-12
Interior Comfort
Climate Control System
CX-9_8DA3-EA-13G_Edition2 Page284
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (285,1)

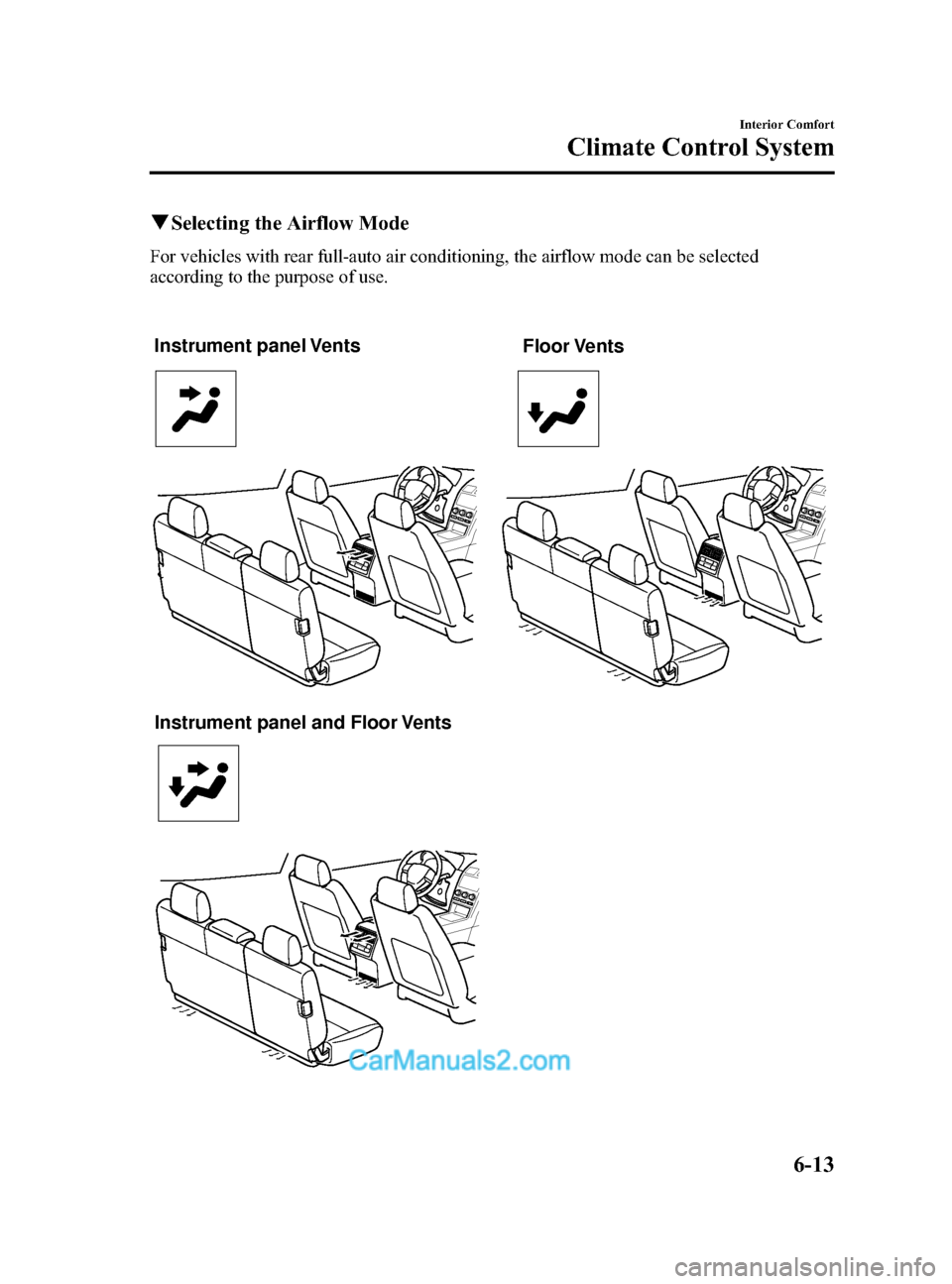

qSelecting the Airflow Mode
For vehicles with rear full-auto air conditioning, the airflow mode can be selected
according to the purpose of use.
Instrument panel Vents
Floor Vents
Instrument panel and Floor Vents
Interior Comfort
Climate Control System
6-13
CX-9_8DA3-EA-13G_Edition2 Page285
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (286,1)
Fully Automatic Type (Rear)
Mode selector display
Rear airflow display AU TO
Fan control switch
Temperature control
switch
OFF switch Mode selector switch
AUTO switch
AUTO switch
REAR switchFront
Rear
SYNC Temperature setting display
qControl Switches
Rear switch
Press the rear switch to operate the rear air
conditioning.
The indicator illuminates to indicate that
the rear air conditioning is operating.
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperature
6-14
Interior Comfort
Climate Control System
CX-9_8DA3-EA-13G_Edition2 Page286
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (287,1)
lAmount of airflowlSelection of airflow mode
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control switch
This switch controls temperature. Press
for hot andfor cold.
Fan control switch
The fan has five speeds.
Mode selector switch
The desired airflow mode can be selected
(page 6-13).
qOperation of Automatic Air
Conditioning
Operation from front seats
1. Turn the front air conditioning on.
2. Press the rear switch. The rear air
conditioning operates.
3. Selection of the airflow mode, airflowamount and temperature will be
automatically controlled to the same
temperature setting as the front air
conditioner for the driver's side.
Interior Comfort
Climate Control System
6-15
CX-9_8DA3-EA-13G_Edition2 Page287
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (288,1)
NOTElIf the AUTO switch is pressed while the
front A/C switch is off, the rear air
conditioning operates only to circulate air.
lSetting the temperature to the maximum
high or low will not provide the desired
temperature at a faster rate.
lWhen selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.
lWhen the rear air conditioner is controlled
to the same temperature setting as the front
air conditioner for the driver's side,
“SYNC” is displayed on the rear screen.
Operation from rear seats
1. Turn the front air conditioning on.
2. Press the AUTO switch. The selection
of the airflow mode and airflow
amount will be automatically
controlled.
3. Use the temperature control switch toset the desired temperature.
NOTElIf the AUTO switch is pressed while the
front A/C switch is off, the rear air
conditioning operates only to circulate air.
lSetting the temperature to the maximum
high or low will not provide the desired
temperature at a faster rate.
lWhen selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.
lWhen the rear air conditioner is operated
automatically, “AUTO ”is displayed on the
rear screen.
lWhen the rear air conditioner is controlled
to the same temperature setting as the front
air conditioner for the driver's side,
“ SYNC” is displayed on the rear screen.
4. To turn off the system, press the OFF
switch.
6-16
Interior Comfort
Climate Control System
CX-9_8DA3-EA-13G_Edition2 Page288
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (289,1)

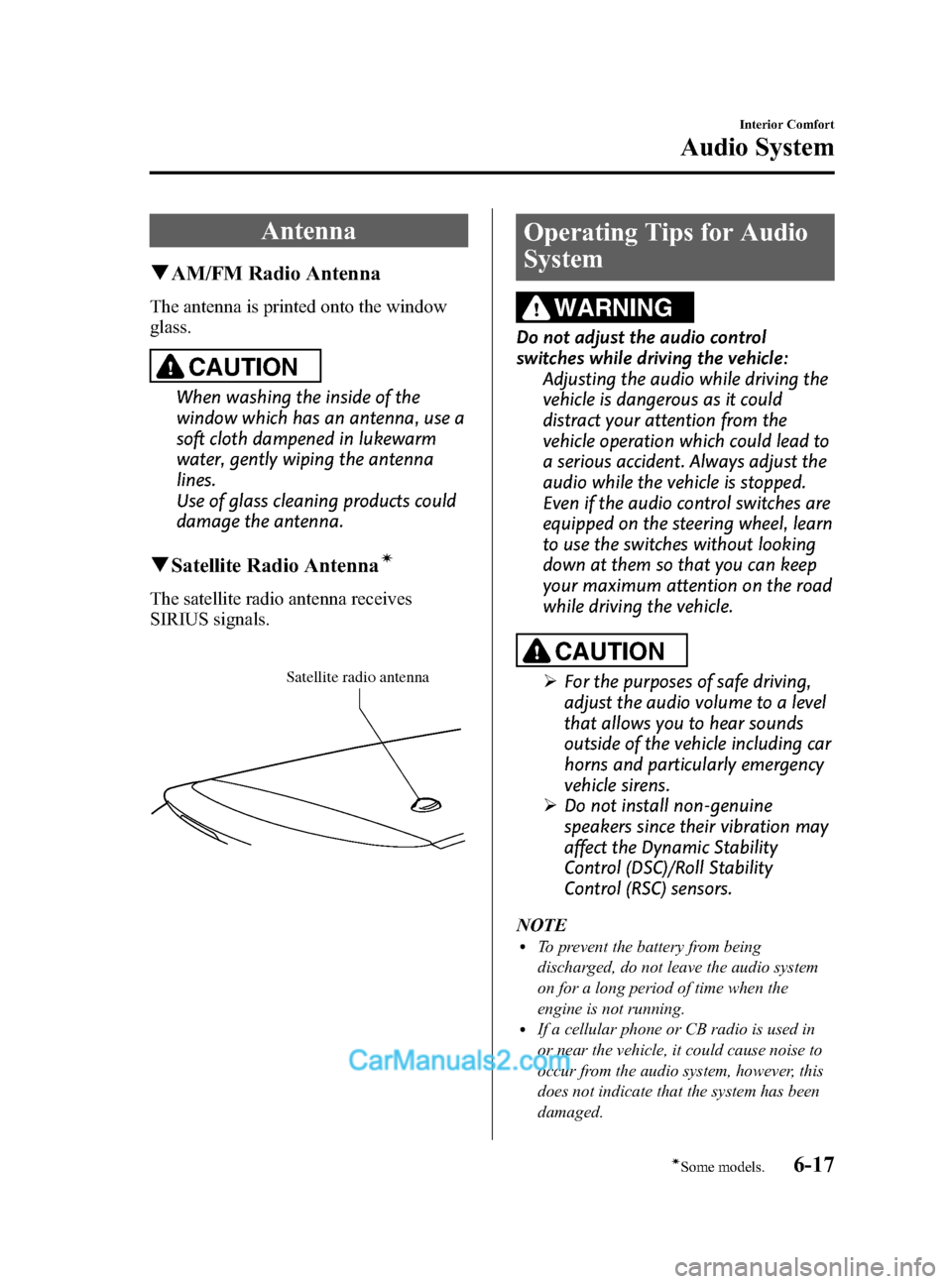

Antenna
qAM/FM Radio Antenna
The antenna is printed onto the window
glass.
CAUTION
When washing the inside of the
window which has an antenna, use a
soft cloth dampened in lukewarm
water, gently wiping the antenna
lines.
Use of glass cleaning products could
damage the antenna.
qSatellite Radio Antennaí
The satellite radio antenna receives
SIRIUS signals.
Satellite radio antenna
Operating Tips for Audio
System
WARNING
Do not adjust the audio control
switches while driving the vehicle:
Adjusting the audio while driving the
vehicle is dangerous as it could
distract your attention from the
vehicle operation which could lead to
a serious accident. Always adjust the
audio while the vehicle is stopped.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep
your maximum attention on the road
while driving the vehicle.
CAUTION
ØFor the purposes of safe driving,
adjust the audio volume to a level
that allows you to hear sounds
outside of the vehicle including car
horns and particularly emergency
vehicle sirens.
Ø Do not install non-genuine
speakers since their vibration may
affect the Dynamic Stability
Control (DSC)/Roll Stability
Control (RSC) sensors.
NOTE
lTo prevent the battery from being
discharged, do not leave the audio system
on for a long period of time when the
engine is not running.
lIf a cellular phone or CB radio is used in
or near the vehicle, it could cause noise to
occur from the audio system, however, this
does not indicate that the system has been
damaged.
Interior Comfort
Audio System
6-17íSome models.
CX-9_8DA3-EA-13G_Edition2 Page289
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G

Black plate (290,1)

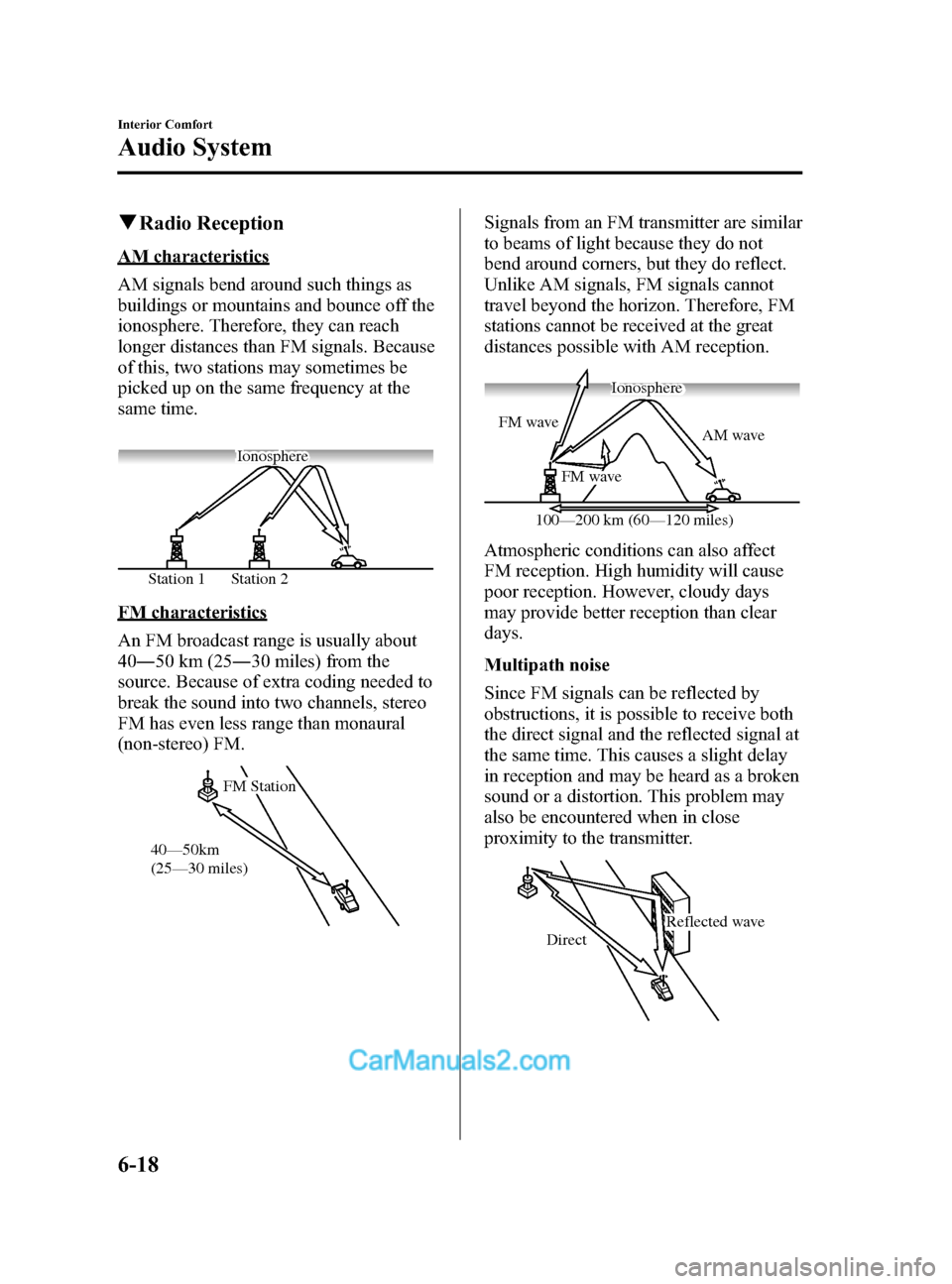

qRadio Reception
AM characteristics
AM signals bend around such things as
buildings or mountains and bounce off the
ionosphere. Therefore, they can reach
longer distances than FM signals. Because
of this, two stations may sometimes be
picked up on the same frequency at the
same time.
Station 2
Station 1 Ionosphere
FM characteristics
An FM broadcast range is usually about
40
―50 km (25 ―30 miles) from the
source. Because of extra coding needed to
break the sound into two channels, stereo
FM has even less range than monaural
(non-stereo) FM.
FM Station
40—50km
(25—30 miles)
Signals from an FM transmitter are similar
to beams of light because they do not
bend around corners, but they do reflect.
Unlike AM signals, FM signals cannot
travel beyond the horizon. Therefore, FM
stations cannot be received at the great
distances possible with AM reception.
AM wave
FM wave
FM wave
100—200 km (60—120 miles) Ionosphere
Atmospheric conditions can also affect
FM reception. High humidity will cause
poor reception. However, cloudy days
may provide better reception than clear
days.
Multipath noise
Since FM signals can be reflected by
obstructions, it is possible to receive both
the direct signal and the reflected signal at
the same time. This causes a slight delay
in reception and may be heard as a broken
sound or a distortion. This problem may
also be encountered when in close
proximity to the transmitter.
Reflected wave
Direct
6-18
Interior Comfort
Audio System
CX-9_8DA3-EA-13G_Edition2 Page290
Monday, September 9 2013 4:8 PM
Form No.8DA3-EA-13G
