Black plate (446,1)
2. Secure the trunk board using the strapson the third-row seatbacks.
Side cargo sub-compartment
Open the cover.
Some models.
qShopping Bag Hook
The shopping bag hook can be used for
hanging shopping bags.
CAUTION
Do not hang excessive weight on the
shopping bag hook as it could be
damaged.
Shopping bag hook
(tensile strength:3 kg
(6.6 lb))
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
6-174
Interior Comfort
Interior Equipment
CX-9_8DA3-EA-13G_Edition2 Page446
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G

Black plate (454,1)
qJack
To remove the jack
1. Open the cargo sub-compartment.
2. Remove the cover.
3. Turn the wing bolt and jack screw
counterclockwise.
Jack screw
Wing bolt
To secure the jack
1. Insert the wing bolt into the jack withthe jack screw pointing right and turn
the wing bolt clockwise to temporarily
tighten it.
2. Turn the jack screw in the direction shown in the figure.
Jack screw
Wing bolt
3. Turn the wing bolt completely tosecure the jack.
NOTE
If the jack is not completely secured, it could
rattle while driving. Make sure the jack screw
is sufficiently tightened.
Maintenance
lAlways keep the jack clean.lMake sure the moving parts are kept
free from dirt or rust.
lMake sure the screw thread is
adequately lubricated.
7-4
In Case of an Emergency
Flat Tire
CX-9_8DA3-EA-13G_Edition2 Page454
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G

Black plate (457,1)
NOTE
A flat tire which has been removed from the
vehicle for repair cannot be carried in the
spare tire carrier. Secure the flat tire with the
flat tire belt in the cargo sub-compartment
(page 7-12).
7. If the temporary spare tire is notreinstalled in the spare tire carrier,
tighten the spare tire carrier bolt
completely to wind up the spare tire
carrier cable.
WARNING
Always tighten the spare tire carrier
bolt completely tight and make sure
the spare tire is locked in the highest
position: A loose spare tire carrier bolt is
dangerous. The cable could be cut
causing the spare tire to fall off. This
could result in someone being
seriously injured or even killed. Use a
lug wrench to tighten the carrier bolt
and make sure to tighten it until a
click sound is heard.
To secure the spare tire
1. Place the tire with the outer side facingupward, rotate the small lever on top of
the retaining plate and slide the
retaining plate through the center hole
of the tire.
Rotate the small lever into place.
Lever
NOTE
Secure the spare tire as shown below.
Spare tire
2. Raise the spare tire slowly in reverse
order of removal.
In Case of an Emergency
Flat Tire
7-7
CX-9_8DA3-EA-13G_Edition2 Page457
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G

Black plate (463,1)
2. Mount the spare tire.
3. Install the lug nuts with the bevelededge inward; tighten them by hand.
WARNING
Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque: Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts
could loosen while driving and cause
the tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary. 4. Turn the lug wrench counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 108
―147
(12 ―14, 80 ―108)
WARNING
Always securely and correctly tighten
the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident.
Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration: Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the
stud, which could cause the wheel to
slip off and cause an accident.
In Case of an Emergency
Flat Tire
7-13
CX-9_8DA3-EA-13G_Edition2 Page463
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G

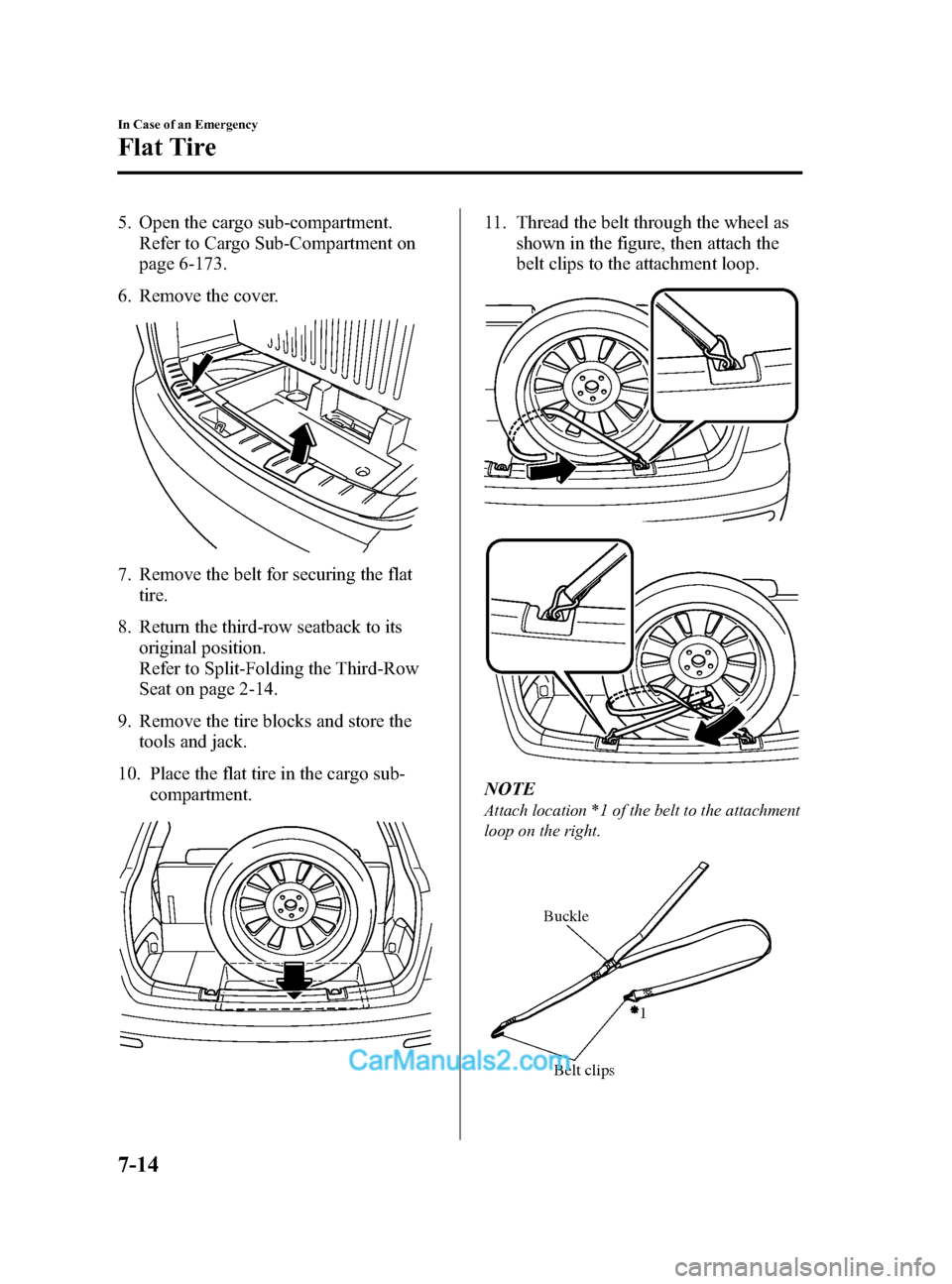

Black plate (464,1)
5. Open the cargo sub-compartment.Refer to Cargo Sub-Compartment on
page 6-173.
6. Remove the cover.
7. Remove the belt for securing the flat tire.
8. Return the third-row seatback to its original position.
Refer to Split-Folding the Third-Row
Seat on page 2-14.
9. Remove the tire blocks and store the tools and jack.
10. Place the flat tire in the cargo sub- compartment.
11. Thread the belt through the wheel asshown in the figure, then attach the
belt clips to the attachment loop.
NOTE
Attach location *1 of the belt to the attachment
loop on the right.
Buckle
Belt clips 1
7-14
In Case of an Emergency
Flat Tire
CX-9_8DA3-EA-13G_Edition2 Page464
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G

Black plate (465,1)
12. Pull the belt end to secure the flat tire.
13. Check the tire inflation pressure.Refer to Tires on page 10-6.
14. Have the flat tire repaired or replaced as soon as possible.
WARNING
Do not drive with any tires that have
incorrect air pressure:Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
(With Tire Pressure Monitoring System)
A tire pressure sensor is not installed to the
temporary spare tire. The warning light will
flash continuously while the temporary spare
tire is being used (page 5-31).
NOTE
To prevent the jack and tool from rattling, store
them properly.
In Case of an Emergency
Flat Tire
7-15
CX-9_8DA3-EA-13G_Edition2 Page465
Monday, September 9 2013 4:9 PM
Form No.8DA3-EA-13G

Black plate (472,1)
WARNING
Always tow a AWD vehicle with all four
wheels off the ground:Towing a AWD vehicle with either the
front or rear wheels on the ground is
dangerous as the drive train could be
damaged, or the vehicle could trail
away from the tow truck and cause
an accident. If the drive train has
been damaged, transport the vehicle
on a flat bed truck.
Tiedown Hooks
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hooks
1. Remove the tiedown eyelet and the lug
wrench from the luggage compartment
(page 7-3).
2. (Front)
Press the marking on the cap as shown
in the figure to remove the cap.
(Rear)
Wrap a flathead screwdriver or similar
tool with a soft cloth to prevent
damage to a painted bumper, and open
the cap located on the bumper.
Front
7-22
In Case of an Emergency
Emergency Towing
CX-9_8DA3-EA-13G_Edition2 Page472
Monday, September 9 2013 4:10 PM
Form No.8DA3-EA-13G

Black plate (473,1)
Rear
CAUTION
Do not use excessive force as it may
damage the cap or scratch the
painted bumper surface.
NOTE
Remove the cap completely and store it so as
not to lose it.
3. Securely install the tiedown eyelet using the lug wrench.
Front
Lug wrench
Rear
Lug wrench
4. Hook the tying rope to the tiedown eyelet.
Front
Tiedown eyelet
Rear
Tiedown eyelet
In Case of an Emergency
Emergency Towing
7-23
CX-9_8DA3-EA-13G_Edition2 Page473
Monday, September 9 2013 4:10 PM
Form No.8DA3-EA-13G

Black plate (474,1)
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
Recreational Towing
An example of“recreational towing ”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-21) and
“ Tiedown Hooks ”(page 7-22) and
carefully follow the instructions.
7-24
In Case of an Emergency
Emergency Towing
CX-9_8DA3-EA-13G_Edition2 Page474
Monday, September 9 2013 4:10 PM
Form No.8DA3-EA-13G

Black plate (497,1)
Engine Coolant
qInspecting Coolant Level
WARNING
Do not use a match or live flame in the
engine compartment. DO NOT ADD
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the
engine has been running, parts of the
engine compartment can become
very hot. You could be burned.
Carefully inspect the engine coolant
in the coolant reservoir, but do not
open it.
Switch the ignition to off and
make sure the fan is not running before
attempting to work near the cooling
fan: Working near the cooling fan when it
is running is dangerous. The fan
could continue running indefinitely
even if the engine has stopped and
the engine compartment temperature
is high. You could be hit by the fan
and seriously injured.
Do not remove either cooling
system cap when the engine and
radiator are hot: When the engine and radiator are
hot, scalding coolant and steam may
shoot out under pressure and cause
serious injury.
NOTE
Changing the coolant should be done by an
Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year ―at the beginning of the
winter season ―and before traveling
where temperatures may drop below
freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
The coolant should be at full in the
radiator and between the F and L marks
on the coolant reservoir when the engine
is cool.
If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
and corrosion protection and to bring the
level to F.
Securely tighten the coolant reservoir tank
cap after adding coolant.
Maintenance and Care
Owner Maintenance
8-23
CX-9_8DA3-EA-13G_Edition2 Page497
Monday, September 9 2013 4:10 PM
Form No.8DA3-EA-13G
