Page 206 of 612
4–58
When Driving
Switches and Controls
With auto-wiper control
Switch
Position Wiper operation
Operation while pulling up lever
Stop
Auto control
Low speed
High speed
Auto-wiper control
When the wiper lever is in the
position, the rain sensor senses the amount
of rainfall on the windshield and turns the
wipers on or off automatically (off—
intermittent—low speed—high speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), rotate
the switch upward for higher sensitivity
(faster response) or rotate it downward for
less sensitivity (slower response).
Higher sensitivity
Less sensitivitySwitch
Center
position
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 221 of 612
4–73
When Driving
ABS/TCS/DSC/Trailer Stability Assist (TSA)
Antilock Brake System
(ABS)
The ABS control unit continuously
monitors the speed of each wheel. If
one wheel is about to lock up, the ABS
responds by automatically releasing and
reapplying that wheel's brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal ABS system operation. Continue to
depress the brake pedal without pumping
the brakes.
The warning light turns on when the
system has a malfunction.
Refer to Warning Indication/Warning
Lights on page 4-33 .
WARNING
Do not rely on ABS as a substitute for
safe driving:
The ABS cannot compensate for unsafe
and reckless driving, excessive speed,
tailgating (following another vehicle
too closely), driving on ice and snow,
and hydroplaning (reduced tire friction
and road contact because of water on
the road surface). You can still have an
accident.
N O T E
y Braking distances may be longer on
loose surfaces (snow or gravel, for
example) which usually have a hard
foundation. A vehicle with a normal
braking system may require less
distance to stop under these conditions
because the tires will build up a wedge
of surface layer when the wheels skid.
y The sound of the ABS operating may
be heard when starting the engine
or immediately after starting the
vehicle, however, it does not indicate a
malfunction.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 228 of 612
4–80
When Driving
Drive Selection
Drive Selection
Drive selection is a system to switch the vehicle's drive mode. When the sport mode
is selected, vehicle's response against accelerator operation is enhanced. This provides
additional quick acceleration which may be needed to safely make maneuvers such as lane
changes, merging onto freeways, or passing other vehicles.
CAUTION
Do not use the sport mode when driving on slippery roads such as wet or snow-covered
roads. It may cause tire slipping.
N O T E
y When the sport mode is selected, driving at higher engine speeds increases and it may
increase fuel consumption. Mazda recommends that you cancel the sport mode on normal
driving.
y Drive mode cannot be switched in the following conditions:
y ABS/TCS/DSC is operating
y The Mazda Radar Cruise Control (MRCC) system/cruise control is operating.
y Steering wheel is being operated abruptly
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 240 of 612
4–92
When Driving
i-ACTIVSENSE
*Some models.
Blind Spot Monitoring (BSM) *
The Blind Spot Monitoring (BSM) is designed to assist the driver in checking the area to the
rear of the vehicle on both sides during lane changes by notifying the driver of the presence
of vehicles approaching from the rear in an adjacent lane.
The Blind Spot Monitoring (BSM) detects vehicles approaching from the rear while
traveling in the forward direction at a speed of 10 km/h (6.3 mph) or faster and noti ¿ es
the driver by turning on the Blind Spot Monitoring (BSM) warning indicator light and
displaying the vehicle detection screen (vehicles with multi-information display and active
driving display).
If the turn signal lever is operated to signal a turn in the direction in which the Blind Spot
Monitoring (BSM) warning indicator light is illuminated while the approaching vehicle is
detected, the Blind Spot Monitoring (BSM) noti ¿ es the driver of possible danger by turning
on the Blind Spot Monitoring (BSM) warning indicator light, and by activating the warning
sound and the warning screen indicator display (vehicles with multi-information display and
active driving display).
The detection area on this system covers the driving lanes on both sides of the vehicle and
from the rear part of the front doors to about 50 m (164 ft) behind the vehicle.
Detection areas Your vehicle
WARNING
Always check the surrounding area visually before making an actual lane change:
The system is only designed to assist you in checking for vehicles at your rear when
making a lane change. Due to certain limitations with the operation of this system, the
Blind Spot Monitoring (BSM) warning indicator light, the warning sound and the warning
screen indicator display may not activate or they might be delayed even though a vehicle
is in an adjacent driving lane. Always make it your responsibility as a driver to check the
rear.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 252 of 612
4–104
When Driving
i-ACTIVSENSE
WARNING
Always check the surrounding area visually before actually putting the vehicle in
reverse:
The system is only designed to assist you in checking for vehicles at the rear when putting
the vehicle in reverse. Due to certain limitations with the operation of this system, the
Blind Spot Monitoring (BSM) warning indicator lights may not fl ash or it might be delayed
even though a vehicle is behind your vehicle. Always make it your responsibility as a
driver to check the rear.
N O T E
y In the following cases, the Blind Spot Monitoring (BSM) warning indication/warning
light turns on and operation of the system is stopped. If the Blind Spot Monitoring (BSM)
warning indication/warning light remains illuminated, have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
y Some problem with the system including the Blind Spot Monitoring (BSM) warning
indicator lights has occurred.
y A large deviation in the installation position of a radar sensor (rear) on the vehicle has
occurred.
y There is a large accumulation of snow or ice on the rear bumper near a radar sensor
(rear).
y Driving on snow-covered roads for long periods.
y The temperature near the radar sensors becomes extremely hot due to driving for long
periods on slopes during the summer.
y The battery voltage has decreased.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 278 of 612
4–130
When Driving
i-ACTIVSENSE
Do not rely completely on the Smart City Brake Support (SCBS) system:
¾ The Smart City Brake Support (SCBS) system is only designed to reduce damage in the
event of a collision. Over reliance on the system leading to the accelerator pedal or
brake pedal being mistakenly operated could result in an accident.
¾ The Smart City Brake Support (SCBS) is a system which operates in response to a
vehicle ahead. The system may not be able to detect or react to two-wheeled vehicles
or pedestrians.
¾ The laser sensor (front) for the Smart City Brake Support (SCBS) system is installed near
the rearview mirror. To assure the correct operation of the Smart City Brake Support
(SCBS), heed the following cautions.
¾
Do not apply stickers to the surface of the windshield near the laser sensor (front)
(including transparent stickers). Otherwise, the laser sensor (front) may not be able
to detect vehicles ahead which could result in an accident.
¾
Do not apply coating agent to the windshield. Otherwise, the laser sensor (front)
may not be able to detect vehicles or obstructions in front which could result in an
accident.
¾
Do not disassemble the laser sensor (front).
¾
If cracks or damage caused by fl ying gravel or debris is visible near the laser sensor
(front), stop using the Smart City Brake Support (SCBS) system immediately and
have your vehicle inspected by an Authorized Mazda Dealer. If the vehicle continues
to be driven with cracks or scratch marks left on the windshield near the laser sensor
(front), the system may operate unnecessarily and cause an unexpected accident.
Refer to Stopping The Smart City Brake Support (SCBS) System Operation on page
4-133 .
¾
When replacing the windshield wipers or windshield, consult an Authorized Mazda
Dealer.
Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles ahead. This will result in the Smart City Brake Support (SCBS) system not
operating normally or mistakenly operating, which could cause a serious accident.
Turn off the Smart City Brake Support (SCBS) when the vehicle is running on a chassis
roller or being towed:
Turn off the Smart City Brake Support (SCBS) system to prevent mistaken operation when
the vehicle is running on a chassis roller or being towed.
Refer to the Stopping the Smart City Brake Support (SCBS) System Operation on page
4-133 on how to turn off the Smart City Brake Support (SCBS) system.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 300 of 612
4–152
When Driving
Tire Pressure Monitoring System
CAUTION
¾ Each tire, including the spare (if provided), should be checked monthly when cold and
infl ated to the infl ation pressure recommended by the vehicle manufacturer on the vehicle
placard or tire infl ation pressure label. (If your vehicle has tires of a diff erent size than the
size indicated on the vehicle placard or tire infl ation pressure label, you should determine
the proper tire infl ation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system ( TPMS) that illuminates a low tire pressure telltale when one or more of your tires
is signifi cantly under-infl ated. Accordingly, when the low tire pressure telltale illuminates,
you should stop and check your tires as soon as possible, and infl ate them to the proper
pressure. Driving on a signifi cantly under-infl ated tire causes the tire to overheat and can
lead to tire failure. Under-infl ation also reduces fuel effi ciency and tire tread life, and may
aff ect the vehicle's handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, and it is the
driver's responsibility to maintain correct tire pressure, even if under-infl ation has not
reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when
the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will fl ash for approximately one minute and then
remain continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illuminated,
the system may not be able to detect or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
¾ To avoid false readings, the system samples for a little while before indicating a problem. As
a result it will not instantaneously register a rapid tire defl ation or blow out.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 316 of 612
4–16 8
When Driving
Parking Sensor System
System problem noti ¿ cation
If any of the problems indicated in the table occurs, the driver is noti ¿ ed of the problem
depending on the type of system as shown.
Disconnection Solution
Disconnection
The system may have a malfunction. Have the
vehicle inspected at an Authorized Mazda Dealer as
soon as possible.
System
malfunction
The system may have a malfunction. Have the
vehicle inspected at an Authorized Mazda Dealer as
soon as possible.
Frost/soiling
Foreign matter may be on the sensor area
corresponding to the obstruction detection
indication shown. If the system does not recover,
have the vehicle inspected at an Authorized Mazda
Dealer.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 318 of 612
4–170
When Driving
Parking Sensor System
Rear Corner Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Far distance Approx. 55—38 cm (21.6—14.9 in)
Medium intermittent sound
Middle distance Approx. 38—25 cm (14.9—9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
N O T E
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone, the
corresponding beep sound is heard.
When Warning Indicator/Beep is Activated
The system noti ¿ es the driver of an abnormality by activating the beep sound and the
indicator light.
Indicator/Beep How to check
The indicator light À ashes when
the parking sensor switch is
pressed. The system may have a malfunction. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
The beep sound is not heard. The system may have a malfunction. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
The intermittent sound of the
buzzer is heard ¿ ve times. Remove any foreign material from the sensor area. If the system does not
recover, have the vehicle inspected at an Authorized Mazda Dealer.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C

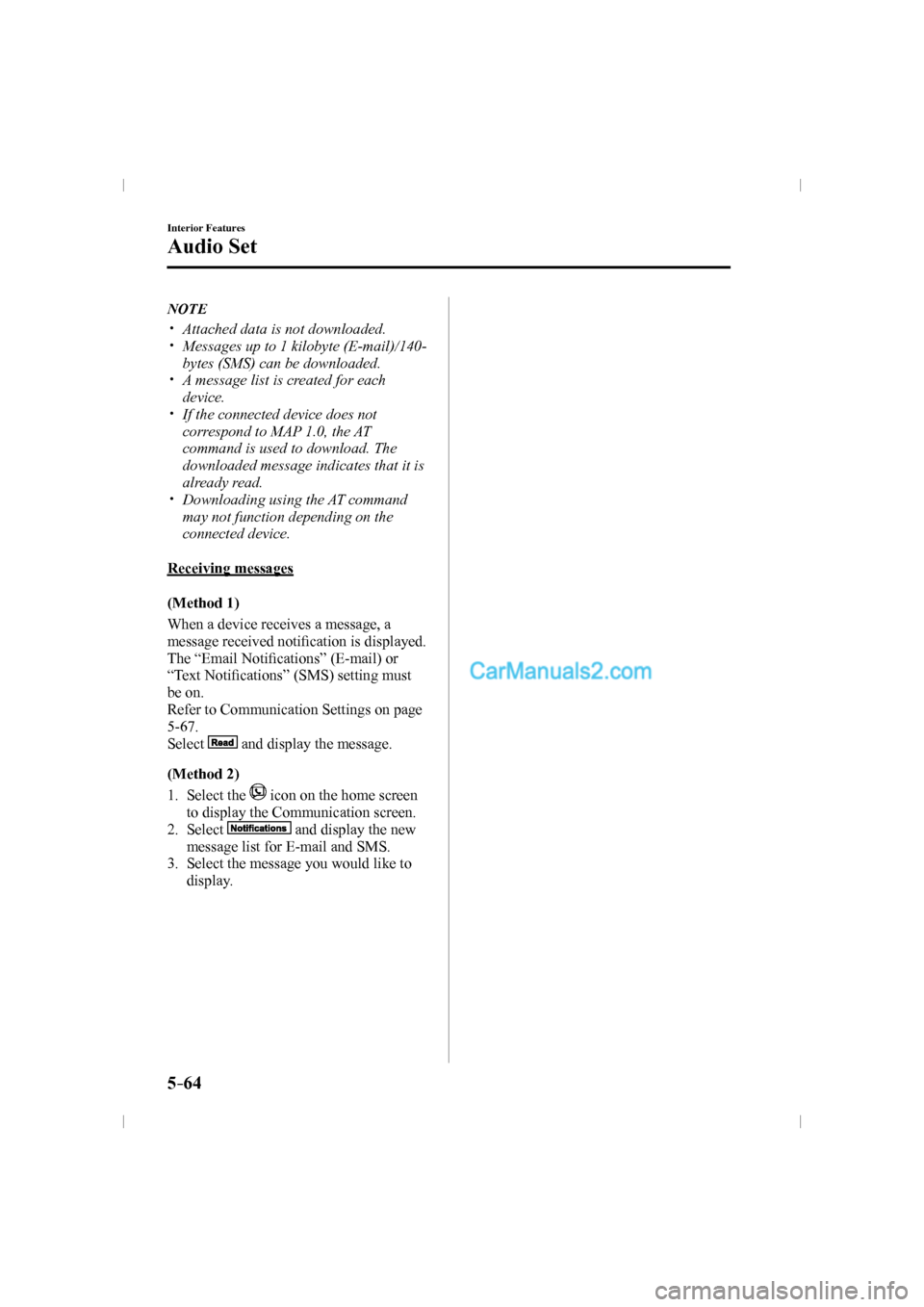

Page 382 of 612
5–64
Interior Features
Audio Set
N O T E
y Attached data is not downloaded.
y Messages up to 1 kilobyte (E-mail)/140-
bytes (SMS) can be downloaded.
y A message list is created for each
device.
y If the connected device does not
correspond to MAP 1.0, the AT
command is used to download. The
downloaded message indicates that it is
already read.
y Downloading using the AT command
may not function depending on the
connected device.
Receiving messages
( M e t h o d 1 )
When a device receives a message, a
message received noti ¿ cation is displayed.
The “Email Noti ¿ cations” (E-mail) or
“Text Noti ¿ cations” (SMS) setting must
be on.
Refer to Communication Settings on page
5-67 .
Select
and display the message.
(Method 2)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
and display the new
message list for E-mail and SMS.
3. Select the message you would like to
display.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
