4–63
When Driving
Switches and Controls
*Some models.
HomeLink Wireless
Control System
*
N O T E
HomeLink and HomeLink house icon
are registered trademarks of Gentex
Corporation.
The HomeLink system replaces up to
3 hand-held transmitters with a single
built-in component in the auto-dimming
mirror. Pressing the HomeLink button on
the auto-dimming mirror activates garage
doors, gates and other devices surrounding
your home.
HomeLink button
Indicator light
WARNING
Do not use the HomeLink system with
any garage door opener that lacks the
safety stop and reverse feature:
Using the HomeLink system with any
garage door opener that lacks the
safety stop and reverse feature as
required by federal safety standards
is dangerous. (This includes garage
doors manufactured before April 1,
1982.)
Using these garage door openers can
increase the risk of serious injury or
death. For further information, contact
HomeLink at 1-800-355-3515 or www.
homelink.com or an Authorized Mazda
Dealer.
Always check the areas surrounding
garage doors and gates for people
or obstructions before programming
or during operation of the HomeLink
system:
Programming or operating the
HomeLink system without verifying
the safety of areas surrounding garage
doors and gates is dangerous and
could result in an unexpected accident
and serious injury if someone were to
be hit.
N O T E
The programming will not be erased even
if the battery is disconnected.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 212 of 612
4–64
When Driving
Switches and Controls
Pre-programming the HomeLink
System
N O T E
It is recommended that a new battery be
placed in the hand-held transmitter of the
device being programmed to HomeLink
for quicker training and accurate
transmission of the radio-frequency signal.
y Verify that there is a remote control
transmitter available for the device you
would like to program.
y Disconnect the power to the device.
Programming the HomeLink
System
CAUTION
When programming a garage door
opener or a gate, disconnect the power
to these devices before performing
programming. Continuous operation
of the devices could damage the
motor.
The HomeLink system provides 3 buttons
which can be individually selected and
programmed using the transmitters for
current, on-market devices as follows:
1. Disconnect power to the device being
programmed.
2. Position the end of your hand-held
transmitter 2.5—7.5 cm (1—3 inches)
away from the HomeLink button you
wish to program while keeping the
indicator light in view. 3. Simultaneously press and hold both
the chosen HomeLink and hand-held
transmitter buttons. Do not release
the buttons until step 3 has been
completed.
N O T E
Some gate operators and garage door
openers may require you to replace this
Programming Step 2 with procedures
noted in the “Gate Operator/Canadian
Programming” section.
4. After the HomeLink indicator light
changes from a slow to a rapidly
blinking light, release both the
HomeLink and hand-held transmitter
buttons.
N O T E
If the HomeLink indicator light does not
change to a rapidly blinking light, contact
HomeLink at www.homelink.com or call
1-800-355-3515 for assistance.
5. Connect power to the device being
programmed.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 213 of 612
4–65
When Driving
Switches and Controls
6. Firmly press and hold the programmed
HomeLink button for ¿ ve seconds,
and then release it. Perform this
operation two times to activate the door
or gate. If the door or gate does not
activate, press and hold the just-trained
HomeLink button and observe the
indicator light.
If the indicator light stays on
constantly, programming is complete
and your device should activate when
the HomeLink button is pressed and
released.
N O T E
To program the remaining two HomeLink
buttons, begin with “Programming” —
step 1
If the indicator light blinks rapidly
for two seconds and then turns
to a constant light, continue with
“Programming” steps 7—9 to
complete the programming of a rolling
code equipped device (most commonly
a garage door opener).
7. At the garage door opener receiver
(motor-head unit) in the garage, locate
the “learn” or “smart” button. This can
usually be found where the hanging
antenna wire is attached to the motor-
head unit.
8. Firmly press and release the “learn” or
“smart” button. (The name and color of
the button may vary by manufacturer.)
N O T E
Complete the programming within 30
seconds.
9. Return to the vehicle and ¿ rmly press,
hold for two seconds and release the
programmed HomeLink button. Repeat
the “ press/hold/release ” sequence a
second time, and, depending on the
brand of the garage door opener (or
other rolling code equipped device),
repeat this sequence a third time to
complete the programming process.
HomeLink should now activate your
rolling code equipped device.
N O T E
To program the remaining two HomeLink
buttons, begin with “Programming” —
step 1
For questions or comments, please contact
HomeLink at www.homelink.com or 1-
800-355-3515 .
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 214 of 612
4–66
When Driving
Switches and Controls
Gate operator/Canadian
Programming
Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission
— which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian
law, some U.S. gate operators are designed
to “time-out” in the same manner.
If you live in Canada or you are having
dif ¿ culties programming a gate operator
by using the “Programming” procedures
(regardless of where you live), replace
“Programming HomeLink” step 3 with
the following:
N O T E
If programming a garage door opener or
gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.
Continue to press and hold the HomeLink
button while you press and release
— every two seconds (“cycle”) your
hand-held transmitter until the frequency
signal has successfully been accepted by
HomeLink. (The indicator light will À ash
slowly and then rapidly.)
Proceed with “Programming” step 4 to
complete.
Operating the HomeLink System
Press the programmed HomeLink button
to operate a programmed device. The
code will continue being transmitted for a
maximum of 20 seconds.
Reprogramming the HomeLink
system
To program a device to HomeLink using
a HomeLink button previously trained,
follow these steps:
1. Press and hold the desired HomeLink
button. DO NOT release the button.
2. The indicator light will begin to À ash
after 20 seconds. Without releasing
the HomeLink button, proceed with
“Programming” - step 1.
Erasing Programmed HomeLink
Buttons
To erase the existing programming from
all three operating channels, press and
hold the two outside buttons (
, ) on
the auto-dimming mirror until the
HomeLink indicator light begins to À ash
after approximately 10 seconds.
Verify that the programming has been
erased when you resell the vehicle.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 215 of 612
4–67
When Driving
Brake
B r a k e S y s t e m
Foot Brake
This vehicle has power-assisted brakes
that adjust automatically through normal
use.
Should power-assist fail, you can stop by
applying greater force than normal to the
brake pedal. But the distance required to
stop will be greater than usual.
WARNING
Do not coast with the engine stalled or
turned off , fi nd a safe place to stop:
Coasting with the engine stalled or
turned off is dangerous. Braking will
require more eff ort, and the brake's
power-assist could be depleted if
you pump the brake. This will cause
longer stopping distances or even an
accident.
Shift to a lower gear when going down
steep hills:
Driving with your foot continuously on
the brake pedal or steadily applying
the brakes for long distances is
dangerous. This causes overheated
brakes, resulting in longer stopping
distances or even total brake failure.
This could cause loss of vehicle
control and a serious accident. Avoid
continuous application of the brakes.
Dry off brakes that have become
wet by driving slowly, releasing the
accelerator pedal and lightly applying
the brakes several times until the brake
performance returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the
vehicle pulling to one side when
braking could result in a serious
accident. Light braking will indicate
whether the brakes have been aff ected.
CAUTION
¾ Do not drive with your foot held on the
brake pedal. Doing so could result in the
following:
¾ The brake parts will wear out more
quickly.
¾ The brakes can overheat and
adversely aff ect brake performance.
¾ Always depress the brake pedal with
the right foot. Applying the brakes with
the unaccustomed left foot could slow
your reaction time to an emergency
situation resulting in insuffi cient braking
operation.
¾ Wear shoes appropriate for driving in
order to avoid your shoe contacting
the brake pedal when depressing the
accelerator pedal.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 216 of 612
4–68
When Driving
Brake

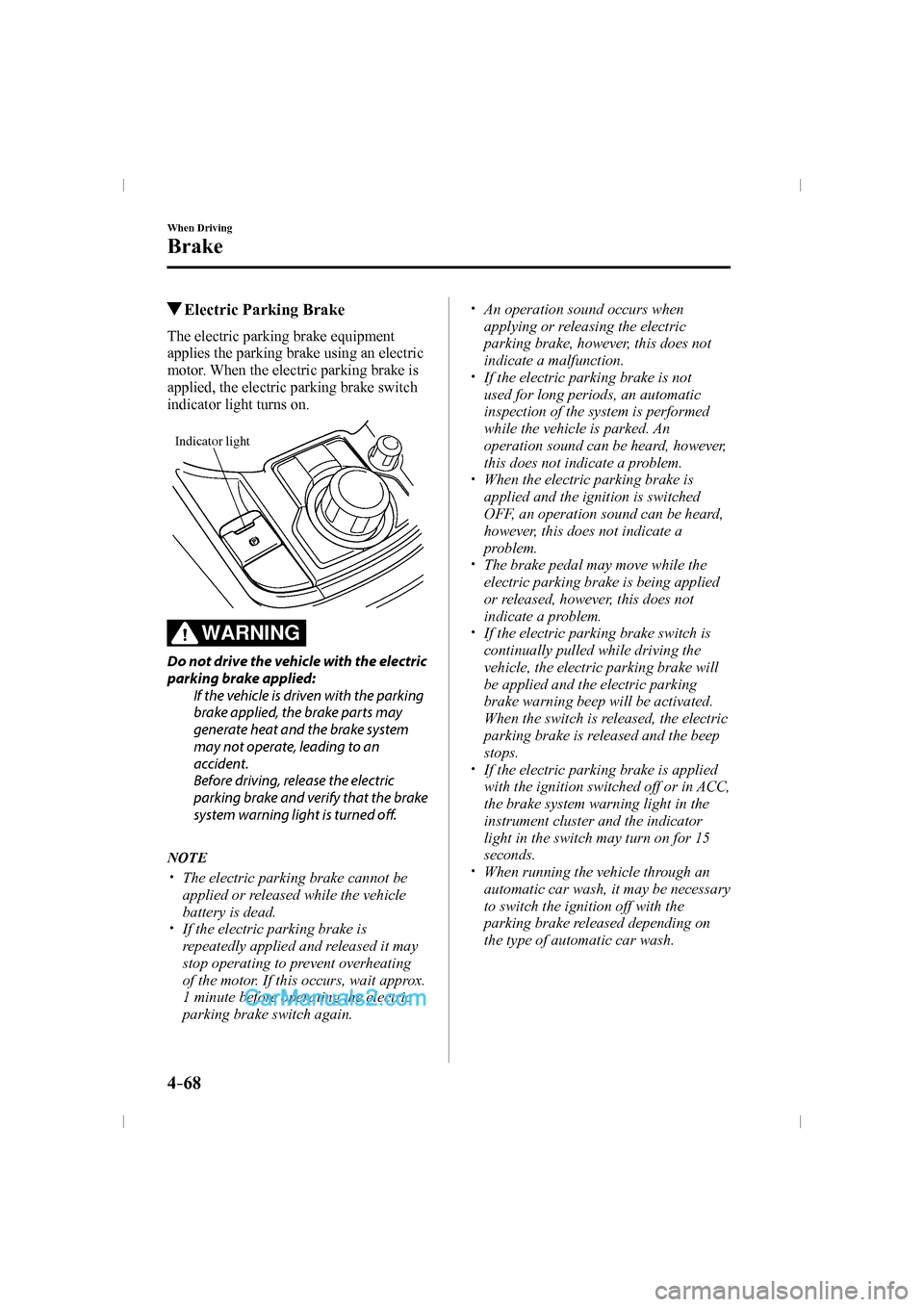

Electric Parking Brake
The electric parking brake equipment
applies the parking brake using an electric
motor. When the electric parking brake is
applied, the electric parking brake switch
indicator light turns on.
Indicator light
WARNING
Do not drive the vehicle with the electric
parking brake applied:
If the vehicle is driven with the parking
brake applied, the brake parts may
generate heat and the brake system
may not operate, leading to an
accident.
Before driving, release the electric
parking brake and verify that the brake
system warning light is turned off .
N O T E
y The electric parking brake cannot be
applied or released while the vehicle
battery is dead.
y If the electric parking brake is
repeatedly applied and released it may
stop operating to prevent overheating
of the motor. If this occurs, wait approx.
1 minute before operating the electric
parking brake switch again.
y An operation sound occurs when
applying or releasing the electric
parking brake, however, this does not
indicate a malfunction.
y If the electric parking brake is not
used for long periods, an automatic
inspection of the system is performed
while the vehicle is parked. An
operation sound can be heard, however,
this does not indicate a problem.
y When the electric parking brake is
applied and the ignition is switched
OFF, an operation sound can be heard,
however, this does not indicate a
problem.
y The brake pedal may move while the
electric parking brake is being applied
or released, however, this does not
indicate a problem.
y If the electric parking brake switch is
continually pulled while driving the
vehicle, the electric parking brake will
be applied and the electric parking
brake warning beep will be activated.
When the switch is released, the electric
parking brake is released and the beep
stops.
y If the electric parking brake is applied
with the ignition switched off or in ACC,
the brake system warning light in the
instrument cluster and the indicator
light in the switch may turn on for 15
seconds.
y When running the vehicle through an
automatic car wash, it may be necessary
to switch the ignition off with the
parking brake released depending on
the type of automatic car wash.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 217 of 612
4–69
When Driving
Brake
When applying the electric parking
brake
The electric parking brake can be applied
regardless of the ignition switch position.
Securely depress the brake pedal and pull
up the electric parking brake switch.
The electric parking brake is applied and
the brake system warning light and the
electric parking brake switch indicator
light turn on.
Refer to Warning/Indicator Lights on page
4-32 .
When releasing the electric parking
brake
The electric parking brake can be released
while the ignition is switched ON or
the engine is running. When the electric
parking brake is released, the brake system
warning light and the electric parking
brake switch indicator light turn off.
Electric parking brake manual release
Securely depress the brake pedal and press
down the electric parking brake switch.
Firmly depress the brake pedal and press
the electric parking brake switch.
If the electric parking brake switch is
pressed without depressing the brake
pedal, the display or indicator light in the
instrument cluster noti ¿ es the driver that
the brake is not depressed.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 218 of 612
4–70
When Driving
Brake
(Type A instrument cluster)
A message is displayed on the multi-
information display in the instrument
cluster.
Refer to Message Indicated in Multi-
information Display on page 7-44 .
(Type B instrument cluster)
The brake pedal operation demand
indicator light in the instrument cluster
turns on.
Electric parking brake automatic
release
If the accelerator pedal is depressed with
the electric parking brake applied and
all of the following conditions met, the
parking brake is released automatically.
y The engine is running.
y The driver's door is closed.
y The driver's seat belt is fastened.
y Selector lever is in the D, M, or R
position
N O T E
If something such as the driver's foot
contacts the accelerator pedal with the
engine running and the electric parking
brake applied, the parking brake may
be released automatically. If you do not
intend to drive immediately, shift the
selector lever to the P or N position.
Warning Light
The warning light turns on when the
system has a malfunction.
Refer to Warning Indication/Warning
Lights on page 4-33 .
Brake Pad Wear Indicator
When the disc brake pads become worn,
the built-in wear indicators contact the
disc plates. This causes a screeching noise
to warn that the pads should be replaced.
When you hear this noise, consult an
Authorized Mazda Dealer as soon as
possible.
WARNING
Do not drive with worn disc pads:
Driving with worn disc pads is
dangerous. The brakes could fail and
cause a serious accident. As soon as
you hear a screeching noise consult an
Authorized Mazda Dealer.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 219 of 612
4–71
When Driving
Brake
Brake Assist
During emergency braking situations
when it is necessary to depress the brake
pedal with greater force, the brake assist
system provides braking assistance, thus
enhancing braking performance.
When the brake pedal is depressed hard or
depressed more quickly, the brakes apply
more ¿ rmly.
N O T E
y When the brake pedal is depressed hard
or depressed more quickly, the pedal
will feel softer but the brakes will apply
more ¿ rmly. This is a normal effect of
the brake assist operation and does not
indicate a malfunction.
y When the brake pedal is depressed
hard or depressed more quickly, a
motor/pump operation noise may be
heard. This is a normal effect of the
brake assist and does not indicate a
malfunction.
y The brake assist equipment does not
supersede the functionality of the
vehicle's main braking system.
Hill Launch Assist (HLA)
Hill Launch Assist (HLA) is a function
which assists the driver in accelerating
from a stop while on a slope. When
the driver releases the brake pedal and
depresses the accelerator pedal while
on a slope, the function prevents the
vehicle from rolling. The braking force is
maintained automatically after the brake
pedal is released on a steep grade.
Hill Launch Assist (HLA) operates on a
downward slope when the selector lever
is in the reverse (R) position, and on an
upward slope when the selector lever is in
a forward gear.
WARNING
Do not rely completely on Hill Launch
Assist (HLA):
Hill Launch Assist (HLA) is an auxiliary
device for accelerating from a stop
on a slope. The system only operates
for about two seconds and therefore,
relying only on the system, when
accelerating from a stop is dangerous
because the vehicle may move (roll)
unexpectedly and cause an accident.
The vehicle could roll depending on
the vehicle's load or if it is towing
something.
Always confi rm the safety around the
vehicle before starting to drive the
vehicle.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 220 of 612
4–72
When Driving
Brake
N O T E
y Hill Launch Assist (HLA) does not
operate on a gentle slope. In addition,
the gradient of the slope on which the
system will operate changes depending
on the vehicle's load.
y Hill Launch Assist (HLA) does not
operate if the parking brake is applied,
or if the vehicle has not stopped
completely.
y While Hill Launch Assist (HLA) is
operating, the brake pedal may feel
stiff and vibrate, however, this does not
indicate a malfunction.
y Hill Launch Assist (HLA) does not
operate while the TCS/DSC indicator
light is illuminated.
Refer to Warning/Indicator Lights on
page 4-32 .
y Hill Launch Assist (HLA) does not
turn off even if the TCS OFF switch is
pressed to turn off the TCS.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
