MAZDA MODEL CX-9 2016 Owners Manual (in English)

6–39
Maintenance and Care
Owner Maintenance

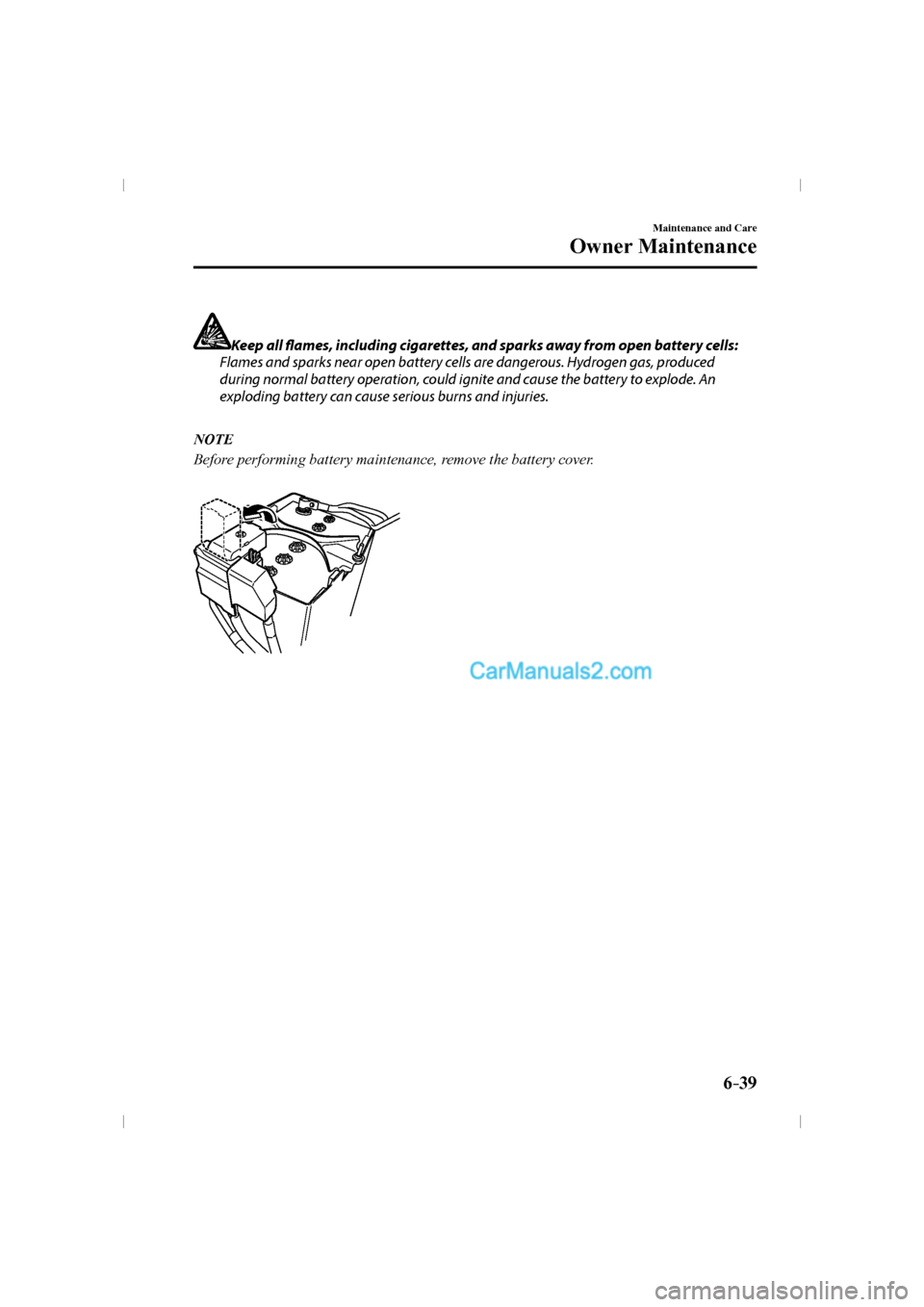

Keep all fl ames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.

N O T E
Before performing battery maintenance, remove the battery cover.



$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–40
Maintenance and Care
Owner Maintenance
Battery Maintenance

To get the best service from a battery:



y Keep it securely mounted.



y Keep the top clean and dry.



y Keep terminals and connections clean,
tight, and coated with petroleum jelly or
terminal grease.



y Rinse off spilled electrolyte immediately
with a solution of water and baking
soda.



y If the vehicle will not be used for an
extended time, disconnect the battery
cables and charge the battery every six
weeks.

Battery Replacement
Contact an Authorized Mazda Dealer for a
battery replacement purchase.
Key Battery Replacement
If the buttons on the transmitter are
inoperable and the operation indicator
light does not À ash, the battery may be
dead.
Replace with a new battery before the
transmitter becomes unusable.
CAUTION



¾ Make sure the battery is installed
correctly. Battery leakage could occur if it
is not installed correctly.



¾ When replacing the battery, be careful
not to touch any of the internal circuitry
and electrical terminals, bend the
electrical terminals, or get dirt in the
transmitter as the transmitter could be
damaged.



¾ There is the danger of explosion if the
battery is not correctly replaced.



¾ Dispose of used batteries according to
the following instructions.



¾ Insulate the plus and minus terminals
of the battery using cellophane or
equivalent tape.



¾ Never disassemble.



¾ Never throw the battery into fi re or
water.



¾ Never deform or crush.



¾ Replace only with the same type battery
(CR2025 or equivalent).

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–41
Maintenance and Care
Owner Maintenance
The following conditions indicate that the
battery power is low:
 y The KEY indicator light (green) À ashes
in the instrument cluster for about 30
seconds after the engine is turned off
(for vehicles with a type A instrument
cluster (page 4-32 ), messages are
displayed in the instrument cluster).




y The system does not operate and
the operation indicator light on the
transmitter does not À ash when the
buttons are pressed.



y The system's operational range is
reduced.

Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the key. If replacing the battery
by yourself, follow the instruction.
Replacing the key battery
1. Press the knob and pull out the
auxiliary key.

Knob
2. Twist a tape-wrapped À athead
screwdriver in the direction of the
arrow and open the cover slightly.

Cover

3. Insert the tape-wrapped À athead
screwdriver into the gap and slide it in
the direction of the arrow.

Cover
Gap

4. Twist the À athead screwdriver in the
direction of the arrow and remove the
cover.

Cover

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–42
Maintenance and Care
Owner Maintenance
5. Remove the battery cap, then remove
the battery.


6. Insert a new battery with the positive
pole facing up, and then cover the
battery with the battery cap.


7. Close the cover.

8. Reinsert the auxiliary key.

CAUTION



¾ Be careful not to allow the rubber ring
shown in the fi gure to be scratched or
damaged.



¾ If the rubber ring detaches, reattach it
before inserting a new battery.


Rubber ring

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–43
Maintenance and Care
Owner Maintenance
Tires
For reasons of proper performance, safety,
and better fuel economy, always maintain
recommended tire inÀ ation pressures and
stay within the recommended load limits
and weight distribution.
WARNING
Using Diff erent Tire Types:
Driving your vehicle with diff erent
types of tires is dangerous. It could
cause poor handling and poor braking;
leading to loss of control.
Except for the limited use of the
temporary spare tire, use only the
same type tires (radial, bias-belted,
bias-type) on all four wheels.

Using Wrong-Sized Tires:
Using any other tire size than what is
specifi ed for the vehicle (page 9-9 )
is dangerous. It could seriously aff ect
ride, handling, ground clearance,
tire clearance, and speedometer
calibration. This could cause you to
have an accident. Use only tires that
are the correct size specifi ed for the
vehicle.

Tire InÀ ation Pressure
WARNING
Always infl ate the tires to the correct
pressure:
Overinfl ation or underinfl ation of tires
is dangerous. Adverse handling or
unexpected tire failure could result in a
serious accident.
Refer to Tires on page 9-9 .

Use only a Mazda-genuine tire valve
cap:
Use of a non-genuine part is
dangerous as the correct tire air
pressure cannot be maintained if the
tire valve becomes damaged. If the
vehicle is driven under this condition,
the tire air pressure will decrease which
could result in a serious accident. Do
not use any part for the tire valve cap
that is not a Mazda-genuine part.

Inspect all tire pressures monthly
(including the spare) when the tires are
cold. Maintain recommended pressures for
the best ride, handling, and minimum tire
wear.
Refer to the speci¿ cation charts (page
9-9 ).
(With tire pressure monitoring system)
After adjusting the tire pressure,
initialization of the tire pressure
monitoring system is necessary to make
the system operate normally.
Refer to Tire Pressure Monitoring System
Initialization on page 4-154 .
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–44
Maintenance and Care
Owner Maintenance
N O T E



y Always check tire pressure when tires
are cold.



y Warm tires normally exceed
recommended pressures. Do not release
air from warm tires to adjust the
pressure.



y UnderinÀ ation can cause reduced fuel
economy, uneven and accelerated tire
wear, and poor sealing of the tire bead,
which will deform the wheel and cause
separation of tire from rim.



y OverinÀ ation can produce a harsh ride,
uneven and accelerated tire wear, and a
greater possibility of damage from road
hazards.
  Keep your tire pressure at the correct
levels. If one frequently needs inÀ ating,
have it inspected.

Tire Rotation
WARNING
Rotate tires periodically:
Irregular tire wear is dangerous. To
equalize tread wear for maintaining
good performance in handling and
braking, rotate the tires every 12,000
km (7,500 miles). However Mazda
recommends to rotate every 8,000 km
(5,000 miles) to help increase tire life
and distribute wear more evenly.
Refer to Scheduled Maintenance on
page 6-4 .


During rotation, inspect them for correct
balance.


Do not include (TEMPORARY USE ONLY)
spare tire in rotation.Forward

Also, inspect them for uneven wear and
damage. Abnormal wear is usually caused
by one or a combination of the following:




y Incorrect tire pressure



y Improper wheel alignment



y Out-of-balance wheel



y Severe braking

After rotation, inÀ ate all tire pressures to
speci¿ cation (page 9-9 ) and inspect the
lug nuts for tightness.
(With tire pressure monitoring system)
After adjusting the tire pressure,
initialization of the tire pressure
monitoring system is necessary to make
the system operate normally.
Refer to Tire Pressure Monitoring System
Initialization on page 4-154 .
CAUTION
Rotate unidirectional tires and radial
tires that have an asymmetrical tread
pattern or studs only from front to rear,
not from side to side. Tire performance
will be reduced if rotated from side to
side.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–45
Maintenance and Care
Owner Maintenance
Replacing a Tire
WARNING
Always use tires that are in good
condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and
traction could result in an accident.

Replace all four tires at the same time:
Replacing just one tire is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle
control. Mazda strongly recommends
that you replace all four tires at the
same time.

If a tire wears evenly, a wear indicator will
appear as a solid band across the tread.
Replace the tire when this happens.

New treadTread wear indicator
Worn tread

You should replace the tire before the band
crosses the entire tread.
(With tire pressure monitoring system)
After adjusting the tire pressure,
initialization of the tire pressure
monitoring system is necessary to make
the system operate normally.
Refer to Tire Pressure Monitoring System
Initialization on page 4-154 .
N O T E
Tires degrade over time, even when
they are not being used on the road. It
is recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate
the aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-24 .

Temporary Spare Tire
Inspect the temporary spare tire at least
monthly to make sure it is properly
inÀ ated and stored.
N O T E
The temporary spare tire condition
gradually deteriorates even if it has not
been used.

The temporary spare tire is easier to
handle because of its construction which
is lighter and smaller than a conventional
tire. This tire should be used only for an
emergency and only for a short distance.

Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-9 .

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–46
Maintenance and Care
Owner Maintenance
*Some models.
CAUTION



¾ Do not use your temporary spare tire
rim with a snow tire or a conventional
tire. Neither will properly fi t and could
damage both tire and rim.



¾ The temporary spare tire has a tread life
of less than 5,000 km (3,000 miles). The
tread life may be shorter depending on
driving conditions.



¾ The temporary spare tire is for limited
use, however, if the tread wear solid-
band indicator appears, replace the tire
with the same type of temporary spare
(page 6-45 ).

N O T E
Tires degrade over time, even when
they are not being used on the road. It
is recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate
the aging process. You should replace the
spare tire when you replace the other road
tires due to the aging of the spare tire. The
period in which the tire was manufactured
(both week and year) is indicated by a
4-digit number.
Refer to Tire Labeling on page 8-24 .

Replacing a Wheel
WARNING
Always use wheels of the correct size on
your vehicle:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be aff ected, leading to loss of
control and an accident.

CAUTION
A wrong-sized wheel may adversely
aff ect:




¾ Tire fi t



¾ Wheel and bearing life



¾ Ground clearance



¾ Snow-chain clearance



¾ Speedometer calibration



¾ Headlight aim



¾ Bumper height



¾ Tire Pressure Monitoring System *
N O T E




y When replacing a wheel, make sure
the new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).



y For details, contact an Authorized
Mazda Dealer.


Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and À at spots.
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–47
Maintenance and Care
Owner Maintenance
Light Bulbs

Type A (With Adaptive Front Lighting System (AFS))
Type B (Without Adaptive Front Lighting System (AFS))Rear side-marker lights
Rear turn signal lightsBrake lights
License plate lights
Headlights (Low/High beam)High-mount brake light
Overhead lights (Front)/
Map lights (Front)Luggage compartment light
Vanity mirror lights
Daytime running lights/
Parking lightsTaillights
Courtesy lights
Reverse lights
Fog lights
Front turn signal lights
Fog lights
Map lights (Center)Overhead light (Rear)
Rear side-marker lights
Rear turn signal lightsBrake lights
License plate lights Headlights
(Low/High beam)/
Daytime running
lightsHigh-mount brake light
Overhead lights (Front)/
Map lights (Front)Luggage compartment light
Vanity mirror lights
Courtesy lights
Reverse lights
Front turn signal lights
Map lights (Center)Overhead light (Rear)
Parking lights/Front
side-marker lights Front side-marker lights
Some models.
Side turn
signal lights
Side turn
signal lights
Signature wing
illumination
Brake lights/Taillights
Brake lights/Taillights

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










6–48
Maintenance and Care
Owner Maintenance
*Some models.
CAUTION
When removing the lens or lamp unit
using a fl athead screwdriver, make
sure that the fl athead screwdriver does
not contact the interior terminal. If
the fl athead screwdriver contacts the
terminal, a short circuit may occur.

N O T E



y To replace the bulb, contact an
Authorized Mazda Dealer.



y Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.

Replacing Exterior Light Bulbs
Headlights (type A), Headlights/Daytime
running lights (type B), Front turn
signal lights (type A), Daytime running
lights/Parking lights (type A), Front
side-marker lights (type A), Signature
wing illumination (type A)
* , Fog lights * ,
Brake lights, Taillights, High-mount
brake light, Side turn signal lights, Rear
side-marker lights
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. We recommend an Authorized Mazda
Dealer when the replacement is necessary.
Front turn signal lights (type B),
Parking lights/Front side-marker lights
(type B)
N O T E
When replacing a bulb for the front turn
signal lights and parking lights/front
side-marker lights, turn the steering wheel
and change the direction in which the tires
are pointed to the position where the bulb
replacement can be done easily.
Turn the steering wheel after starting the
engine and stop the engine after you ¿ nish
turning the steering wheel.

1. If you are changing the right bulb, start
the engine, turn the steering wheel
all the way to the right, and turn off
engine. If you are changing the left
bulb, turn the steering wheel to the left,
and turn off engine.
2. Make sure the ignition is switched off,
and the headlight switch is off.
3. Turn the screw counterclockwise and
remove it.



$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC
