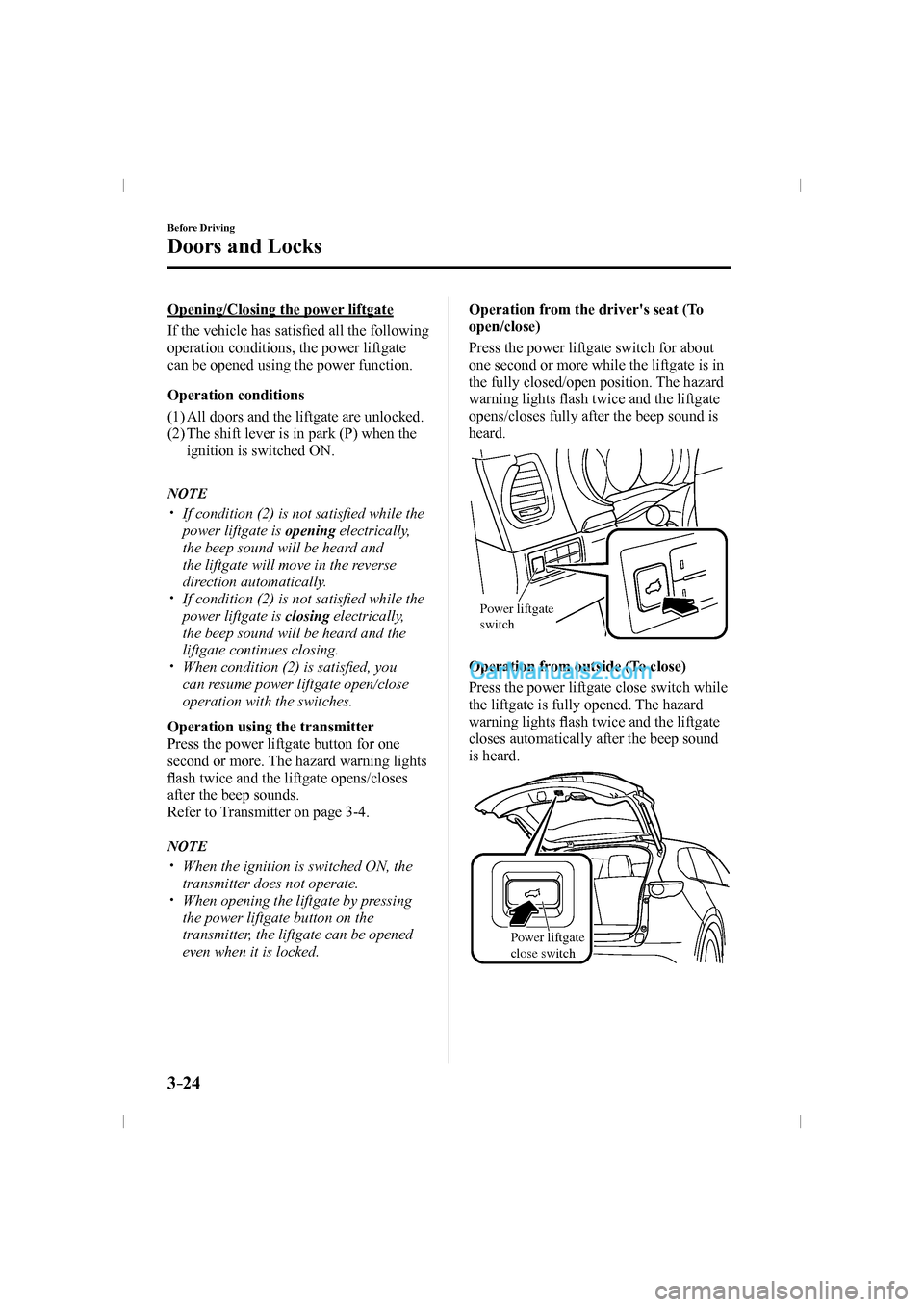

Page 106 of 612
3–24
Before Driving
Doors and Locks
Opening/Closing the power liftgate
If the vehicle has satis ¿ ed all the following
operation conditions, the power liftgate
can be opened using the power function.
Operation conditions
(1) All doors and the liftgate are unlocked.
(2) The shift lever is in park (P) when the
ignition is switched ON.
N O T E
y If condition (2) is not satis ¿ ed while the
power liftgate is opening electrically,
the beep sound will be heard and
the liftgate will move in the reverse
direction automatically.
y If condition (2) is not satis ¿ ed while the
power liftgate is closing electrically,
the beep sound will be heard and the
liftgate continues closing.
y When condition (2) is satis ¿ ed, you
can resume power liftgate open/close
operation with the switches.
Operation using the transmitter
Press the power liftgate button for one
second or more. The hazard warning lights
À ash twice and the liftgate opens/closes
after the beep sounds.
Refer to Transmitter on page 3-4 .
N O T E
y When the ignition is switched ON, the
transmitter does not operate.
y When opening the liftgate by pressing
the power liftgate button on the
transmitter, the liftgate can be opened
even when it is locked.
Operation from the driver's seat (To
open/close)
Press the power liftgate switch for about
one second or more while the liftgate is in
the fully closed/open position. The hazard
warning lights À ash twice and the liftgate
opens/closes fully after the beep sound is
heard.
Power liftgate
switch
Operation from outside (To close)
Press the power liftgate close switch while
the liftgate is fully opened. The hazard
warning lights À ash twice and the liftgate
closes automatically after the beep sound
is heard.
Power liftgate
close switch
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 107 of 612
3–25
Before Driving
Doors and Locks
N O T E
If the power liftgate switch/power liftgate
close switch/power liftgate button on
the transmitter is pressed or the electric
liftgate opener is operated while the
liftgate is opening/closing electrically, the
beep sound is heard and the liftgate stops.
Then, it reverses when any of the switches
(buttons) are pressed again.
Changing the power liftgate fully open
position
The power liftgate fully-open position can
be changed according to the height of a
garage.
When changing the position
1. Stop the liftgate at the desired position.
2. Press the power liftgate close switch
for about three seconds.
A beep sound is activated two times to
indicate that the position change has
been completed.
NOTE
Set the desired fully-open position of the
liftgate at the position where it is open
more than halfway. The position where it
is less than halfway open cannot be set.
T o r e s e t
1. Open the liftgate.
2. Press the power liftgate close switch
for about seven seconds.
A beep sound is activated three times
to indicated that the reset has been
completed.
Jam-safe equipment
While the power liftgate is opening/
closing electrically and the system detects
a person or an object in the liftgate's
path, the liftgate will move in the reverse
direction automatically and stops.
WARNING
Always check the area around the
power liftgate before opening/closing it:
Not checking for occupants and
objects around the power liftgate
before opening/closing it is dangerous.
The jam-safe equipment is designed
to prevent jamming in the event an
obstruction is in the liftgate's path. The
system may not detect certain objects
obstructing the liftgate depending
on the way they are positioned and
their shape. However, if the jam-safe
function detects an obstruction and
moves the liftgate in the reverse
direction, an occupant in the liftgate's
path could be seriously injured.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 108 of 612
3–26
Before Driving
Doors and Locks
CAUTION
Sensors are installed on both ends of
the power liftgate. Be careful not to
allow the sensors to be scratched or
damaged by sharp objects, otherwise
the liftgate may no longer open/close
automatically. In addition, if the sensor
is damaged while the liftgate is closing
automatically, the system will stop.
Sensor
N O T E
The jam-safe equipment does not activate
during easy closure operation when the
power liftgate is between the near-shut
position and fully closed position.
When the power liftgate is moving in the
open/close direction and an obstruction is
detected, the beep sound will be heard and
the liftgate moves in the reverse direction
and stops.
Liftgate easy closure
The Easy Closure system automatically
closes the liftgate completely from the
near-shut position.
This system also operates when the liftgate
is closed manually.
WARNING
When closing a liftgate, always keep
hands and fi ngers away from the
liftgate:
Placing hands or fi ngers around a
liftgate is dangerous because the
liftgate closes automatically from the
near-shut position, which could cause
hands and fi ngers to be pinched and
injured.
N O T E
y If the electric liftgate opener is pressed
while the easy closure function is
operating, the liftgate can be opened.
y If the liftgate is opened/closed
repeatedly in a short period of time, the
easy closure function may not operate.
Wait for about 2 seconds and then try
again.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 111 of 612
3–29
Before Driving
Fuel and Emission
Emission Control System
This vehicle is equipped with an emission control system (the catalytic converter is
part of this system) that enables the vehicle to comply with existing exhaust emissions
requirements.
WARNING
Never park over or near anything fl ammable:
Parking over or near anything fl ammable, such as dry grass, is dangerous. Even with the
engine turned off , the exhaust system remains very hot after normal use and could ignite
anything fl ammable. A resulting fi re could cause serious injury or death.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst inside
the converter or cause the converter to get very hot. Either condition will damage the
converter and cause poor performance.
¾ USE ONLY UNLEADED FUEL.
¾ Do not drive your Mazda with any sign of engine malfunction.
¾ Do not coast with the ignition switched off .
¾ Do not descend steep grades in gear with the ignition switched off .
¾ Do not operate the engine at high idle for more than 2 minutes.
¾ Do not tamper with the emission control system. All inspections and adjustments
must be made by a qualifi ed technician.
¾ Do not push-start or pull-start your vehicle.
N O T E
y Under U.S. federal law, any modi ¿ cation to the original-equipment emission control
system before the ¿ rst sale and registration of a vehicle is subject to penalties. In some
states, such modi ¿ cation made on a used vehicle is also subject to penalties.
y While the engine is off, the sound of a valve opening and closing can be heard at the rear
of the vehicle, however this does not indicate an abnormality. The vehicle has a self-
checking device and it operates while the engine is off.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 112 of 612
3–30
Before Driving
Fuel and Emission
Engine Exhaust (Carbon monoxide)
WARNING
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colorless, odorless, and poisonous. When inhaled, it can cause loss of consciousness and
death. If you smell exhaust gas inside the vehicle, keep all windows fully open and contact
an Authorized Mazda Dealer immediately.
Do not run the engine when inside an enclosed area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust
gas, which contains poisonous carbon monoxide, could easily enter the cabin. Loss of
consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when
idling the engine:
Exhaust gas is dangerous. When the vehicle is stopped with the windows closed and
the engine running for a long time even in an open area, exhaust gas, which contains
poisonous carbon monoxide, could enter the cabin. Loss of consciousness or even death
could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe, before
starting the engine:
Running the engine when a vehicle is stopped in deep snow is dangerous. The exhaust
pipe could be blocked by the snow, allowing exhaust gas to enter the cabin. Because
exhaust gas contains poisonous carbon monoxide, it could cause loss of consciousness or
even death to occupants in the cabin.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 113 of 612
3–31
Before Driving
Fuel and Emission
Fuel-Filler Lid and Cap
WARNING
When removing the fuel-fi ller cap,
loosen the cap slightly and wait for any
hissing to stop, then remove it:
Fuel spray is dangerous. Fuel can
burn skin and eyes and cause illness
if ingested. Fuel spray is released
when there is pressure in the fuel tank
and the fuel-fi ller cap is removed too
quickly.
Before refueling, stop the engine, and
always keep sparks and fl ames away
from the fi ller neck:
Fuel vapor is dangerous. It could be
ignited by sparks or fl ames causing
serious burns and injuries.
Additionally, use of the incorrect fuel-
fi ller cap or not using a fuel-fi ller cap
may result in a fuel leak, which could
result in serious burns or death in an
accident.
Do not continue refueling after the fuel
pump nozzle shuts off automatically:
Continuing to add fuel after the
fuel pump nozzle has shut off
automatically is dangerous because
overfi lling the fuel tank may cause
fuel overfl ow or leakage. Fuel overfl ow
and leakage could damage the vehicle
and if the fuel ignites it could cause a
fi re and explosion resulting in serious
injury or death.
CAUTION
(U.S.A. and Canada)
Always use only a genuine Mazda fuel-
fi ller cap or an approved equivalent,
available at an Authorized Mazda
Dealer. The wrong cap can result in
a serious malfunction of the fuel and
emission control systems. It may also
cause the check engine light in the
instrument cluster to illuminate.
Fuel-Filler Lid
To open, pull the remote fuel- ¿ ller lid
release.
To close, press the fuel- ¿ ller lid until it
locks securely.
Remote fuel-filler lid release
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 114 of 612
3–32
Before Driving
Fuel and Emission
Fuel-Filler Cap
To remove the fuel- ¿ ller cap, turn it
counterclockwise.
Attach the removed cap to the inner side
of the fuel lid.
To close the fuel- ¿ ller cap, turn it
clockwise until a click is heard.
Open
Close
CAUTION
(U.S.A. and Canada)
If the check fuel cap warning light
illuminates, the fuel-fi ller cap may not
be properly installed. If the warning
light illuminates, park your vehicle
safely off the right-of-way, remove the
fuel-fi ller cap and reinstall it correctly.
After the cap has been correctly
installed, the fuel cap warning light
may continue to illuminate until a
number of driving cycles have been
completed. A drive cycle consists of
starting the engine (after four or more
hours with the engine off ) and driving
the vehicle on city and highway roads.
Continuing to drive with the check
fuel cap warning light illuminated
could cause the check engine light to
illuminate as well.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 115 of 612
3–33
Before Driving
Steering Wheel
*Some models.
Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while
the vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control or
an accident.
Steering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, and then pull down
the lock release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, then push the lever up to lock
the column.
3. Attempt to push the steering wheel
up and down to make sure it's locked
before driving.
Heated Steering Wheel *
The grips on the left and right of the
steering wheel can be warmed up.
Heating areaHeated steering
wheel switch
The ignition must be switched ON.
Press the switch to turn on the heated
steering wheel. The heated steering wheel
operates for about 30 minutes and then
turns off automatically.
The indicator light illuminates when the
heater is operating.
To turn off the heated steering wheel
before the 30 minutes has elapsed, press
the switch again.
CAUTION
The following types of persons should
be careful not to touch the steering
wheel. Otherwise, it could cause a low-
temperature burn.
¾ Infants, small children, elderly
people, and physically challenged
people
¾ People with delicate skin
¾ People who are excessively
fatigued
¾ People who are intoxicated
¾ People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 116 of 612
3–34
Before Driving
Mirrors
Mirrors
Before driving, adjust the inside and
outside mirrors.
Outside Mirrors
WARNING
Be sure to look over your shoulder
before changing lanes:
Changing lanes without taking
into account the actual distance of
the vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.
To adjust:
1. Rotate the mirror switch to the left or
right
to choose the left or right side
mirror.
2. Press the mirror switch in the
appropriate direction.
Center positionMirror switch
After adjusting the mirror, lock the
control by rotating the switch in the center
position.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 117 of 612
3–35
Before Driving
Mirrors
Folding mirror
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors folded
in is dangerous. Your rear view will
be restricted, and you could have an
accident.
Manually fold the outside mirror rearward
until it is À ush with the vehicle.
Rearview Mirror
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror, which
might cause you to hit another car
when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
N O T E
For the manual day/night mirror, perform
the adjustment with the day/night lever in
the day position.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
