Page 317 of 612
4–169
When Driving
Parking Sensor System

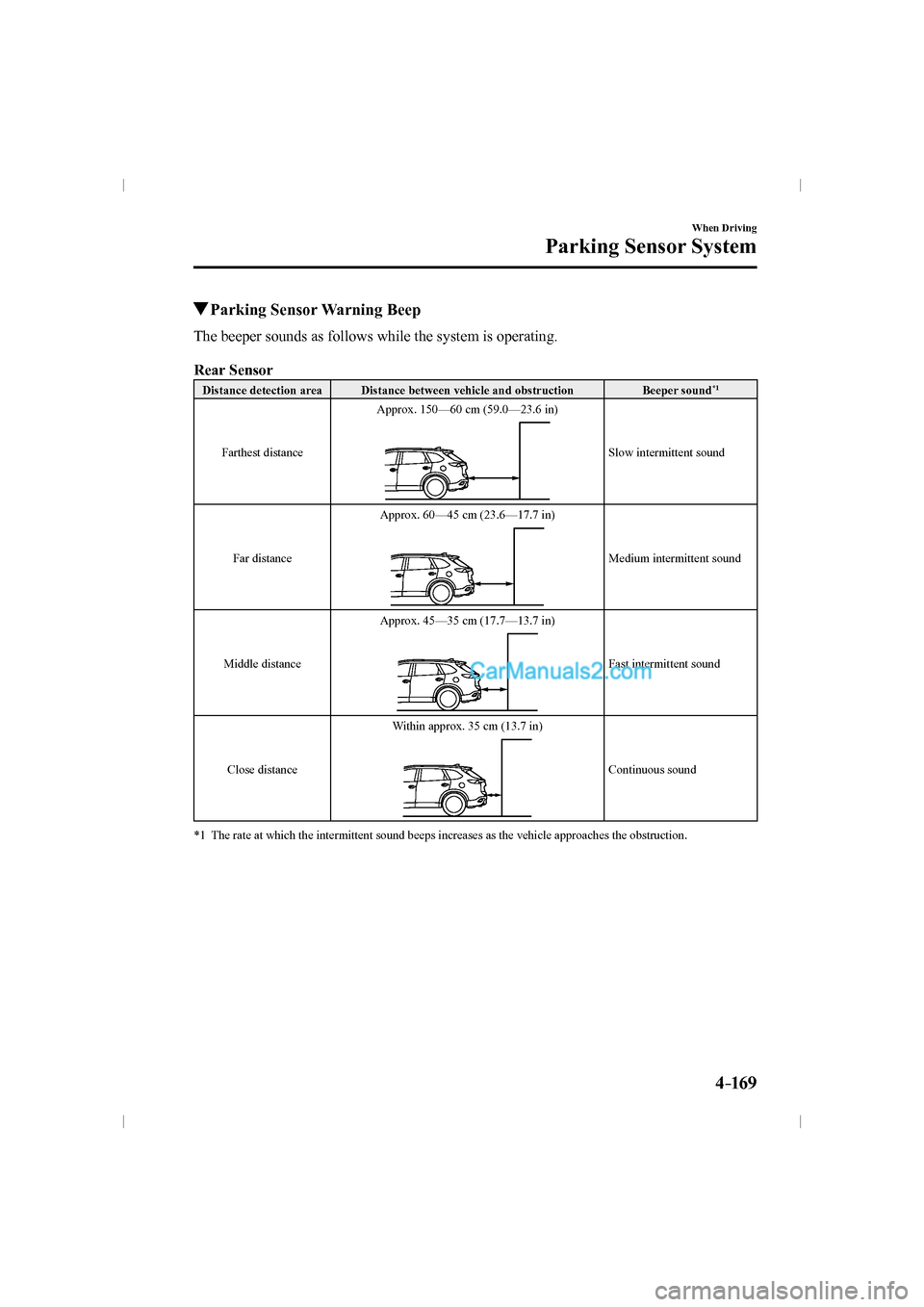

Parking Sensor Warning Beep
The beeper sounds as follows while the system is operating.
Rear Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Farthest distance Approx. 150—60 cm (59.0—23.6 in)
Slow intermittent sound
Far distance Approx. 60—45 cm (23.6—17.7 in)
Medium intermittent sound
Middle distance Approx. 45—35 cm (17.7—13.7 in)
Fast intermittent sound
Close distance Within approx. 35 cm (13.7 in)
Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 318 of 612
4–170
When Driving
Parking Sensor System
Rear Corner Sensor
Distance detection area Distance between vehicle and obstruction Beeper sound *1
Far distance Approx. 55—38 cm (21.6—14.9 in)
Medium intermittent sound
Middle distance Approx. 38—25 cm (14.9—9.8 in)
Fast intermittent sound
Close distance Within approx. 25 cm (9.8 in)
Continuous sound
*1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.
N O T E
If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone, the
corresponding beep sound is heard.
When Warning Indicator/Beep is Activated
The system noti ¿ es the driver of an abnormality by activating the beep sound and the
indicator light.
Indicator/Beep How to check
The indicator light À ashes when
the parking sensor switch is
pressed. The system may have a malfunction. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
The beep sound is not heard. The system may have a malfunction. Have the vehicle inspected at an
Authorized Mazda Dealer as soon as possible.
The intermittent sound of the
buzzer is heard ¿ ve times. Remove any foreign material from the sensor area. If the system does not
recover, have the vehicle inspected at an Authorized Mazda Dealer.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 326 of 612
5–8
Interior Features
Climate Control System
Windshield Defrosting and
Defogging
Press the windshield defroster switch.
In this position, the outside air position
is automatically selected, and the air
conditioner automatically turns on. The
air conditioner will directly dehumidify
the air to the front windshield and side
windows on page 5-4 .
Air À ow amount will be increased.
WARNING
Set the temperature control to the hot
or warm position when defogging
(
position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog up.
Your vision will be hampered, which
could lead to a serious accident.
N O T E
Use the temperature control dial to
increase the air À ow temperature and
defog the windshield more quickly.
Sunlight/Interior Temperature
Sensor
Sunlight sensor
Do not place objects on the sunlight
sensor. Otherwise, the interior temperature
may not adjust correctly.
Sunlight sensor
Interior temperature sensor
Do not cover the interior temperature
sensor. Otherwise, the interior temperature
may not adjust correctly.
Interior temperature sensor
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 445 of 612
6–33
Maintenance and Care
Owner Maintenance
Wiper Blades
CAUTION
¾ Hot waxes applied by automatic car
washers have been known to aff ect the
wiper's ability to clean windows.
¾ To prevent damage to the wiper blades,
do not use gasoline, kerosene, paint
thinner, or other solvents on or near
them.
¾ When the wiper lever is in the AUTO
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
¾ If the windshield above the rain
sensor is touched.
¾ If the windshield above the rain
sensor is wiped with a cloth.
¾ If the windshield is struck with a hand
or other object.
¾ If the rain sensor is struck with a hand
or other object from inside the vehicle.
Be careful not to pinch hands or fi ngers
as it may cause injury, or damage the
wipers. When washing or servicing the
vehicle, make sure the wiper lever is in
the OFF position.
Contamination of either the windshield or
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
insects, tree sap, and hot wax treatments
used by some commercial car washes.
If the blades are not wiping properly,
clean the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
Replacing Windshield Wiper
Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
Replace them.
CAUTION
¾ To prevent damage to the wiper arms
and other components, do not try to
sweep the wiper arm by hand.
¾ Do not bend the blade rubber
unnecessarily when replacing it.
Otherwise, the metal stiff ener in the
blade may deform and the windshield
wiper operation may be adversely
aff e c t e d .
N O T E
When raising both windshield wiper arms,
raise the driver's side wiper arm ¿ rst.
When lowering the wiper arms, slowly
lower the wiper arm from the passenger's
side ¿ rst while supporting it with your
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
and may scratch or crack the windshield.
1. Raise the wiper arm.
CAUTION
To prevent damage to the windshield
let the wiper arm down easily, do not
let it slap down on the windshield.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 476 of 612
6–64
Maintenance and Care
Appearance Care
Maintaining the Finish
W a s h i n g
CAUTION
¾ When the wiper lever is in the
position and the ignition is switched ON,
the wipers may move automatically in
the following cases:
¾ If the windshield above the rain
sensor is touched or wiped with a
cloth.
¾ If the windshield is struck with a hand
or other object from either outside or
inside the vehicle.
Keep hands and scrapers clear of the
windshield when the wiper lever is in the
position and the ignition is
switched ON as fi ngers could be pinched
or the wipers and wiper blades damaged
when the wipers activate automatically.
If you are going to clean the windshield,
be sure the wipers are turned off
completely (when it is most likely
that the engine is left running) this is
particularly important when clearing ice
and snow.
¾ Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.
¾ When washing and waxing the vehicle,
be careful not to apply excessive force
to any single area of the vehicle roof.
Otherwise, you could dent the vehicle.
To help protect the ¿ nish from rust
and deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.
If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.
Scratches occur on the paint surface when:
y The vehicle is washed without ¿ rst
rinsing off dirt and other foreign matter.
y The vehicle is washed with a rough, dry,
or dirty cloth.
y The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.
y Cleansers or wax containing abrasives
are used.
N O T E
y Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.
y Scratches are more noticeable on
vehicles with darker paint ¿ nishes.
To minimize scratches on the vehicle's
paint ¿ nish:
y Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.
y Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.
y Rub gently when washing or drying the
vehicle.
y Take your vehicle only to a car wash
that keeps its brushes well maintained.
y Do not use abrasive cleansers or wax
that contain abrasives.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 520 of 612
7–36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
(Amber)
KEY Warning
Indication
* “Keyless System Malfunction” is displayed
This message is displayed if the advanced keyless entry & push button start system has a
problem.
Contact an Authorized Mazda Dealer.
CAUTION
If the message is indicated, or the push button start indicator light (amber) fl ashes, the
engine may not start. If the engine cannot be started, try starting it using the emergency
operation for starting the engine, and have the vehicle inspected at an Authorized
Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-10 .
“Ignition is On” is displayed
This message is displayed when the driver's door is opened without switching the ignition
off.
“Key Not Detected” is displayed
This message is displayed when any of the following operations is performed with the key
out of the operational range or placed in areas inside the cabin where it is dif ¿ cult for the
key to be detected.
y The push button start is pressed with the ignition switched off
y The ignition is switched on
y All doors are closed without switching the ignition off
(Red)
(Illuminate)
KEY Warning
Light
* If any malfunction occurs in the keyless entry system, it illuminates continuously.
CAUTION
If the key warning indicator light illuminates or the push button start indicator light
(amber) fl ashes, the engine may not start. If the engine cannot be started, try starting it
using the emergency operation for starting the engine, and have the vehicle inspected
at an Authorized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-10 .
(Amber)
High Beam Control
System (HBC)
Warning Light
* The light remains turned on if there is a problem with the system. Have your vehicle
inspected at an Authorized Mazda Dealer.
N O T E
If the windshield area in front of the Forward Sensing Camera (FSC) is fogged or
obstructed, the light turns on temporarily. If the light remains turned on, there may be a
problem with the system.
Blind Spot
Monitoring (BSM)
Warning Indication/
Warning Light
* This light illuminates if there is a malfunction in the Blind Spot Monitoring (BSM). Have
your vehicle inspected by an Authorized Mazda Dealer.
N O T E
If the vehicle is driven on a road with less traf ¿ c and few vehicles that the radar sensors can
detect, the system may pause. However, it does not indicate a malfunction.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 521 of 612
7–37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning
(Amber)
Mazda Radar
Cruise Control
(MRCC) Warning
Indication
* The “Front Radar Sensor System Malfunction” is displayed if there is a malfunction in the
system while the Mazda Radar Cruise Control (MRCC) system is on. Have your vehicle
inspected at an Authorized Mazda Dealer.
(Amber)
Lane-keep Assist
System (LAS) &
Lane Departure
Warning System
(LDWS) Warning
Indication
* The message is displayed when the system has a malfunction. Have your vehicle inspected
at an Authorized Mazda Dealer.
The system does not operate when the warning message is displayed.
CAUTION
¾ Always use tires for all wheels that are of the speci ¿ ed size, and the same manufacture,
brand, and tread pattern. In addition, do not use tires with signi ¿ cantly different wear
patterns on the same vehicle. If such improper tires are used, the system may not operate
normally.
¾ When an emergency spare tire is used, the system may not operate normally.
LED Headlight
Warning Light This light illuminates if there is a malfunction in the LED headlight. Have your vehicle
inspected by an Authorized Mazda Dealer.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 523 of 612
7–39
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Signal Warning Action to be taken
Smart Brake Support/
Smart City Brake Support
(SBS/SCBS) Warning
Light
* The light turns on if the windshield or
the radar sensor are dirty, or there is a
malfunction in the system. Verify the reason why the warning light
is illuminated on the center display.
If the reason why the warning light is
illuminated is due to a dirty windshield,
clean the windshield.
If the warning light is illuminated
because of a dirty radar sensor, clean the
front emblem.
For any other reasons, have the vehicle
inspected at an Authorized Mazda
Dealer.
Low Fuel Warning
Indication/Warning Light The light turns on when the remaining fuel
is about 9.0 L (2.3 US gal, 1.9 Imp gal). N O T E
The light illumination timing may vary
because fuel inside the fuel tank moves
around according to the driving conditions
and the vehicle posture.
Add fuel.
Check Fuel Cap Warning
Indication/Warning Light
* If the check fuel cap warning light
illuminates while driving, the fuel- ¿ ller cap
may not be installed properly. Stop the engine and reinstall the fuel-
¿ ller cap.
Refer to Fuel-Filler Cap on page 3-32
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 524 of 612
7–40
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Signal Warning Action to be taken
Seat Belt Warning Light
Except Mexico
The seat belt warning light turns on if the driver
or front passenger's seat is occupied and the seat
belt is not fastened with the ignition switched
ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's seat
is occupied) and the vehicle is driven at a speed
faster than about 20 km/h (12 mph), the warning
light À ashes. After a short time, the warning
light stops À ashing, but remains illuminated.
N O T E
y The warning light À ashes for about 6 seconds
if the driver's seat belt is not fastened when the
ignition is switched ON.
y To allow the front passenger occupant
classi ¿ cation sensor to function properly, do
not place and sit on an additional seat cushion
on the front passenger's seat. The sensor may
not function properly because the additional
seat cushion could cause sensor interference.
y If a small child is seated on the front
passenger's seat, the warning light may not
operate.
Mexico
The seat belt warning light turns on if the driver
or front passenger's seat is occupied and the seat
belt is not fastened with the ignition switched
ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's seat
is occupied) and the vehicle is driven at a speed
faster than about 20 km/h (12 mph), the warning
light À ashes. After a short time, the warning
light stops À ashing, but remains illuminated. If
a seat belt remains unfastened, the warning light
À ashes again for a given period of time.
N O T E
y Placing heavy items on the front passenger's
seat may cause the front passenger's seat belt
warning function to operate depending on the
weight of the item.
y To allow the front passenger seat weight sensor
to function properly, do not place and sit on an
additional seat cushion on the front passenger's
seat. The sensor may not function properly
because the additional seat cushion could cause
sensor interference.
y If a small child is seated on the front
passenger's seat, the warning light may not
operate.
Fasten the seat belts.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 530 of 612
7–46
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
E x c e p t M e x i c o
If the driver's seat belt is not fastened
when the ignition is switched ON, a beep
sound will be heard for about 6 seconds. If
the driver or the front passenger's seat belt
is not fastened and the vehicle is driven
at a speed faster than about 20 km/h (12
mph), a beep sound will be heard again for
a speci ¿ ed period of time.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
N O T E
y To allow the front passenger occupant
classi ¿ cation sensor to function
properly, do not place and sit on an
additional seat cushion on the front
passenger's seat. The sensor may not
function properly because the additional
seat cushion could cause sensor
interference.
y If a small child is seated on the front
passenger's seat, the warning beep may
not operate.
Mexico
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a warning
beep sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
front passenger's seat belt is fastened.
Until a seat belt is fastened or a given
period of time has elapsed, the beep sound
will not stop even if the vehicle speed falls
below 20 km/h (12 mph).
N O T E
y Placing heavy items on the front
passenger's seat may cause the front
passenger's seat belt warning function
to operate depending on the weight of
the item.
y To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause
sensor interference.
y If a small child is seated on the front
passenger's seat, the warning beep may
not operate.
Ignition Not Switched Off (STOP)
Warning Beep
If the driver's door is opened with the
ignition switched to ACC, a beep will
be heard continuously in the cabin to
notify the driver that the ignition has not
been switched OFF (STOP). Under this
condition, the keyless entry system will
not operate, the vehicle cannot be locked,
and the battery voltage will be depleted.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
