change language MAZDA MODEL CX-9 2016 Owners Manual (in English)

5–23
Interior Features
Audio Set
Home screen

Icon Function

Applications
Information such as average fuel economy, maintenance, and warnings can be veri¿ ed.
Depending on the grade and speci¿ cation, the screen display may differ.

Entertainment
Operates audio such as the radio. The audio source most recently used is displayed. An
audio source which cannot be used at that time is skipped and the previous audio source is
displayed.
To change the audio source, select the icon displayed at the bottom of the screen.

Communication
Bluetooth ® related functions are available.

Navigation
Navigation screen is displayed (vehicles with navigation system).
If the SD card for the navigation system is not inserted, the compass indicating the direction
in which the vehicle is moving is displayed.
The compass may not indicate the correct bearing when the vehicle is stopped or traveling
at a slow speed.

Settings
Overall setting menu (Such as display, sound, Bluetooth
® and Language).
Depending on the grade and speci¿ cation, the screen display may differ.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–46
Interior Features
Audio Set
Deleting a device
Selecting and deleting devices
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Turn the Bluetooth ® setting on.
5. Select the device name which you
would like to delete.
6. Select
.
7. Select
.
Deleting all devices
1. Select the
icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Select
.

Changing PIN code
PIN code (4 digits) can be changed.
1. Select the icon on the home screen
to display the Settings screen.
2. Select the
tab.
3. Select
.
4. Select
.
5. Select
.
6. Input the new PIN code to be set.
7. Select
.
Available Language
The Bluetooth ® Hands-Free System
applies to the following languages:



y English



y Spanish



y French
Refer to Settings on page 5-71 .
$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–66
Interior Features
Audio Set

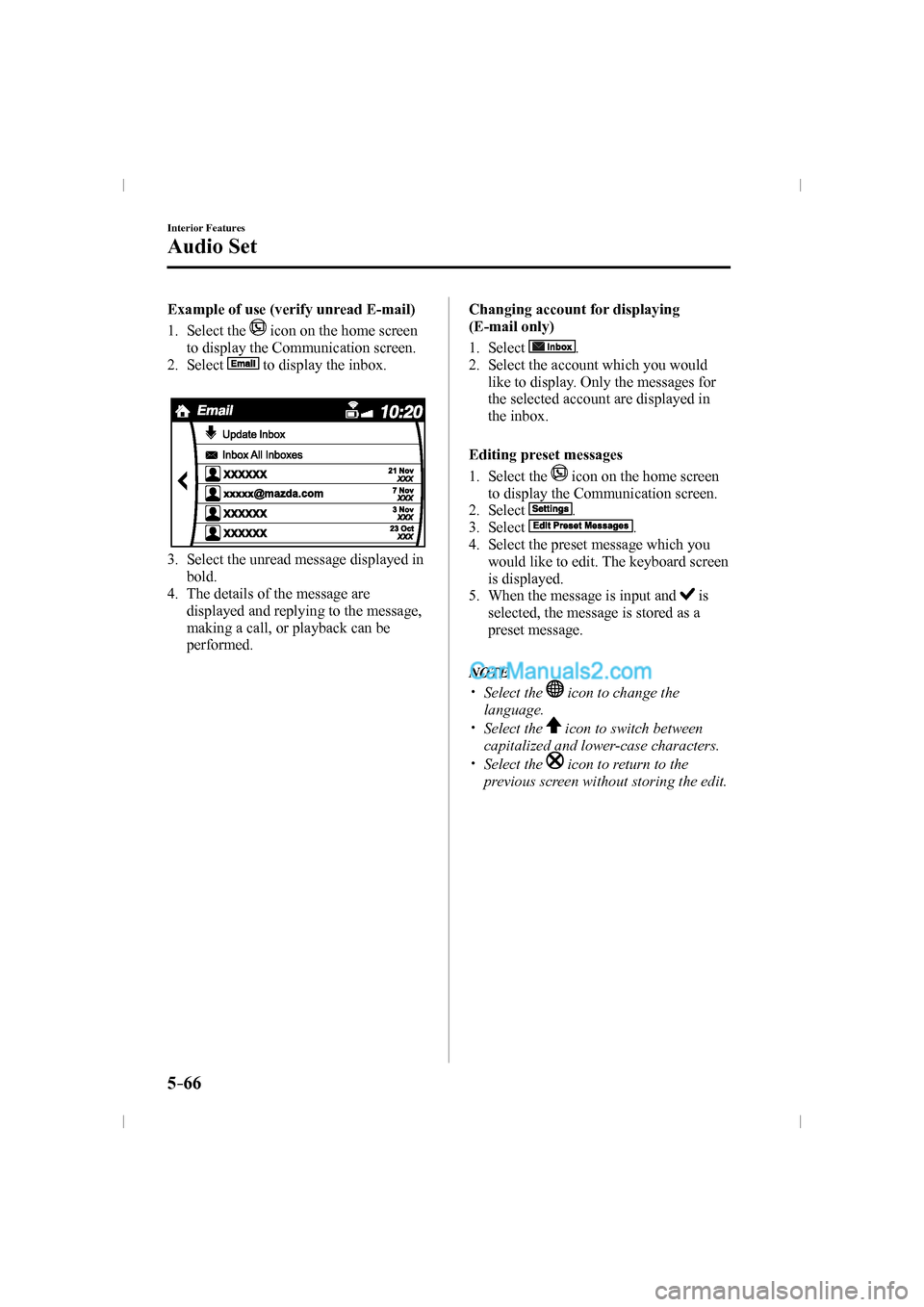

Example of use (verify unread E-mail)
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
to display the inbox.



3. Select the unread message displayed in
bold.
4. The details of the message are
displayed and replying to the message,
making a call, or playback can be
performed.

Changing account for displaying
(E-mail only)
1. Select
.
2. Select the account which you would
like to display. Only the messages for
the selected account are displayed in
the inbox.

Editing preset messages
1. Select the
icon on the home screen
to display the Communication screen.
2. Select
.
3. Select
.
4. Select the preset message which you
would like to edit. The keyboard screen
is displayed.
5. When the message is input and
is
selected, the message is stored as a
preset message.

N O T E



y Select the icon to change the
language.



y Select the icon to switch between
capitalized and lower-case characters.



y Select the icon to return to the
previous screen without storing the edit.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










5–72
Interior Features
Audio Set
Tab Item Function
System Tool Tips Turns button explanations ON/OFF.
Language Changes the language.
Temperature Changes the setting between Fahrenheit and
Celsius.
Distance Changes the setting between miles and
kilometers.
Music Database Update Used to update Gracenote
® . Gracenote is used
with USB Audio, and provides:
1. Supplemental music information (Such as
song name, artist name)
2. Voice recognition assistance for Play Artist
and Play Album
Gracenote can be downloaded from the Mazda
Handsfree Website.
Refer to Gracenote Database on page 5-38 .
Restore All Factory Settings Memory and settings are initialized to the
factory settings.
The initialization launches by selecting the

button.
About Agreements and
Disclaimers Verify the disclaimer and agree.
Version Information Can verify the current audio unit OS version
and Gracenote Database version.

$9@'%&"#@&EJUJPOJOEC


$9@'%&"#@&EJUJPOJOEC










9–15
Speci¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings
Change
Method


Three-À ash turn
signal (page
4-56 ) Operational/non-operational
On On/Off A —


Ambient
Lighting (page
5-83 ) Ambient lights brightness
*7 Medium Bright/
Medium/
Dark/
O f f
*8 A —


Rear window
defogger (page
4-61 ) The operation time for the rear window defogger
can be changed. 15
minutes 15 minutes/
Continuous
*9 — —
System
Language Language indicated in display
English Depends on
market
*10 A —

Temperature Temperature unit indicated in display
°F or °C °F/°C A —


Distance Distance unit indicated in display
mi or km mi/km A —


Fuel Economy Monitor (page 4-78 )
Ending display On/off
Off On/Off B —


Fuel economy
resetting
procedureLinkage/non-linkage with fuel economy reset
and trip meter resetOff On/Off B —
Active driving display (page 4-29 )
Turn by turn
(TBT) Display of turn by turn (TBT) can be turned off. On On/Off C —
Street name Display timing of street name can be changed. On-
Demand Off/Always/
On-Demand C —
Tachometer Setting can be changed to display the tachometer. Off On/Off C —
*1 Though these systems can be turned Off, doing so will defeat the purpose of the system and Mazda recommends
that these systems remain On.
*2 Only the volume of the warning beep during Blind Spot Monitoring (BSM) operation can be changed. The
volume of the warning beep during Rear Cross Traf¿ c Alert (RCTA) operation cannot be changed.
*3 If the auto-wiper control is set to Off, the wiper lever
position is set to intermittent operation.
*4 If the setting is changed to Off, the following operation is performed according to the headlight switch position:
y A t position: Headlights turn off immediately after the ignition is switched off.
y At any position other than : Headlights on/off conditions vary according to the headlight switch
position. Refer to Headlights on page 4-49 .
*5 When set to Off, the lights-on reminder is operable.
*6 The lights-on reminder settings can be changed at anytime, however, the lights-on reminder only operates when
the auto headlight function is set to Off. Refer to Lights-On Reminder on page 7-45 .
*7 Change the ambient light illumination level with the parking lights or headlights turned on.
*8 When set to OFF, the ambient lights remain turned off regardless of whether of not the parking lights or
headlights are on or off. However, they will turn on or off in conjunction with the illuminated entry system.
*9 The operation may stop in 15 minutes due to the effect of the outside temperature even if the operation time of
the rear window defogger has been changed to Continuous.
*10 Available only in display from the center display.
