How to Use This Manual
We want to help you get the most driving
pleasure from your vehicle. Your owner's
manual, when read from cover to cover,
can do that in many ways.
Illustrations complement the words of
the manual to best explain how to enjoy
your Mazda. By reading your manual, you
can ¿ nd out about the features, important
safety information, and driving under
various road conditions.
The symbol below in this manual means
"Do not do this" or "Do not let this
happen".
Index: A good place to start is the Index,
an alphabetical listing of all information in
your manual.
You'll ¿ nd several WARNINGs,
CAUTIONs, and NOTEs in the manual.
WARNING
A WARNING indicates a situation in
which serious injury or death could
result if the warning is ignored.
CAUTION
A CAUTION indicates a situation in
which bodily injury or damage to your
vehicle, or both, could result if the
caution is ignored.
N O T E
A NOTE provides information and
sometimes suggests how to make better
use of your vehicle.
The symbol below, located on some parts
of the vehicle, indicates that this manual
contains information related to the part.
Please refer to the manual for a detailed
explanation.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 8 of 612
1–2
Pictorial Index

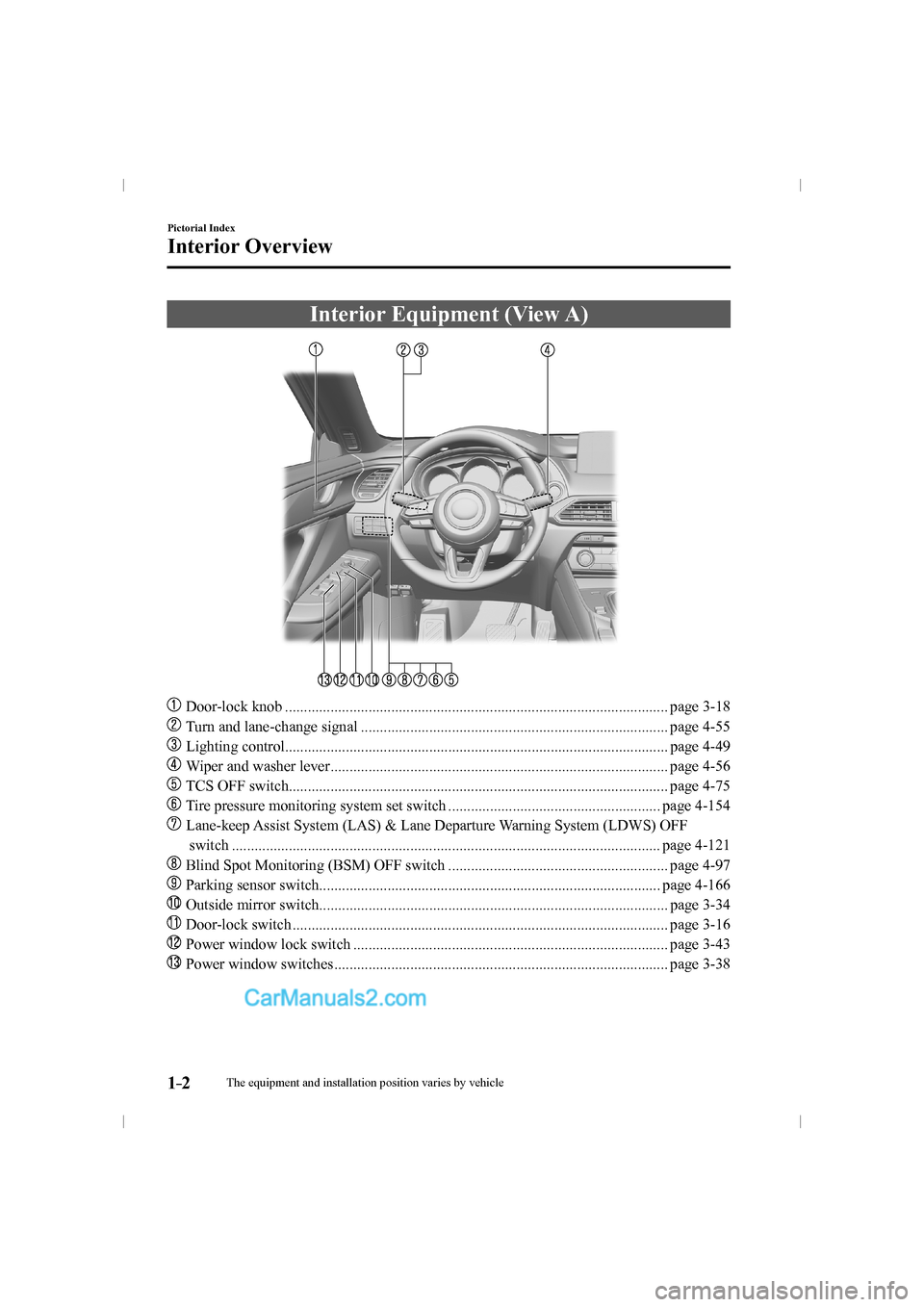

Interior Overview
Interior Equipment (View A)
Door-lock knob ..................................................................................................... page 3-18
Turn and lane-change signal ................................................................................. page 4-55
Lighting control..................................................................................................... page 4-49
Wiper and washer lever ......................................................................................... page 4-56
TCS OFF switch.................................................................................................... page 4-75
Tire pressure monitoring system set switch ........................................................ page 4-154
Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) OFF
switch ................................................................................................................. page 4-121
Blind Spot Monitoring (BSM) OFF switch .......................................................... page 4-97
Parking sensor switch.......................................................................................... page 4-166
Outside mirror switch............................................................................................ page 3-34
Door-lock switch ................................................................................................... page 3-16
Power window lock switch ................................................................................... page 3-43
Power window switches ........................................................................................ page 3-38
The equipment and installation position varies by vehicle
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 9 of 612
1–3
Pictorial Index
Interior Overview
Audio control switches.......................................................................................... page 5-24
Instrument cluster .................................................................................................. page 4-12
Dashboard illumination knob ................................................................................ page 4-17
Trip meter selector ................................................................................................ page 4-14
Cruise control switches ............................................................................ page 4-110 , 4-147
Hazard warning À asher switch .............................................................................. page 4-62
Seat warmer switches .............................................................................................. page 2-7
Heated steering wheel switch ................................................................................ page 3-33
Drive selection switch ........................................................................................... page 4-81
Push button start ...................................................................................................... page 4-4
Lock release lever ................................................................................................. page 3-33
Hood release handle .............................................................................................. page 6-23
Remote fuel- ¿ ller lid release ................................................................................. page 3-31
Power liftgate switch ............................................................................................. page 3-22
The equipment and installation position varies by vehicle
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 13 of 612
2–1
*Some models.
2Essential Safety Equipment
Important information about safety equipment, including seats, seat belt
system, child-restraint systems and SRS air bags.
Seats ..................................................................................................... 2-2
Seat Precautions ............................................................................ 2-2
Front Seat ...................................................................................... 2-5
Second-Row Seat ........................................................................ 2-10
Third-Row Seat ........................................................................... 2-15
Head Restraints ........................................................................... 2-16
Seat Belt Systems .............................................................................. 2-20
Seat Belt Precautions .................................................................. 2-20
Seat Belt ...................................................................................... 2-23
Seat Belt Warning Systems ......................................................... 2-24
Front Seat Belt Pretensioner and Load Limiting Systems .......... 2-25
Seat Belt Extender ....................................................................... 2-27
Child Restraint ................................................................................. 2-29
Child-Restraint Precautions ........................................................ 2-29
Child-Restraint System Installation ............................................ 2-34
Installing Child-Restraint Systems ............................................. 2-35
SRS Air Bags .................................................................................... 2-48
Supplemental Restraint System (SRS) Precautions .................... 2-48
Supplemental Restraint System Components ............................. 2-55
How the SRS Air Bags Work ...................................................... 2-57
SRS Air Bag Deployment Criteria .............................................. 2-62
Limitations to SRS Air Bag ........................................................ 2-63
Front Passenger Occupant Classi ¿ cation System
* ...................... 2-65
Constant Monitoring ................................................................... 2-70
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 14 of 612
2–2
Essential Safety Equipment
Seats
Seat Precautions
WARNING
Make sure the adjustable components of a seat are locked in place:
Adjustable seats and seatbacks that are not securely locked are dangerous. In a
sudden stop or collision, the seat or seatback could move, causing injury. Make sure the
adjustable components of the seat are locked in place by attempting to slide the seat
forward and backward and rocking the seatback.
Never allow children to adjust a seat:
Allowing children to adjust a seat is dangerous as it could result in serious injury if a
child's hands or feet become caught in the seat.
Do not drive with the seatback unlocked:
All of the seatbacks play an important role in your protection in a vehicle. Leaving the
seatback unlocked is dangerous as it can allow passengers to be ejected or thrown
around and baggage to strike occupants in a sudden stop or collision, resulting in severe
injury. After adjusting the seatback at any time, even when there are no other passengers,
rock the seatback to make sure it is locked in place.
Adjust the driver's seat only when the vehicle is stopped:
Adjusting the driver's seat while the vehicle is moving is dangerous. The driver could lose
control of the vehicle and have an accident.
Do not modify or replace the front seats:
Modifying or replacing the front seats such as replacing the upholstery or loosening
any bolts is dangerous. The front seats contain air bag components essential to the
supplemental restraint system. Such modifi cations could damage the supplemental
restraint system and result in serious injury. Consult an Authorized Mazda Dealer if there
is any need to remove or reinstall the front seats.
Do not drive with damaged front seats:
Driving with damaged front seats, such as seat cushions torn or damaged down to the
urethane, is dangerous. A collision, even one not strong enough to infl ate the air bags,
could damage the front seats which contain essential air bag components. If there was a
subsequent collision, an air bag may not deploy which could lead to injuries. Always have
an Authorized Mazda Dealer inspect the front seats, front seat belt pretensioners and air
bags after a collision.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C

Page 19 of 612
2–7
Essential Safety Equipment
Seats
*Some models.
Seat Warmer *
The front seats are electrically heated. The
ignition must be switched ON.
Press the seat warmer switch while the
ignition is switched ON to operate the seat
warmer. The indicator lights turn on to
indicate that the seat warmer is operating.
The mode changes as follows each time
the seat warmer switch is pressed.
OFF
High
Mid
Low
WARNING
Be careful when using the seat warmer:
The heat from the seat warmer may be
too hot for some people, as indicated
below, and could cause a low-
temperature burn.
¾ Infants, small children, elderly
people, and physically challenged
people
¾ People with delicate skin
¾ People who are excessively fatigued
¾ People who are intoxicated
¾ People who have taken sleep-
inducing medicine such as sleeping
pills or cold medicine
Do not use the seat warmer with
anything having high moisture-
retention ability such as a blanket or
cushion on the seat:
The seat may be heated excessively
and cause a low-temperature burn.
Do not use the seat warmer even when
taking a short nap in the vehicle:
The seat may be heated excessively
and cause a low-temperature burn.
Do not place heavy objects with sharp
projections on the seat, or insert
needles or pins into it:
This could cause the seat to become
excessively heated and result in injury
from a minor burn.
CAUTION
Do not use organic solvents to clean
the seat. It may damage the seat
surface and the heater.
N O T E
y If the ignition is switched off while the
seat warmer is operating (High, Mid or
Low) and then switched ON again, the
seat warmer will automatically operate
at the temperature set before switching
off the ignition.
y Use the seat warmer when the engine
is running. Leaving the seat warmer
on for long periods with the engine not
running could cause the battery power
to be depleted.
y The temperature of the seat warmer
cannot be adjusted beyond High, Mid
and Low because the seat warmer is
controlled by a thermostat.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 23 of 612
2–11
Essential Safety Equipment
Seats
Armrest
The armrest in the center of the second-
row seatback can be used (no occupant in
the center seat) or placed upright.
WARNING
Never put your hands and fi ngers
around the moving parts of the seat and
armrest:
Putting your hands and fi ngers around
the moving parts of the seat and
armrest is dangerous as they could get
injured.
CAUTION
When storing the armrest, make sure
that any cables connected to the USB
power outlets in the armrest box are
stored away in the armrest box.
If the cables are not stored away
in the armrest box, the cables and
connection devices may become
damaged when storing the armrest.
Third-Row Seat Access
Occupants can get into and out of the
third-row seats easily by sliding the
second-row seats forward.
WARNING
Make sure there is nobody in the
second-row seat area before operating
the levers:
Not checking the second-row seat
area for persons before folding the
seatbacks with the levers is dangerous.
The second-row seat area is diffi cult
to see from the rear of the vehicle.
Operating the levers without checking
could cause injury to a person when a
seatback suddenly fl ips forward.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 25 of 612
2–13
Essential Safety Equipment
Seats
Entering/exiting the third-row seat area
with child-restraint system installed
(Right-side seat only)
Access to the third-row seats is possible
even when a child-restraint system is
installed to the second-row seat.
Pull up the lever on the side of the head
restraint to lower the front side of the seat
and slide the seat forward.
CAUTION
After entering/exiting the third-row
seat area, lock the seat after sliding it
rearward.
Make sure it is locked by attempting to
lightly move it back and forth.
Otherwise, it could move unexpectedly
and cause injury.
Second-row seat
fixed positionThird-row seat
ingress/egress
NOTE
The second-row seat cannot be moved
forward while the seat belt is securing the
child-restraint system.
Split folding the Second-Row Seats
To create a À at luggage compartment
space, fold the seatbacks forward.
Folding the seatbacks
WARNING
Make sure the adjustable components
of a second-row seat are locked after
folding down the seatback:
A second-row seat that is not securely
locked is dangerous. In a sudden stop
or collision, the second-row seat could
move, causing injury.
After folding down the seatback of
a second-row seat, make sure the
adjustable components of the seat are
locked in place by attempting to slide
the seat forward and backward.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 26 of 612
2–14
Essential Safety Equipment
Seats
CAUTION
¾ When folding the seatback forward,
always support the seatback with your
hand. If it is not supported by a hand,
fi ngers or the hand raising the lever
could be injured.
¾ Check the position of a front seat before
folding a second-row seatback.
Depending on the position of a front
seat, it may not be possible to fold a
second-row seatback all the way down
because it may hit the seatback of
the front seat which could scratch or
damage the front seat or its pocket.
Remove the head restraint on the
second-row outboard seat if necessary.
1. Lower the head restraint all the way
down.
Refer to Head Restraints on page
2-16 .
2. Raise the lever on the side of the
second-row seat to fold down the
seatback.
N O T E
To create a À at luggage compartment
space from the rear of the vehicle to the
back of the front seats, fold the second-row
and third-row seats (page 2-15 ).
To return the seatback to its upright
position:
WARNING
When returning a seatback to its
upright position, make sure the 3-point
seat belt is not caught in the seatback
and the 3-point seat belt is not twisted:
If the seat belt is used while it is twisted
and caught in the seatback, the seat
belt cannot function at its full capacity,
which could cause serious injury or
death.
1. Make sure that the seat belt is not stuck
in the second-row seat and it is not
twisted, then raise the seatback while
preventing the seat belt from being
caught in the seatback.
2. Press the seatback rearward and lock it
in place. After returning the seatback
to its upright position, make sure it is
securely locked.
$ 9 @ ' % & " # @ & E J U J P O J O E C $ 9 @ ' % & " # @ & E J U J P O J O E C
Page 28 of 612
2–16
Essential Safety Equipment
Seats
N O T E
To create a À at luggage compartment
space from the rear of the vehicle to the
back of the front seats, fold the second-row
and third-row seats (page 2-13 ).
To return third-row seat to its original
position
1. Return the seatback to its original
position by pulling the strap/lever on
the back of the seatback.
Make sure the seatback is secured by
attempting to lightly move it forward
and back.
2. Lift the head restraint upward to its
upright position.
Head Restraints
Your vehicle is equipped with head
restraints on all outboard seats and the
second-row center seat. The head restraints
are intended to help protect you and the
passengers from neck injury.
WARNING
Always drive with the head restraints
installed when seats are being used and
make sure they are properly adjusted.
In addition, always raise the head
restraints on all rear seat when they are
being used:
Driving with the head restraints
adjusted too low or removed is
dangerous. With no support behind
your head, your neck could be seriously
injured in a collision.
NOTE
(Third-row seat)
The head restraints are non-adjustable.
