Set clock MAZDA MODEL CX-9 2017 Owners Manual (in English)

5–6
Interior Features
Climate Control System
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
 


 When the DUAL switch is off:
 Turn the driver temperature control dial
to control the temperature throughout
the entire cabin.
 


 When the DUAL switch is on:
 Turn the driver or front passenger
temperature control dial to
independently control the temperature
on each side of the cabin.

NOTE
 


 The climate control system changes to
the individual operation mode ( DUAL
switch indicator light illuminated) by
turning the front passenger temperature
control dial even when the DUAL switch
is off, which allows individual control
of the set temperature for the driver and
front passenger.
 


 The temperature units for the
temperature setting display can be
changed in conjunction with the
temperature units for the outside
temperature display. Refer to Outside
Temperature Display on page 4-18 .

Fan control switch
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airfl ow mode can be selected
(page 5-4 ).
NOTE
 


 With the airfl ow mode set to the
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and air
at a comparably lower temperature will
fl ow through the central, left and right
vents.
 


 To set the air vent to , press the
windshield defroster switch.
 


 In the or position, the air
conditioner is automatically turned on
and the outside air position is
automatically selected to defrost the
windshield. In the
or position, the
outside air position cannot be changed
to the recirculated air position.

A/C switch
Pressing the A/C switch while the AUTO
switch is turned on will turn off the air-
conditioning (cooling/dehumidifying
functions).
The air-conditioning can be turned on and
off by pressing the A/C switch while the
fan control switch is on.
NOTE
  The air-conditioning operates when the
A/C switch is pressed even if the fan is
off.
 


 The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).

CX-9_8FS7-EA-16K_Edition2.indb 6CX-9_8FS7-EA-16K_Edition2.indb 62016/12/15 18:34:512016/12/15 18:34:51

5–19
Interior Features
Audio Set
Basic Operation Method

NOTE
The explanation of functions described in this manual may differ from the actual
operation, and the shapes of screens and buttons and the letters and characters displayed
may also differ from the actual appearance.
Additionally, depending on future software updates, the content may successively change
without notice.

Audio Set has three different human interfaces.  


 Commander switch



 Touch panel



 Voice recognition with steering switch and microphone
 Refer to Voice Recognition on page 5-67 .
Commander switch operation
NOTE
For safety reasons, some operations are disabled while the vehicle is being driven.
Volume dial operation

Volume dial

Press the volume dial to switch the audio MUTE on and off.
Turn the volume dial to adjust the volume. The volume increases by turning the dial
clockwise, and decreases by turning it counterclockwise.
CX-9_8FS7-EA-16K_Edition2.indb 19CX-9_8FS7-EA-16K_Edition2.indb 192016/12/15 18:34:592016/12/15 18:34:59

5–24
Interior Features
Audio Set
Volume/Display/Sound Controls

Commander switchAudio control switch
Volume dial
Volume switch

Volume adjustment
Turn the commander switch volume dial.
The volume switch on the steering switch
can also be pressed.
Display setting
Select the icon on the home screen to
display the Settings screen.
Select the
tab to select the item you
would like to change.
Display OFF/Clock
The center display can be turned off.
Select
to turn the display off.
When
is
selected the center display turns off and
the clock is displayed.
The center display can be turned back on
as follows:
 


 Touch the center display.



 Operate the commander switch.
Daytime/nighttime (System) screen
setting
The daytime or nighttime screen can be
selected.

: Switches screen automatically
according to headlight illumination
condition
*1

: Daytime screen setting

: Nighttime screen setting
*1 The display is constantly on daytime
screen when the illumination dimmer is
cancelled.

Brightness adjustment
Adjust the center display brightness using
the slider.
Contrast adjustment
Adjust the center display contrast using
the slider.
Display setting reset
All of the screen setting values can be
reset to their initial settings.

1. Select .
2. Select
.

CX-9_8FS7-EA-16K_Edition2.indb 24CX-9_8FS7-EA-16K_Edition2.indb 242016/12/15 18:35:022016/12/15 18:35:02

5–70
Interior Features
Audio Set

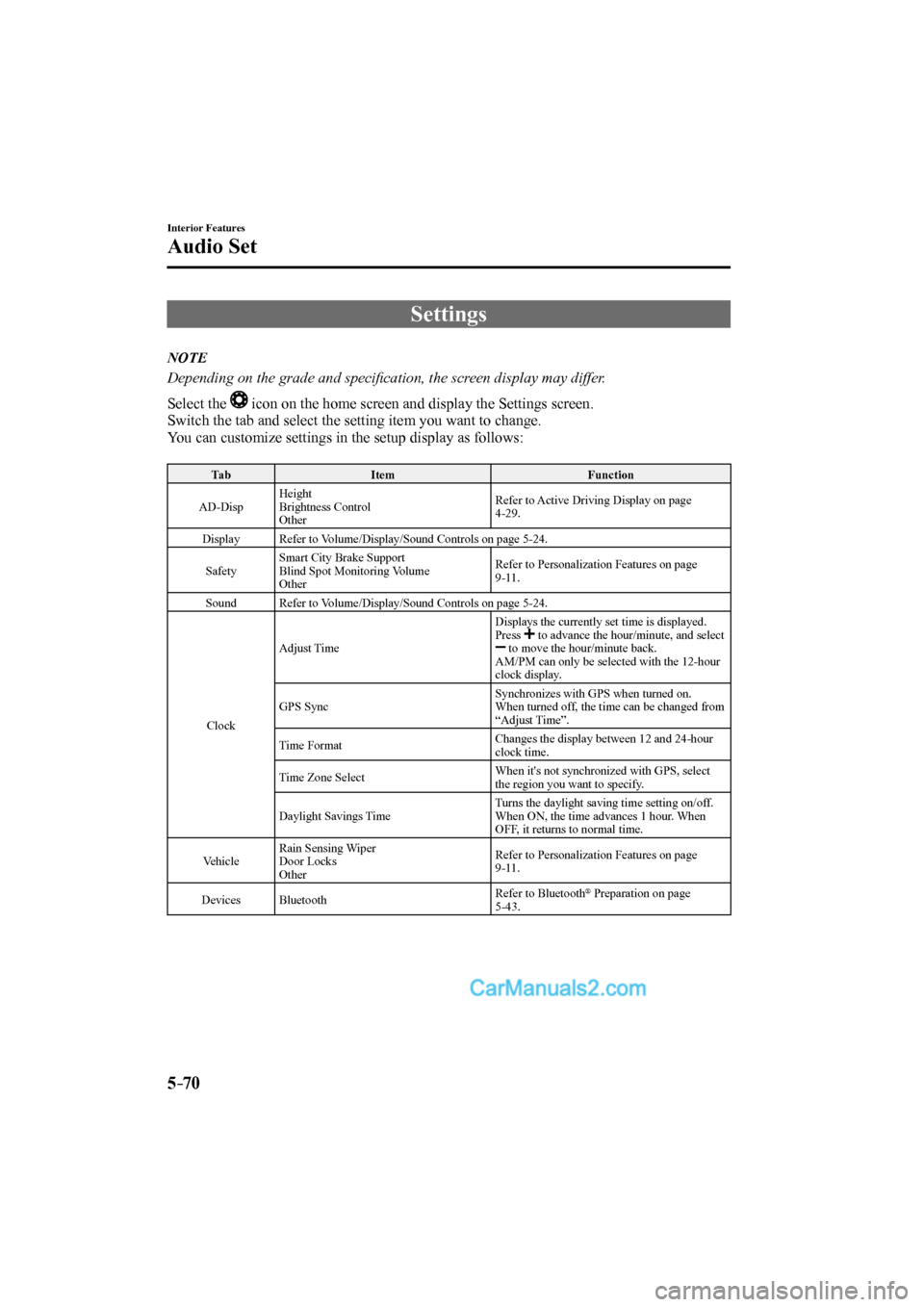

Settings














NOTE
Depending on the grade and specifi cation, the screen display may differ.
Select the icon on the home screen and display the Settings screen.
Switch the tab and select the setting item you want to change.
You can customize settings in the setup display as follows:

Tab Item Function
AD-Disp Height
Brightness Control
Other Refer to Active Driving Display on page
4-29 .
Display Refer to Volume/Display/Sound Controls on page 5-24 .
Safety Smart City Brake Support
Blind Spot Monitoring Volume
Other Refer to Personalization Features on page
9-11 .
Sound Refer to Volume/Display/Sound Controls on page 5-24 .
Clock Adjust Time Displays the currently set time is displayed.
Press
to advance the hour/minute, and select
to move the hour/minute back.
AM/PM can only be selected with the 12-hour
clock display.
GPS Sync Synchronizes with GPS when turned on.
When turned off, the time can be changed from
“Adjust Time”.
Time Format Changes the display between 12 and 24-hour
clock time.
Time Zone Select When it's not synchronized with GPS, select
the region you want to specify.
Daylight Savings Time Turns the daylight saving time setting on/off.
When ON, the time advances 1 hour. When
OFF, it returns to normal time.
Vehicle Rain Sensing Wiper
Door Locks
Other Refer to Personalization Features on page
9-11 .
Devices Bluetooth Refer to Bluetooth
® Preparation on page
5-43 .
CX-9_8FS7-EA-16K_Edition2.indb 70CX-9_8FS7-EA-16K_Edition2.indb 702016/12/15 18:35:402016/12/15 18:35:40
