CD player MAZDA MODEL MAZDASPEED 3 2007 (in English) User Guide

Black plate (224,1)
2. Press the channel preset button for the
desired CD number for less than 5
seconds after the beep sound is heard.
3. Pull out the CD.
NOTE
(Music CD player)
If the CD is not removed from the slot
within approximately 10 seconds after
ejection, it will be re- inserted
automatically.
Multiple ejection
1. Press and hold the CD eject button (
)
for about 2 seconds until a beep sound
is heard.
The“DISC”“OUT”display flashes.
2. Press the CD eject button (
) again
for less than 5 seconds after the beep
sound is heard.
NOTE
If the button is not pressed and about 5
seconds have elapsed while“DISC”
“OUT”is flashing, CDs are
automatically ejected.
3. Pull out the CD, then the next CD will
be ejected.
NOTE
lCDs will be ejected starting with the
one with the lowest number.
lAll CDs in the tray will be ejected
continuously.
lCDs can be ejected when the ignition
switch is off. Press and hold the CD
eject button (
) for about 2 seconds
and all CDs will eject.
l(Music CD player)
If the CD is not removed from the
slot within approximately 10 seconds
after ejection, it will be re- inserted
automatically.
Playing
Press the CD play button (
) to start
play when a CD is in the unit.
If there isn't a CD in the unit when the CD
play button (
) is pressed,“NO DISC”
will flash on and off.
Fast-forward/Reverse
Press and hold the fast-forward button
(
) to advance through a track at high
speed.
Press and hold the reverse button (
)
to reverse through a track at high speed.
Track search
Press the track up button (
) once to skip
forward to the beginning of the next track.
Press the track down button (
)onceto
skip back to the beginning of the current
track.
Disc search
During music CD playback
To change the disc, press the DISC button
(
or) during playback.
6-40
Interior Comfort
Audio System
Mazda3_8V66-EA-06F_Edition3 Page224
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (226,1)
(CD random)
1. Press the random button (
) during
playback, and then press the button
again within 3 seconds to play the
tracks in the CD randomly.“RDM”is
displayed.
2. Press the button again to cancel the
random play.
Switching the display (Music CD/MP3
CD player)
Each time the display button (
)is
pressed during playback, the display will
switch in the following order.
Music CD
Track number/Elapsed
time display
Disc tray number
File name display
Album name display
Artist name display
MP3 CD
Folder number/Track
numberDisc number/File
number/Elapsed
time display
Disc tray number
File name
Folder name
Album name (ID3 Tag)
Song name (ID3 Tag)
Artist name (ID3 Tag)
NOTE
(MP3 CD)
l“NO TITLE”will be displayed when
the display is switched for a file
without a file, track or other name
input.
lThis unit can only read English
(including numerals) one-byte
characters. If any other character is
included,“NO TITLE”will be
displayed. Depending on the CD
writing software used, proper display
may not be possible.
6-42
Interior Comfort
Audio System
Mazda3_8V66-EA-06F_Edition3 Page226
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (227,1)
Display scroll (Music CD/MP3 CD
player)
Only 12 characters can be displayed at
one time. To display the rest of the
characters of a long title, turn the display
feed dial (
) to the right. Hidden
titles can be scrolled into the display one
character at a time.
NOTE
The displayable number of characters is
limited. If the number of characters,
including the file extension (.mp3),
exceeds 32 characters, it may not be
fully displayed.
Message display
If“CHECK CD”is displayed, it means
that there is some CD malfunction. Check
for damage, dirt, or smudges on the CD,
and then properly reinsert. If the message
appears again, take the unit to an
Authorized Mazda Dealer for service.
qOperating the Auxiliary jack
You can connect portable audio units or
similar products on the market to the
auxiliary jack to listen to music or audio
over the vehicle's speakers, refer to
Auxiliary Input (page 6-47).
Interior Comfort
Audio System
6-43
Mazda3_8V66-EA-06F_Edition3 Page227
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (230,1)

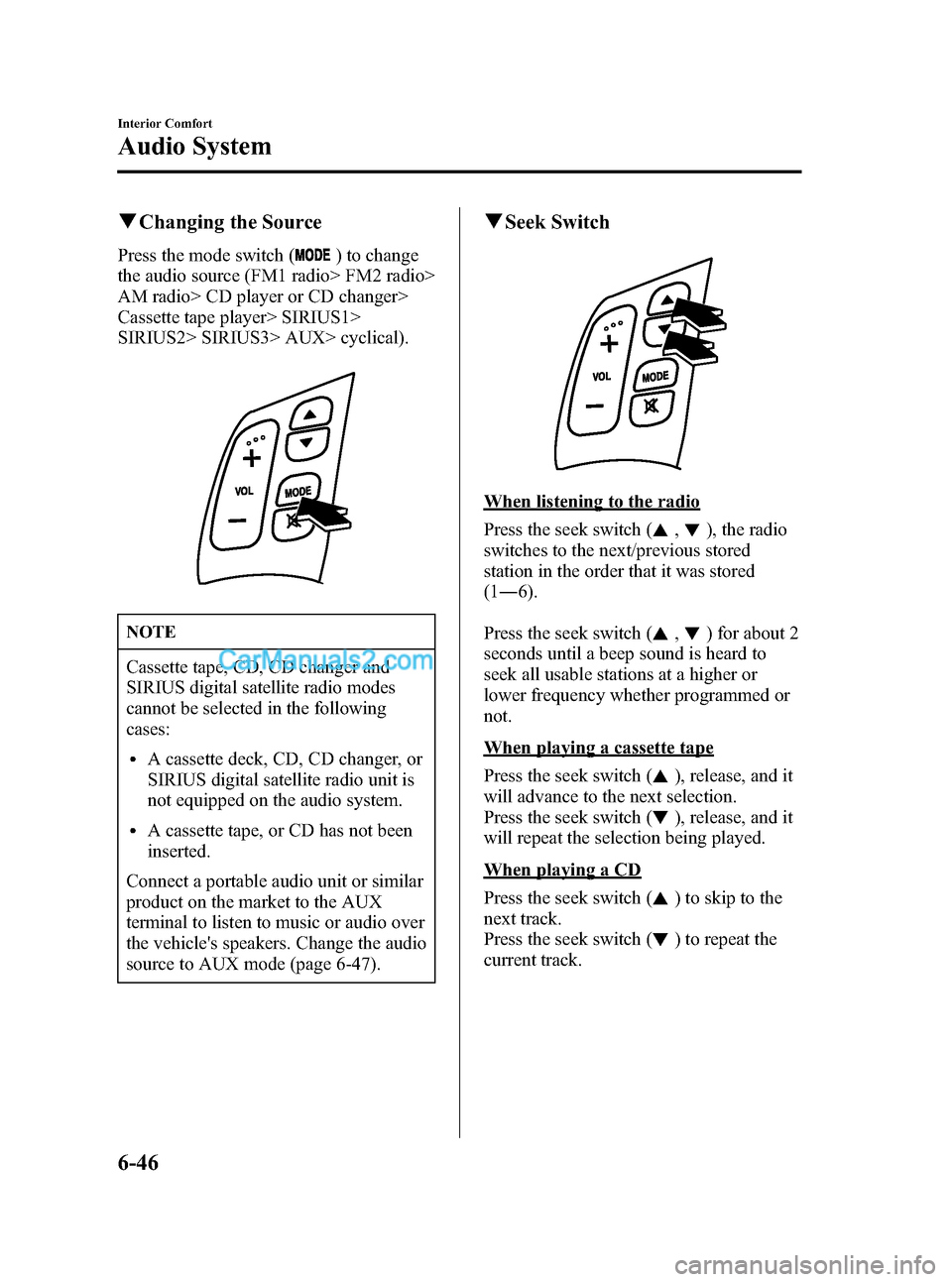

qChanging the Source
Press the mode switch () to change
the audio source (FM1 radio> FM2 radio>
AM radio> CD player or CD changer>
Cassette tape player> SIRIUS1>
SIRIUS2> SIRIUS3> AUX> cyclical).
NOTE
Cassette tape, CD, CD changer and
SIRIUS digital satellite radio modes
cannot be selected in the following
cases:
lA cassette deck, CD, CD changer, or
SIRIUS digital satellite radio unit is
not equipped on the audio system.
lA cassette tape, or CD has not been
inserted.
Connect a portable audio unit or similar
product on the market to the AUX
terminal to listen to music or audio over
the vehicle's speakers. Change the audio
source to AUX mode (page 6-47).
qSeek Switch
When listening to the radio
Press the seek switch (
,), the radio
switches to the next/previous stored
station in the order that it was stored
(1―6).
Press the seek switch (
,) for about 2
seconds until a beep sound is heard to
seek all usable stations at a higher or
lower frequency whether programmed or
not.
When playing a cassette tape
Press the seek switch (
), release, and it
will advance to the next selection.
Press the seek switch (
), release, and it
will repeat the selection being played.
When playing a CD
Press the seek switch (
) to skip to the
next track.
Press the seek switch (
) to repeat the
current track.
6-46
Interior Comfort
Audio System
Mazda3_8V66-EA-06F_Edition3 Page230
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F

Black plate (235,1)
Safety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
CAUTION
lThis CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
lUse of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
lChanges or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
Interior Comfort
Audio System
6-51
Mazda3_8V66-EA-06F_Edition3 Page235
Wednesday, August 23 2006 11:20 AM
Form No.8V66-EA-06F
