Steps for Determining the Correct Load Limit:
Steps for Determining Correct Load Limit:
(1) Locate the statement“The combination weight of occupants and cargo should never
exceed XXX kg or XXX lbs”on your vehicle's placard.
(2) Determine the combination weight of the driver and passengers that will be riding in
your vehicle.
(3) Subtract the combination weight of the driver and passengers from XXX kg or XXX
lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity.
For example, if the“XXX”amount equals 1400 lbs. and there will be five 150 lb
passengers in your vehicle, the amount of available cargo and luggage load capacity is
650 lbs. (1400_
750 (5 × 150) = 650 lbs.)
(5) Determine the combination weight of luggage and cargo being loaded on the vehicle.
That weight may not safely exceed the available cargo and luggage load capacity
calculated in Step 4.
(6) If your vehicle will be towing a trailer, the load from your trailer will be transferred to
your vehicle. Consult this manual to determine how this reduces the available cargo
and luggage load capacity of your vehicle.
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
9-41
Mazda3_8V66-EA-06F_Edition3 Page381
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (382,1)
Reporting Safety Defects (U.S.A.)
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying Mazda Motor
Corporation (Your Mazda Importer/Distributor).
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or Mazda Motor Corporation (Your Mazda
Importer/Distributor).
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153) ; go to http://www.safercar.gov; or write to:
Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You
can also obtain other information about motor vehicle safety from http://
www.safercar.gov.
NOTE
If you live in the U.S.A., all correspondence to Mazda Motor Corporation should be
forwarded to:
Mazda North American Operations
7755 Irvine Center Drive
Irvine, California 92618-2922
P.O. Box 19734
Irvine, CA 92623-9734
Customer Assistance Center or toll free at 1 (800) 222-5500
If you live outside of the U.S.A., please contact the nearest Mazda Distributor shown
(page 9-10) in this booklet.
9-42
Customer Information and Reporting Safety Defects
Reporting Safety Defects
Mazda3_8V66-EA-06F_Edition3 Page382
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (383,1)
Reporting Safety Defects (Canada)
Canadian customers who wish to report a safety-related defect to Transport Canada, Defect
Investigations and Recalls, may telephone the toll free hotline 1-800-333-0510, or contact
Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville Tower C, 330
Sparks Street, Ottawa ON K1A 0N5.
For additional road safety information, please visit the Road Safety website at:
http://www.tc.gc.ca/roadsafety/menu.htm
Customer Information and Reporting Safety Defects
Reporting Safety Defects
9-43
Mazda3_8V66-EA-06F_Edition3 Page383
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (384,1)
Service Publications
Factory-authorized Mazda service publications are available for owners who wish to do
some of their own maintenance and repair.
When requesting any of our publications through an Authorized Mazda Dealer, refer to the
chart below.
If they don't have what you need in stock, they can order it for you.
PUBLICATION ORDER NUMBER PUBLICATION DESCRIPTION
9999-95-017B-07 2007 WORKSHOP MANUAL (English)
9999-MX-017B-07 2007 WORKSHOP MANUAL (Spanish)
9999-95-019G-07 2007 WIRING DIAGRAM (English)
9999-MX-019G-07 2007 WIRING DIAGRAM (Spanish)
9999-95-038C-07 (U.S.A. only) 2007 OWNER'S MANUAL
9999-EC-038C-07 (Canada only) 2007 OWNER'S MANUAL
9999-PR-038C-07 (Puerto Rico, Mexico only) 2007 OWNER'S MANUAL
qWORKSHOP MANUAL:
Covers recommended maintenance and repair procedures of the drive train, body and
chassis.
qWIRING DIAGRAM:
Provides electrical schematics as well as component location for the entire electrical
system.
qOWNER'S MANUAL:
This booklet contains information regarding the proper care and operation of your vehicle.
This is not a technician's manual.
9-44
Customer Information and Reporting Safety Defects
Service Publications
Mazda3_8V66-EA-06F_Edition3 Page384
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (385,1)
10Specifications
Technical information about your Mazda.
Identification Numbers ............................................................... 10-2
Vehicle Information Labels ..................................................... 10-2
Specifications ............................................................................... 10-4
Specifications .......................................................................... 10-4
10-1
Mazda3_8V66-EA-06F_Edition3 Page385
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (386,1)

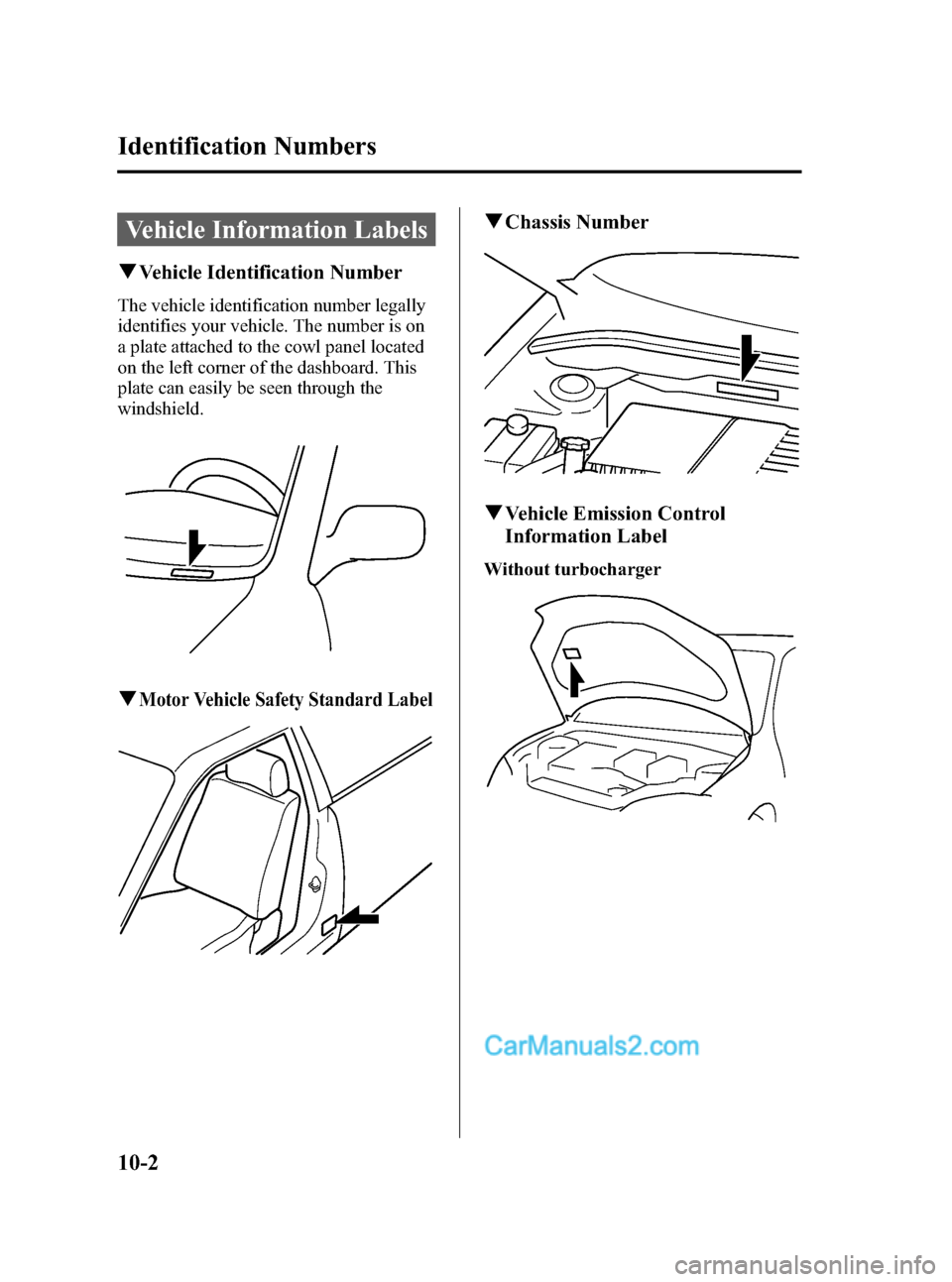

Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the cowl panel located
on the left corner of the dashboard. This
plate can easily be seen through the
windshield.
qMotor Vehicle Safety Standard Label
qChassis Number
qVehicle Emission Control
Information Label
Without turbocharger
10-2
Identification Numbers
Mazda3_8V66-EA-06F_Edition3 Page386
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (387,1)
With turbocharger
qTire Pressure Label
qEngine Number
Without turbocharger
Forward
With turbocharger
Forward
Identification Numbers
10-3
Mazda3_8V66-EA-06F_Edition3 Page387
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (388,1)
Specifications
qEngine
ItemSpecification
Without turbocharger
With turbocharger
2.0-liter engine 2.3-liter engine
Type DOHC-16V in-line, 4-cylinder
Bore×Stroke87.5 × 83.1 mm
(3.44 × 3.27 in)87.5 × 94.0 mm (3.44 × 3.70 in)
Displacement1,999 ml
(1,999 cc, 122.0 cu in)2,261 ml (2,261 cc, 137.9 cu in)
Compression ratio 10.0 9.7 9.5
qElectrical System
Item Classification
BatteryWithout
turbocharger2.0-liter engine 12V-40AH/5HR, 12V-52AH/5HR
2.3-liter engine12V-40AH/5HR, 12V-52AH/5HR,
12V-55AH/5HR
With turbocharger 12V-48AH/5HR, 12V-55AH/5HR
Spark-plug numberWithout turbocharger LFG1 18 110
*1, L3Y2 18 110
With turbocharger L3K9 18 110A*1, L3Y3 18 110
Spark-plug gapWithout turbocharger 1.25―1.35 mm (0.050―0.053 in)
With turbocharger 0.70―0.8 mm (0.028―0.031 in)
*1 ex factory
NOTE
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
10-4
Specifications
Mazda3_8V66-EA-06F_Edition3 Page388
Wednesday, August 23 2006 11:22 AM
Form No.8V66-EA-06F

Black plate (389,1)
qLubricant Quality
Lubricant Classification
Engine Refer to the recommended SAE viscosity numbers on page 8-18.
Manual transaxle oilWithout turbochargerAny temperatureAPI Service GL-4 or GL-5
SAE 75W-90
Above 10°CAPI Service GL-4 or GL-5
SAE 80W-90
With turbochargerAPI Service GL-4
SAE 75W-90
Automatic transaxle fluid ATF M-V
Power steering fluid ATF M-III or equivalent (e.g. Dexron® III)
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
qCapacities
(Approximate Quantities)
Item Capacity
Engine oilWithout turbochargerWith oil filter
replacement4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement3.9 L (4.1 US qt, 3.4 Imp qt)
With turbochargerWith oil filter
replacement5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement5.3 L (5.6 US qt, 4.7 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oilWithout turbocharger 2.87 L (3.03 US qt, 2.53 Imp qt)
With turbocharger 2.5 L (2.6 US qt, 2.2 Imp qt)
Automatic transaxle fluid4-speed transaxle 7.2 L (7.6 US qt, 6.3 Imp qt)
5-speed transaxle 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank55.0 L
