fuse MAZDA MODEL MAZDASPEED 3 2008 (in English) User Guide

Black plate (322,1)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
18 AUDIO 30AAudio system
(BOSE Sound System-equipped model)
19 ABS IG 10A ABS
í, DSCí
20 FOG 15A Front fog lightsí
21 HORN 15A Horn
22 DRL 10A DRLí
23 H/CLEAN――
24 F/PUMP 15A Fuel pump
25 P/ST IG 10A Power steering
26 A/C MAG 10A Air conditioner
í
27 ALT/TCM 10A/15A TCMí
28 GLOW SIG――
29 P.OUTLET―Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32 ENG BAR 4 10A O
2sensorsí
33 ENG BAR 3 10A O2sensors
34 EGI INJ 10A Injector
35 ENG BAR 1 10A For protection of various circuits
36 ENG BAR 2 10A PCM, Fuel pump
With turbocharger
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 FAN 70A Cooling fan
2―― ―
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 F/PUMP 30A Fuel pump
6―― ―
7 ABS 1 30A ABS, DSC
8 ABS 2 20A ABS, DSC
9 ENGINE 30A For protection of various circuits
10 INJECTOR 30A Fuel injector
11 IG KEY1 30A Ignition switch
12 STARTER 20A Starter clutch
13 IG KEY2 30A Ignition switch
14―― ―
15 HEATER 40A Blower motor
16―― ―
17 DEFOG 40A Rear window defroster
18 AUDIO 30AAudio system
(BOSE Sound System-equipped model)
8-54
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8X41-EA-07F_Edition1 Page322
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (323,1)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
19 ABS IG 10A ABS
20 FOG 15A Front fog lights
21 HORN 15A Horn
22 DRL 10A DRL
í
23 H/CLEAN――
24 ETC 10A Elec. throttle valve
25―― ―
26 A/C MAG 10A Air conditioner
27―― ―
28―― ―
29 P.OUTLET 15A Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32―― ―
33 ENG BAR 3 10A O
2sensors
34―― ―
35 ENG BAR 1 15A For protection of various circuits
36 ENG BAR 2 10A PCM, Fuel pump
Maintenance and Care
Owner Maintenance
8-55íSome models. Mazda3_8X41-EA-07F_Edition1 Page323
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (324,1)
Fuse block (Passenger's side)
37 38 39 4041 42
43 44 4546
47 48 49 5051
52 5354 55 56 5758
59 60 61 6263 64
65 66 67 68 6970
71 72 73 74 75 76 77 78 79 80 81 82 83 84 8586
DESCRIPTION FUSE RATING PROTECTED COMPONENT
37 D/LOCK 2 15A Double locking systemí
38 STOP LAMP/HORN 10A Stop Lamp, Horn
39 HEAD HIGH L 10A Headlight high beam (LH)
40 HEAD HIGH R 10A Headlight high beam (RH)
41―― ―
42―― ―
43 CIGAR 15A Lighter
44 RADIO 7.5A Audio system
45 MIRROR 10A Power mirror
í
46 TAIL R 7.5ATaillight (RH), Parking light (RH), License
plate lights
47 OBD 10A For protection of various circuits
48―― ―
49 TR/LOCK――
50―― ―
51―― ―
52 SUN ROOF 20A Moonroof
í
53 WASHER 20A Windshield wiper and washer
54―― ―
55 P/WIND R――
8-56
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8X41-EA-07F_Edition1 Page324
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (325,1)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
56 P/WIND L――
57 ALARM――
58 M/DEF 7.5A Mirror Defroster
í
59―― ―
60 HEAD LOW R 15A Headlight low beam (RH), Headlight leveling
61 HEAD LOW L 15A Headlight low beam (LH)
62―― ―
63―― ―
64―― ―
65 SAS 10A Supplemental restraint system
66 METER 10A Instrument cluster, Immobilizer system
67 IGNITION 20A ABS
í, DSCí, Power steering
68 WIPER 20A Windshield wiper and washer
69 ENGINE 20A For protection of various circuits
70 IG SIG 10A Auto wiper
í, Power window switchí
71 SAS 2 7.5A Seat weight sensor
72―― ―
73―― ―
74 SEAT WARM 20A Seat warmer
í
75 D/LOCK 1 25A Power door lockí
76 A/C 10A Air conditionerí, Heater control unit
77 P/WIND L 30A Power window (LH)í
78 P/WIND R 30A Power window (RH)í
79 BACK 10A Reverse lights
80 SUN ROOF 7.5A Moonroofí
81 TAIL L 7.5A Taillight (LH), Parking light (LH)
82 ILLUMI 7.5A Illumination
83―― ―
84―― ―
85―― ―
86―― ―
Maintenance and Care
Owner Maintenance
8-57íSome models. Mazda3_8X41-EA-07F_Edition1 Page325
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F

Black plate (386,1)

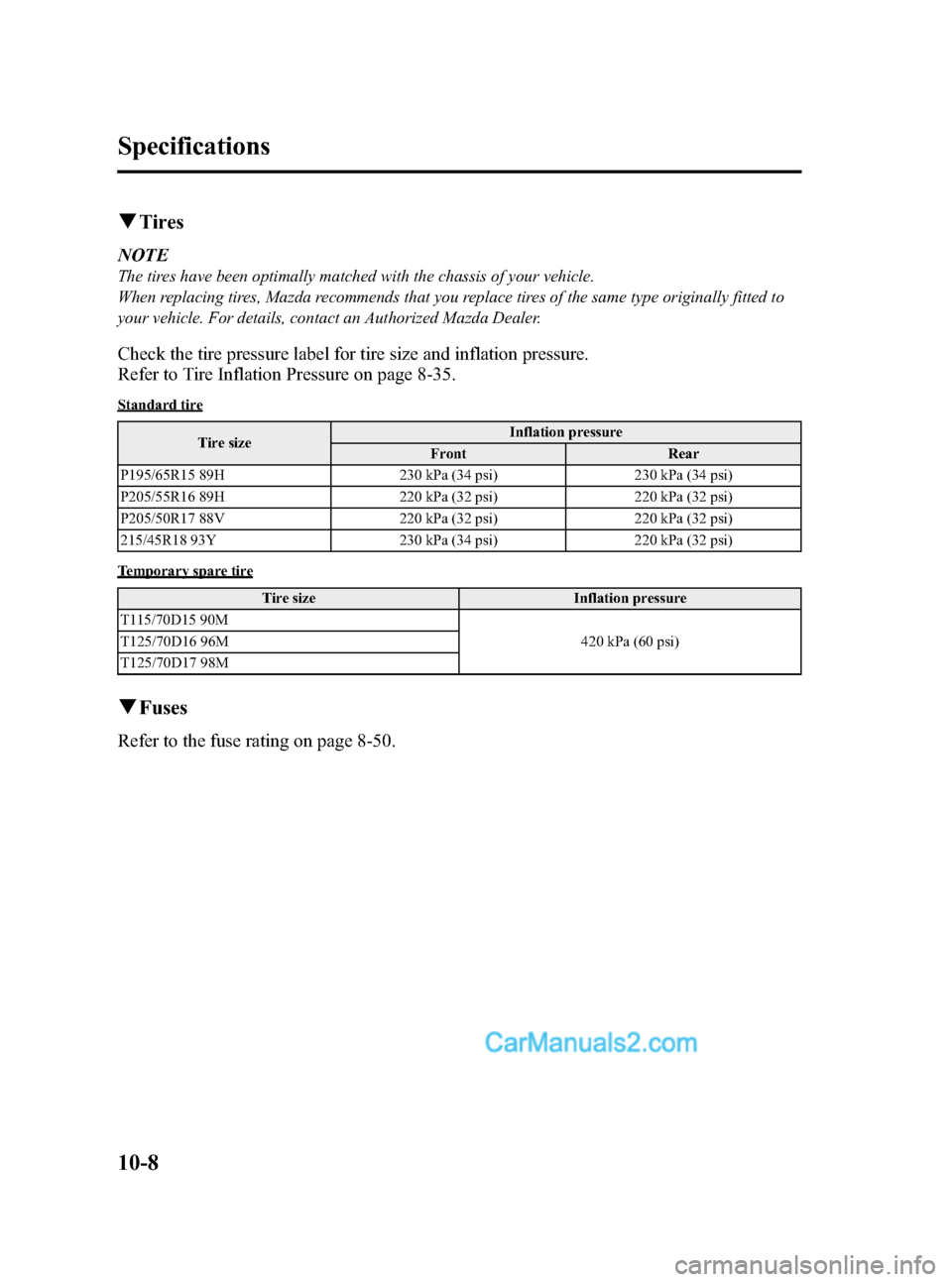

qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-35.
Standard tire
Tire sizeInflation pressure
Front Rear
P195/65R15 89H 230 kPa (34 psi) 230 kPa (34 psi)
P205/55R16 89H 220 kPa (32 psi) 220 kPa (32 psi)
P205/50R17 88V 220 kPa (32 psi) 220 kPa (32 psi)
215/45R18 93Y 230 kPa (34 psi) 220 kPa (32 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M
420 kPa (60 psi) T125/70D16 96M
T125/70D17 98M
qFuses
Refer to the fuse rating on page 8-50.
10-8
Specifications
Mazda3_8X41-EA-07F_Edition1 Page386
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F
