Black plate (25,1)
WARNING
Always wear your seat belt and make sure all occupants are properly restrained:
Not wearing a seat belt is extremely dangerous. During a collision, occupants not
wearing seat belts could hit someone or things inside the vehicle or even be thrown
out of the vehicle. They could be seriously injured or even killed. In the same
collision, occupants wearing seat belts would be much safer.
Do not wear twisted seat belts:
Twisted seat belts are dangerous. In a collision, the full width of the belt is not
available to absorb the impact. This puts more force on the bones beneath the belt,
which could cause serious injury or death.
Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt
used in this way cannot spread the impact forces properly and the two passengers
could be crushed together and seriously injured or even killed. Never use one belt for
more than one person at a time and always operate the vehicle with each occupant
properly restrained.
Do not operate a vehicle with a damaged seat belt:
Using a damaged seat belt is dangerous. An accident could damage the belt
webbing of the seat belt in use. A damaged seat belt cannot provide adequate
protection in a collision. Have an Authorized Mazda Dealer inspect all seat belt
systems in use during an accident before they are used again.
Have your seat belts changed immediately if the pretensioner or load limiter has
been expended:
One or both front air bags may deploy, and the corresponding pretensioner(s) may
also deploy at the same time. While it is safer to use a crash-used seat belt that was
used in an accident than no seat belt at all, using a seat belt with an expended
pretensioner or load limiter loaded reduces the safety available to you. Like the air
bags, the seat belt pretensioners will only function once. After they are expended,
they will not function again and must be replaced immediately. If the seat belt
pretensioners are not replaced, the risk of injury in a collision will increase. Always
have an Authorized Mazda Dealer inspect the seat belt pretensioners and air bags
after any collision. Expended seat belt pretensioners and air bags must be replaced
after any collision which caused them to deploy. Additionally, the load limiter will
only limit loads on the chest once in a collision and this is another reason to have the
front seat belts inspected.
Essential Safety Equipment
Seat Belt Systems
2-11
Mazda3_8X41-EA-07F_Edition1 Page25
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (31,1)
Have your seat belts changed
immediately if the pretensioner or load
limiter has been expended:
One or both front air bags may
deploy, and the corresponding
pretensioner(s) may also deploy at
the same time. While it is safer to use
a crash-used seat belt that was used
in an accident than no seat belt at
all, using a seat belt with an
expended pretensioner or load limiter
loaded reduces the safety available to
you. Like the air bags, the seat belt
pretensioners will only function once.
After they are expended, they will not
function again and must be replaced
immediately. If the seat belt
pretensioners are not replaced, the
risk of injury in a collision will
increase. Always have an Authorized
Mazda Dealer inspect the seat belt
pretensioners and air bags after any
collision. Expended seat belt
pretensioners and air bags must be
replaced after any collision which
caused them to deploy. Additionally,
the load limiter will only limit loads
on the chest once in a collision and
this is another reason to have the
front seat belts inspected.
Do not modify the components or
wiring, or use electronic testing devices
on the pretensioner system:
Modifying the components or wiring
of the pretensioner system, including
the use of electronic testing devices is
dangerous. You could accidentally
activate it or make it inoperable
which would prevent it from
activating in an accident. The
occupants or repairers could be
seriously injured.Properly dispose of the pretensioner
system:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap
a pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will activate in a
moderate or greater frontal or near-frontal
collision. The pretensioner system for the
front passenger is designed to only deploy
in accordance with the total seated weight
on the front passenger seat. It will not
activate in most rollovers, side or rear
impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not indicate
a fire. This gas normally has no effect on
occupants, however, those with sensitive
skin may experience light skin irritation. If
residue from the deployment of the air bags
or the front pretensioner system gets on the
skin or in the eyes, wash it off as soon as
possible.
Essential Safety Equipment
Seat Belt Systems
2-17
Mazda3_8X41-EA-07F_Edition1 Page31
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (40,1)
WARNING
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stops, a child must be
properly restrained using a seat belt or child-restraint system depending on age and
size. If not, the child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system
buckled down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it
could move causing serious injury or death to the child or other occupants. Make
sure any child-restraint system is properly secured in place according to the child-
restraint system manufacturer's instructions. When not in use, remove it from the
vehicle or fasten it with a seat belt, or latch it down to BOTH LATCH lower anchors
for LATCH child-restraint systems and the corresponding tether anchor.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No
matter how strong the person may be, he or she cannot hold onto a child in a
sudden stop or collision and it could result in serious injury or death to the child or
other occupants. Even in a moderate accident, the child may be exposed to air bag
forces that could result in serious injury or death to the child, or the child may be
slammed into an adult, causing injury to both child and adult.
Never use a rear-facing child-restraint system in the front seat with an air bag that
could deploy:
Rear-facing child-restraint systems on the front seat are particularly dangerous even
though you may feel assured that a front passenger air bag will not deploy based on
the fact that the front passenger air bag deactivation indicator light illuminates.
The child-restraint system can be hit by a deploying air bag and moved violently
backward resulting in serious injury or death to the child.
2-26
Essential Safety Equipment
Child Restraint
Mazda3_8X41-EA-07F_Edition1 Page40
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (79,1)
Non-key type
1. Insert a small screwdriver into the slot
and gently pry open the transmitter.
Back cover Slot
2. Press the portion of the battery
indicated by A and remove the battery.
A
3. Install a new battery (CR2025 or
equivalent) into the front portion of the
holder with the positive pole (
)
facing up. Press on the B portion of the
battery to set the battery.
BBack cover
Front
cover
Front of
holder
4. Align the front and back covers and
snap the transmitter shut.
qService
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
CAUTION
Radio equipment like this is governed
by laws in the United States.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user's authority to operate the
equipment.
Knowing Your Mazda
Doors and Locks
3-7
Mazda3_8X41-EA-07F_Edition1 Page79
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (80,1)
Door Locks
WARNING
Always take all children and pets with
you or leave a responsible person with
them:
Leaving a child or a pet unattended
in a parked vehicle is dangerous. In
hot weather, temperatures inside a
vehicle can become high enough to
cause brain damage or even death.
Do not leave the keys in your vehicle
with children and keep them in a place
where your children will not find or
play with them:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move.
Keep all doors locked when driving:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident.Always close all the windows, lock the
doors and take the key with you when
leaving your vehicle unattended:
(Except 4 Door)
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, which
could result in death. Also, a vehicle
left unlocked becomes an easy target
for thieves and intruders.
(4 Door)
Leaving your vehicle unlocked is
dangerous as children could lock
themselves in a hot vehicle, or
become trapped by climbing into the
trunk, which could result in death.
Also, a vehicle left unlocked becomes
an easy target for thieves and
intruders.
qLocking, Unlocking with Key
The driver's door can be locked/unlocked
with the key.
Turn the key toward the front to unlock,
toward the back to lock.
Unlock
Lock
NOTE
If your vehicle is equipped with a front
passenger door key slot, the door can be
locked/unlocked with the key.
3-8
Knowing Your Mazda
Doors and Locks
Mazda3_8X41-EA-07F_Edition1 Page80
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (90,1)
Power Windowsí
The ignition switch must be in the ON
position for the power windows to
operate.
WARNING
Make sure the opening is clear before
closing a window:
Closing power windows are
dangerous. A person's hands, head,
or even neck could be caught by the
window and result in serious injury
or even death.
This warning applies especially to
children.
Always lock all passenger power
windows with the power window lock
switch on the driver's side while
children are in the vehicle, and never
allow children to play with power
window switches:
Leaving the power window switches
unlocked while children are in the
vehicle is dangerous. Power window
switches that are not locked with the
power window lock switch would
allow children to operate power
windows unintentionally which could
result in serious injury if a child's
hands, head or neck becomes caught
by the window.
CAUTION
To prevent burning out the fuse and
damaging the power window system,
do not open or close more than three
windows at once.
qOperating the Driver's Side
Power Window
Manual opening/closing
To open the window to the desired
position, lightly hold down the switch.
To close the window to the desired
position, lightly pull up the switch.
Open Close Driver's window
Auto-opening
To fully open the window automatically,
press the switch completely down.
To stop the window partway, lightly pull
up the switch and then release it.
3-18
Knowing Your Mazda
íSome models.
Doors and Locks
Mazda3_8X41-EA-07F_Edition1 Page90
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (95,1)

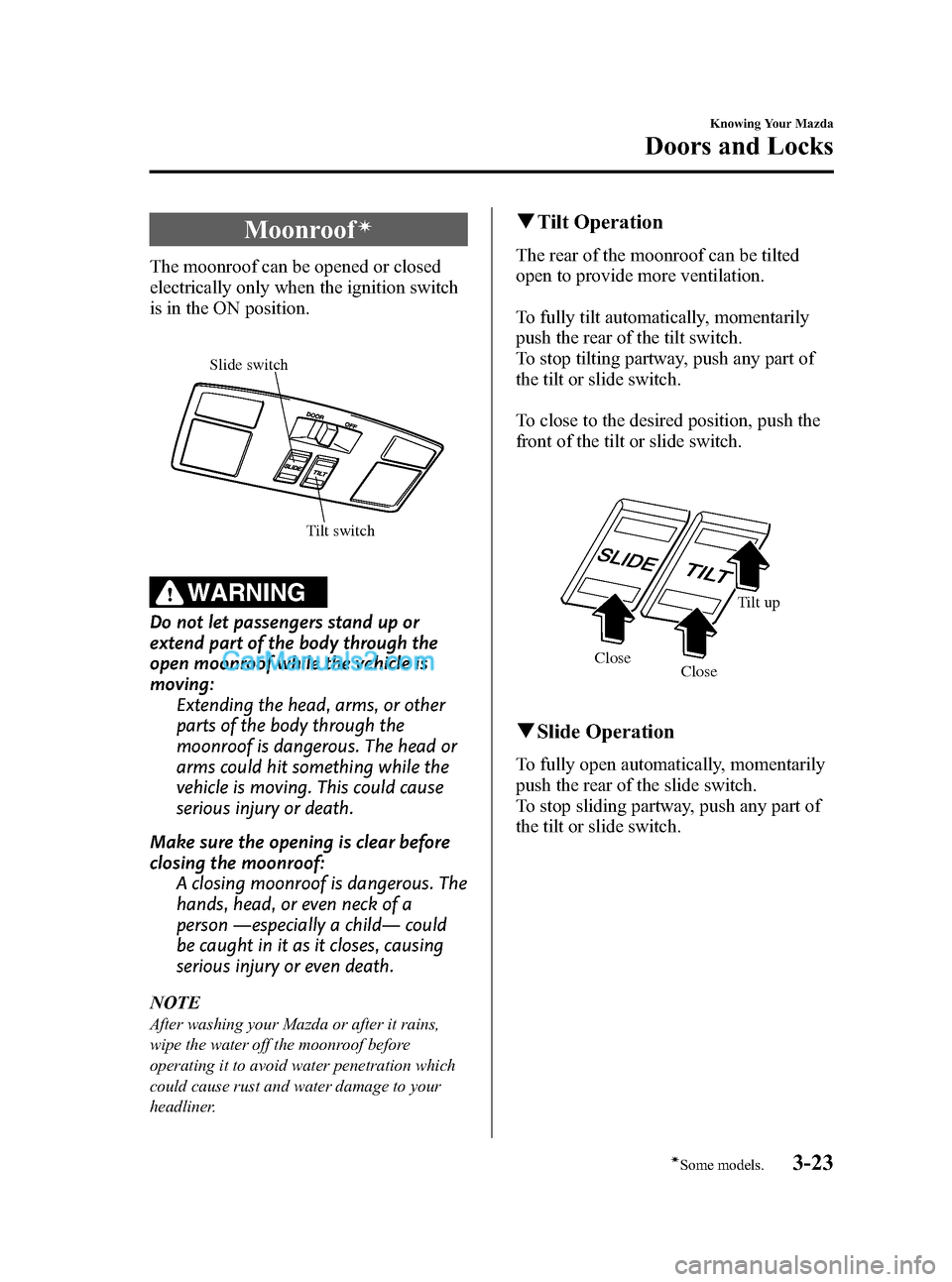

Moonroofí
The moonroof can be opened or closed
electrically only when the ignition switch
is in the ON position.
Tilt switch Slide switch
WARNING
Do not let passengers stand up or
extend part of the body through the
open moonroof while the vehicle is
moving:
Extending the head, arms, or other
parts of the body through the
moonroof is dangerous. The head or
arms could hit something while the
vehicle is moving. This could cause
serious injury or death.
Make sure the opening is clear before
closing the moonroof:
A closing moonroof is dangerous. The
hands, head, or even neck of a
person―especially a child―could
be caught in it as it closes, causing
serious injury or even death.
NOTE
After washing your Mazda or after it rains,
wipe the water off the moonroof before
operating it to avoid water penetration which
could cause rust and water damage to your
headliner.
qTilt Operation
The rear of the moonroof can be tilted
open to provide more ventilation.
To fully tilt automatically, momentarily
push the rear of the tilt switch.
To stop tilting partway, push any part of
the tilt or slide switch.
To close to the desired position, push the
front of the tilt or slide switch.
CloseTilt up
Close
qSlide Operation
To fully open automatically, momentarily
push the rear of the slide switch.
To stop sliding partway, push any part of
the tilt or slide switch.
Knowing Your Mazda
Doors and Locks
3-23íSome models. Mazda3_8X41-EA-07F_Edition1 Page95
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (97,1)
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not being
transmitted correctly.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the key grip.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
ØDevices for electronic purchases, or
security passage touch or come
near the key.
Knowing Your Mazda
Security System
3-25
Mazda3_8X41-EA-07F_Edition1 Page97
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (116,1)
Turbocharger Informationí
The turbocharger greatly enhances engine power. Its advanced design provides improved
operation and requires minimum additional maintenance. To get maximum performance
from your turbocharged engine, take note of the following tips:
lThe turbocharged engine is designed for optimal operation with premium unleaded
gasoline (page 4-2). Do not use fuel with a lower octane rating. Extra fuel additives are
NOT recommended.
lChange the engine oil and filter using the turbo engine interval outlined in the
maintenance schedule (for your driving condition).
lUse only the recommended engine oil (page 8-18). Extra oil additives are NOT
recommended.
lAfter driving at freeway speeds or up a long hill, idle the engine at least 30 seconds to
cool the turbo before turning off the engine. Avoid simply shutting the engine off
abruptly after a hard or long drive. Damage to the turbocharger may result.
lDon't race or over-rev the engine when starting. This should not be done with ANY
engine, especially not with one that's turbocharged.
lDo not add any aftermarket devices to alter the engine's ignition timing, fuel delivery, or
turbo boost pressure. This may lead to serious engine damage and may void your
warranty.
4-12
Before Driving Your Mazda
íSome models.
Driving Tips
Mazda3_8X41-EA-07F_Edition1 Page116
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (125,1)
qBrake System Warning Light
This warning has the following functions:
Parking brake warning
The light comes on when the parking
brake is applied with the ignition switch
in the START or ON position. It goes off
when the parking brake is fully released.
Low brake fluid level warning
If the light stays on after the parking brake
is fully released, you may have a brake
problem.
Drive to the side of the road and park off
the right-of-way.
You may notice that the pedal is harder to
push or that it may go closer to the floor.
In either case, it will take longer to stop
the vehicle.
1. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (page 8-23).
2. After adding fluid, check the light
again.
If the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have it towed to an
Authorized Mazda Dealer.
Even if the light goes out have your brake
system inspected as soon as possible by
an Authorized Mazda Dealer.NOTE
Having to add brake fluid is sometimes an
indicator of leakage. Consult an Authorized
Mazda Dealer as soon as possible even if the
brake light is no longer illuminated.
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
qAnti-Lock Brake System (ABS)í
The ABS control unit continuously
monitors the speed of each wheel. If one
is about to lock up, the ABS responds by
automatically releasing and reapplying
that wheel's brake.
The driver will feel a slight vibration in
the brake pedal and may hear a chattering
noise from the brake system. This is
normal when the ABS operates. Don't
pump the brakes, continue to press down
on the brake pedal.
Driving Your Mazda
Starting and Driving
5-7íSome models. Mazda3_8X41-EA-07F_Edition1 Page125
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F
