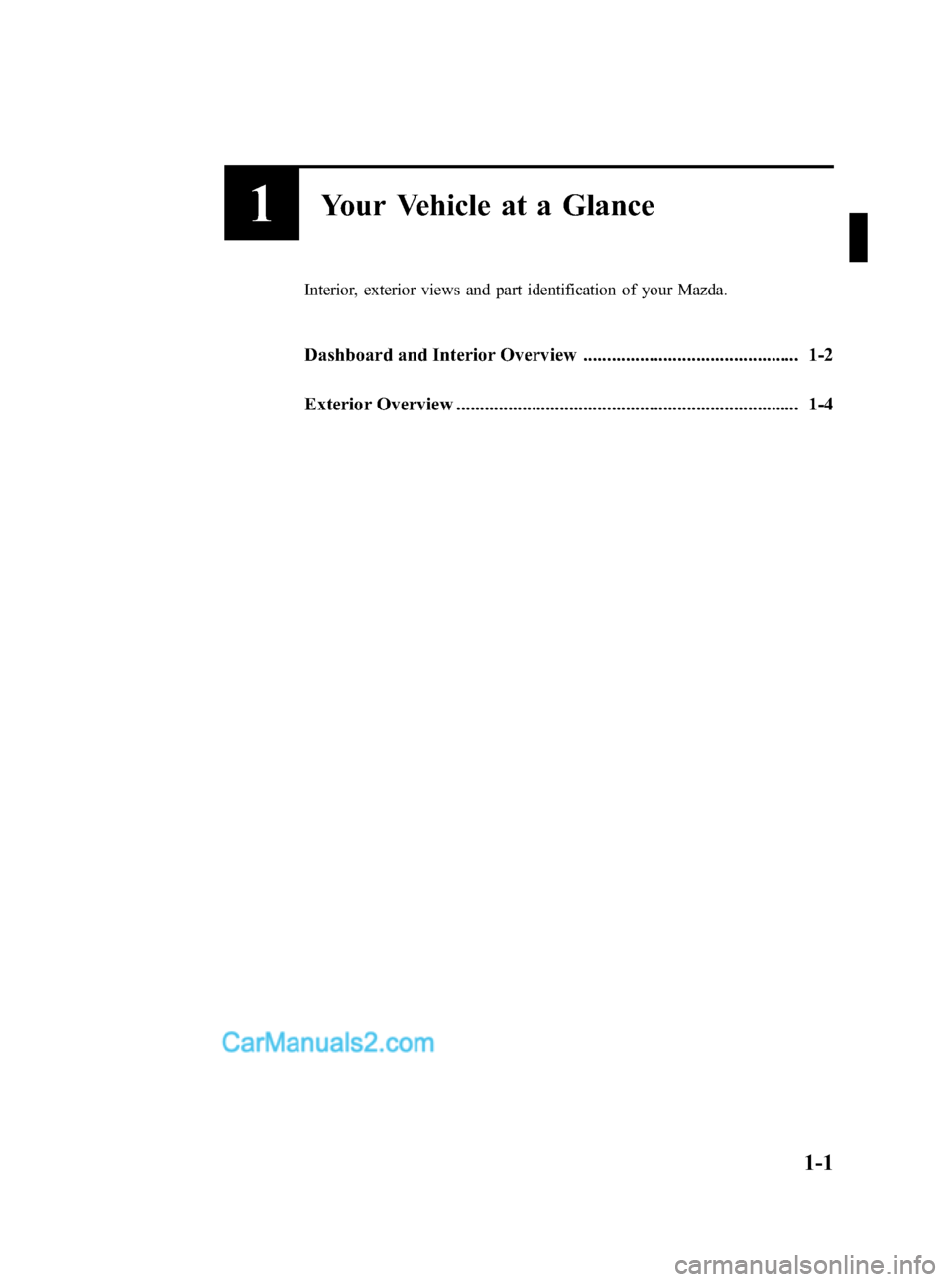

1Your Vehicle at a Glance
Interior, exterior views and part identification of your Mazda.
Dashboard and Interior Overview .............................................. 1-2
Exterior Overview ......................................................................... 1-4
1-1
Mazda3_8X41-EA-07F_Edition1 Page7
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (8,1)
*Refer to Navigation System at the separate manual (if equipped).
Power window lock switch ................................................................................ page 3-19
Power window switches .................................................................................... page 3-18
Power door lock switch ....................................................................................... page 3-9
1-2
Your Vehicle at a Glance
The equipment and installation position varies by vehicle
Dashboard and Interior Overview
Mazda3_8X41-EA-07F_Edition1 Page8
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (9,1)
Headlight leveling switch .................................................................................. page 5-52
Dashboard illumination knob ............................................................................ page 5-35
Lighting control/Turn signal .............................................................................. page 5-50
Instrument cluster .............................................................................................. page 5-32
SRS air bags ...................................................................................................... page 2-40
Cruise control switches ...................................................................................... page 5-19
Wiper and washer lever ..................................................................................... page 5-54
Hazard warning flasher switch .......................................................................... page 5-60
Information display ............................................................................................ page 6-53
Audio system ..................................................................................................... page 6-16
Glove box .......................................................................................................... page 6-60
Center console ................................................................................................... page 6-61
Parking brake ....................................................................................................... page 5-6
Cup holder ......................................................................................................... page 6-59
MT shift lever ...................................................................................................... page 5-9
AT shift lever (Sport AT) ................................................................................... page 5-12
Lighter ............................................................................................................... page 6-58
Rear window defroster switch ........................................................................... page 5-58
Ashtray ............................................................................................................... page 6-58
Climate control system ........................................................................................ page 6-2
Ignition switch ..................................................................................................... page 5-2
Steering column release lever ............................................................................ page 3-29
Audio control switches ...................................................................................... page 6-44
Remote fuel-filler lid release ............................................................................. page 3-20
Hood release handle .......................................................................................... page 3-21
Outside mirror switch ........................................................................................ page 3-29
Interior lights ..................................................................................................... page 6-50
Sunvisor ............................................................................................................. page 6-50
Rearview mirror ................................................................................................. page 3-30
Vanity mirror ...................................................................................................... page 6-50
Front seat ............................................................................................................. page 2-2
Seat belt ............................................................................................................. page 2-10
Rear seat .............................................................................................................. page 2-5
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3The equipment and installation position varies by vehicle Mazda3_8X41-EA-07F_Edition1 Page9
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (54,1)
Supplemental Restraint Systems (SRS) Precautions
The front and side supplemental restraint systems (SRS) include up to 6 air bags.Please
verify which kinds of air bags are equipped on your vehicle by locating the“SRS
AIRBAG”location indicators.These indicators are visible in the area where the air bags
are installed.
The air bags are installed in the following locations:
lThe steering wheel hub (driver air bag)lThe front passenger dashboard (front passenger air bag)lThe outboard sides of the front seatbacks (side air bags)í
lThe front and rear window pillars, and the roof edge along both sides (curtain air bags)í
These systems operate independently depending on the type of accident encountered; if
you have side and curtain air bags, the side and curtain air bags are not likely to deploy on
both sides in the same accident because a vehicle is not often hit from both sides. The side
and curtain air bags and the frontal air bag system will not normally deploy during the
same type of accident unless a combination of frontal and side impacts occur.
The air bag supplemental restraint systems are designed to provide supplemental protection
only in the front seats in certain situations and the rear outside passenger positions only in
same-side collisions, so seat belts are always important in the following ways:
Without seat belt usage, the air bags cannot provide adequate protection during an accident.
Seat belt usage is necessary to:
lKeep the occupant from being thrown into an inflating air bag.lReduce the possibility of injuries during an accident that is not designed for air bag
inflation, such as roll-over or rear impact.
lReduce the possibility of injuries in frontal or side collisions that are not severe enough
to activate the air bags.
lReduce the possibility of being thrown from your vehicle.lReduce the possibility of injuries to lower body and legs during an accident because the
air bags provide no protection to these parts of the body.
lHold the driver in a position which allows better control of the vehicle.
Small children must be protected by a child-restraint system as stipulated by law in every
state and province. In certain states and provinces, larger children must use a child-restraint
system (page 2-25).
Carefully consider which child-restraint system is necessary for your child and follow the
installation directions in this Owner's Manual as well as the child-restraint system
manufacturer's instructions.
2-40
Essential Safety Equipment
íSome models.
SRS Air Bags
Mazda3_8X41-EA-07F_Edition1 Page54
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (58,1)
Supplemental Restraint System Components
The supplemental restraint systems (SRS) have two basic subsystems:lThe air bag system with inflators and air bags.lThe electrical system with crash sensors and diagnostic module.
The air bags are mounted in the following locations:
lThe steering wheel hublThe front passenger dashboardlThe outboard sides of the front seatbacksí
lThe front and rear window pillars, and the roof edge along both sidesí
The air bags are out of sight until activated.
2-44
Essential Safety Equipment
íSome models.
SRS Air Bags
Mazda3_8X41-EA-07F_Edition1 Page58
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (71,1)
lThe air bag system warning beep
sound will be heard.
lThe air bags have deployed.lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to“Front passenger
seat weight sensors”(page 2-47).
WARNING
Do not operate a vehicle with damaged
air bag/seat belt pretensioner system
components:
Expended or damaged air bag/seat
belt pretensioner system components
must be replaced after any collision
which caused them to deploy or
damage them. Only a trained
Authorized Mazda Dealer can fully
evaluate these systems to see that
they will work in any subsequent
accident. Driving with an expended
or damaged air bag or pretensioner
unit will not afford you the necessary
protection in the event of any
subsequent accident which could
result in serious injury or death.
Do not remove interior air bag parts:
Removing any components such as
the front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along
the roof edge, containing air bag
parts or sensors is dangerous. These
parts contain essential air bag
components. The air bag could
accidentally activate and cause
serious injuries. Always have an
Authorized Mazda Dealer remove
these parts.
Dispose of the air bag properly:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all
safety procedures are followed, injury
can result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
Essential Safety Equipment
SRS Air Bags
2-57
Mazda3_8X41-EA-07F_Edition1 Page71
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (75,1)
To retract the key, rotate it into the holder
while pressing the release button.Keyless Entry Systemí
This system remotely locks and unlocks
the doors and the liftgate.
It can also help you signal for attention.
Press the buttons slowly and carefully.
CAUTION
To avoid damage to the transmitter,
do not:
ØDrop the transmitter.
ØGet the transmitter wet.
ØDisassemble the transmitter.
ØExpose the transmitter to any kind
of magnetic field.
ØExpose the transmitter to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
NOTE
lThe keyless entry system is designed to
operate up to about 2.5 m (8 ft) from the
center of the vehicle, but this may vary due
to local conditions.
lThe system doesn't operate when the key is
in the ignition switch.
lDoors and the liftgate cannot be locked by
pressing the lock button while any other
door or the liftgate is open. Also, the hazard
warning lights will not flash.
lIf the transmitter does not operate when
pressing a button or the operation range
becomes too small, the battery may be
dead. To install a new battery, refer to
Maintenance (page 3-5).
lAdditional transmitters can be obtained at
an Authorized Mazda Dealer. Up to 3
transmitters can be used with the keyless
entry system per vehicle. Bring all
transmitters to an Authorized Mazda
Dealer when additional transmitters are
required.
Knowing Your Mazda
Doors and Locks
3-3íSome models. Mazda3_8X41-EA-07F_Edition1 Page75
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (97,1)
Immobilizer System
The immobilizer system allows the engine
to start only with a key the system
recognizes.
If someone attempts to start the engine
with an unrecognized key, the engine will
not start, thereby helping to prevent the
theft of your vehicle.
CAUTION
ØRadio equipment like this is
governed by laws in the United
States.
Changes or modifications not
expressly approved by the party
responsible for compliance could
void the user's authority to
operate the equipment.
ØTo avoid damage to the key, do
not:
ØDrop the key.
ØGet the key wet.
ØExpose the key to any kind of
magnetic field.
ØExpose the key to high
temperatures on places such as
the dashboard or hood, under
direct sunlight.
CAUTION
When starting the engine do not
allow the following, as the engine
may not start due to the electronic
signal from the ignition key not being
transmitted correctly.
ØA key ring rests on the key grip.
ØMetal parts of other keys or metal
objects touch the key grip.
ØSpare keys or keys for other
vehicles equipped with an
immobilizer system touch or come
near the key grip.
ØDevices for electronic purchases, or
security passage touch or come
near the key.
Knowing Your Mazda
Security System
3-25
Mazda3_8X41-EA-07F_Edition1 Page97
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F

Black plate (142,1)
Dynamic Stability Control
(DSC)
í
The Dynamic Stability Control (DSC)
automatically controls braking and engine
torque in conjunction with systems such
as ABS and TCS to help control side slip
when driving on slippery surfaces, or
during sudden or evasive maneuvering,
enhancing vehicle safety.
Refer to ABS (page 5-7) and TCS (page
5-23).
DSC operation is possible at speeds
greater than 20 km/h (12 mph).
WARNING
Do not rely on the dynamic stability
control as a substitute for safe driving:
The dynamic stability control (DSC)
cannot compensate for unsafe and
reckless driving, excessive speed,
tailgating (following another vehicle
too closely), and hydroplaning
(reduced tire friction and road
contact because of water on the road
surface). You can still have an
accident.
CAUTION
ØThe DSC may not operate correctly
unless the following are observed:
ØUse tires of the correct size
specified for your Mazda on all
four wheels.
ØUse tires of the same
manufacturer, brand and tread
pattern on all four wheels.
ØDo not mix worn tires.
ØThe DSC may not operate correctly
when tire chains are used or a
temporary spare tire is installed
because the tire diameter changes.
NOTE
After turning the ignition switch to the ON
position, a clicking sound may be heard behind
the dashboard. This sound is the result of the
DSC system self-check operation and does not
indicate an abnormality.
qTCS/DSC Indicator Light
This indicator light stays on for a few
seconds when the ignition switch is turned
to the ON position. If the TCS or DSC is
operating, the indicator light flashes.
If the light stays on, the TCS or DSC may
have a malfunction and they may not
operate correctly. Take your vehicle to an
Authorized Mazda Dealer.
5-24
Driving Your Mazda
íSome models.
Starting and Driving
Mazda3_8X41-EA-07F_Edition1 Page142
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F

Black plate (150,1)
Meters and Gauges
(Black-out meter)
When the ignition switch is in the ON position, the dashboard gauges illuminate.
Speedometer ...................................................................................................... page 5-33
Odometer, Trip Meter and Trip Meter Selector .................................................. page 5-33
Tachometer ........................................................................................................ page 5-34
Engine Coolant Temperature Gauge .................................................................. page 5-34
Fuel Gauge ........................................................................................................ page 5-35
Instrument Cluster Dimmer Select Button (Black-out meter) ............................ page 5-35
5-32
Driving Your Mazda
Instrument Cluster and Indicators
Mazda3_8X41-EA-07F_Edition1 Page150
Wednesday, April 25 2007 1:5 PM
Form No.8X41-EA-07F
