Page 34 of 394
Black plate (34,1)
qUnfastening the Seat Belt
Depress the button on the buckle. If the
belt does not fully retract, pull it out and
check for kinks or twists. Then make sure
it remains untwisted as it retracts.
Button
NOTE
If a belt does not fully retract, inspect it for
kinks and twists. If it is still not retracting
properly, have it inspected at an Authorized
Mazda Dealer.
qUnfastening the Lap Portion of
the Seat Belt
Insert a small object such as a key in the
anchor buckle (B) slot.
(A)
(B)
CAUTION
Always unfasten the lap portion of
the belt before folding the left-rear
seatback. Leaving the lap portion of
the belt fastened could cause
damage to the seat belt, buckle and
seatback.
NOTE
To encourage rear seat passengers to wear
their seat belts, we suggest leaving the center-
rear lap position of the belt fastened at all
times except when folding the rear seat
forward.
qFastening the Lap Portion of the
Seat Belt
Grasp tongue (A) and insert it into the
anchor buckle (B) until you hear a click. It
is now secure for passenger use.
NOTE
After returning the left-rear seatback to its
upright position, fasten the lap portion of the
belt.
qStowing and pulling out the
Center-Rear Position Seat Belt
The center-rear position seat belt can be
stowed using the following procedure.
CAUTION
When stowing the seat belt, make
sure the belt is locked securely into
the recess. If the seat belt is not
properly stowed, it might get caught
in the seats and be damaged.
To stow the seat belt, retract the belt, put
tongues (A) and (C) together and insert
them into the recess.
2-20
Essential Safety Equipment
Seat Belt Systems
Mazda3_8X41-EA-07F_Edition1 Page34
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F
Page 105 of 394
Black plate (105,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2
Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-4
Engine Exhaust (Carbon Monoxide) ......................................... 4-5
Before Starting the Engine ........................................................... 4-6
Before Getting In ...................................................................... 4-6
After Getting In ......................................................................... 4-6
Driving Tips ................................................................................... 4-7
Break-In Period ......................................................................... 4-7
Money-Saving Suggestions ...................................................... 4-7
Hazardous Driving .................................................................... 4-8
Rocking the Vehicle .................................................................. 4-9
Winter Driving .......................................................................... 4-9
Driving In Flooded Area ......................................................... 4-11
Overloading ............................................................................. 4-11
Turbocharger Information
í.................................................... 4-12
Towing ......................................................................................... 4-13
Trailer Towing ......................................................................... 4-13
4-1íSome models.
Mazda3_8X41-EA-07F_Edition1 Page105
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F
Page 117 of 394
Black plate (117,1)
Trailer Towing
The Mazda3 is not designed for towing.
Never tow a trailer with your Mazda3.
Before Driving Your Mazda
Towing
4-13
Mazda3_8X41-EA-07F_Edition1 Page117
Wednesday, April 25 2007 1:4 PM
Form No.8X41-EA-07F
Page 245 of 394
Black plate (245,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-8
Overheating ................................................................................. 7-14
Overheating ............................................................................. 7-14
Emergency Starting .................................................................... 7-16
Starting a Flooded Engine ....................................................... 7-16
Jump-Starting .......................................................................... 7-17
Push-Starting ........................................................................... 7-20
Emergency Towing ..................................................................... 7-21
Towing Description ................................................................. 7-21
Tiedown Hook ........................................................................ 7-22
Recreational Towing ............................................................... 7-23
7-1
Mazda3_8X41-EA-07F_Edition1 Page245
Wednesday, April 25 2007 1:6 PM
Form No.8X41-EA-07F
Page 264 of 394
Black plate (264,1)
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:
Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transaxle. It can damage
the emission control system.
NOTE
You can't start a vehicle with an automatic
transaxle by pushing it.
7-20
In Case of an Emergency
Emergency Starting
Mazda3_8X41-EA-07F_Edition1 Page264
Wednesday, April 25 2007 1:6 PM
Form No.8X41-EA-07F
Page 265 of 394
Black plate (265,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel dollies.
Wheel dollies
When towing with the rear wheels on the
ground, release the parking brake.
CAUTION
Don't tow the vehicle pointed
backward with driving wheels on the
ground. This may cause internal
damage to the transaxle.
CAUTION
Don't tow with sling-type equipment.
This could damage your vehicle. Use
wheel-lift or flatbed equipment.
In Case of an Emergency
Emergency Towing
7-21
Mazda3_8X41-EA-07F_Edition1 Page265
Wednesday, April 25 2007 1:6 PM
Form No.8X41-EA-07F
Page 266 of 394
Black plate (266,1)

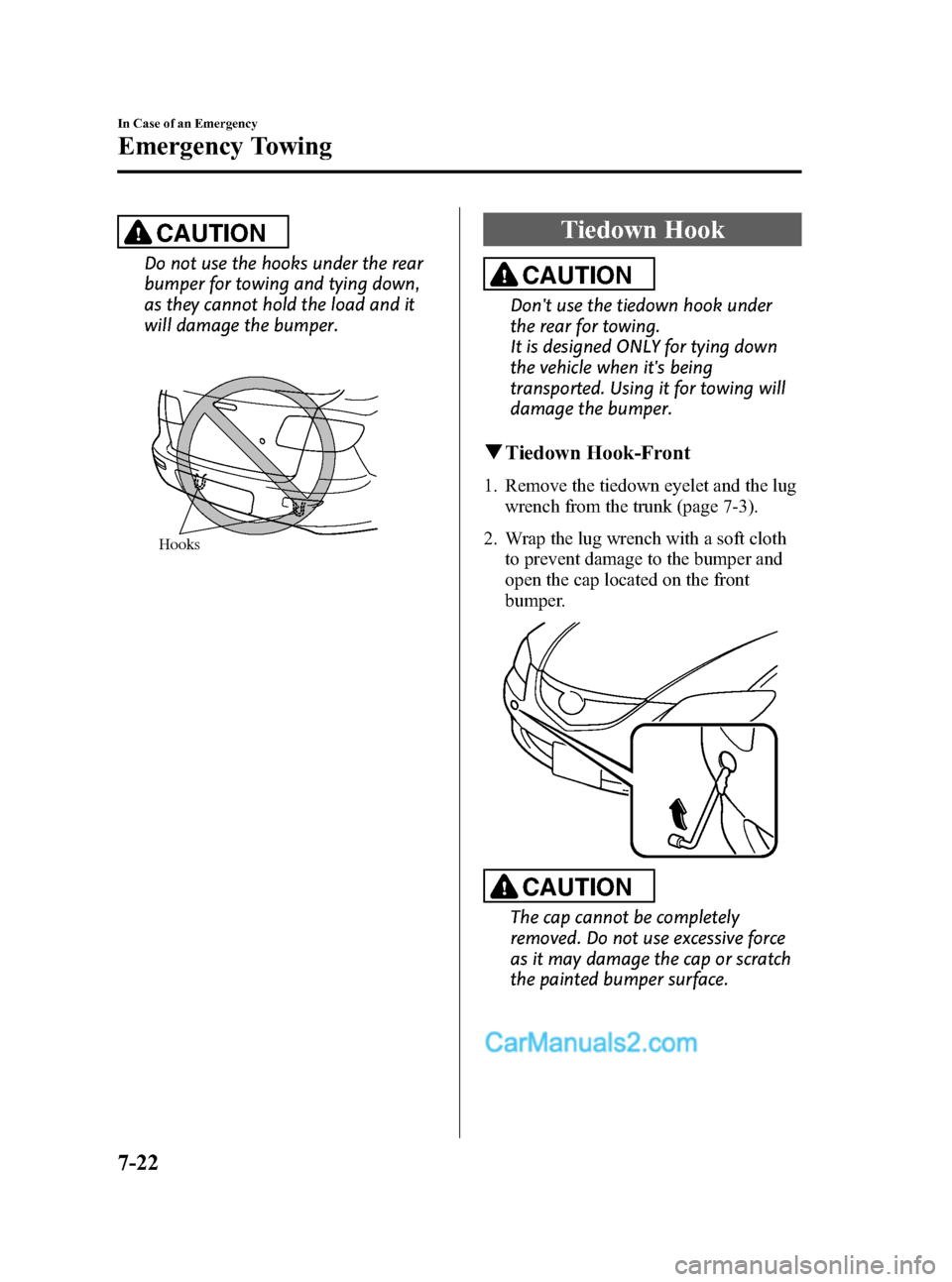

CAUTION
Do not use the hooks under the rear
bumper for towing and tying down,
as they cannot hold the load and it
will damage the bumper.
Hooks
Tiedown Hook
CAUTION
Don't use the tiedown hook under
the rear for towing.
It is designed ONLY for tying down
the vehicle when it's being
transported. Using it for towing will
damage the bumper.
qTiedown Hook-Front
1. Remove the tiedown eyelet and the lug
wrench from the trunk (page 7-3).
2. Wrap the lug wrench with a soft cloth
to prevent damage to the bumper and
open the cap located on the front
bumper.
CAUTION
The cap cannot be completely
removed. Do not use excessive force
as it may damage the cap or scratch
the painted bumper surface.
7-22
In Case of an Emergency
Emergency Towing
Mazda3_8X41-EA-07F_Edition1 Page266
Wednesday, April 25 2007 1:6 PM
Form No.8X41-EA-07F
Page 267 of 394
Black plate (267,1)
3. Securely install the tiedown eyelet
using the lug wrench.
Lug wrench
4. Hook the tying rope to the tiedown
eyelet.
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
Recreational Towing
An example of“recreational towing”is
towing your vehicle behind a motorhome.
The transaxle is not designed for towing
this vehicle on all 4 wheels.
When doing recreational towing refer to
“Towing Description”(page 7-21) and
“Tiedown Hook”(page 7-22) and
carefully follow the instructions.
In Case of an Emergency
Emergency Towing
7-23
Mazda3_8X41-EA-07F_Edition1 Page267
Wednesday, April 25 2007 1:6 PM
Form No.8X41-EA-07F
Page 366 of 394
Black plate (366,1)
Vehicle Loading
WARNING
Do not taw a trailer with this vehicle:
Towing a trailer with this vehicle is dangerous because it has not been designed to
tow a trailer and doing so will affect the drive system which could result in vehicle
damage.
This section will guide you in the proper loading of your vehicle and/or trailer, to keep
your loaded vehicle weight within its design rating capability, with or without a trailer.
Properly loading your vehicle will provide maximum return of vehicle design performance.
Before loading your vehicle, familiarize yourself with the following terms for determining
your vehicle's weight ratings, with or without a trailer, from the vehicle's Safety
Certification Label and Tire and Load Information Label:
WARNING
Overloaded Vehicle:
Overloading a vehicle is dangerous. The results of overloading can have serious
consequences in terms of passenger safety. Too much weight on a vehicle's
suspension system can cause spring or shock absorber failure, brake failure,
handling or steering problems, irregular tire wear, tire failure or other damage.
Overloading makes a vehicle harder to drive and control. It also increases the
distance required for stopping. In cases of serious overloading, brakes can fail
completely, particularly on steep grades. The load a tire will carry safely is a
combination of the size of the tire, its load range, and corresponding inflation
pressure.
Never overload the vehicle and always observe the vehicle's weight ratings from the
vehicle's Safety Certification and Tire and Load Information labels.
9-34
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda3_8X41-EA-07F_Edition1 Page366
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F
Page 368 of 394
Black plate (368,1)
SAMPLE
CARGO
Cargo Weightincludes all weight added to the Base Curb Weight, including cargo and
optional equipment. When towing, trailer tongue load or king pin weight is also part of
cargo weight.
The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the“combination weight of occupants and cargo should never exceed”value on the tire
label.
9-36
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
Mazda3_8X41-EA-07F_Edition1 Page368
Wednesday, April 25 2007 1:7 PM
Form No.8X41-EA-07F
