MAZDA MODEL MAZDASPEED 3 2009 Owners Manual (in English)

Black plate (401,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil Without turbocharger
With oil filter
replacement
4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement 3.9 L (4.1 US qt, 3.4 Imp qt)
With turbocharger With oil filter
replacement
5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement 5.3 L (5.6 US qt, 4.7 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil Without turbocharger
2.87 L (3.03 US qt, 2.53 Imp qt)
With turbocharger 2.5 L (2.6 US qt, 2.2 Imp qt)
Automatic transaxle fluid 4-speed transaxle
7.2 L (7.6 US qt, 6.3 Imp qt)
5-speed transaxle 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank 55.0 L
(14.5 US gal, 12.1 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Model
4 Door 5 Door
Overall length Without
turbocharger STANDARD TYPE
4,505 mm (177.4 in)―
SPORTY TYPE 4,510 mm (177.6 in) 4,490 mm (176.8 in)
With turbocharger ―4,490 mm (176.8 in)
Overall width Without
turbocharger Without side molding
1,745 mm (68.7 in) 1,745 mm (68.7 in)
With side molding 1,755 mm (69.1 in) 1,755 mm (69.1 in)
With turbocharger ―1,765 mm (69.5 in)
Overall height 1,465 mm (57.7 in) 1,465 mm (57.7 in)
Front tread Without turbocharger
1,530 mm (60.2 in) 1,530 mm (60.2 in)
With turbocharger ―1,535 mm (60.4 in)
Rear tread Without turbocharger
1,515 mm (59.6 in) 1,515 mm (59.6 in)
With turbocharger ―1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in) 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8Z87-EA-08F_Edition1 Page401
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (402,1)
qWeights
4 Door
2.0-liter engine
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,719 kg (3,790 lbs) 1,733 kg (3,821 lbs)
GAWR (Gross Axle Weight Rating) Front 919 kg (2,026 lbs)
983 kg (2,068 lbs)
Rear 800 kg (1,764 lbs) 795 kg (1,753 lbs)
2.3-liter engine
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,764 kg (3,889 lbs) 1,792 kg (3,951 lbs)
GAWR (Gross Axle Weight Rating) Front 952 kg (2,099 lbs)
981 kg (2,163 lbs)
Rear 812 kg (1,790 lbs) 811 kg (1,788 lbs)
5 Door
Without turbocharger
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,783 kg (3,931 lbs) 1,811 kg (3,993 lbs)
GAWR (Gross Axle Weight Rating) Front 954 kg (2,103 lbs)
983 kg (2,167 lbs)
Rear 829 kg (1,828 lbs) 828 kg (1,825 lbs)
With turbocharger Item Weight
GVWR (Gross Vehicle Weight Rating) 1,866 kg (4,114 lbs)
GAWR (Gross Axle Weight Rating) Front
1,055 kg (2,326 lbs)
Rear 811 kg (1,788 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
10-6
Specifications
Mazda3_8Z87-EA-08F_Edition1 Page402
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (403,1)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
Headlights High beam
60HB3 (HB3)
Low beam Halogen
55H7 (H7)
Xenon fusion 35D2S (D2S)
Front turn signal lights/Side-marker lights 27/8―(#1157NA)
Fog lights
íType A 55H11 (H11)
Type B 51HB4 (HB4)
Side turn signal lights
*15 WY5W (―)
High-mount brake light 4 Door
18W16W (#921)
5 Door Bulb type
18W16W (#921)
LED type LED
*2―(― )
Rear turn signal lights 21WY21W (―)
Brake lights/Taillights Bulb type
21/5 W21/5W (#7443)
LED type LED
*2―(― )
Reverse lights 21W21W (#7440)
License plate light 5W5W (―)
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 LED is the abbreviation for Light Emitting Diode.
Fog lights
Type A Type B
Interior light Light bulb Category
Wattage ECE R
Trunk light (4 Door) 5W5W
Luggage compartment light (5 Door) ―
Overhead light/Map lights (Front)
íW5W
Overhead light (Rear) 10―
Vanity mirror lights
í1.2 ―
Specifications
10-7íSome models.
Mazda3_8Z87-EA-08F_Edition1 Page403
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (404,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-35.
Standard tire
Tire size Inflation pressure
Front Rear
P195/65R15 89H 230 kPa (34 psi)230 kPa (34 psi)
P205/55R16 89H 220 kPa (32 psi)220 kPa (32 psi)
P205/50R17 88V 220 kPa (32 psi)220 kPa (32 psi)
215/45R18 93Y 230 kPa (34 psi)220 kPa (32 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M 420 kPa (60 psi)
T125/70D16 96M
T125/70D17 98M
q Fuses
Refer to the fuse rating on page 8-50.
10-8
Specifications
Mazda3_8Z87-EA-08F_Edition1 Page404
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (405,1)

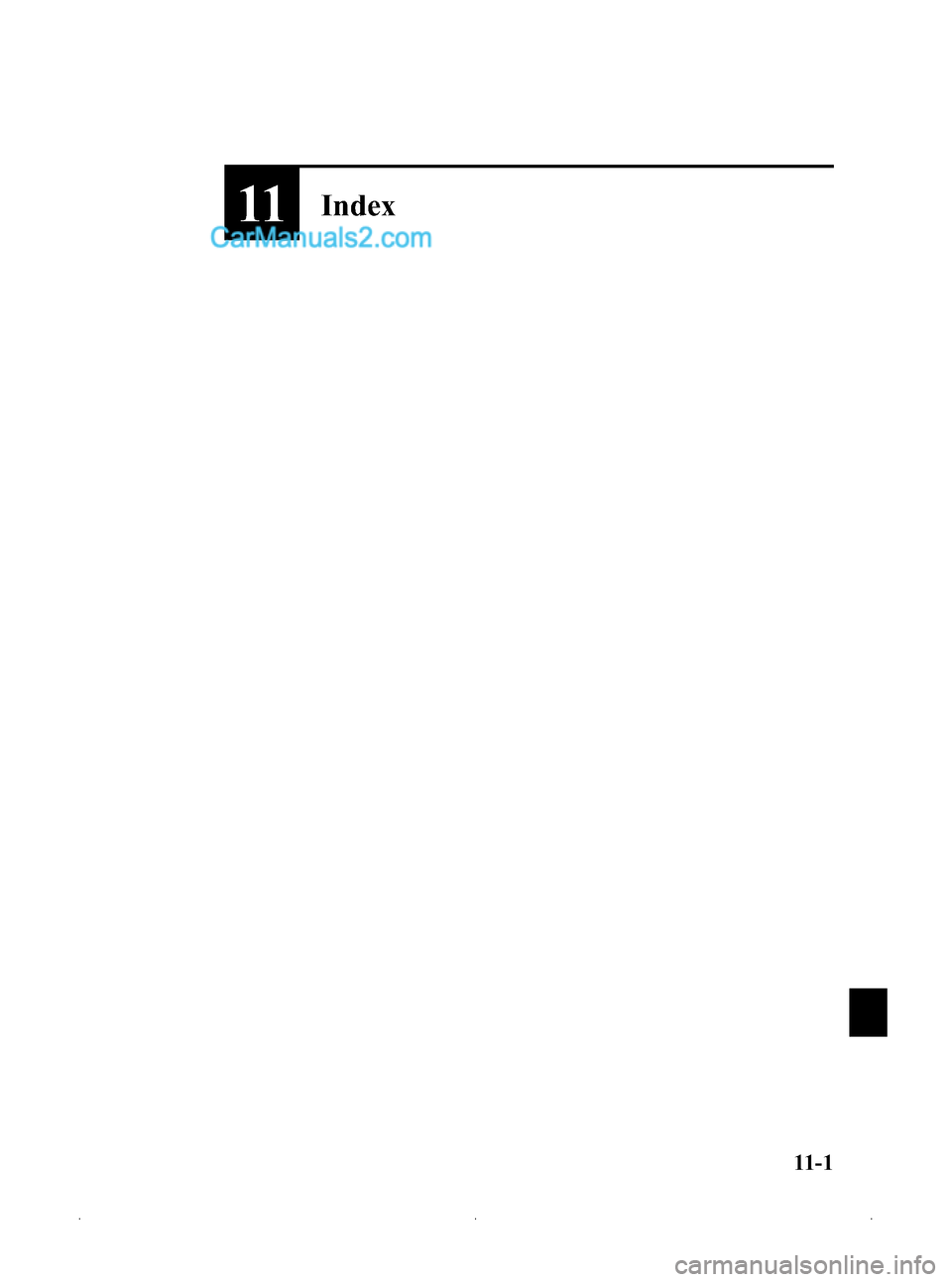

11Index
11-1
Mazda3_8Z87-EA-08F_Edition1 Page405
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (406,1)
A
Accessory Socket .............................. 6-76
Add-On Non-Genuine Parts and
Accessories ....................................... 9-17
Air Bag Systems ............................... 2-42
Ambient Temperature Display .......... 6-66
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-7Warning light ............................... 5-8
Appearance Care ............................... 8-58
Ashtray .............................................. 6-70
Audio System ................................... 6-16 Audio control switch .................. 6-56
Audio set .................................... 6-27
AUX mode ................................. 6-58
Operating tips for audio
system ........................................ 6-17
Safety certification ..................... 6-61
Automatic Transaxle Driving tips ................................ 5-18
Fluid ........................................... 8-25
Manual shift mode ..................... 5-14
Shift-lock override ..................... 5-14
Shift-lock system ....................... 5-14
Transaxle ranges ........................ 5-13
B
BatteryEmergency starting .................... 7-16
Maintenance ............................... 8-32
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-50
Lights-on reminder ..................... 5-50
Tire inflation pressure warning
beep ............................................ 5-50
Beeps
Seat belt warning beep Sounds ... 5-50
B
Before Starting the Engine .................. 4-6After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-28
Bottle Holder ..................................... 6-72
Brake/Clutch Fluid ........................................... 8-23
Brakes Anti-lock brake system (ABS) ..... 5-7
Brakes assist ................................. 5-9
Foot brake .................................... 5-5
Parking brake ............................... 5-6
Warning light ............................... 5-7
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-39
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-73
Cargo Sub-Compartment .................. 6-73
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-18
Center Console .................................. 6-73
Child Restraint Child restraint precautions ......... 2-27
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-37
Child Safety Locks for Rear Doors ... 3-11
Cigarette Lighter ............................... 6-70
Climate Control System ...................... 6-2 Gas specifications ...................... 10-6
Clock ................................................. 6-66
Cruise Control ................................... 5-20
Cup Holder ........................................ 6-71
11-2
Index
Mazda3_8Z87-EA-08F_Edition1 Page406
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (407,1)
C
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-36
Daytime Running Lights ................... 5-54
DefrosterMirror ......................................... 5-60
Rear window .............................. 5-60
Dimensions ....................................... 10-5
Door Locks ......................................... 3-8
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
Driving Tips ........................................ 4-7 Automatic transaxle ................... 5-18
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving ............................ 4-10
Dynamic Stability Control (DSC) ..... 5-24 DSC OFF indicator light ............ 5-25
DSC OFF switch ........................ 5-25
TCS/DSC Indicator light ............ 5-25
E
Emergency Starting ........................... 7-16
Flooded engine ........................... 7-16
Jump-starting .............................. 7-17
Push-starting .............................. 7-20
Emergency Towing ........................... 7-21
Emission Control System .................... 4-4
E
Engine Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-22
Oil .............................................. 8-18
Overheating ................................ 7-14
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant Overheating ................................ 7-14
Engine Coolant Temperature
Gauge ................................................ 5-35
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-60
F
Flasher Hazard warning .......................... 5-61
Headlights .................................. 5-51
Flat Tire ............................................... 7-3 Changing ...................................... 7-8
Spare tire and tool storage ............ 7-3
Flexible Floor Board ......................... 6-74
Fluids Classification .............................. 10-4
Owner maintenance ................... 8-15
Fog Lights ......................................... 5-55
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-4
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-20
Gauge ......................................... 5-36
Requirements ............................... 4-2
Tank capacity ............................. 10-5
Index
11-3
Mazda3_8Z87-EA-08F_Edition1 Page407
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (408,1)
F
Fuses ................................................. 8-50Panel description ........................ 8-53
Replacement ............................... 8-50
G
Glove Box ......................................... 6-72
H
Hazard Warning Flasher .................... 5-61
Hazardous Driving .............................. 4-8
HeadlightsControl ....................................... 5-51
Flashing ...................................... 5-53
High-low beam .......................... 5-53
Leveling ..................................... 5-53
On reminder ............................... 5-53
Hood Release .................................... 3-22
Horn .................................................. 5-61
I
Ignition Keys ............................................. 3-2
Switch .......................................... 5-2
Illuminated Entry System ................. 6-62
Immobilizer System .......................... 3-26
Indicator Lights ................................. 5-38 Cruise ......................................... 5-48
DSC OFF .................................... 5-48
Headlight high-beam .................. 5-47
Power steering malfunction ........ 5-49
Security ...................................... 5-47
Shift position .............................. 5-47
TCS/DSC ................................... 5-48
Turn-signal/hazard warning ....... 5-49
I
Information Display .......................... 6-65Ambient temperature display ..... 6-66
Audio display ............................. 6-67
Climate control display .............. 6-67
Clock .......................................... 6-66
Information display functions .... 6-65
Trip computer ............................. 6-67
Inside Trunk Release Lever ............... 3-17
Instrument Cluster ............................. 5-33
Instrument Cluster Dimmer Select
Button ............................................... 5-36
Interior Care ...................................... 8-63
Interior Lights ................................... 6-62
J
Jump-Starting .................................... 7-17
K
Keyless Entry System ......................... 3-3
Keys .................................................... 3-2
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-54
Liftgate .............................................. 3-11 Luggage compartment ............... 3-13
Light Bulbs Replacement ............................... 8-39
Specifications ............................. 10-7
Lighter ............................................... 6-70
Lighting Control ............................... 5-51
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-63
11-4
Index
Mazda3_8Z87-EA-08F_Edition1 Page408
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (409,1)
M
MaintenanceIntroduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting.... 5-10
Map Lights ........................................ 6-63
Mirror Defroster ................................ 5-60
Mirrors Outside mirrors .......................... 3-30
Rearview mirror ......................... 3-31
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-24
O
Odometer and Trip Meter .................. 5-34
Outside Mirrors ................................. 3-30
Overhead Lights ................................ 6-63
Overheating ....................................... 7-14
Overloading ...................................... 4-12
P
Paint Damage .................................... 8-58
Parking Brake ..................................... 5-6
Parking in an Emergency .................... 7-2
Power Door Locks ............................ 3-10
Power Steering .................................. 5-19 Fluid ........................................... 8-24
Power steering malfunction indicator
light ............................................ 5-19
Power Windows ................................ 3-18
Push-Starting ..................................... 7-20
R
Rear Door Child Safety Locks .......... 3-11
Rear Seat ............................................. 2-7
Rear Window Defroster .................... 5-60
Rear Window Washer ....................... 5-59
Rear Window Wiper .......................... 5-59
Rearview Mirror ................................ 3-31
Recreational Towing ......................... 7-23
Registering Your Vehicle in A Foreign
Country ............................................. 9-16
Rocking the Vehicle ............................ 4-9
S
Safety Defects, Reporting ................. 9-43
Seat Belt System Automatic locking ...................... 2-16
Belt minder ................................. 2-25
Center-rear lap/shoulder ............. 2-21
Emergency locking .................... 2-15
Except center-rear position ......... 2-17
Extender ..................................... 2-24
Pregnant women ........................ 2-15
Pretensioner and load limiting .... 2-19
Seat belt precautions .................. 2-13
Warning light/beep ..................... 2-25
Seats Front seat
(Electrically operated seats) ......... 2-4
Front seat
(Manually operated seats) ............ 2-2
Rear seat ....................................... 2-7
Seat warmer ................................ 2-11
Security System Immobilizer system .................... 3-26
Theft-deterrent system ............... 3-28
Service Publications .......................... 9-45
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Index
11-5
Mazda3_8Z87-EA-08F_Edition1 Page409
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (410,1)
S
Speedometer ...................................... 5-34
SRS Air BagsHow the Air Bags Work ............. 2-48
Supplemental restraint systems
precautions ................................. 2-42
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-30 Horn ........................................... 5-61
Storage Compartments ...................... 6-72 Cargo securing loops .................. 6-73
Cargo sub-compartment ............. 6-73
Center console ............................ 6-73
Flexible Floor Board .................. 6-74
Glove box ................................... 6-72
Sunshade ........................................... 3-25
Sunvisors .......................................... 6-62
T
Tachometer ........................................ 5-35
Temporary Spare Tire ....................... 8-37
Theft-Deterrent System ..................... 3-28
Tiedown
Hook .......................................... 7-22
Tire Information ................................ 9-23
Tire Pressure Monitoring System ...... 5-27
System error activation .............. 5-31
Tire pressure monitoring system
warning light .............................. 5-29
Tires and wheels ......................... 5-31
T
TiresFlat Tire ........................................ 7-3
Inflation pressure ........................ 8-35
Replacement ............................... 8-36
Rotation ...................................... 8-36
Snow tires .................................. 4-10
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-8
Tire chains .................................. 4-11
Uniform tire quality grading system
(UTQGS) ................................... 9-21
Tool ..................................................... 7-3
Towing Description ................................. 7-21
Emergency towing ..................... 7-21
Recreational towing ................... 7-23
Trailer towing ............................. 4-15
Traction Control System (TCS) ........ 5-23 TCS/DSC indicator light ............ 5-24
Trailer Towing .................................. 4-15
Trip Meter ......................................... 5-34
Trunk Lid .......................................... 3-14 Inside trunk release lever ............ 3-17
Trunk Light ....................................... 3-16
Turn and Lane-Change Signals ......... 5-54
V
Vanity Mirrors ................................... 6-62
Vehicle Information Labels ............... 10-2
11-6
Index
Mazda3_8Z87-EA-08F_Edition1 Page410
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F
