MAZDA MODEL MAZDASPEED 3 2011 Owners Manual (in English)

Black plate (341,1)
qRear
The rear cup holder is on the rear center
armrest.
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Do not use the bottle holders for
containers without caps. The
contents may spill when the door is
opened or closed.
Interior Comfort
Interior Equipment
6-109
Mazda3_8BM5-EA-10F_Edition2 Page341
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (342,1)
Storage Compartments
WARNING
Keep storage boxes closed when
driving:
Driving with the storage boxes open
is dangerous. To reduce the
possibility of injury in an accident or
a sudden stop, keep the storage
boxes closed when driving.
CAUTION
Do not leave lighters or eyeglasses in
the storage boxes while parked under
the sun. A lighter could explode or
the plastic material in eyeglasses
could deform and crack from high
temperature.
qOverhead Consoleí
This console box is designed to store
eyeglasses or other accessories.
Push and release to open.
qGlove Compartment
To open the glove compartment, pull the
latch toward you.
To close the glove compartment, firmly
press in the center of the glove
compartment lid.
qCenter Console
To open, pull the lower release handle.
6-110
Interior Comfort
íSome models.
Interior Equipment
Mazda3_8BM5-EA-10F_Edition2 Page342
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

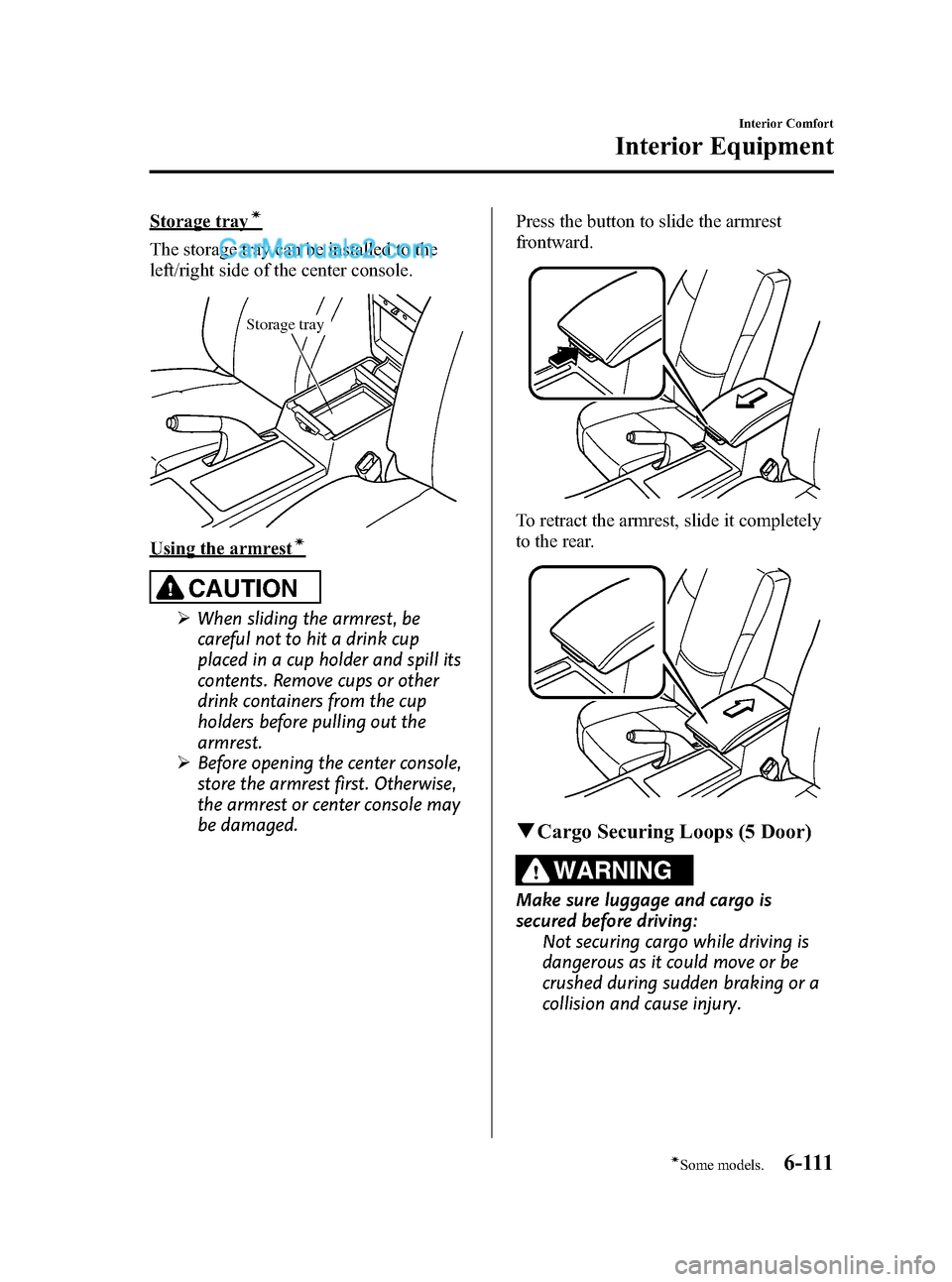

Black plate (343,1)
Storage trayí
The storage tray can be installed to the
left/right side of the center console.
Storage tray
Using the armrestí
CAUTION
ØWhen sliding the armrest, be
careful not to hit a drink cup
placed in a cup holder and spill its
contents. Remove cups or other
drink containers from the cup
holders before pulling out the
armrest.
ØBefore opening the center console,
store the armrest first. Otherwise,
the armrest or center console may
be damaged.Press the button to slide the armrest
frontward.
To retract the armrest, slide it completely
to the rear.
qCargo Securing Loops (5 Door)
WARNING
Make sure luggage and cargo is
secured before driving:
Not securing cargo while driving is
dangerous as it could move or be
crushed during sudden braking or a
collision and cause injury.
Interior Comfort
Interior Equipment
6-111íSome models. Mazda3_8BM5-EA-10F_Edition2 Page343
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (344,1)
Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.
qShopping Bag Hook (5 Door)
The shopping bag hook can be used for
hanging shopping bags.
CAUTION
Do not hang excessive weight on the
shopping bag hook as it could be
damaged.
Shopping bag hook
(tensile strength: 3 kg
(6.6 lb))
qRear Coat Hooks
WARNING
Never hang heavy or sharp objects on
the assist grips and coat hooks:
Hanging heavy or sharp-ended
objects such as a coat hanger from
the assist grips or coat hooks is
dangerous as they can fly off and hit
an occupant in the cabin if a curtain
air bag was to deploy, which could
result in serious injury or death.
Always hang clothes on the coat hooks
and the assist grips without hangers.
Coat hook
6-112
Interior Comfort
Interior Equipment
Mazda3_8BM5-EA-10F_Edition2 Page344
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (345,1)
Accessory Sockets
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
Front
The ignition must be switched to ACC or
ON.
To use, press the cover and open it.
With Seat Warmer
Without Seat Warmer
Rear
The accessory sockets can be used
regardless of whether the ignition is on or
off.
Interior Comfort
Interior Equipment
6-113
Mazda3_8BM5-EA-10F_Edition2 Page345
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (346,1)
CAUTION
ØTo prevent accessory socket
damage or electrical failure, pay
attention to the following:
ØDo not use accessories that
require more than 120 W (DC 12
V, 10 A).
ØDo not use accessories that are
not genuine Mazda accessories
or the equivalent.
ØClose the cover when the
accessory socket is not in use to
prevent foreign objects and
liquids from getting into the
accessory socket.
ØCorrectly insert the plug into
the accessory socket.
ØDo not insert the cigarette
lighter into the accessory
socket.
ØNoise may occur on the audio
playback or TV reception
depending on the device connected
to the accessory socket.
ØDepending on the device
connected to the accessory socket,
the vehicle's electrical system may
be affected, which could cause the
warning light to illuminate.
Disconnect the connected device
and make sure that the problem is
resolved. If the problem is
resolved, disconnect the device
from the socket and switch the
ignition off. If the problem is not
resolved, consult an Authorized
Mazda Dealer.
NOTE
To prevent discharging of the battery, do not
use the socket for long periods with the engine
off or idling.
Connecting the accessory socket
1. Open the lid.
2. Pass the connection plug cord through
the cutout of the console and insert the
plug into the accessory socket.
Plug
6-114
Interior Comfort
Interior Equipment
Mazda3_8BM5-EA-10F_Edition2 Page346
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (347,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-9
Overheating ................................................................................. 7-15
Overheating ............................................................................. 7-15
Emergency Starting .................................................................... 7-17
Starting a Flooded Engine ....................................................... 7-17
Jump-Starting .......................................................................... 7-18
Push-Starting ........................................................................... 7-22
Emergency Towing ..................................................................... 7-23
Towing Description ................................................................. 7-23
Tiedown Hook ........................................................................ 7-24
Recreational Towing ............................................................... 7-26
7-1
Mazda3_8BM5-EA-10F_Edition2 Page347
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (348,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
Mazda3_8BM5-EA-10F_Edition2 Page348
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (349,1)
Spare Tire and Tool Storage
Spare tire and tools are stored in the locations illustrated in the diagram.
Spare tire
Jack
Jack handleTiedown eyelet
Lug wrench
Bolt for flat tire 4 Door
In Case of an Emergency
Flat Tire
7-3
Mazda3_8BM5-EA-10F_Edition2 Page349
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (350,1)
Spare tire
Jack Jack handle
Lug wrenchTiedown eyelet
Spare tire
Jack Jack handle
Lug wrenchTiedown eyelet
Bolt for flat tireBolt for flat tire 5 Door
(Type A)
(Type B)
7-4
In Case of an Emergency
Flat Tire
Mazda3_8BM5-EA-10F_Edition2 Page350
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F
