qCapacities
(Approximate Quantities)
Item Capacity
Engine oil2.0-liter engineWith oil filter
replacement4.3 L (4.5 US qt, 3.8 Imp qt)
Without oil filter
replacement3.9 L (4.1 US qt, 3.4 Imp qt)
2.3-liter turbocharged
engineWith oil filter
replacement5.7 L (6.0 US qt, 5.0 Imp qt)
Without oil filter
replacement5.3 L (5.6 US qt, 4.7 Imp qt)
2.5-liter engineWith oil filter
replacement5.0 L (5.3 US qt, 4.4 Imp qt)
Without oil filter
replacement4.6 L (4.9 US qt, 4.0 Imp qt)
Coolant 7.5 L (7.9 US qt, 6.6 Imp qt)
Manual transaxle oil2.0-liter engine 2.77 L (2.93 US qt, 2.44 Imp qt)
2.3-liter turbocharged engine 2.5 L (2.6 US qt, 2.2 Imp qt)
2.5-liter engine 2.85 L (3.01 US qt, 2.51 Imp qt)
Automatic transaxle fluid 8.14 L (8.60 US qt, 7.16 Imp qt)
Fuel tank2.0-liter engine 55.0 L (14.5 US gal, 12.1 Imp gal)
Except 2.0-liter engine 60.0 L (15.9 US gal, 13.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Except Mexico
4 Door
Item Vehicle specification
Overall length 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16-inch 1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread16-inch 1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
Specifications
10-5
Mazda3_8BM5-EA-10F_Edition2 Page491
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (492,1)
5 Door
(Except 2.3-liter turbocharged engine)
Item Vehicle specification
Overall length 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16-inch 1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread16-inch 1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(2.3-liter turbocharged engine)
Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
Mexico
4 Door
Item Vehicle specification
Overall lengthWithout license plate
holder4,580 mm (180.3 in)
With license plate holder 4,595 mm (180.9 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread16-inch 1,535 mm (60.4 in)
17-inch 1,530 mm (60.2 in)
Rear tread16-inch 1,520 mm (59.8 in)
17-inch 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
10-6
Specifications
Mazda3_8BM5-EA-10F_Edition2 Page492
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (493,1)
5 Door
(Except 2.3-liter turbocharged engine)
Item Vehicle specification
Overall lengthWithout license plate
holder4,490 mm (176.8 in)
With license plate holder 4,505 mm (177.4 in)
Overall width 1,755 mm (69.1 in)
Overall height 1,470 mm (57.9 in)
Front tread 1,530 mm (60.2 in)
Rear tread 1,515 mm (59.6 in)
Wheelbase 2,640 mm (103.9 in)
(2.3-liter turbocharged engine)
Item Vehicle specification
Overall length 4,510 mm (177.6 in)
Overall width 1,770 mm (69.7 in)
Overall height 1,460 mm (57.5 in)
Front tread 1,535 mm (60.4 in)
Rear tread 1,525 mm (60.0 in)
Wheelbase 2,640 mm (103.9 in)
qWeights
Except Mexico
4 Door
(2.0-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,768 kg (3,898 lbs) 1,800 kg (3,968 lbs)
GAWR (Gross Axle Weight Rating)Front 933 kg (2,057 lbs) 967 kg (2,132 lbs)
Rear 835 kg (1,841 lbs) 833 kg (1,836 lbs)
(2.5-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,816 kg (4,004 lbs) 1,851 kg (4,081 lbs)
GAWR (Gross Axle Weight Rating)Front 971 kg (2,141 lbs) 1,002 kg (2,209 lbs)
Rear 845 kg (1,863 lbs) 849 kg (1,872 lbs)
Specifications
10-7
Mazda3_8BM5-EA-10F_Edition2 Page493
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (494,1)
5 Door
(2.0-liter engine (Canada))
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,764 kg (3,889 lbs) 1,788 kg (3,942 lbs)
GAWR (Gross Axle Weight Rating)Front 931 kg (2,052 lbs) 964 kg (2,125 lbs)
Rear 833 kg (1,836 lbs) 824 kg (1,817 lbs)
(2.3-liter turbocharged engine)
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,922 kg (4,237 lbs)
GAWR (Gross Axle Weight Rating)Front 1,062 kg (2,341 lbs)
Rear 860 kg (1,896 lbs)
(2.5-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,837 kg (4,050 lbs) 1,863 kg (4,107 lbs)
GAWR (Gross Axle Weight Rating)Front 977 kg (2,154 lbs) 1,006 kg (2,218 lbs)
Rear 860 kg (1,896 lbs) 857 kg (1,889 lbs)
Mexico
4 Door
(2.0-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight)Total 1,765 kg (3,891 lbs) 1,795 kg (3,957 lbs)
Front 930 kg (2,050 lbs) 965 kg (2,127 lbs)
Rear 835 kg (1,841 lbs) 830 kg (1,830 lbs)
GAW (Permissible axle load)Front 930 kg (2,050 lbs) 965 kg (2,127 lbs)
Rear 840 kg (1,852 lbs) 835 kg (1,841 lbs)
(2.5-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight)Total 1,815 kg (4,001 lbs) 1,845 kg (4,067 lbs)
Front 970 kg (2,138 lbs) 1,000 kg (2,205 lbs)
Rear 845 kg (1,863 lbs) 845 kg (1,863 lbs)
GAW (Permissible axle load)Front 970 kg (2,138 lbs) 1,000 kg (2,205 lbs)
Rear 850 kg (1,874 lbs) 850 kg (1,874 lbs)
10-8
Specifications
Mazda3_8BM5-EA-10F_Edition2 Page494
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (495,1)
5 Door
(2.3-liter turbocharged engine)
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,922 kg (4,237 lbs)
GAWR (Gross Axle Weight Rating)Front 1,062 kg (2,341 lbs)
Rear 860 kg (1,896 lbs)
(2.5-liter engine)
ItemWeight
Manual transaxle Automatic transaxle
GVW (Gross Vehicle Weight)Total 1,835 kg (4,045 lbs) 1,860 kg (4,101 lbs)
Front 975 kg (2,149 lbs) 1,005 kg (2,216 lbs)
Rear 860 kg (1,896 lbs) 855 kg (1,885 lbs)
GAW (Permissible axle load)Front 975 kg (2,149 lbs) 1,005 kg (2,216 lbs)
Rear 865 kg (1,907 lbs) 860 kg (1,896 lbs)
qAir Conditioner
Item Classification
Refrigerant Type HFC134a (R-134a)
Specifications
10-9
Mazda3_8BM5-EA-10F_Edition2 Page495
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (496,1)
qLight Bulbs
Exterior light
Light bulbCategory
Wattage ECE R (SAE)
HeadlightsHalogenHigh beam 60 HB3 (#9005)
Low beam 55 H11 (H11)
Xenon fusion bulb High/Low beam 35 D2S (D2S)
Daytime running lights (Canada)
í35 H8 (H8)
Front turn signal
lights/Front
side-marker
lights/Parking
lightsHalogen/Xenon fusion bulb
(With daytime running lights)
27/8―(#7444NA)
Xenon fusion bulb
(Without daytime
running lights)Front turn signal
lights/Front side-marker
lights
Parking lights 5 W5W (4CP)
Fog lights
íExcept 2.3-liter turbocharged engine 51 HB4 (#9006)
2.3-liter turbocharged engine 55 H11 (H11)
Side turn signal lights (Integrated with outside mirrors)
íLED*1―(―)
High-mount brake
light4 Door 21 W21W (1120)
5 DoorBulb type 18 W16W (#921)
LED type LED
*1―(―)
Rear turn signal lights 21 WY21W (32CP)
Brake
lights/TaillightsBulb type 21/5 W21/5W (#7443)
LED type LED
*1―(―)
Reverse lights 21 W21W (#7440)
License plate lights 5 W5W (―)
Rear side-marker lights
íLED*1―(―)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulbCategory
Wattage ECE R
Trunk light (4 Door) 3―
Luggage compartment light (5 Door) 5―
Overhead light/Map lights (Front) 8―
Overhead light (Rear) 10―
Vanity mirror lights
í2―
10-10íSome models.
Specifications
Mazda3_8BM5-EA-10F_Edition2 Page496
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (497,1)
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally fitted to
your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-36.
Standard tire
(Except 2.3-liter turbocharged engine)
Tire sizeInflation pressure
Front Rear
P205/55R16 89H 240 kPa (35 psi) 240 kPa (35 psi)
P205/50R17 88V 220 kPa (32 psi) 220 kPa (32 psi)
(2.3-liter turbocharged engine)
Tire sizeInflation pressure
Front Rear
P225/40R18 88Y 240 kPa (35 psi) 230 kPa (34 psi)
Temporary spare tire
Tire size Inflation pressure
T115/70D15 90M 420 kPa (60 psi)
T125/70D16 96M 420 kPa (60 psi)
T125/70D17 98M 420 kPa (60 psi)
qFuses
Refer to the fuse rating on page 8-54.
Specifications
10-11
Mazda3_8BM5-EA-10F_Edition2 Page497
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (498,1)

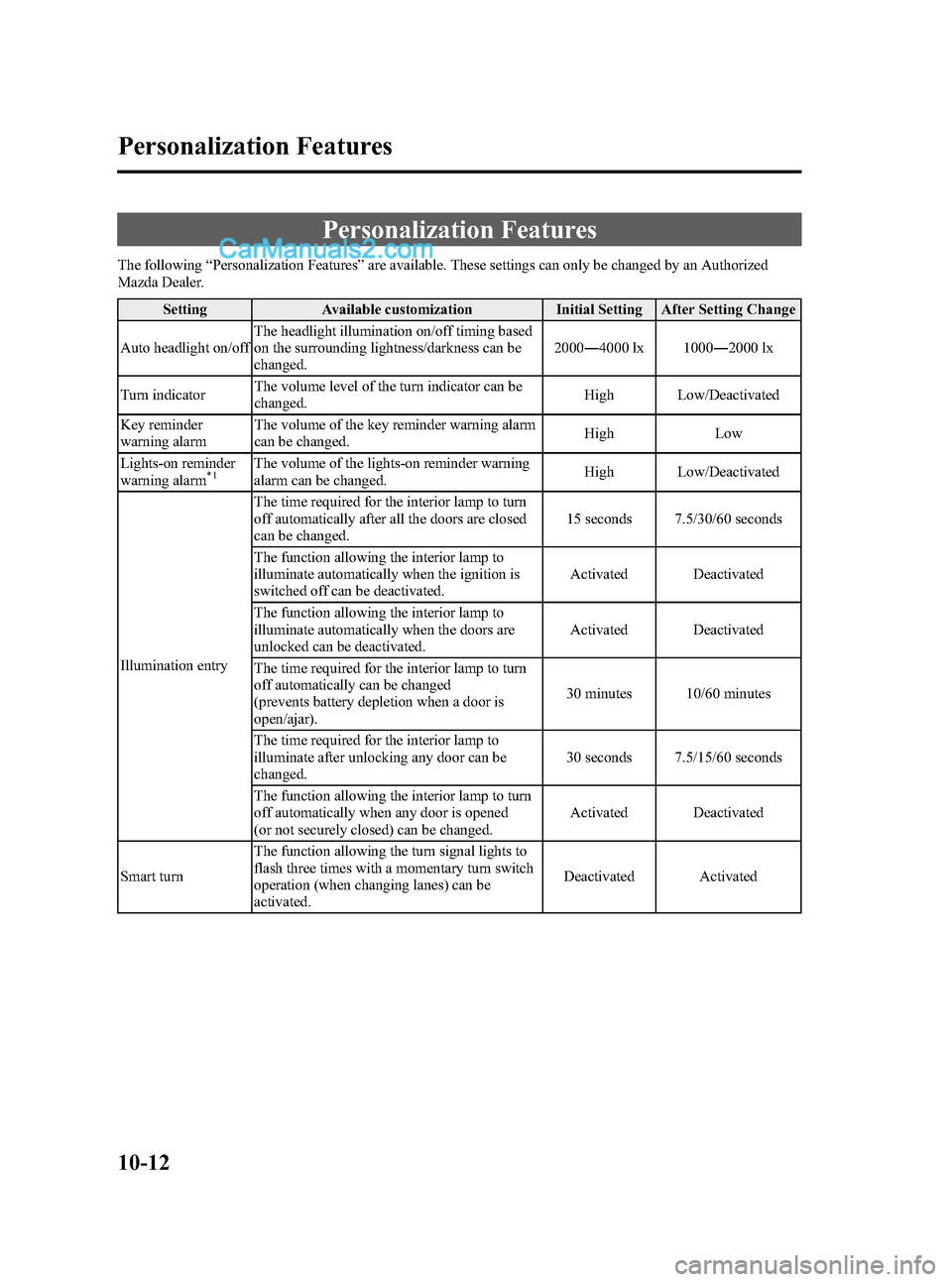

Personalization Features
The following“Personalization Features”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Setting Available customization Initial Setting After Setting Change
Auto headlight on/offThe headlight illumination on/off timing based
on the surrounding lightness/darkness can be
changed.2000―4000 lx 1000―2000 lx
Turn indicatorThe volume level of the turn indicator can be
changed.High Low/Deactivated
Key reminder
warning alarmThe volume of the key reminder warning alarm
can be changed.High Low
Lights-on reminder
warning alarm
*1The volume of the lights-on reminder warning
alarm can be changed.High Low/Deactivated
Illumination entryThe time required for the interior lamp to turn
off automatically after all the doors are closed
can be changed.15 seconds 7.5/30/60 seconds
The function allowing the interior lamp to
illuminate automatically when the ignition is
switched off can be deactivated.Activated Deactivated
The function allowing the interior lamp to
illuminate automatically when the doors are
unlocked can be deactivated.Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar).30 minutes 10/60 minutes
The time required for the interior lamp to
illuminate after unlocking any door can be
changed.30 seconds 7.5/15/60 seconds
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed.Activated Deactivated
Smart turnThe function allowing the turn signal lights to
flash three times with a momentary turn switch
operation (when changing lanes) can be
activated.Deactivated Activated
10-12
Personalization Features
Mazda3_8BM5-EA-10F_Edition2 Page498
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (499,1)
Setting Available customization Initial Setting After Setting Change
Power door locksThe vehicle-speed-response auto lock function
can be deactivated.Activated Deactivated
Locking/unlocking of the doors can be set in
conjunction with the selector lever position.Deactivated1. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock all doors
2. Not in Park (P)
position: Lock all
doors
Park (P) position:
Unlock the driver's
door only
3. Not in Park (P)
position: Lock all
doors
Park (P) position:
Inoperable
The function for unlocking the doors
simultaneously when the ignition is switched
off can be changed.Unlock all doorsUnlock driver's
door/Inoperable
Keyless entryThe method for unlocking doors using the
retractable key can be selected.Press × 2 Press × 1
The time required for the doors to relock
automatically after unlocking with the
transmitter can be changed.30 seconds 60/90 seconds
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be deactivated.Activated Deactivated
The hazard warning lights can be deactivated so
that they do not flash when the doors are
locked/unlocked.Activated Deactivated
Personalization Features
10-13
Mazda3_8BM5-EA-10F_Edition2 Page499
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (500,1)
Setting Available customization Initial Setting After Setting Change
Advanced keyless
entryThe function to automatically lock doors when
leaving the vehicle while carrying the key can
be activated.Deactivated Activated
The advanced key's remaining battery level
warning light in the instrument cluster can be
deactivated.Activated Deactivated
The volume of the answer-back beep during
keyless entry system operation can be adjusted.High Low/Deactivated
The volume of the warning beep for the
advanced keyless entry system can be adjusted.High Low
The function allowing the power supply to turn
off automatically after the ignition has been left
in the ACC position for a long period of time
can be deactivated.Activated Deactivated
A transition pattern in which the ignition
position can be switched when pressing the
push button start can be selected.ON→Off ON→ACC→Off
The advanced key function can be deactivated. Activated Deactivated
The method for unlocking the doors using the
request switch can be selected.Press × 2 Press × 1
*1 Without auto-light control function
The following“Personalization Features”can be changed the vehicle owner.
Setting Function Initial Setting After Setting Change
Multi information
displayThe display language can be selected. 6-107English, French,
or Spanish
English/German/French/Italian/
Spanish
The distance unit can be changed. 6-107 mile or km km or mile
The temperature unit can be changed. 6-107 °F or °C °C or °F
10-14
Personalization Features
Mazda3_8BM5-EA-10F_Edition2 Page500
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F
