clock setting MAZDA MODEL MAZDASPEED 3 2012 Owners Manual (in English)

Black plate (270,1)
NOTE
Six stations can be stored in each bank, SR1,
SR2, and SR3 for convenient access to your
favorite stations.
Preset channel call-up
Press and release the channel preset
button,
[SR
(bank number)CH(preset
number)
(channel number)] appears.
When the preset button is pressed during
text mode, its channel number is
displayed first for three second and then
its text is displayed.
NOTE
In the initial setting, all channels are preset to
184.
Category change
Press the category button (UP or DOWN)
and select the desired category.
lPress the category button (UP):
Category up
lPress the category button (DOWN):
Category down
Every time the category (UP) button is
pressed for 1.5 second or less, the
category is changed over in the order
shown below.
At this time, the lowest (smallest-number)
channel within the category indicated is
received.
When the highest (or lowest) category is
reached, the category is changed over in
the order shown below.
Highest category→All categories→
Lowest category
NOTE
While all categories are selected, all channels
covering a category can be accessed
(Category off condition).
Channel selection within a category
If you are in a selected category and the
channel number is displayed, turning the
manual tuning dial moves the channel
number up/down in that category.
lTurn the manual tuning dial clockwise:
Channel Up
lTurn the manual tuning dial
counterclockwise: Channel Down
NOTE
The channel number needs to be indicated in
the display to use manual tuning dial for this
function.
Scan tuning
Press the scan button (
)to
automatically sample stations. Scanning
stops at each station for about five
seconds. To hold a station, press the scan
button (
) again during this interval.
NOTE
lUnsubscribed channels, invalid channels,
parental lock channels and channel 0 are
not subject to the scan, therefore these
channels will be skipped automatically.
lYou can scan all channels while all
categories are selected. If you are in a
selected category, you can only scan the
channels in that category.
6-38
Interior Comfort
Audio System
Mazda3_8BM5-EA-10F_Edition2 Page270
Monday, July 26 2010 1:53 PM
Form No.8BM5-EA-10F

Black plate (329,1)
qClockí
When the ignition is switched to ACC or
ON, the time is displayed.
Time setting
1. Switch the ignition to ACC or ON.
2. Adjust the time using the time setting
buttons (
,).
The hours advance while the time
setting button (
) is pressed.
The minutes advance while the time
setting button (
) is pressed.
Time resetting
1. Switch the ignition to ACC or ON.
2. Press the :00 button.
3. When the button is pressed, the time
will be reset as follows:
(Example)
12:01―12:29→12:00
12:30―12:59→1:00
NOTE
When the button is pressed, the seconds will
start at“00”.
qOutside Temperature Display
(Fully Automatic Type)
When the ignition is switched ON, the
ambient temperature is displayed.
NOTE
Under the following conditions, the ambient
temperature display may differ from the actual
ambient temperature depending on the
surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.
qClimate Control Display
The climate control system status is
displayed. To operate the climate control
system, refer to“Climate Control System”
(page 6-2).
qAudio Display
The audio system status is displayed. To
operate the audio system, refer to
“Audio System”(page 6-16).
Interior Comfort
Interior Equipment
6-97íSome models. Mazda3_8BM5-EA-10F_Edition2 Page329
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (331,1)

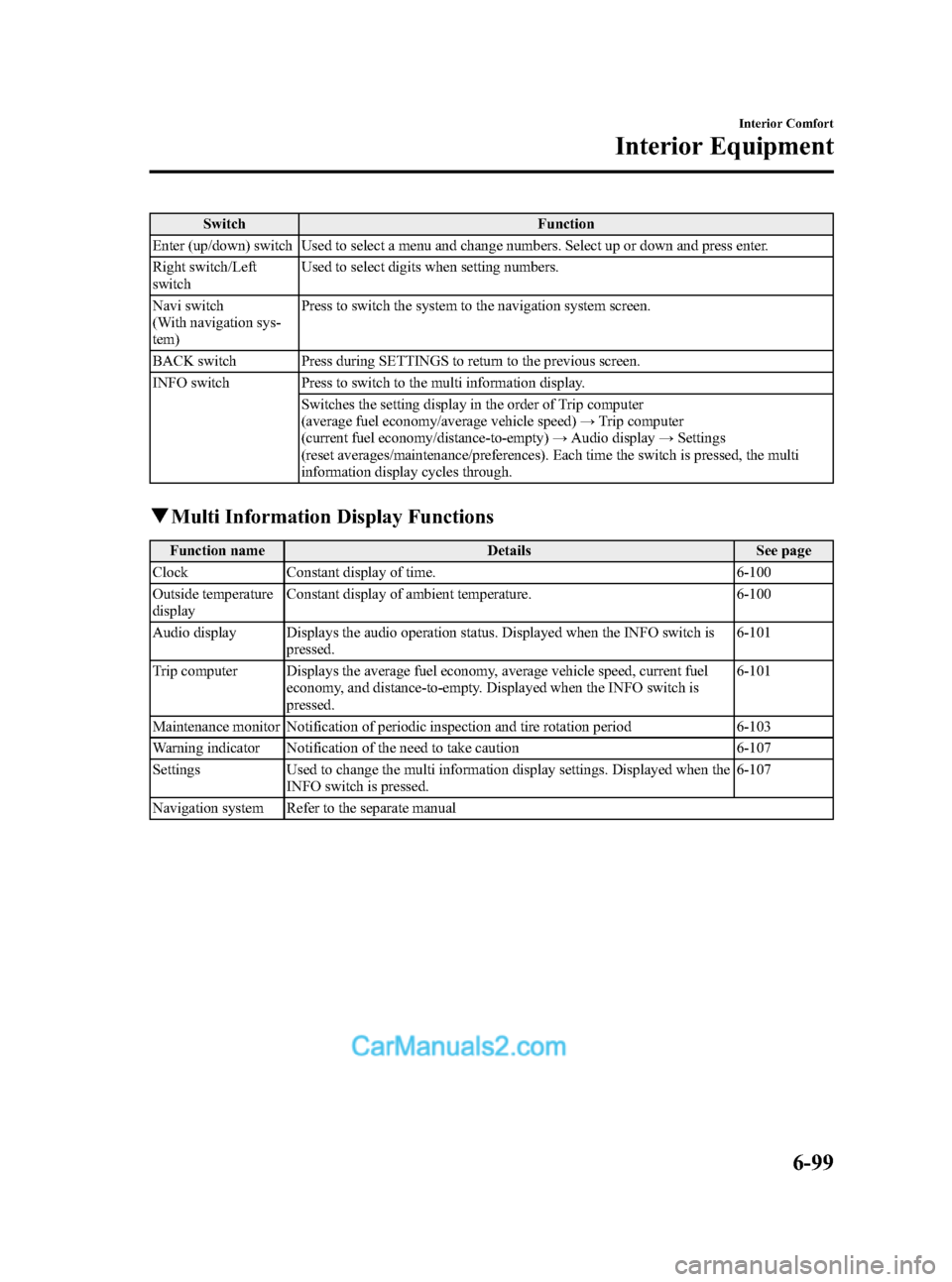

Switch Function
Enter (up/down) switch Used to select a menu and change numbers. Select up or down and press enter.
Right switch/Left
switchUsed to select digits when setting numbers.
Navi switch
(With navigation sys-
tem)Press to switch the system to the navigation system screen.
BACK switch Press during SETTINGS to return to the previous screen.
INFO switch Press to switch to the multi information display.
Switches the setting display in the order of Trip computer
(average fuel economy/average vehicle speed)→Trip computer
(current fuel economy/distance-to-empty)→Audio display→Settings
(reset averages/maintenance/preferences). Each time the switch is pressed, the multi
information display cycles through.
qMulti Information Display Functions
Function name Details See page
Clock Constant display of time. 6-100
Outside temperature
displayConstant display of ambient temperature. 6-100
Audio display Displays the audio operation status. Displayed when the INFO switch is
pressed.6-101
Trip computer Displays the average fuel economy, average vehicle speed, current fuel
economy, and distance-to-empty. Displayed when the INFO switch is
pressed.6-101
Maintenance monitor Notification of periodic inspection and tire rotation period 6-103
Warning indicator Notification of the need to take caution 6-107
Settings Used to change the multi information display settings. Displayed when the
INFO switch is pressed.6-107
Navigation system Refer to the separate manual
Interior Comfort
Interior Equipment
6-99
Mazda3_8BM5-EA-10F_Edition2 Page331
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (332,1)
qClock
The time is displayed when the ignition is
switched to ACC or ON.
Time setting
Refer to Clock on page 6-97.
Time resetting
Refer to Clock on page 6-97.
With navigation system
Time zone switching
1. Press the INFO switch until the
SETTINGS screen is displayed.
2. Select PREFERENCES by pressing the
Enter (up/down) switch up or down,
and then press the Enter (up/down)
switch.
3. Select TIME ZONE by pressing the
Enter (up/down) switch up or down,
and then press the Enter (up/down)
switch.
4. Select the desired time zone by
pressing the Enter (up/down) switch up
or down, and then press the Enter (up/
down) switch.NOTE
lDaylight saving time is not reflected in the
time zone displayed.
lThe clock does not display if there is no
GPS signal reception.
lIf the battery cables are disconnected and
then reconnected, the clock does not
operate until a GPS signal is received. Do
not place objects on the dashboard,
otherwise the clock may be unable to
receive the GPS signal normally.
qOutside Temperature Display
When the ignition is switched ON, the
ambient temperature is displayed.
NOTElUnder the following conditions, the ambient
temperature display may differ from the
actual ambient temperature depending on
the surroundings and vehicle conditions:
lSignificantly cold or hot temperatures.lSudden changes in ambient temperature.lThe vehicle is parked.lThe vehicle is driven at low speeds.lWhen the ignition is switched to ACC,
“---”is displayed.
6-100
Interior Comfort
Interior Equipment
Mazda3_8BM5-EA-10F_Edition2 Page332
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (335,1)
qMaintenance Monitor
The periodic inspection and tire rotation
period notification can be displayed by
turning the Maintenance Monitor on.
NOTE
lThis function is inoperable while the
vehicle is being driven.
l(With navigation system)
If the battery cables are disconnected and
then reconnected, the SERVICE DUE item
in the MAINTENANCE setting cannot be
done until the clock resets after receiving a
GPS signal. Perform this setting after the
clock resumes operation.
Initial setting method
1. Press the INFO switch until the
SETTINGS screen is displayed.
2. Select MAINTENANCE by pressing
the Enter (up/down) switch up or
down, and then press the Enter (up/
down) switch.
3. Select the item you want to turn on
(TIRE ROTATION or SERVICE DUE)
by pressing the Enter (up/down) switch
up or down, and then press the Enter
(up/down) switch.
4. Press the Enter (up/down) switch.5. Select SET and press the Enter (up/
down) switch.
NOTElFor the service due notification, either the
number of days or distance can be set.
When selecting one of the two settings, the
setting not selected is set to the initial value
automatically.
lBecause tire rotation can only be set
according to distance, the screen for setting
distance is displayed when SET is selected.
6. Select DISTANCE or DAYS and press
the Enter (up/down) switch. The screen
for setting the distance or days to the
next maintenance period is displayed.
Interior Comfort
Interior Equipment
6-103
Mazda3_8BM5-EA-10F_Edition2 Page335
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (505,1)
I
Inside Trunk Release Lever ............... 3-43
Instrument Cluster ............................. 5-36
Interior Care ...................................... 8-66
Interior Lights ................................... 6-94
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ....................... 3-27
Keys .................................................. 3-26
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-64
Liftgate .............................................. 3-38
Luggage compartment ............... 3-40
Light Bulbs
Replacement ............................... 8-42
Specifications ........................... 10-10
Lighting Control ............................... 5-59
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-95
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............. 5-11
Recommendations for shifting.... 5-12
Map Lights ........................................ 6-95
M
Meters and Gauges ........................... 5-36
Mirror Defroster ................................ 5-70
Mirrors
Outside mirrors .......................... 3-64
Rearview mirror ......................... 3-65
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-50
Multi Information Display ................ 6-98
Audio Display .......................... 6-101
Clock ........................................ 6-100
Maintenance Monitor ............... 6-103
Multi Information Display
Functions .................................... 6-99
Outside Temperature Display.... 6-100
Settings ..................................... 6-107
Trip Computer .......................... 6-101
Warning Indicator ..................... 6-107
O
Odometer and Trip Meter .................. 5-37
Outside Mirrors ................................. 3-64
Outside Temperature Display ............ 6-97
Overhead Console ........................... 6-110
Overhead Lights ................................ 6-95
Overheating ....................................... 7-15
Overloading ...................................... 4-12
P
Paint Damage .................................... 8-60
Parking Brake ..................................... 5-7
Parking in an Emergency .................... 7-2
Personalization Features ................. 10-12
Power Door Locks ............................ 3-34
Index
11-5
Mazda3_8BM5-EA-10F_Edition2 Page505
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F
