Black plate (169,1)
WARNING
Do not rely on ABS as a substitute for
safe driving:
The ABS cannot compensate for
unsafe and reckless driving, excessive
speed, tailgating (following another
vehicle too closely), driving on ice and
snow, and hydroplaning (reduced tire
friction and road contact because of
water on the road surface). You can
still have an accident.
NOTE
lBraking distances may be longer on loose
surfaces (snow or gravel, for example)
which usually have a hard foundation. A
vehicle with a normal braking system may
require less distance to stop under these
conditions because the tires will build up a
wedge of surface layer when the wheels
skid.
lThe sound of the ABS operating may be
heard when starting the engine or
immediately after starting the vehicle.
However, it does not indicate a malfunction.
qABS Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.
NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
l(With DSC vehicles)
The brake assist system does not operate
while the ABS warning light is illuminated.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.
Driving Your Mazda
Starting and Driving
5-9
Mazda3_8BM5-EA-10F_Edition2 Page169
Monday, July 26 2010 1:52 PM
Form No.8BM5-EA-10F

Black plate (204,1)
WARNING
Do not drive with the brake system
warning light illuminated. Contact an
Authorized Mazda Dealer to have the
brakes inspected as soon as possible:
Driving with the brake system
warning light illuminated is
dangerous. It indicates that your
brakes may not work at all or that
they could completely fail at any
time. If this light remains
illuminated, after checking that the
parking brake is fully released, have
the brakes inspected immediately.
qABS Warning Light
The warning light stays on for a few
seconds when the ignition is switched
ON.
If the ABS warning light stays on while
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function normally
as if the vehicle had no ABS.
Should this happen, consult an Authorized
Mazda Dealer as soon as possible.NOTE
lWhen the engine is jump-started to charge
the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs,
it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.
l(With DSC vehicles)
The brake assist system does not operate
while the ABS warning light is illuminated.
qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light on simultaneously. The
problem is likely to be the electronic
brake force distribution system.
5-44
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Mazda3_8BM5-EA-10F_Edition2 Page204
Monday, July 26 2010 1:53 PM
Form No.8BM5-EA-10F

Black plate (347,1)

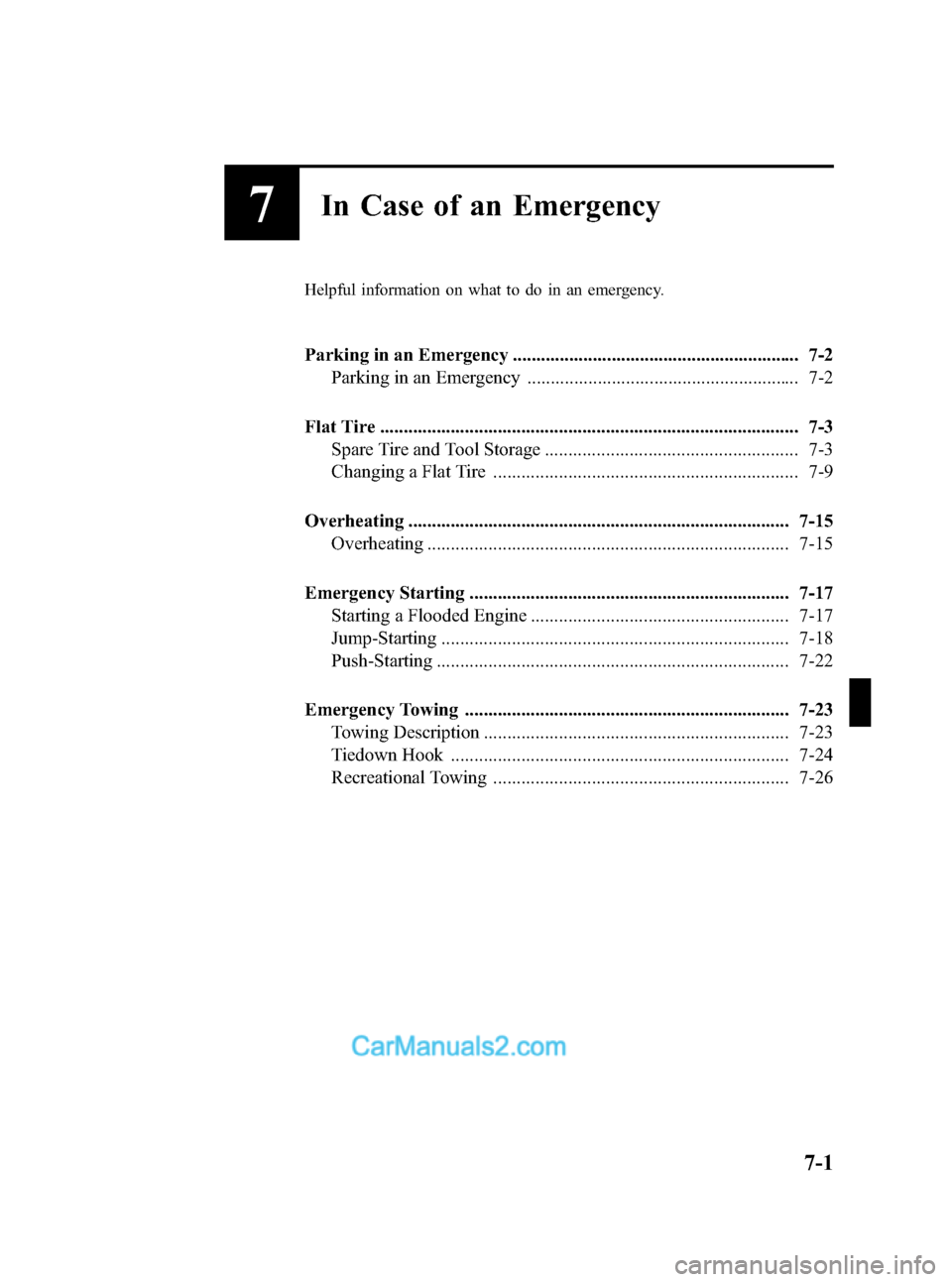

7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-9
Overheating ................................................................................. 7-15
Overheating ............................................................................. 7-15
Emergency Starting .................................................................... 7-17
Starting a Flooded Engine ....................................................... 7-17
Jump-Starting .......................................................................... 7-18
Push-Starting ........................................................................... 7-22
Emergency Towing ..................................................................... 7-23
Towing Description ................................................................. 7-23
Tiedown Hook ........................................................................ 7-24
Recreational Towing ............................................................... 7-26
7-1
Mazda3_8BM5-EA-10F_Edition2 Page347
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (364,1)
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you
feel unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID
which could cause blindness if splashed into your eyes. Also, hydrogen gas produced
during normal battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery
fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in
eyes, skin or clothing. If this happens, immediately flush your eyes with water for 15
minutes or wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is dangerous. Battery fluid could cause
serious injuries if it gets in the eyes or on the skin.
Do not allow the positive () terminal to contact any other metal object that
could cause sparks:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. When working near a
battery, do not allow metal tools to contact the positive (
) or negative ()
terminal of the battery.
7-18
In Case of an Emergency
Emergency Starting
Mazda3_8BM5-EA-10F_Edition2 Page364
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (365,1)
Keep all flames, including cigarettes, and sparks away from open battery cells:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries.
Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (
) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous.
The cable could get caught when the engine starts and cause serious injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
Connect cables in numerical order and disconnect in reverse order.
Booster battery
Discharged battery
Jumper cables
In Case of an Emergency
Emergency Starting
7-19
Mazda3_8BM5-EA-10F_Edition2 Page365
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (367,1)
3 Pull out the battery cover being
careful not to allow it to contact
the cowl grille.
Battery cover
Cowl grille
Installing battery cover
1 Being careful not to contact the
cowl grille, insert the tabs on the
one end of the battery cover into
the holes of the battery tray and
engage the tabs.
Cowl grille
Tabs
Holes
2 Attach the clips on both sides of
the battery cover.
Clips
2. Make sure the booster battery is 12 V
and that its negative terminal is
grounded.
3. If the booster battery is in another
vehicle, don't allow both vehicles to
touch. Turn off the engine of the
vehicle with the booster battery and all
unnecessary electrical loads in both
vehicles.
4. Connect the jumper cables in the exact
sequence as in the illustration.
lConnect one end of a cable to the
positive terminal on the discharged
battery (1).
lAttach the other end to the positive
terminal on the booster battery (2).
lConnect one end of the other cable
to the negative terminal of the
booster battery (3).
lConnect the other end to the ground
point indicated in the illustration
away from the discharged battery
(4).
5. Start the engine of the booster vehicle
and run it a few minutes. Then start the
engine of the other vehicle.
In Case of an Emergency
Emergency Starting
7-21
Mazda3_8BM5-EA-10F_Edition2 Page367
Monday, July 26 2010 1:54 PM
Form No.8BM5-EA-10F

Black plate (503,1)
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ..................... 6-111
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-20
Center Console ................................ 6-110
Child Restraint
Child restraint precautions ......... 2-26
Child-restraint system installation
position ...................................... 2-30
Installing child-restraint
systems ....................................... 2-31
LATCH child-restraint
systems ....................................... 2-38
Child Safety Locks for Rear Doors ... 3-37
Climate Control System ...................... 6-2
Gas specifications ...................... 10-9
Clock ................................................. 6-97
Cruise Control ................................... 5-21
Cup Holder ...................................... 6-108
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-40
Daytime Running Lights ................... 5-64
Defroster
Mirror ......................................... 5-70
Rear window .............................. 5-70
Dimensions ....................................... 10-5
Door Locks ....................................... 3-33
Driving In Flooded Area ................... 4-11
Driving on Uneven Road .................. 4-13
D
Driving Tips ........................................ 4-7
Automatic transaxle ................... 5-19
Break-in period ............................ 4-7
Driving in flooded area .............. 4-11
Driving on uneven road ............. 4-13
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-9
Turbocharged vehicles ............... 4-14
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-27
DSC OFF indicator light ............ 5-28
DSC OFF switch ........................ 5-28
TCS/DSC indicator light ............ 5-28
E
Emergency Starting ........................... 7-17
Flooded engine ........................... 7-17
Jump-starting .............................. 7-18
Push-starting .............................. 7-22
Emergency Towing ........................... 7-23
Emission Control System .................... 4-4
Engine
Coolant ....................................... 8-21
Exhaust gas .................................. 4-5
Hood release .............................. 3-49
Oil .............................................. 8-18
Overheating ................................ 7-15
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-17
Engine Coolant
Overheating ................................ 7-15
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-62
Index
11-3
Mazda3_8BM5-EA-10F_Edition2 Page503
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F

Black plate (505,1)
I
Inside Trunk Release Lever ............... 3-43
Instrument Cluster ............................. 5-36
Interior Care ...................................... 8-66
Interior Lights ................................... 6-94
J
Jump-Starting .................................... 7-18
K
Keyless Entry System ....................... 3-27
Keys .................................................. 3-26
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-64
Liftgate .............................................. 3-38
Luggage compartment ............... 3-40
Light Bulbs
Replacement ............................... 8-42
Specifications ........................... 10-10
Lighting Control ............................... 5-59
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-95
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-16
Owner maintenance schedule ..... 8-15
Scheduled ..................................... 8-3
Manual Transaxle Operation ............. 5-11
Recommendations for shifting.... 5-12
Map Lights ........................................ 6-95
M
Meters and Gauges ........................... 5-36
Mirror Defroster ................................ 5-70
Mirrors
Outside mirrors .......................... 3-64
Rearview mirror ......................... 3-65
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-50
Multi Information Display ................ 6-98
Audio Display .......................... 6-101
Clock ........................................ 6-100
Maintenance Monitor ............... 6-103
Multi Information Display
Functions .................................... 6-99
Outside Temperature Display.... 6-100
Settings ..................................... 6-107
Trip Computer .......................... 6-101
Warning Indicator ..................... 6-107
O
Odometer and Trip Meter .................. 5-37
Outside Mirrors ................................. 3-64
Outside Temperature Display ............ 6-97
Overhead Console ........................... 6-110
Overhead Lights ................................ 6-95
Overheating ....................................... 7-15
Overloading ...................................... 4-12
P
Paint Damage .................................... 8-60
Parking Brake ..................................... 5-7
Parking in an Emergency .................... 7-2
Personalization Features ................. 10-12
Power Door Locks ............................ 3-34
Index
11-5
Mazda3_8BM5-EA-10F_Edition2 Page505
Monday, July 26 2010 1:55 PM
Form No.8BM5-EA-10F
