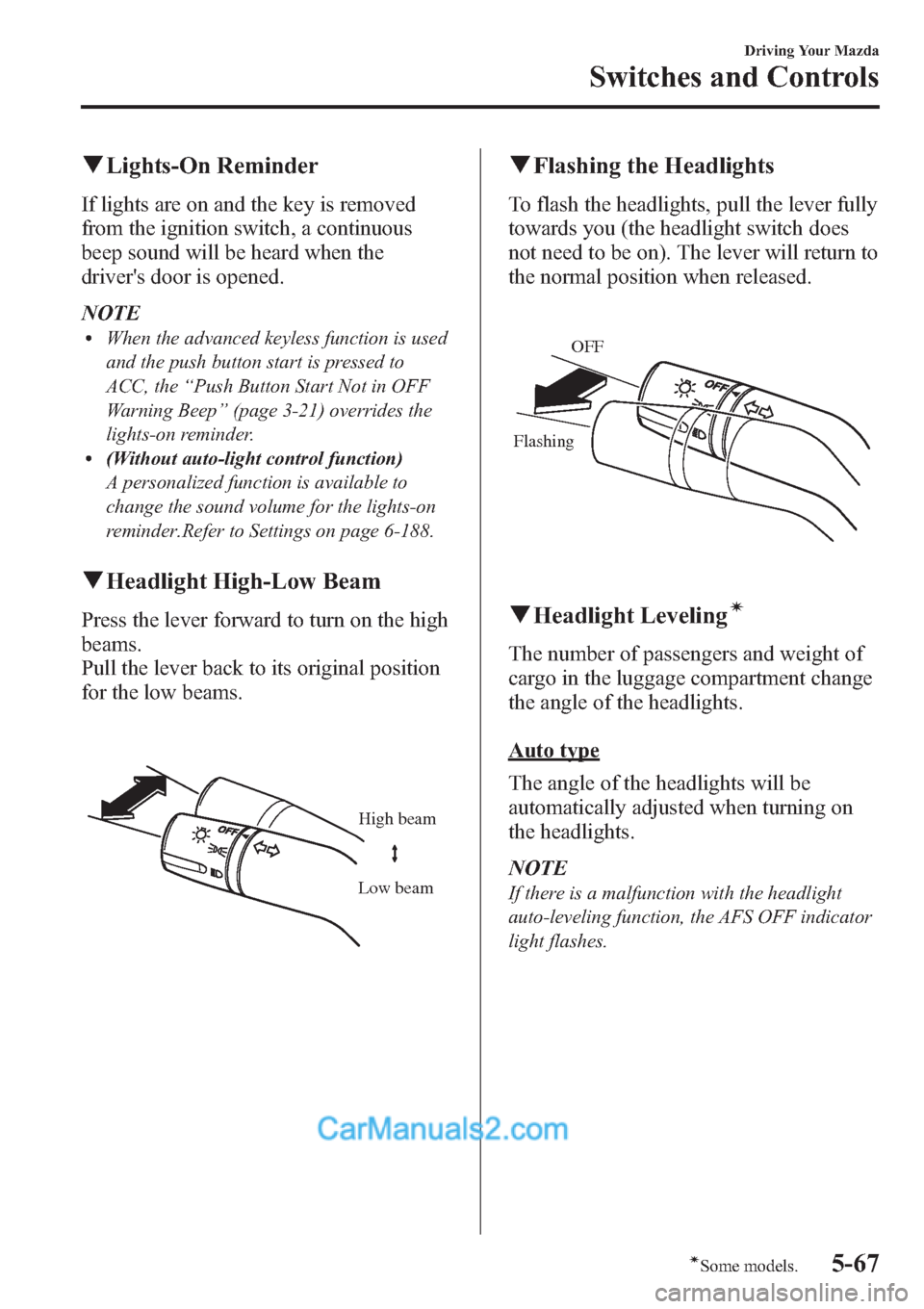

qLights-On Reminder
If lights are on and the key is removed
from the ignition switch, a continuous
beep sound will be heard when the
driver's door is opened.
NOTE
lWhen the advanced keyless function is used
and the push button start is pressed to
ACC, the“Push Button Start Not in OFF
Warning Beep”(page 3-21) overrides the
lights-on reminder.
l(Without auto-light control function)
A personalized function is available to
change the sound volume for the lights-on
reminder.Refer to Settings on page 6-188.
qHeadlight High-Low Beam
Press the lever forward to turn on the high
beams.
Pull the lever back to its original position
for the low beams.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
towards you (the headlight switch does
not need to be on). The lever will return to
the normal position when released.
OFF
Flashing
qHeadlight Levelingí
The number of passengers and weight of
cargo in the luggage compartment change
the angle of the headlights.
Auto type
The angle of the headlights will be
automatically adjusted when turning on
the headlights.
NOTE
If there is a malfunction with the headlight
auto-leveling function, the AFS OFF indicator
light flashes.
Driving Your Mazda
Switches and Controls
5-67íSome models.

3. Select the item you want to turn off
(TIRE ROTATION or SERVICE DUE)
by pressing the Enter (up/down) switch
up or down, and then press the Enter
(up/down) switch.
4. Select OFF and press the Enter (up/
down) switch.
qWarning Indicator
The following warning indicators are
displayed according to necessity. Warning
indicators are displayed regardless of the
multi information display operation.
lDOOR OPENlTRUNK OPEN (including the liftgate)lTIGHTEN FUEL CAP (Displayed
when the check fuel cap warning light
illuminates in the instrument cluster.)
lCHECK TIRE PRESSURE
lRELEASE PARKING BRAKElAdvanced Keyless Entry System
related
lKEY BATTERY IS LOWlADVANCED KEY NOT FOUNDlMOVE SHIFT LEVER TO PlDEPRESS BRAKE PEDAL TO
START ENGINE
lDEPRESS CLUTCH PEDAL TO
START ENGINE
lUSE AUXILIARY KEY
NOTE
When more than two warnings occur at the
same time, indicators are switched at each
specified time.
qSettings
The following settings can be changed:lScreen adjustment (Brightness/contrast,
screen-off)í
lBuzzer volume (Ignition key reminder,
lights-on reminder, Blind Spot
Monitoring (BSM) warning beep)
lTurn indicator soundlDistance unitlTemperature unitlDisplay language
The data for the trip computer average
fuel economy and the average vehicle
speed can also be reset.
To change settings
1. Press the INFO switch until the
SETTINGS screen is displayed.
2. Select PREFERENCES by pressing the
Enter (up/down) switch up or down,
and then press the Enter (up/down)
switch.
3. Select the setting item you want to
change by pressing the Enter (up/
down) switch up or down, and then
press the Enter (up/down) switch.
6-188
Interior Comfort
íSome models.
Interior Equipment

Starting a Flooded Engine
If the engine fails to start, it may be
flooded (excessive fuel in the engine).
Follow this procedure:
(Without Advanced Keyless Entry &
Push Button Start System)
1. If the engine does not start within five
seconds on the first try, switch the
ignition off, wait ten seconds and try
again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and
hold it there.
4. Depress the clutch pedal (Manual
transaxle) or the brake pedal
(Automatic transaxle).
5. Switch the ignition to START and hold
it there―for up to ten seconds. If the
engine starts, release the key and
accelerator immediately because the
engine will suddenly rev up.
6. If the engine fails to start, crank it
without depressing the accelerator―for
up to ten seconds.
(With Advanced Keyless Entry & Push
Button Start System)
1. If the engine does not start within five
seconds on the first try, wait ten
seconds and try again.
2. Make sure the parking brake is on.
3. Depress the accelerator all the way and
hold it there.4. Depress the clutch pedal (Manual
transaxle) or the brake pedal
(Automatic transaxle), then press the
push button start. If the engine starts,
release the accelerator immediately
because the engine will suddenly rev
up.
5. If the engine fails to start, crank it
without depressing the accelerator.
If the engine still does not start using the
above procedure, have your vehicle
inspected by an Authorized Mazda
Dealer.
7-18
In Case of an Emergency
Emergency Starting

Personalization Features
The following“Personalization Features”are available. These settings can only be changed by an Authorized
Mazda Dealer.
Item Feature Factory Setting Available Settings
Illumination entryThe time required for the interior lamp to turn
off automatically after all doors are closed can
be changed.15 seconds 7.5/30/60 seconds
The time required for the interior lamp to
illuminate after unlocking any door can be
changed.30 seconds 7.5/15/60 seconds
The function allowing the interior lamp to
illuminate automatically when the ignition is
switched off can be deactivated.Activated Deactivated
The function allowing the interior lamp to
illuminate automatically when the doors are
unlocked can be deactivated.Activated Deactivated
The function allowing the interior lamp to turn
off automatically when any door is opened
(or not securely closed) can be changed.Activated Deactivated
The time required for the interior lamp to turn
off automatically can be changed
(prevents battery depletion when a door is
open/ajar).30 minutes 60/10 minutes
Keyless entryThe time required for the doors to relock
automatically after unlocking with the
transmitter can be changed.30 seconds 60/90 seconds
The flashing of the hazard warning lights when
the doors are locked/unlocked can be changed.Activated Deactivated
The function allowing the horn to sound
automatically when the doors are locked by
pressing the transmitter two times consecutively
can be deactivated.Activated Deactivated
Smart turnThe function allowing the turn signal lights to
flash three times with a momentary turn switch
operation (when changing lanes) can be
changed.Deactivated Activated
Personalization Features
10-13

Item Feature Factory Setting Available Settings
Advanced keyless
entry and Start
systemThe method for unlocking the doors using the
request switch can be selected.Press × 2 Press × 1
The function to automatically lock the doors
when leaving the vehicle while carrying the key
can be activated.Deactivated Activated
The advanced key's remaining battery level
warning light in the instrument cluster can be
deactivated.Activated Deactivated
The volume of the answer-back beep during
keyless entry system operation can be adjusted.High Low/Deactivated
The volume of the warning beep for the
advanced keyless entry system can be adjusted.High Low
The advanced key function can be deactivated. Activated Deactivated
The function allowing the power supply to turn
off automatically after the ignition has been left
in the ACC position for a long period of time
can be deactivated.Activated Deactivated
The time required for the doors to relock
automatically after unlocking with the request
switch/transmitter can be changed.30 seconds 60/90 seconds
The order in which the ignition position
transitions when pressing the push button start
can be changed.ON→Off ON→ACC→Off
Auto headlight on/offThe headlight illumination on/off timing based
on surrounding lightness/darkness can be
changed.Standard
(Illuminates
under average
levels of
darkness)Earlier/
Somewhat earlier/
Somewhat later/
Later
10-14
Personalization Features

I
Illuminated Entry System ............... 6-176
Immobilizer System
(with Advanced Key) ........................ 3-54
Immobilizer System
(without Advanced Key) ................... 3-58
Indicator Lights ................................. 5-47
AFS OFF .................................... 5-60
BSM OFF ................................... 5-61
Cruise ......................................... 5-60
DSC OFF .................................... 5-60
Headlight high-beam .................. 5-59
KEY ............................................ 5-57
Low engine coolant
temperature ................................ 5-59
Power steering malfunction ........ 5-61
Security ...................................... 5-58
Shift position .............................. 5-59
TCS/DSC ................................... 5-59
Turn signal/hazard warning ........ 5-62
Information Display ........................ 6-178
Audio display ........................... 6-179
Climate control display ............ 6-179
Clock ........................................ 6-179
Information display functions ... 6-178
Outside temperature display ..... 6-179
Inside Trunk Release Lever ............... 3-44
Instrument Cluster ............................. 5-42
Interior Care ...................................... 8-71
Interior Lights ................................. 6-176
J
Jump-Starting .................................... 7-19
K
Keyless Entry System ....................... 3-26
Keys .................................................. 3-25
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-69
Liftgate .............................................. 3-38
Luggage compartment ............... 3-41
Light Bulbs
Replacement ............................... 8-46
Specifications ........................... 10-11
Lighting Control ............................... 5-64
Lubricant Quality .............................. 10-5
Luggage Compartment Light .......... 6-177
M
Maintenance
Introduction .................................. 8-2
Owner maintenance
precautions ................................. 8-17
Owner maintenance schedule ..... 8-16
Scheduled ..................................... 8-4
Manual Transaxle Operation ............. 5-10
Recommendations for shifting .... 5-11
Map Lights ...................................... 6-177
Meters and Gauges ........................... 5-42
Mirror Defroster ................................ 5-76
Mirrors
Outside mirrors .......................... 3-65
Rearview mirror ......................... 3-66
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-52
