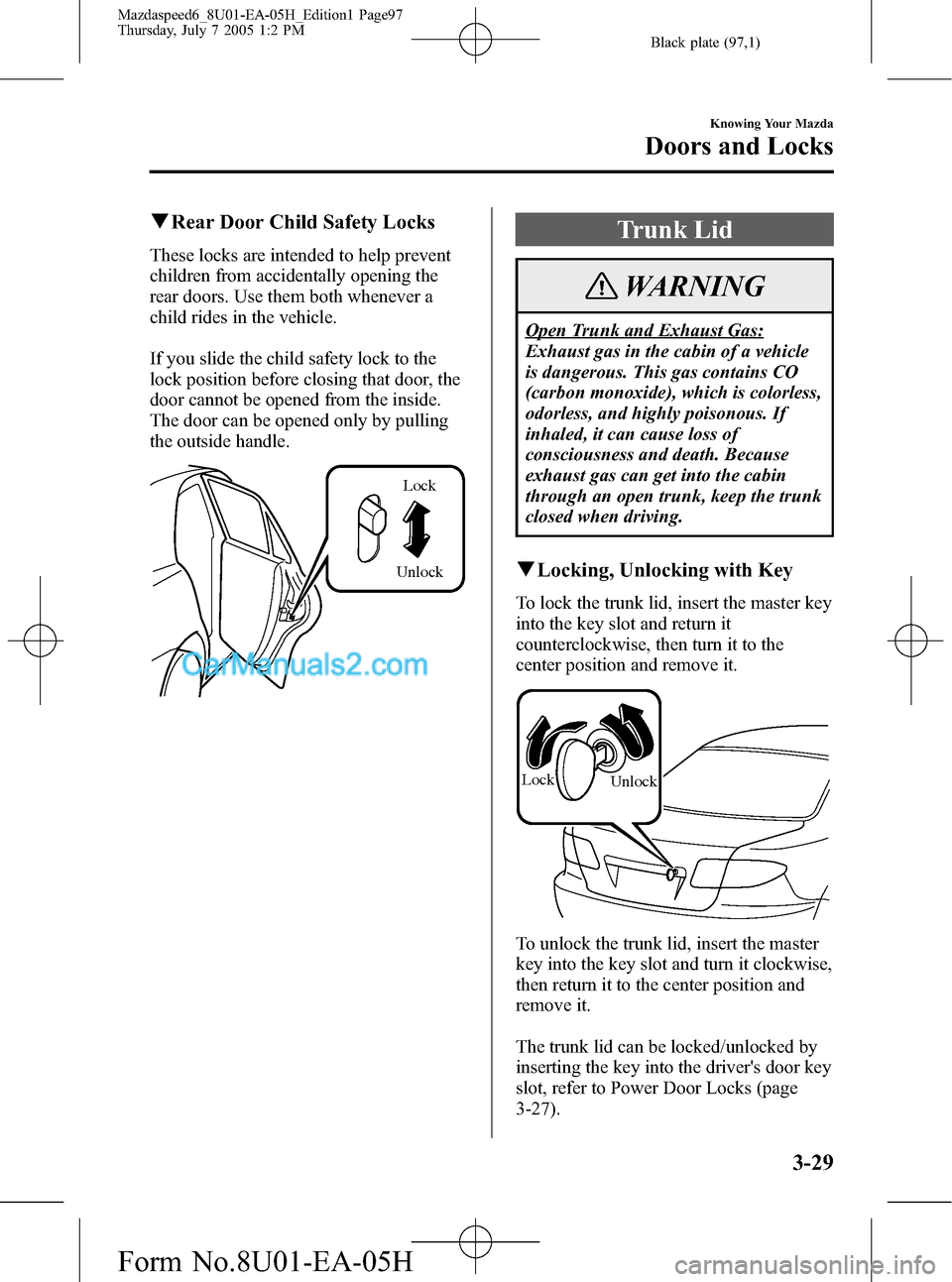

Black plate (97,1)
qRear Door Child Safety Locks
These locks are intended to help prevent
children from accidentally opening the
rear doors. Use them both whenever a
child rides in the vehicle.
If you slide the child safety lock to the
lock position before closing that door, the
door cannot be opened from the inside.
The door can be opened only by pulling
the outside handle.
UnlockLock
Trunk Lid
WARNING
Open Trunk and Exhaust Gas:
Exhaust gas in the cabin of a vehicle
is dangerous. This gas contains CO
(carbon monoxide), which is colorless,
odorless, and highly poisonous. If
inhaled, it can cause loss of
consciousness and death. Because
exhaust gas can get into the cabin
through an open trunk, keep the trunk
closed when driving.
qLocking, Unlocking with Key
To lock the trunk lid, insert the master key
into the key slot and return it
counterclockwise, then turn it to the
center position and remove it.
Lock
Unlock
To unlock the trunk lid, insert the master
key into the key slot and turn it clockwise,
then return it to the center position and
remove it.
The trunk lid can be locked/unlocked by
inserting the key into the driver's door key
slot, refer to Power Door Locks (page
3-27).
Knowing Your Mazda
Doors and Locks
3-29
Mazdaspeed6_8U01-EA-05H_Edition1 Page97
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (99,1)
Opening the trunk lid
Pull up on the handle.
Closing the trunk lid
Grasp the inner handle and pull the trunk
lid down, then push the trunk lid down
until it locks securely. Be careful not to
slam it. Pull up on the trunk lid to make
sure it is secured.
Handle
qTrunk Security
In some situations you may want to
prevent the trunk from being unlocked
when the doors are unlocked with the key.
If you must leave your Mazda with
another person, such as a parking
attendant, protect valuables in the trunk
by locking the trunk with the master key,
or the request switch (with advanced key)
on the trunk lid and giving the other
person only the valet key, which does not
open the trunk.
With master key
To secure the trunk lid, close the trunk,
insert the master key and turn it
counterclockwise. Remove the key.
Knowing Your Mazda
Doors and Locks
3-31
Mazdaspeed6_8U01-EA-05H_Edition1 Page99
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (100,1)
To cancel the security feature, insert the
master key into the lock, turn the key
clockwise to the center position and
remove it.
With request switch (with advanced
key)
NOTE
The trunk lid cannot be secured when
any door or the trunk lid is open.
To secure the trunk lid, press the request
switch on the trunk lid for about 3
seconds. This will lock only the trunk lid.
Request switch
To cancel the security feature, press the
request switch on the trunk lid for about 3
seconds again.
qTrunk Light
The trunk light is on when the lid is open
and off when it's closed.
NOTE
To prevent the battery from being
discharged, do not leave the trunk open
for a long period when the engine is not
running.
3-32
Knowing Your Mazda
Doors and Locks
Mazdaspeed6_8U01-EA-05H_Edition1 Page100
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (111,1)
qFuel-Filler Lid
To open, pull up the remote fuel-filler lid
release.
Remote fuel-filler
lid release
qFuel-Filler Cap
To remove the filler cap, turn it
counterclockwise.
To close the filler cap, turn it clockwise
until it clicks.
Close
Open
CAUTION
Make sure the fuel-filler cap is
tightened securely. The check engine
light may illuminate when the cap isn't
tightened securely. If the light remains
on (even after you have tightened the
cap securely, driven, and restarted the
engine several times), it may indicate a
different problem. Contact an
Authorized Mazda Dealer as soon as
possible.
Knowing Your Mazda
Doors and Locks
3-43
Mazdaspeed6_8U01-EA-05H_Edition1 Page111
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (186,1)
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Hot Cold
This dial controls temperature.Turn it
clockwise for hot and counterclockwise
for cold.
Fan control dial
Fast Slow
The fan has seven speeds. The selected
speed will be displayed.
Mode selector switch
The desired airflow mode can be selected
(page 6-4).
NOTE
lWith the airflow mode set to
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and a
comparably lower air temperature
will flow through the central, left and
right vents.
lTo set the air vent to, press the
windshield defroster switch.
A/C switch
With the AUTO or fan control dial ON,
press the A/C switch to select the air
conditioning (cooling/dehumidifying
functions) on or off.
6-6
Interior Comfort
Climate Control System
Mazdaspeed6_8U01-EA-05H_Edition1 Page186
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (190,1)
Antenna
qDetachable Type
To remove the antenna, turn it
counterclockwise.
To install the antenna, turn it clockwise.
Make sure the antenna is securely
installed.
Install Remove
CAUTION
To prevent damage to the antenna,
remove it before entering a car wash
facility or passing beneath a low
overhead clearance.
NOTE
When leaving your vehicle unattended,
we recommend that you remove the
antenna and store it inside the vehicle.
Operating Tips for Audio
System
WARNING
Do Not Adjust Audio While Driving
the Vehicle:
Adjusting the audio while driving the
vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a
serious accident. Always adjust the
audio while the vehicle is stopped.
Even if the audio control switches are
equipped on the steering wheel, learn
to use the switches without looking
down at them so that you can keep
your maximum attention on the road
while driving the vehicle.
CAUTION
For the purposes of safe driving, adjust
the audio volume to a level that allows
you to hear sounds outside of the
vehicle.
NOTE
lDo not use the audio for long periods
of time while the engine is off.
Otherwise the battery could go dead.
lIf a digital cellular phone or CB
radio is used in or near the vehicle, it
could cause noise to occur from the
audio system, however, this does not
indicate that the system has been
damaged.
6-10
Interior Comfort
Audio System
Mazdaspeed6_8U01-EA-05H_Edition1 Page190
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (221,1)
Information Display
OPEN/CLOSE button (with navigation system)
AMB button (with outside temperature display )
TILT button (with navigation system)
CLOCK/CLK button
SET button
qInformation Display Functions
The information display has the following functions:
lClock
lAmbient Temperature Display (Outside Temperature Display)
lClimate Control Display
lAudio Display
Interior Comfort
Interior Equipment
6-41
Mazdaspeed6_8U01-EA-05H_Edition1 Page221
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (222,1)
qClock
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
1. Press the CLK button until a beep
sounds, and“12Hr”and“24Hr”will be
displayed.
2. Press the SET button to switch between
“12Hr”and“24Hr”displays. The
selected display will flash.
To select the desired clock setting,
press the CLK button again while the
preferred setting is flashing.
3.“Hr. ADJUST”will be displayed next,
and the hour portion of the display will
flash. Press the SET button to set the
hour, then press the CLK button.
4.“Min. ADJUST”will be displayed
next, and the minutes portion of the
display will flash. Press the SET button
to set the minutes, then press the CLK
button.
Time resetting
While the clock is displayed, press the
SET button 1.5 seconds or more. When
the button is released, a beep will sound
and the clock will be reset as follows:
(Example)12:01―12:29→12:00
12:30―12:59→1:00
NOTE
When the SET button is released, the
seconds are reset to“00”.
qAmbient Temperature Display
When the ignition switch is in the ON
position, press the AMB button to display
the ambient temperature.
NOTE
lThe displayed ambient temperature
may vary from the actual ambient
temperature depending on the
surrounding area and vehicle
conditions.
lPress the AMB button 2 seconds or
more to switch the display from
Fahrenheit to Centigrade or vice
versa.
lPress the AMB button again to
switch the display from ambient
temperature to the temperature set
for the air conditioner.
6-42
Interior Comfort
Interior Equipment
Mazdaspeed6_8U01-EA-05H_Edition1 Page222
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (228,1)
qGlove Box
To open the glove box, pull the latch
toward you.
Insert the master key and turn it clockwise
to lock, counterclockwise to unlock.
Unlock
Lock
qCenter Console
To open, pull the lower release catch.
Small items can be placed in the tray of
the center console lid.
To open it, pull the upper release catch.
6-48
Interior Comfort
Interior Equipment
Mazdaspeed6_8U01-EA-05H_Edition1 Page228
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (229,1)
Accessory Sockets
The ignition switch must be in the ACC
or ON position to prevent the battery from
discharging.
Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
CAUTION
To prevent accessory socket damage or
electrical failure, pay attention to the
following:
lDon't use accessories that require
more than 120 W (DC 12 V, 10 A).
lDon't use accessories that are not
genuine Mazda accessories or the
equivalent.
lClose the cover when the accessory
socket is not in use.
lCorrectly insert the plug into the
accessory socket.
NOTE
To prevent discharging the battery, don't
use the socket for long periods with the
engine off or idling.When placing an electrical device (e.g.
cellular phone) in the tray which is
connected with the accessory socket, pass
the plug cord through the slot in the cap.
Cap slot, closed
Cap slot, opened
1. Open the lid by pulling the upper
release catch.
2. Remove the tray mat.
3. Using a coin, turn the cap
counterclockwise (about 45° from the
closed position) and remove it.
4. Open the tray by pulling the lower
release catch.
Interior Comfort
Interior Equipment
6-49
