Black plate (18,1)
CAUTION
lThe seat-bottom power adjustment is
operated by motors. Avoid extended
operation because excessive use can
damage the motors.
lTo prevent the battery from running
down, avoid using the power
adjustment when the engine is
stopped. The adjuster uses a large
amount of electrical power.
lDon't use the switch to make more
than one adjustment at a time.
qSeat Slide
To slide the seat, move the slide lifter
switch on the outside of the seat to the
front or back and hold it. Release the
switch at the desired position.
qSeat Recline
WARNING
Reclining:
Sitting in a reclined position while the
vehicle is moving is dangerous
because you don't get the full
protection from seat belts. During
sudden braking or a collision, you can
slide under the lap belt and suffer
serious internal injuries. For
maximum protection, sit well back and
upright.
Reclining the Front Passenger Seat
Can Turn Off the Front Passenger Air
Bags:
If your vehicle is equipped with front
passenger seat weight sensors, sitting
in the front passenger seat improperly
out of position or with the seatback
reclined too far while the vehicle is
moving is dangerous as it can take off
weight from the seat bottom and affect
the decision of the front passenger
sensing system. The front passenger
will not have the supplementary
protection of the air bags and
pretensioner, which could result in
serious injury. Always sit upright
against your seatback, with your feet
on the floor.
2-6
Essential Safety Equipment
Seats
Mazdaspeed6_8U01-EA-05H_Edition1 Page18
Thursday, July 7 2005 1:1 PM
Form No.8U01-EA-05H

Black plate (29,1)
WARNING
Pretensioner System Disposal:
Improper disposal of the pretensioner
system or a vehicle with non-
deactivated pretensioners is
dangerous. Unless all safety
procedures are followed, injury could
result. Ask an Authorized Mazda
Dealer how to safely dispose of the
pretensioner system or how to scrap a
pretensioner-equipped vehicle.
NOTE
lThe pretensioner system will only
activate in a moderate or greater
frontal or near-frontal collision. It
will not activate in most rollovers,
side or rear impacts.
lSome smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally has
no effect on occupants, however,
those with sensitive skin may
experience light skin irritation. If
residue from the deployment of the
air bags or the front pretensioner
system gets on the skin or in the
eyes, wash it off as soon as possible.
qAir Bag/Front Seat Belt Pretensioner
Systems Warning Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.
A system malfunction is indicated when
the warning light constantly flashes,
constantly illuminates or doesn't
illuminate at all when the ignition switch
is turned to the ON position. If any of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Self-Servicing the Air Bag/
Pretensioner Systems:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled. This
could cause serious injuries. Never
tamper with the systems and always
have an Authorized Mazda Dealer
perform all servicing and repairs.
Essential Safety Equipment
Seat Belt Systems
2-17
Mazdaspeed6_8U01-EA-05H_Edition1 Page29
Thursday, July 7 2005 1:1 PM
Form No.8U01-EA-05H

Black plate (66,1)
lVehicle roll-over may not provide
enough side force to deploy the side
and curtain air bags.
lSide impacts with two-wheeled
vehicles may not provide enough force
to deploy the side and curtain air bags.
Non-activation of side and curtain air
bag
The side and curtain air bags will not
normally inflate in the following cases:
lCollision from the rear.
lCollision from the front, but it may
deploy the front air bags.
qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unit
lFront air bag sensor
lAir bag modules
lSide crash sensors
lFront seat belt pretensioners
lRelated wiring
lDriver seat slide position sensor
lFront passenger seat weight sensors
lDriver and front passenger seat belt
buckle switches
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is normal, the warning light
illuminates when the ignition switch is
turned to the ON position or after the
engine is cranked. After about 6 seconds
it goes out.
2-54
Essential Safety Equipment
SRS Air Bags
Mazdaspeed6_8U01-EA-05H_Edition1 Page66
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (70,1)
Advanced Keysí
The advanced keyless functions (advanced keyless entry and start system) enables the
following operations while the advanced key is being carried (page 3-7).
lLocking/unlocking the doors and the trunk lid without operating the key.
lStarting the engine without operating the key.
The advanced key enables additional functions other than those with the advanced keyless
functions (page 3-13).
lThe following operations are possible using the keyless entry system from a distance
(Lock/Unlock/Panic button):
lLocking/unlocking the doors and the trunk lid.lOpening the power windows.lTurning on the alarm.
lLocking/unlocking the doors and the trunk lid, or starting the engine using the auxiliary
key.
WARNING
Keys and Children:
Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. These new kinds of keys are fascinating to
children. They could play with power windows or other controls, or even make the
vehicle move. Don't leave the keys in your vehicle with children and keep them in a
place where your children will not find or play with them.
Use of Advanced Key Near Medical Equipment:
Radio waves from the advanced key may affect medical equipment such as
pacemakers. Before using the advanced key near people who use medical equipment,
ask the medical equipment manufacturer or your physician if radio waves from the
advanced key will affect the equipment.
NOTE
lThe driver must carry the advanced key to ensure the system functions properly.
lRefer to Immobilizer System (page 3-47) for information regarding keys and engine
starting.
lRefer to Theft-Deterrent System (page 3-53) for information regarding keys and the
prevention of vehicle and vehicle contents theft.
3-2
Knowing Your Mazda
íSome models.
Advanced Keyless Entry and Start System
Mazdaspeed6_8U01-EA-05H_Edition1 Page70
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (73,1)
qAdvanced Key Maintenance
CAUTION
lMake sure the battery is installed
with the correct pole facing upward.
Battery leakage could occur if it is
not installed correctly.
lWhen replacing the battery, be
careful not to bend the electrical
terminals or get oil on them. Also be
careful not to get dirt in the
transmitter as it could be damaged.
lThere is the danger of explosion if
the battery is not correctly replaced.
lReplace only with the same type
battery (CR2025 or equivalent).
lDispose of used batteries according
to the following instructions.
lInsulate the plus and minus
terminals of the battery using
cellophane or equivalent tape.
lNever disassemble.lNever throw the battery into fire
or water.
lNever deform or crush.
The following conditions indicate that the
battery power is low:
lThe KEY indicator light (green) flashes
in the instrument cluster when the
engine is turned off.
lThe system does not operate and the
operation indicator light does not flash
when the buttons are pressed.
lThe system's operational range is
reduced.Replacing the battery at an Authorized
Mazda Dealer is recommended to prevent
damage to the advanced key. If replacing
the battery by yourself, follow the
instruction below.
Replacing the advanced key battery
1. Pull out the auxiliary key.
2. Release the cap using a flathead
screwdriver, then rotate and remove the
cap.
Cap
CAUTION
Do not turn the cap excessively. The
cap may be damaged.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-5
Mazdaspeed6_8U01-EA-05H_Edition1 Page73
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (75,1)
Operation Using Advanced
Keyless Functions
qOperational Range
The system operates only when the driver
is in the vehicle or within operational
range while the advanced key is being
carried.
NOTE
When the battery power is low, or in
places where there are high-intensity
radio waves or noise, the operational
range may become narrower or the
system may not operate.
Locking, unlocking the doors and the
trunk lid
The operational range for locking/
unlocking the doors is up to 80 cm (2.6 ft)
from the center of the front door handles.
The operational range for locking/
unlocking the trunk lid is up to 80 cm (2.6
ft) from the center of the trunk lid.
Exterior transmitter
Operational range
NOTE
The system may not operate if you are
too close to the windows, door handles,
or trunk lid.
Starting the engine
The operational range for starting the
engine includes nearly the entire cabin
area except for the trunk.
Interior transmitter
Operational range
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-7
Mazdaspeed6_8U01-EA-05H_Edition1 Page75
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (76,1)
NOTE
lThe trunk is out of the operational
range, however, starting the engine
may be possible.
lThe engine may not start if the
advanced key is placed in the
following areas:
lAround the dashboardlIn the storage compartments such
as the glove box
lOn the rear parcel shelf
lStarting the engine may be possible
even if the advanced key is outside
of the vehicle and extremely close to
a door and window, however, always
start the engine from the driver's seat.
If the vehicle is started and the
advanced key is not in the vehicle,
the vehicle will not restart after it is
shut off and the ignition switch is
turned to the lock position.
lIf the advanced key is detected
within operational range, the
operation indicator light flashes
momentarily.
qLocking, Unlocking with Request
Switch
All doors and the trunk lid can be locked/
unlocked by pressing the request switch
on the front doors or the trunk lid while
the advanced key is being carried.
Front doors
Request switch
Trunk lid
Request switch
To lock
To lock the doors and the trunk lid, press
the request switch. A beep sound will be
heard once and the hazard warning lights
will flash once.
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazdaspeed6_8U01-EA-05H_Edition1 Page76
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (78,1)
qStarting the Engine
Ignition Switch Positions
Without a traditional key, some of the
ignition switch functions are different.
Start knob
LOCK(Released)
The steering wheel locks to help protect
against theft.
LOCK(Depressed)
The ignition switch can be turned to the
ACC position when the KEY indicator
light (green) illuminates in the instrument
cluster.
WARNING
Not Setting the Parking Brake:
Leaving the driver's seat without
setting the parking brake is
dangerous. Unexpected vehicle
movement could occur if the parking
brake is not set. This could cause an
accident. Before leaving the driver's
seat, always set the parking brake and
make sure the shift lever is in 1 or R.
NOTE
If turning the ignition switch is difficult,
jiggle the steering wheel from side to
side.
ACC(Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
NOTE
The Advanced Keyless Entry System
does not function in the ACC position,
and the doors will not lock/unlock even
if they have been locked manually or
the advanced key is carried away from
the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-24).
NOTE
When the ignition switch is turned to
the ON position, the sound of the fuel
pump motor operating near the fuel
tank can be heard. This does not
indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-24).
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazdaspeed6_8U01-EA-05H_Edition1 Page78
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (79,1)

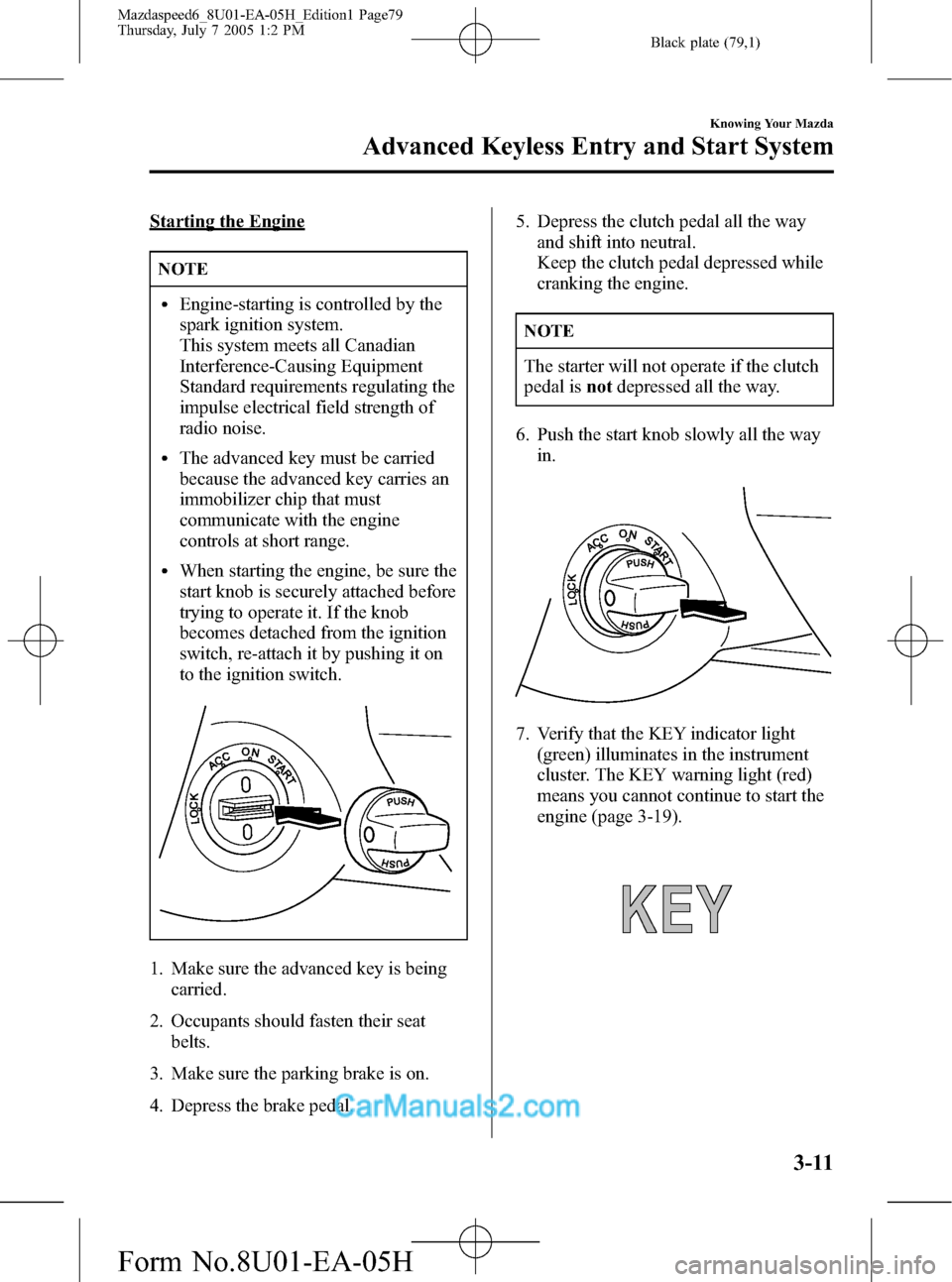

Starting the Engine
NOTE
lEngine-starting is controlled by the
spark ignition system.
This system meets all Canadian
Interference-Causing Equipment
Standard requirements regulating the
impulse electrical field strength of
radio noise.
lThe advanced key must be carried
because the advanced key carries an
immobilizer chip that must
communicate with the engine
controls at short range.
lWhen starting the engine, be sure the
start knob is securely attached before
trying to operate it. If the knob
becomes detached from the ignition
switch, re-attach it by pushing it on
to the ignition switch.
1. Make sure the advanced key is being
carried.
2. Occupants should fasten their seat
belts.
3. Make sure the parking brake is on.
4. Depress the brake pedal.5. Depress the clutch pedal all the way
and shift into neutral.
Keep the clutch pedal depressed while
cranking the engine.
NOTE
The starter will not operate if the clutch
pedal isnotdepressed all the way.
6. Push the start knob slowly all the way
in.
7. Verify that the KEY indicator light
(green) illuminates in the instrument
cluster. The KEY warning light (red)
means you cannot continue to start the
engine (page 3-19).
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-11
Mazdaspeed6_8U01-EA-05H_Edition1 Page79
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H

Black plate (80,1)
NOTE
In the following cases, the KEY
warning light (red) illuminates and the
engine will not start.
lThe advanced key battery is dead.
lThe advanced key is out of
operational range.
lThe advanced key is placed in areas
where it is difficult for the system to
detect the signal (page 3-7).
lA key from another manufacturer
similar to the advanced key is in the
operational range.
8. Turn the ignition switch to the ACC
position while pushing the start knob
in.
9. Turn the ignition switch from the ACC
position to the START position and
hold (up to 10 seconds at a time) until
the engine starts.
CAUTION
Don't try the starter for more than 10
seconds at a time. If the engine stalls or
fails to start, wait 10 seconds before
trying again. Otherwise, you may
damage the starter and drain the battery.
10. After starting the engine, let it idle for
about 10 seconds.
NOTE
lIn extremely cold weather, below
_
18° C (0° F), or after the vehicle
has not been driven in several days,
let the engine warm up without
operating the accelerator.
lWhether the engine is cold or warm,
it should be started without use of
the accelerator.
Turning off the engine
1. Turn the ignition switch from the ON
position to the ACC position.
NOTE
When the engine is turned off and the
ignition switch it turned from the ACC
position to the LOCK position, the
KEY indicator light (green) flashes in
the instrument cluster for about 30
seconds if the battery power of the
advanced key is low. Replace the
battery with a new one.
Refer to Battery Replacement (page
3-6).
2. Push in the start knob from the ACC
position and turn it to the LOCK
position.
3-12
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazdaspeed6_8U01-EA-05H_Edition1 Page80
Thursday, July 7 2005 1:2 PM
Form No.8U01-EA-05H
