Black plate (177,1)
Windshield Wipers and
Washer
The ignition switch must be in the ON
position.
WARNING
Substitute Washer Fluid:
Using radiator antifreeze as washer
fluid is dangerous. If sprayed on the
windshield, it will dirty the windshield,
affect your visibility, and could result
in an accident. Use only windshield
washer fluid or plain water in the
reservoir.
Frozen Washer Fluid:
Using windshield washer fluid without
anti-freeze protection in freezing
temperatures is dangerous. The
washer fluid could freeze on the
windshield and block your vision. You
could have an accident. Don't use the
washer without first warming the
windshield and never use plain tap
water.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected from motor breakdown,
overheating and possible fire by a
circuit breaker. This mechanism will
automatically stop operation of the
blades, but only for about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don't resume functioning, consult
an Authorized Mazda Dealer as soon as
possible. Drive to the side of the road
and park off the right-of-way. Wait until
the weather clears before trying to drive
with the wipers inoperative.
qWindshield Wipers
Turn the wipers on by pulling the lever
down.
MIST―Mist
INT―Intermittent
1―Normal
2―Fast
For a single wiping cycle, push the lever
up to MIST.
Driving Your Mazda
Switches and Controls
5-39
Mazdaspeed6_8U01-EA-05H_Edition1 Page177
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

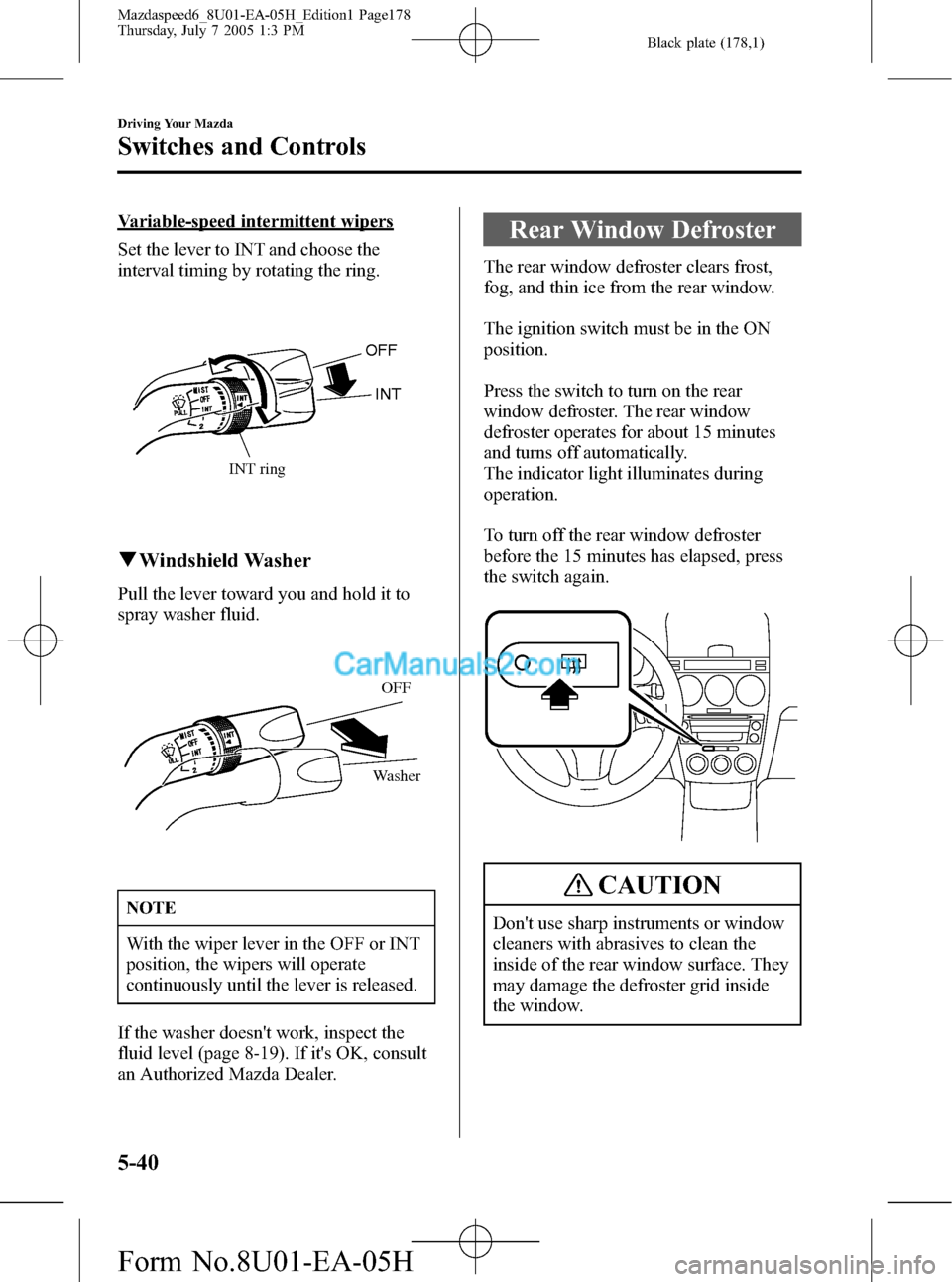

Black plate (178,1)
Variable-speed intermittent wipers
Set the lever to INT and choose the
interval timing by rotating the ring.
OFF
INT
INT ring
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
NOTE
With the wiper lever in the OFF or INT
position, the wipers will operate
continuously until the lever is released.
If the washer doesn't work, inspect the
fluid level (page 8-19). If it's OK, consult
an Authorized Mazda Dealer.
Rear Window Defroster
The rear window defroster clears frost,
fog, and thin ice from the rear window.
The ignition switch must be in the ON
position.
Press the switch to turn on the rear
window defroster. The rear window
defroster operates for about 15 minutes
and turns off automatically.
The indicator light illuminates during
operation.
To turn off the rear window defroster
before the 15 minutes has elapsed, press
the switch again.
CAUTION
Don't use sharp instruments or window
cleaners with abrasives to clean the
inside of the rear window surface. They
may damage the defroster grid inside
the window.
5-40
Driving Your Mazda
Switches and Controls
Mazdaspeed6_8U01-EA-05H_Edition1 Page178
Thursday, July 7 2005 1:3 PM
Form No.8U01-EA-05H

Black plate (253,1)
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction .................................................................................. 8-2
Introduction ............................................................................... 8-2
Scheduled Maintenance ................................................................ 8-3
Scheduled Maintenance ............................................................ 8-3
Owner Maintenance ..................................................................... 8-8
Owner Maintenance Schedule .................................................. 8-8
Owner Maintenance Precautions ............................................... 8-9
Engine Compartment Overview .............................................. 8-11
Engine Oil ............................................................................... 8-12
Engine Coolant ....................................................................... 8-15
Brake/Clutch Fluid .................................................................. 8-18
Power Steering Fluid ............................................................... 8-19
Washer Fluid ........................................................................... 8-19
Body Lubrication .................................................................... 8-20
Air Filter .................................................................................. 8-21
Wiper Blades ........................................................................... 8-22
Battery ..................................................................................... 8-24
Tires ........................................................................................ 8-26
Light Bulbs ............................................................................. 8-30
Fuses ....................................................................................... 8-36
Appearance Care ........................................................................ 8-41
How to Minimize Environmental Paint Damage .................... 8-41
Exterior Care ........................................................................... 8-43
Interior Care ............................................................................ 8-46
8-1
Mazdaspeed6_8U01-EA-05H_Edition1 Page253
Thursday, July 7 2005 1:4 PM
Form No.8U01-EA-05H

Black plate (353,1)
W
Warning Lights ................................. 5-24
ABS ............................................ 5-26
Air bag system ........................... 5-29
AWD .......................................... 5-31
Brake system .............................. 5-26
Charging system ......................... 5-27
Check engine .............................. 5-28
Door-ajar .................................... 5-31
Engine oil pressure ..................... 5-28
Front seat belt pretensioner
system ........................................ 5-29
Low fuel ..................................... 5-29
Low washer fluid level ............... 5-31
Seat belt ...................................... 5-29
Warranty .............................................. 9-9
Washer Fluid ..................................... 8-19
Weights ............................................. 10-4
Wheel Replacement .......................... 8-29
Windows
Power windows .......................... 3-34
Windshield Washer ........................... 5-40
Windshield Wipers ............................ 5-39
Blades replacement .................... 8-22
Winter Driving .................................... 4-9
Index
11-7
Mazdaspeed6_8U01-EA-05H_Edition1 Page353
Thursday, July 7 2005 1:4 PM
Form No.8U01-EA-05H
