Steering Wheel
WARNING
Never adjust the steering wheel while
the vehicle is moving:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull down the lock
release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, push the lever up to lock the
column.
3. Push the wheel up and down to be
certain it's locked before driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
WARNING
Convex Mirror (Passenger Side):
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder before
changing lanes.
Power control mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Press the left or right side of the
selector switch to choose the left or
right side mirror.
2. Depress the mirror switch in the
appropriate direction.
Outside mirrorSelector switch
Mirror switch
3-54
Knowing Your Mazda
Steering Wheel and Mirrors
Mazdaspeed6_8V77-EA-06F_Edition1 Page124
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (125,1)
After adjusting the mirror, lock the control
by placing the selector switch in the
middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Always return the outside mirrors to
the driving position before you start
driving:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-40).
qRearview Mirror
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Reducing glare from headlights
Adjust the mirror with the day/night lever
in the day position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night DayDay/Night lever
Knowing Your Mazda
Steering Wheel and Mirrors
3-55íSome models. Mazdaspeed6_8V77-EA-06F_Edition1 Page125
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (126,1)
WARNING
Do not stack cargo or objects higher
than the seatbacks:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes.
3-56
Knowing Your Mazda
Steering Wheel and Mirrors
Mazdaspeed6_8V77-EA-06F_Edition1 Page126
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (132,1)
Break-In Period
No special break-in is necessary, but a few
precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of your Mazda.
lDon't race the engine.
lDon't maintain one constant speed,
either slow or fast, for a long period of
time.
lDon't drive constantly at full-throttle or
high engine rpm for extended periods
of time.
lAvoid unnecessary hard stops.
lAvoid full-throttle starts.
Money-Saving Suggestions
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save money on
fuel and repairs.
lAvoid long warm-ups. Once the engine
runs smoothly, begin driving.
lAvoid fast starts.
lKeep the engine tuned. Follow the
maintenance schedule (page 8-3) and
have an Authorized Mazda Dealer
perform inspections and servicing.
lUse the air conditioner only when
necessary.
lSlow down on rough roads.
lKeep the tires properly inflated.
lDon't carry unnecessary weight.
lDon't rest your foot on the brake pedal
while driving.
lKeep the wheels in correct alignment.
lKeep windows closed at high speeds.
lSlow down when driving in crosswinds
and headwinds.
WARNING
Never stop the engine when going
down a hill:
Stopping the engine when going down
a hill is dangerous. This causes the
loss of power steering and power
brake control, and may cause damage
to the drivetrain. Any loss of steering
or braking control could cause an
accident.
4-6
Before Driving Your Mazda
Driving Tips
Mazdaspeed6_8V77-EA-06F_Edition1 Page132
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (139,1)
5Driving Your Mazda
Explanation of instruments and controls.
Starting and Driving ..................................................................... 5-2
Ignition Switch .......................................................................... 5-2
Starting the Engine .................................................................... 5-4
Brake System ............................................................................ 5-5
Manual Transaxle Operation ..................................................... 5-9
Power Steering ........................................................................ 5-11
All-Wheel Drive (AWD) Operation ........................................ 5-11
Cruise Control ......................................................................... 5-13
Traction Control System (TCS) .............................................. 5-17
Dynamic Stability Control (DSC) ........................................... 5-18
Instrument Cluster and Indicators ............................................ 5-20
Meters and Gauges .................................................................. 5-20
Warning/Indicator Lights and Beep Sounds ............................ 5-24
Warning/Indicator Lights ........................................................ 5-24
Beep Sounds ........................................................................... 5-35
Switches and Controls ................................................................ 5-36
Lighting Control ..................................................................... 5-36
Turn and Lane-Change Signals ............................................... 5-38
Fog Lights ............................................................................... 5-38
Windshield Wipers and Washer .............................................. 5-39
Rear Window Defroster ........................................................... 5-40
Horn ........................................................................................ 5-41
Hazard Warning Flasher .......................................................... 5-42
5-1
Mazdaspeed6_8V77-EA-06F_Edition1 Page139
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (140,1)
Ignition Switch
(With advanced key)
NOTE
When starting the engine using the
advanced key, refer to Starting the
Engine (page 3-10).
When starting the engine with the
auxiliary key, perform the following
procedure.
1. Remove the auxiliary key from the
advanced key (page 3-15).
2. Make sure the start knob is in LOCK
position.
3. Remove the start knob by pulling it
outward while pressing the buttons on
both the left and right sides.
4. Insert the auxiliary key in the ignition
switch.
qIgnition Switch Positions
With advanced
key
Without advanced
key
LOCK
The steering wheel locks to protect
against theft. Only in this position can the
key be removed.
Push the key
5-2
Driving Your Mazda
Starting and Driving
Mazdaspeed6_8V77-EA-06F_Edition1 Page140
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (141,1)
WARNING
Remove the key only when the vehicle
is parked:
Removing the key from the ignition
switch while the vehicle is moving is
dangerous. Removing the key allows
the steering wheel to lock. You will
lose steering control and a serious
accident could occur.
Before leaving the driver's seat,
always set the parking brake and
make sure the shift lever is in 1 or R:
Leaving the driver's seat without
setting the parking brake and the shift
lever is dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
NOTE
If turning the key is difficult, jiggle the
steering wheel from side to side.
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-24).
NOTE
When the ignition switch is turned to
the ON position, the sound of the fuel
pump motor operating near the fuel
tank can be heard. This does not
indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the key; then
it returns to the ON position. The brake
warning light can be checked after the
engine is started (page 5-24).
qIgnition Key Reminder
If the ignition switch is in the LOCK or
ACC position with the key inserted, a
continuous beep sound will be heard
when the driver's door is opened.
Driving Your Mazda
Starting and Driving
5-3
Mazdaspeed6_8V77-EA-06F_Edition1 Page141
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (149,1)
Power Steering
Power steering is only operable when the
engine is running. If the engine is off or if
the power steering system is inoperable,
you can still steer, but it requires more
physical effort.
If the steering feels stiffer than usual
during normal driving, consult an
Authorized Mazda Dealer.
CAUTION
Never hold the steering wheel to the
extreme left or right for more than 5
seconds with the engine running.
This could damage the power steering
system.
All-Wheel Drive (AWD)
Operation
AWD provides excellent driveability on
snow-covered and ice-packed roads, sand
and mud, as well as on steep slopes and
other slippery surfaces.
qAWD Driving
This vehicle has not been designed for the
purpose of off-road driving or rallies. Do
not attempt to drive over uneven or rocky
surfaces, or across rivers.
Although this vehicle is equipped with
AWD, acceleration, steering and braking
operations should be conducted in the
same manner as with a non-AWD vehicle,
with the emphasis placed on safe driving.
qAWD Warning Light
This warning light stays on for a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the warning light will
illuminate or flash under the following
conditions:
lIlluminates when there is an
abnormality with the AWD system.
lFlashes when the differential oil
temperature is abnormally high.
Driving Your Mazda
Starting and Driving
5-11
Mazdaspeed6_8V77-EA-06F_Edition1 Page149
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (179,1)
NOTE
This defroster is not designed for
melting snow. If there is an
accumulation of snow on the rear
window, remove it before using the
defroster.

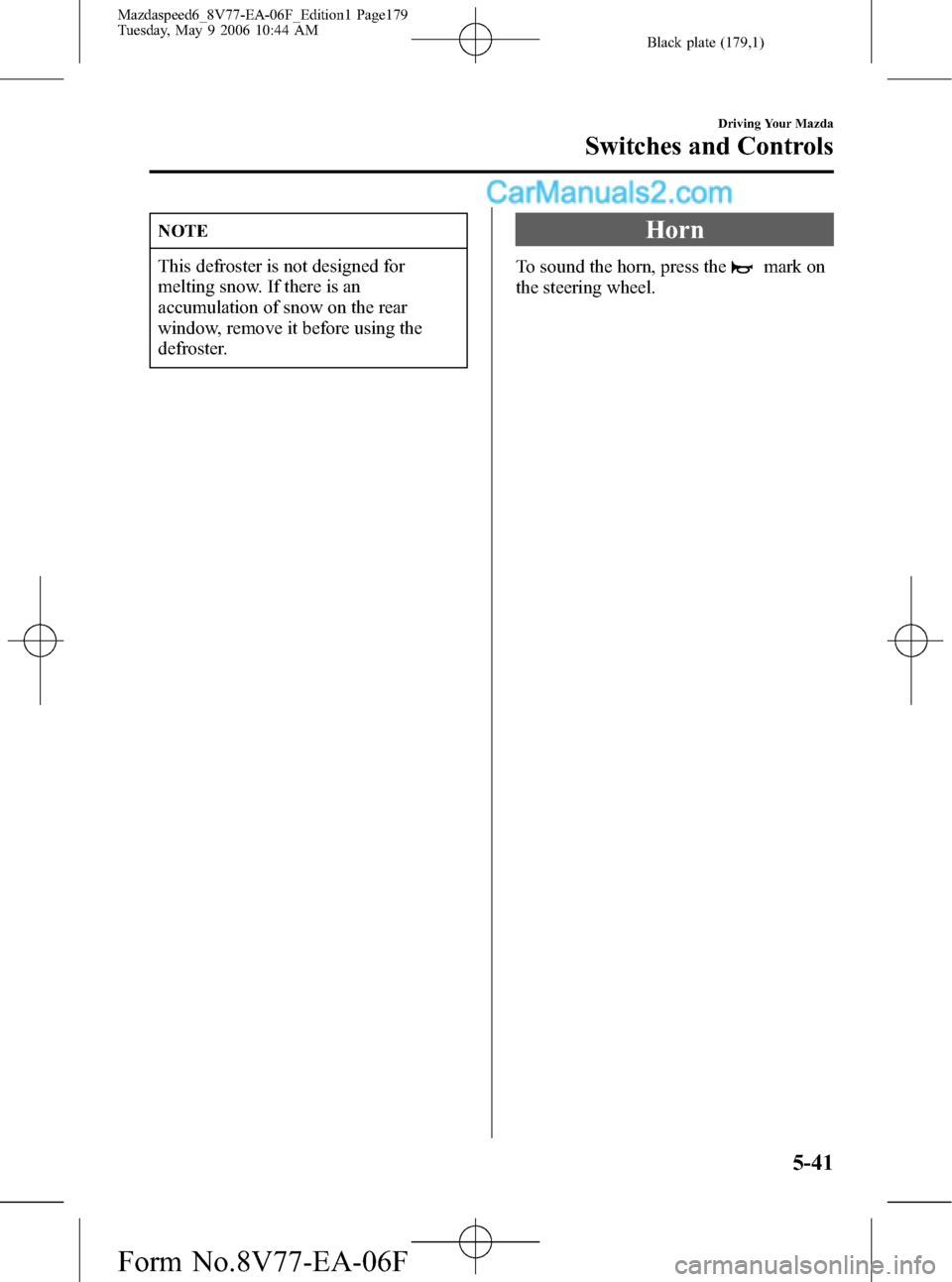

Horn
To sound the horn, press themark on
the steering wheel.
Driving Your Mazda
Switches and Controls
5-41
Mazdaspeed6_8V77-EA-06F_Edition1 Page179
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F

Black plate (181,1)
6Interior Comfort
Use of various features for drive comfort, including air-conditioning and audio
system.
Climate Control System ............................................................... 6-2
Operating Tips ........................................................................... 6-2
Vent Operation .......................................................................... 6-3
Control Panel ............................................................................ 6-5
Audio System ............................................................................... 6-10
Antenna ................................................................................... 6-10
Operating Tips for Audio System ........................................... 6-10
Audio Set ................................................................................ 6-21
Audio Control Switch Operation (Steering Wheel) ................ 6-37
Safety Certification ................................................................. 6-39
Interior Equipment ..................................................................... 6-40
Sunvisors ................................................................................. 6-40
Interior Lights ......................................................................... 6-40
Information Display ................................................................ 6-43
Lighter ..................................................................................... 6-45
Ashtray .................................................................................... 6-46
Cup Holder .............................................................................. 6-47
Bottle Holder ........................................................................... 6-48
Storage Compartments ............................................................ 6-49
Accessory Sockets .................................................................. 6-51
6-1
Mazdaspeed6_8V77-EA-06F_Edition1 Page181
Tuesday, May 9 2006 10:44 AM
Form No.8V77-EA-06F
