WARNING
Do not increase the total seated weight on the front passenger seat:
When an infant or small child sits on the front passenger seat, increasing the total
seated weight on the front passenger seat from the total seated weight of
approximately 30 kg (66 lb) is dangerous. The front passenger seat weight sensors will
detect the increased total seated weight, which could result in the unexpected
deployment of the front passenger front and side air bags and seat belt pretensioner
system in an accident and may cause serious injury. Increasing the total seated weight
on the front passenger seat beyond the total seated weight of approximately 30 kg (66
lb) could result in the front passenger front and side air bags and seat belt
pretensioner system deployment in an accident under the following conditions, for
example:
lLuggage or other items are placed on the seat with the child in the child-restraint
system.
lA rear passenger or luggage push or pull down on the front passenger seatback.lA rear passenger steps on the front passenger seat rails with the feet.lLuggage or other items are placed on the seatback or hung on the head restraint.lThe seat is washed.lLiquids are spilled on the seat.lThe front passenger seat is moved backward, pushing into luggage or other items
placed behind it.
lThe front passenger seatback contacts the rear seat.lLuggage or other items are placed between the front passenger seat and driver seat.lAny accessories which might increase the total seated weight on the front passenger
seat are attached to the front passenger seat.
The front passenger front and side air bags and seat belt pretensioner systems will
deactivate if the total seated weight on the front passenger seat is less than
approximately 30 kg (66 lb) and they will reactivate when the weight exceeds
approximately 42 kg (93 lb).
Essential Safety Equipment
SRS Air Bags
2-51
Mazdaspeed6_8V77-EA-06F_Edition1 Page63
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (68,1)
lVehicle roll-over may not provide
enough side force to deploy the side
and curtain air bags.
lSide impacts with two-wheeled
vehicles may not provide enough force
to deploy the side and curtain air bags.
Non-activation of side and curtain air
bag
The side and curtain air bags will not
normally inflate in the following cases:
lCollision from the rear.
lCollision from the front, but it may
deploy the front air bags.
qConstant Monitoring
The following components of the air bag
systems are monitored by a diagnostic
system:
lSAS unit
lFront air bag sensor
lAir bag modules
lSide crash sensors
lFront seat belt pretensioners
lRelated wiring
lDriver seat slide position sensor
lFront passenger seat weight sensors
lDriver and front passenger seat belt
buckle switches
The diagnostic module continuously
monitors the system's readiness. This
begins when the ignition switch is turned
to the ON position and continues while
the vehicle is being driven.
qAir Bag/Front Seat Belt
Pretensioner System Warning Light
If the air bag/front seat belt pretensioner
system is working properly, the warning
light illuminates when the ignition switch
is turned to the ON position or after the
engine is cranked. The warning light turns
off after a specified period of time.
2-56
Essential Safety Equipment
SRS Air Bags
Mazdaspeed6_8V77-EA-06F_Edition1 Page68
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (69,1)
A system malfunction is indicated if the
warning light constantly flashes,
constantly illuminates or does not
illuminate at all when the ignition switch
is turned to the ON position. If either of
these occur, consult an Authorized Mazda
Dealer as soon as possible. The system
may not work in an accident.
WARNING
Never tamper with the air bag/
pretensioner systems and always have
an Authorized Mazda Dealer perform
all servicing and repairs:
Self-servicing or tampering with the
systems is dangerous. An air bag/
pretensioner could accidentally
activate or become disabled causing
serious injury or death.
qMaintenance
The air bag systems do not require regular
maintenance. But if any of the following
occurs, take your vehicle to an Authorized
Mazda Dealer as soon as possible:
lThe air bag system warning light
flashes.
lThe air bag system warning light
remains illuminated.
lThe air bag system warning light does
not illuminate when the ignition switch
is turned to the ON position.
lThe air bags have deployed.
lFront passenger air bag deactivation
indicator light does not illuminate
when the ignition switch is turned to
the ON position or does not illuminate
as indicated in the chart. For more
details about this indicator light and
this chart, refer to“Front passenger
seat weight sensors”(page 2-48).
WARNING
Do not operate a vehicle with damaged
air bag/seat belt pretensioner system
components:
Expended or damaged air bag/seat
belt pretensioner system components
must be replaced after any collision
which caused them to deploy or
damage them. Only a trained
Authorized Mazda Dealer can fully
evaluate these systems to see that they
will work in any subsequent accident.
Driving with an expended or damaged
air bag or pretensioner unit will not
afford you the necessary protection in
the event of any subsequent accident
which could result in serious injury or
death.
Do not remove interior air bag parts:
Removing any components such as the
front seats, front dashboard, the
steering wheel or parts on the front
and rear window pillars and along the
roof edge, containing air bag parts or
sensors is dangerous. These parts
contain essential air bag components.
The air bag could accidentally activate
and cause serious injuries. Always
have an Authorized Mazda Dealer
remove these parts.
Essential Safety Equipment
SRS Air Bags
2-57
Mazdaspeed6_8V77-EA-06F_Edition1 Page69
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (70,1)

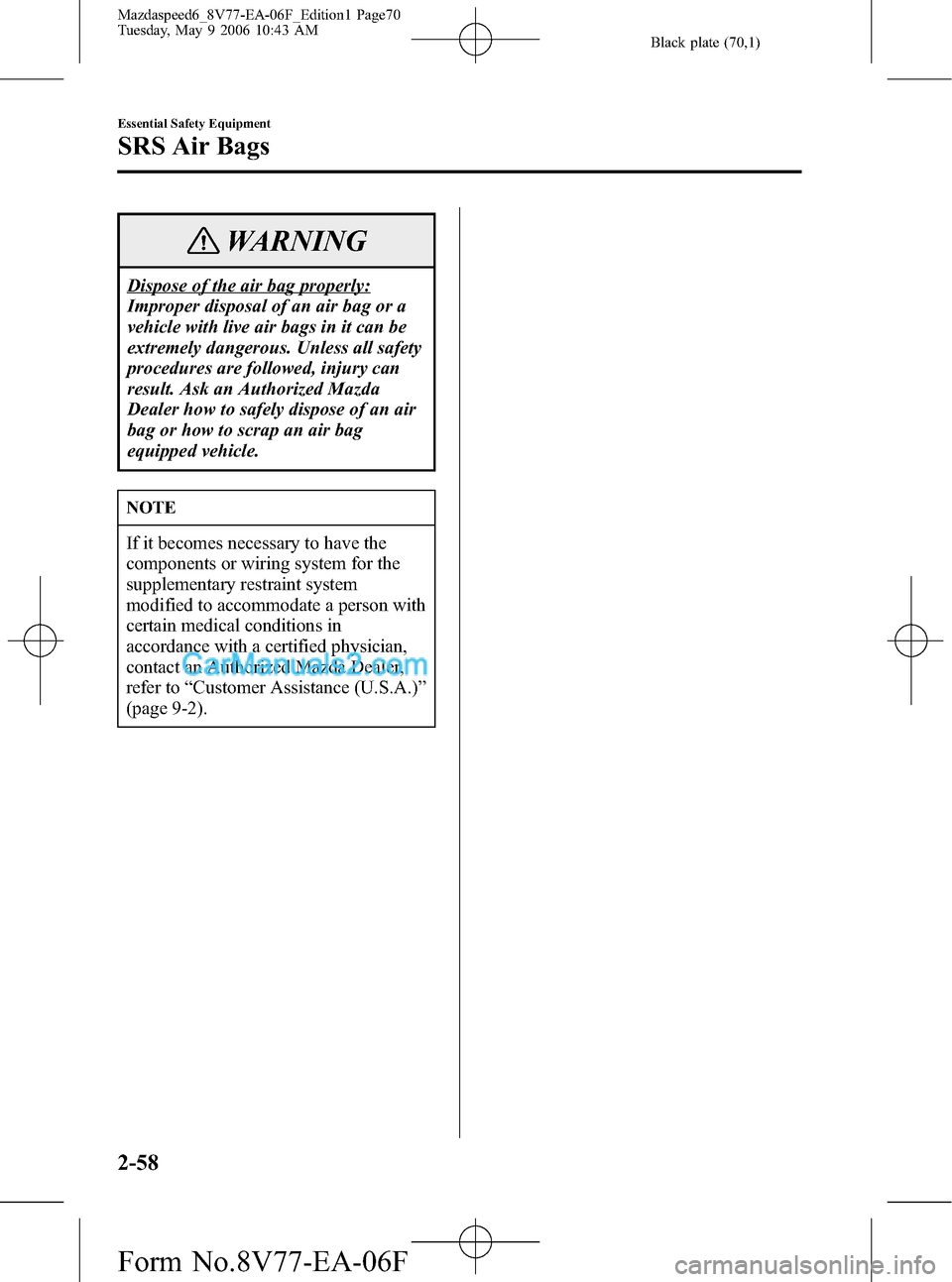

WARNING
Dispose of the air bag properly:
Improper disposal of an air bag or a
vehicle with live air bags in it can be
extremely dangerous. Unless all safety
procedures are followed, injury can
result. Ask an Authorized Mazda
Dealer how to safely dispose of an air
bag or how to scrap an air bag
equipped vehicle.
NOTE
If it becomes necessary to have the
components or wiring system for the
supplementary restraint system
modified to accommodate a person with
certain medical conditions in
accordance with a certified physician,
contact an Authorized Mazda Dealer,
refer to“Customer Assistance (U.S.A.)”
(page 9-2).
2-58
Essential Safety Equipment
SRS Air Bags
Mazdaspeed6_8V77-EA-06F_Edition1 Page70
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (71,1)
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Advanced Keyless Entry and Start System ................................ 3-2
Advanced Keysí...................................................................... 3-2
Operation Using Advanced Keyless Functions ......................... 3-7
Operation Using Advanced Key Functions ............................. 3-13
Warning and Beep Sounds ...................................................... 3-16
Setting Change (Function Customization) .............................. 3-18
When Warning Indicator/Beep is Activated ............................ 3-19
Doors and Locks ......................................................................... 3-20
Keys ........................................................................................ 3-20
Keyless Entry System (with Retractable Type Key) ............... 3-21
Door Locks ............................................................................. 3-26
Trunk Lid ................................................................................ 3-29
Inside Trunk Release Lever ..................................................... 3-32
Power Windows ...................................................................... 3-34
Fuel-Filler Lid and Cap ........................................................... 3-41
Hood ....................................................................................... 3-42
Moonroof
í............................................................................. 3-43
Security System ........................................................................... 3-46
Immobilizer System (with Advanced Key) ............................. 3-46
Immobilizer System (without Advanced Key) ........................ 3-49
Theft-Deterrent System ........................................................... 3-52
Steering Wheel and Mirrors ...................................................... 3-54
Steering Wheel ........................................................................ 3-54
Mirrors .................................................................................... 3-54
3-1íSome models.
Mazdaspeed6_8V77-EA-06F_Edition1 Page71
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (72,1)
Advanced Keysí
The advanced keyless functions (advanced keyless entry and start system) enables the
following operations while the advanced key is being carried (page 3-7).
lLocking/unlocking the doors and the trunk lid without operating the key.
lStarting the engine without operating the key.
The advanced key enables additional functions other than those with the advanced keyless
functions (page 3-13).
lThe following operations are possible using the keyless entry system from a distance
(Lock/Unlock/Panic button):
lLocking/unlocking the doors and the trunk lid.lOpening the power windows.lTurning on the alarm.
lLocking/unlocking the doors and the trunk lid, or starting the engine using the auxiliary
key.
WARNING
Do not leave the keys in your vehicle with children and keep them in a place where
your children will not find or play with them:
Leaving children in a vehicle with the key is dangerous. This could result in someone
being badly injured or even killed. These new kinds of keys are fascinating to
children. They could play with power windows or other controls, or even make the
vehicle move.
Radio waves from the advanced key may affect medical equipment such as
pacemakers:
Before using the advanced key near people who use medical equipment, ask the
medical equipment manufacturer or your physician if radio waves from the advanced
key will affect the equipment.
NOTE
lThe driver must carry the advanced key to ensure the system functions properly.
lRefer to Immobilizer System (page 3-46) for information regarding keys and engine
starting.
lRefer to Theft-Deterrent System (page 3-52) for information regarding keys and the
prevention of vehicle and vehicle contents theft.
3-2
Knowing Your Mazda
íSome models.
Advanced Keyless Entry and Start System
Mazdaspeed6_8V77-EA-06F_Edition1 Page72
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (74,1)
CAUTION
lBecause the advanced key uses low-intensity radio waves, it may not function
correctly under the following conditions:
lThe advanced key is carried with communication devices such as cellular phones.lThe advanced key contacts or is covered by a metal object.lThe advanced key is near electronic devices such as personal computers.lNon-Mazda genuine electronic equipment is installed in the vehicle.lThere is equipment which discharges radio waves near the vehicle.lIf the vehicle is near equipment such as wireless pay devices installed at certain gas
stations.
lThe advanced key may consume battery power excessively if it receives high-
intensity radio waves. Do not place the advanced key near electronic devices such as
televisions or personal computers.
lTo avoid damage to the advanced key, DO NOT:
lDrop the advanced key.lGet the advanced key wet.lDisassemble the advanced key.lExpose the advanced key to high temperatures on places such as the dashboard or
hood, under direct sunlight.
lPlace heavy objects on the advanced key.lPut the advanced key in an ultrasonic cleaner.lPut any magnetized objects close to the advanced key.
NOTE
lBattery life is about one year. Replace the battery when the KEY indicator light
(green) flashes in the instrument cluster.
Refer to Advanced Key Battery Dead Warning on page 3-17.
lAdditional advanced keys can be obtained at an Authorized Mazda Dealer. Up to 6
advanced keys can be used with the advanced keyless functions per vehicle.
3-4
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazdaspeed6_8V77-EA-06F_Edition1 Page74
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (78,1)
NOTE
lThe trunk is out of the operational
range, however, starting the engine
may be possible.
lThe engine may not start if the
advanced key is placed in the
following areas:
lAround the dashboardlIn the storage compartments such
as the glove box
lOn the rear parcel shelf
lStarting the engine may be possible
even if the advanced key is outside
of the vehicle and extremely close to
a door and window, however, always
start the engine from the driver's seat.
If the vehicle is started and the
advanced key is not in the vehicle,
the vehicle will not restart after it is
shut off and the ignition switch is
turned to the lock position.
lIf the advanced key is detected
within operational range, the
operation indicator light flashes
momentarily.
qLocking, Unlocking with Request
Switch
All doors and the trunk lid can be locked/
unlocked by pressing the request switch
on the front doors or the trunk lid while
the advanced key is being carried.
Front doors
Request switch
Trunk lid
Request switch
To lock
To lock the doors and the trunk lid, press
the request switch. A beep sound will be
heard once and the hazard warning lights
will flash once.
3-8
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazdaspeed6_8V77-EA-06F_Edition1 Page78
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (79,1)
To unlock
Driver's door request switch
To unlock the driver's door, press the
request switch. A beep sound will be
heard twice and the hazard warning lights
will flash twice.
To unlock all doors and the trunk lid,
press the request switch again within 5
seconds and two more beep sounds will
be heard.
Front passenger door/trunk lid request
switch
To unlock the doors and the trunk lid,
press the request switch. A beep sound
will be heard twice and the hazard
warning lights will flash twice.
NOTE
lThe request switch on the trunk lid
can also set so that it cannot be
unlocked with the valet key, refer to
Trunk Security (page 3-31).
lThe request switch on the driver's
door can be used to close the power
windows, refer to Opening/Closing
the Power Windows from Outside
(page 3-38).
lConfirm that all doors and the trunk
lid are securely locked.
lAll doors and the trunk lid cannot be
locked when any door or the trunk
lid is open.
lA beep sound is heard for
confirmation when the doors and the
trunk lid are locked/unlocked using
the request switch. If your prefer, the
beep sound can be turned off (page
3-18).
NOTE
lThe setting can be changed so that
the doors and the trunk lid are locked
automatically without pressing the
request switch (page 3-18).
(Auto-lock function)
A beep sound is heard when all
doors and the trunk lid are closed
while the advanced key is being
carried. All doors and the trunk lid
are locked automatically after about
3 seconds when the advanced key is
out of the operational range. Also,
the hazard warning lights flash once.
(Even if the driver is in the
operational range, all doors and the
trunk lid are locked automatically
after about 30 seconds.)
If you are out of the operational
range before the doors and the trunk
lid are completely closed or another
advanced key is left in the vehicle,
the auto-lock function will not work.
Always make sure that all doors and
the trunk lid are locked before
leaving the vehicle.
The auto-lock function does not
close the power windows.
lAfter unlocking doors and the trunk
lid by pressing the request switch, all
doors and the trunk lid will
automatically lock and the hazard
warning light will flash if any of the
following operations are not
performed within about 30 seconds.
lA door or the trunk lid is opened.lThe auxiliary key is inserted into
the ignition switch.
lThe start knob is pushed.
Knowing Your Mazda
Advanced Keyless Entry and Start System
3-9
Mazdaspeed6_8V77-EA-06F_Edition1 Page79
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F

Black plate (80,1)
qStarting the Engine
Ignition switch positions
Without a traditional key, some of the
ignition switch functions are different.
Start knob
LOCK (Released)
The steering wheel locks to help protect
against theft.
LOCK (Depressed)
The ignition switch can be turned to the
ACC position when the KEY indicator
light (green) illuminates in the instrument
cluster.
WARNING
Before leaving the driver's seat,
always set the parking brake and
make sure the shift lever is in 1 or R:
Leaving the driver's seat without
setting the parking brake and the shift
lever is dangerous. Unexpected vehicle
movement could occur. This could
cause an accident.
NOTE
If turning the ignition switch is difficult,
jiggle the steering wheel from side to
side.
ACC (Accessory)
The steering wheel unlocks and some
electrical accessories will operate.
NOTE
The Advanced Keyless Entry System
does not function in the ACC position,
and the doors will not lock/unlock even
if they have been locked manually or
the advanced key is carried away from
the vehicle.
ON
This is the normal running position after
the engine is started. The warning lights
(except brakes) should be inspected
before the engine is started (page 5-24).
NOTE
When the ignition switch is turned to
the ON position, the sound of the fuel
pump motor operating near the fuel
tank can be heard. This does not
indicate an abnormality.
START
The engine is started in this position. It
will crank until you release the start knob;
then it returns to the ON position. The
brake warning light can be checked after
the engine is started (page 5-24).
3-10
Knowing Your Mazda
Advanced Keyless Entry and Start System
Mazdaspeed6_8V77-EA-06F_Edition1 Page80
Tuesday, May 9 2006 10:43 AM
Form No.8V77-EA-06F
