maintenance MAZDA MODEL MPV 2002 (in English) User Guide

8-1
Form No. 8Q44-EA-01K
8Maintenance and Care
How to keep your Mazda in top condition.
Introduction
................................................................................. 8- 2
Introduction ............................................................................. 8- 2
Scheduled Maintenance
.............................................................. 8- 3
Scheduled Maintenance ........................................................... 8- 3
Owner Maintenance
.................................................................... 8- 6
Owner Maintenance Schedule ................................................. 8- 6
Owner Maintenance Precautions ............................................. 8- 7
Engine Compartment Overview .............................................. 8- 8
Engine Oil ................................................................................ 8- 9
Engine Coolant ........................................................................ 8-11
Brake Fluid .............................................................................. 8-13
Power Steering Fluid ............................................................... 8-14
Automatic Transaxle Fluid (ATF) ........................................... 8-15
Washer Fluid ............................................................................ 8-16
Body Lubrication ..................................................................... 8-17
Air Filter .................................................................................. 8-17
Wiper Blades ........................................................................... 8-18
Battery ..................................................................................... 8-22
Tires ......................................................................................... 8-23
Light Bulbs .............................................................................. 8-27
Fuses ........................................................................................ 8-33
Appearance Care
......................................................................... 8-38
How to Minimize Environmental Paint Damage ..................... 8-38
Exterior Care ........................................................................... 8-40
Interior Care ............................................................................ 8-43
J16L_EA.book Page 1 Friday, February 22, 2002 11:34 AM

8-2
Maintenance and Care
Form No. 8Q44-EA-01K
Introduction
Be extremely careful and prevent injury to yourself and others or damage to your vehicle
when using this manual for inspection and maintenance.
If you’re unsure about any procedure it describes, we strongly urge you to have a reliable
and qualified service shop perform the work, preferably an Authorized Mazda Dealer.
Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult an Authorized Mazda Dealer.
The owner should retain evidence that proper maintenance has been performed as
prescribed.
Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.
Any auto repair shop using parts equivalent to your Mazda’s original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Introduction
J16L_EA.book Page 2 Friday, February 22, 2002 11:34 AM

8-3
Maintenance and Care
Form No. 8Q44-EA-01K

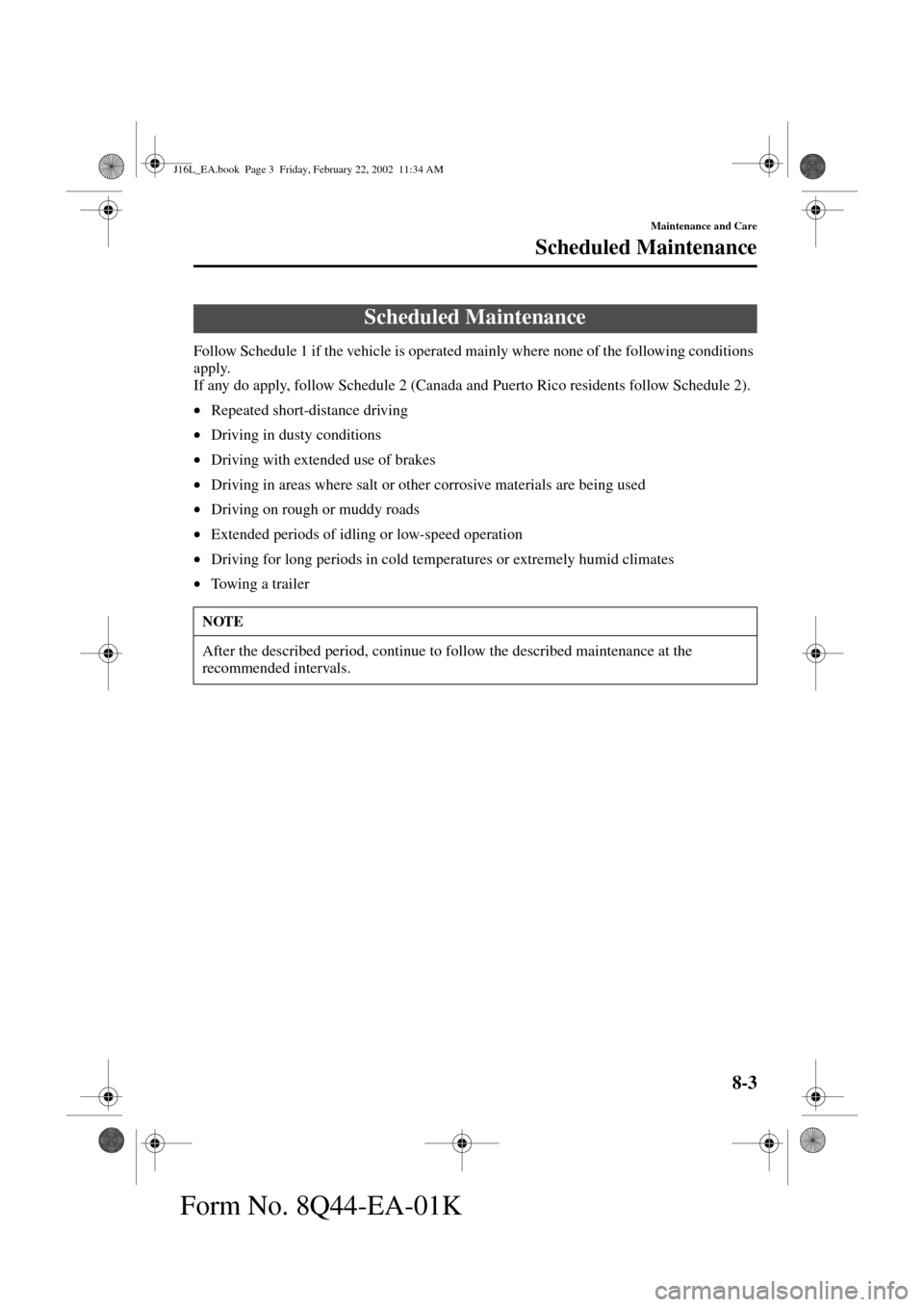

Scheduled Maintenance
Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
apply.
If any do apply, follow Schedule 2 (Canada and Puerto Rico residents follow Schedule 2).
•Repeated short-distance driving
•Driving in dusty conditions
•Driving with extended use of brakes
•Driving in areas where salt or other corrosive materials are being used
•Driving on rough or muddy roads
•Extended periods of idling or low-speed operation
•Driving for long periods in cold temperatures or extremely humid climates
•Towing a trailer
Scheduled Maintenance
NOTE
After the described period, continue to follow the described maintenance at the
recommended intervals.
J16L_EA.book Page 3 Friday, February 22, 2002 11:34 AM

8-4
Maintenance and Care
Scheduled Maintenance
Form No. 8Q44-EA-01K

Schedule 1
I
: Inspect and repair, clean, adjust, or replace if necessary.
(Oil-permeated air cleaner elements cannot be cleaned using the air-blow method.)
R
: Replace
L
:Lubricate
*
1According to state and federal regulations, failure to perform maintenance on these items will not void your
emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometrage (mileage) period to ensure long-term reliability. Maintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)Months 6 12182430364248
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
Engine oilRRRRRRRR
Engine oil filterRRRRRRRR
Drive belts II
PCV valve*
1I
Spark plugs (Platinum tipped type)Replace every 160,000 km (100,000 miles)
Air filterIR I
Fuel lines and hoses*
1II
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Brake lines, hoses and connectionsII
Brake fluidRR
Disc brakesII
Drum brakesII
Steering operation and linkagesII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLL
Refrigerant amountIIII
Compressor operationIIII
Cabin air filter (if equipped)Replace once a year or every 20,000 km (12,000 miles)
J16L_EA.book Page 4 Friday, February 22, 2002 11:34 AM

8-5
Maintenance and Care
Scheduled Maintenance
Form No. 8Q44-EA-01K

Schedule 2
I
: Inspect and repair, clean, adjust, or replace if necessary.
(Oil-permeated air cleaner elements cannot be cleaned using the air-blow method.)
R
: Replace L
: Lubricate
*
1According to state and federal regulations, failure to perform maintenance on these items will not void your
emissions warranties. However, Mazda recommends that all maintenance services be performed at the
recommended time or kilometrage (mileage) period to ensure long-term reliability.
*
2If the vehicle is operated under any of the following conditions, change the spark plugs every 96,000
km(60,000 miles) or shorter.
a) Repeated short-distance driving
b) Extended periods of idling or low-speed operation
c) Driving for long periods in cold temperatures or extremely humid climates
d) Towing a trailer Maintenance Interval
(Number of months or
kilometers (miles),
whichever comes first)Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
Engine oilPuerto RicoReplace every 5,000 km (3,000 miles) or 3 months
OthersRRRRRRRRRRRR
Engine oil filterRRRRRRRRRRRR
Drive belts II
PCV valve*
1I
Hoses and tubes for emission (Puerto Rico)I
Spark plugs (Platinum
tipped type)USAReplace every 96,000 km (60,000 miles)
Others*
2Replace every 160,000 km (100,000 miles)
Air filterPuerto RicoI R I R
OthersIR I
Fuel lines and hoses*
1I I
Cooling systemII
Engine coolantReplace at first 72,000 km (45,000 miles) or 36 months ;
after that, every 48,000 km (30,000 miles) or 24 months
Engine coolant levelIIIIIIIIIIII
Function of all lightsIIIIIIIIIIII
Brake lines, hoses and connectionsII
Brake fluidRR
Brake fluid level IIIIIIIIIIII
Disc brakesIIII
Drum brakes I I
Tire inflation pressure and tire wearIIIIIIIIIIII
Steering operation and linkagesII
Power steering fluid levelIIIIIIIIIIII
Front suspension ball jointsII
Driveshaft dust bootsII
Bolts and nuts on chassis and bodyIIII
Exhaust system heat shieldsII
All locks and hingesLLLLLLLLLLLL
Washer fluid levelIIIIIIIIIIII
Refrigerant amountIIII
Compressor operationIIII
Cabin air filter (if equipped)Replace once a year or every 20,000 km (12,000 miles)
J16L_EA.book Page 5 Friday, February 22, 2002 11:34 AM

8-6
Maintenance and Care
Form No. 8Q44-EA-01K
Owner Maintenance
The owner or a qualified service technician should make these vehicle inspections at the
indicated intervals to ensure safe and dependable operation.
Bring any problem to the attention of an Authorized Mazda Dealer or qualified service
technician as soon as possible.

When Refueling
•Brake fluid level (page 8-13)
•Engine coolant level (page 8-11)
•Engine oil level (page 8-9)
•Washer fluid level (page 8-16)

At Least Monthly
•Tire inflation pressures (page 8-23)

At Least Twice a Year (For Example, Every Spring and Fall)
•Automatic transaxle fluid level (page 8-15)
•Power steering fluid level (page 8-14)
You can do the following scheduled maintenance items if you have some mechanical
ability and a few basic tools and if you closely follow the directions in this manual.
•Air filter (page 8-17)
•Engine coolant (page 8-11)
•Engine oil (page 8-10)
Owner Maintenance Schedule
J16L_EA.book Page 6 Friday, February 22, 2002 11:34 AM

8-7
Maintenance and Care
Owner Maintenance
Form No. 8Q44-EA-01K
Improper or incomplete service may result in problems. This section gives instructions
only for items easy to perform.
As explained in the Introduction (page 8-2), several procedure can be done only by a
qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect warranty coverage.
For details, read the separate Mazda Warranty statement provided with the vehicle. If
you’re unsure about any servicing or maintenance procedure, have it done by an
Authorized Mazda Dealer.
There are strict environmental laws regarding the disposal of waste oil and fluids. Please
dispose of your waste carefully and with due regard to the environment.
We recommend that you entrust the oil and fluid changes of your vehicle to an Authorized
Mazda Dealer.
Owner Maintenance Precautions
Maintenance Procedures:
Performing maintenance work on a vehicle is dangerous if not done properly. You can
be seriously injured while performing some maintenance procedure. If you lack
sufficient knowledge and experience or the proper tools and equipment to do the
work, have it done by a qualified technician.
Running the Engine:
Working under the hood with the engine running is dangerous. It becomes even more
dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
Therefore, if you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and necklaces) and
all neckties, scarves, and similar loose clothing before getting near the engine or
cooling fan.
Electrical Fan and Engine Inspection:
Inspecting the engine with the ignition switch in the ON position is dangerous. The
cooling fan could come on unexpectedly even when the engine isn’t running. You
could be seriously injured by the fan. Turn the ignition switch off and remove the key
from the ignition switch when you inspect the engine.
WARNING
J16L_EA.book Page 7 Friday, February 22, 2002 11:34 AM

8-8
Maintenance and Care
Owner Maintenance
Form No. 8Q44-EA-01K
Engine Compartment Overview
Automatic transaxle fluid-level dipstick
Cooling system cap
Engine coolant reservoir
Power steering
fluid reservoir
Windshield washer
fluid reservoir
Engine oil dipstick Engine oil-filler cap
Engine oil filterBatteryFuse blockAir filter Brake fluid reservoir
J16L_EA.book Page 8 Friday, February 22, 2002 11:34 AM

8-9
Maintenance and Care
Owner Maintenance
Form No. 8Q44-EA-01K

Recommended Oil
Oil container labels provide important
information.
The quality designation SL
or ILSAC

must be on the label.
Engine oil viscosity, or thickness, has an
effect on fuel economy and cold-weather
operation (starting and oil flow).
Low-viscosity engine oils can provide
improved fuel economy and cold-weather
performance.
But high-temperature weather conditions
require higher-viscosity engine oils for
satisfactory lubrication.When choosing an oil, consider the
temperature range your vehicle will
operate in before the next oil change.
Then select the recommended viscosity
from this chart.
Energy conserving oils are recommended.
A chief contribution they make to fuel
economy is reducing the amount of fuel
necessary to overcome engine friction.

Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait 5 minutes for the
oil to return to the oil pan.
4. Pull out the dipstick, wipe it clean, and
reinsert it fully.
Engine Oil
FORGASOLINEENGINES
(ILSAC)
–30–20–100 1020304050
–20 0 20 40 60 80 100 120
5W-20
Using oils of viscosity besides those
recommended for specific temperature
ranges could result in engine damage.
CAUTION
MIN MAX
Full
LowOK
J16L_EA.book Page 9 Friday, February 22, 2002 11:34 AM

8-10
Maintenance and Care
Owner Maintenance
Form No. 8Q44-EA-01K
5. Pull it out again and examine the level.
It’s OK between MIN and MAX.
But if it’s near at or below MIN, add
enough oil to bring the level to MAX.
6. Make sure the O-ring is positioned
properly before reinserting the
dipstick.

Changing Engine Oil and Filter
Change engine oil and filter according to
Scheduled Maintenance (page 8-3).
Please act responsibly—protect the
environment and take used oil to a
recycling facility. Ask your dealer or a
service station for information.Changing engine oil
1. Warm up the engine for a few minutes
and turn it off. Remove the oil-filler
cap.
2. Remove the drain plug and drain the oil
into a suitable container.
3. Replace the plug tightly after the oil
has thoroughly drained.
4. Fill the engine with new oil to the
MAX mark on the dipstick.
5. Securely replace the oil-filler cap.
6. Start the engine and inspect around the
drain plug for leaks.
7. Turn it off and wait 5 minutes for the
oil to return to the oil pan. Don’t add engine oil over MAX. This
may cause engine damage.
Handling Used Engine Oil:
Continuous contact with used engine
oil is dangerous. It could cause skin
cancer. Always wash with soap and
water immediately after changing oil
and filter.
Remove oil splatter from the exhaust
manifold, the exhaust pipe and the
shield. Oil left on these areas will
smoke when the engine is running.
CAUTION
WARNING
CAUTION
Checking or Changing Engine Oil:
Hot engine oil is dangerous. If the
engine has been running, the engine
oil becomes very hot. You could be
seriously burned. Don’t check or
change the engine oil when the
engine is hot.
WARNING
Tighten
Loosen
Front
Drain plug
J16L_EA.book Page 10 Friday, February 22, 2002 11:34 AM
